Product Description

Integrated Sewage Treatment Plant

The STP system is an all-in-one wastewater treatment unit developed for efficient and stable sewage purification in a compact format. By integrating multiple treatment stages into a single modular structure, the system is capable of treating a wide range of wastewater sources while maintaining consistent effluent quality. It combines mechanical separation, biological degradation, and advanced purification methods to effectively remove organic pollutants, suspended solids, nutrients, and harmful microorganisms.
Model NO.
NS-297
Type
Sewage Treatment
Method
Biological Treatment
Usage
Industrial, Home, Agriculture, Hospital, etc.
Material
Carbon Steel, Stainless Steel, Fiberglass
Service Life
30 Years
Capacity
10-5000m³ Per Day
System
PLC Control Cabinet

Key Specifications

⚙️

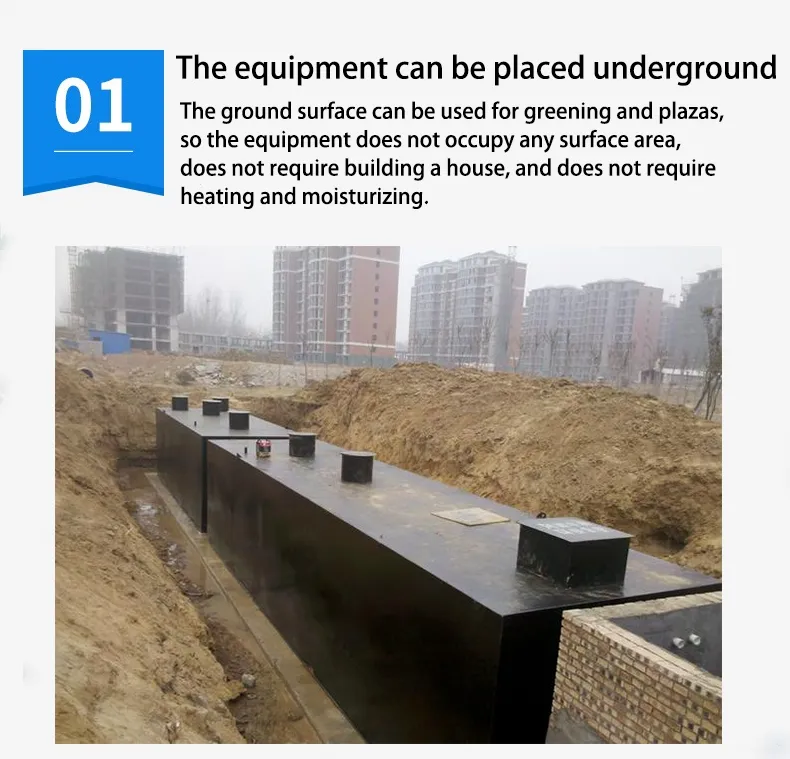

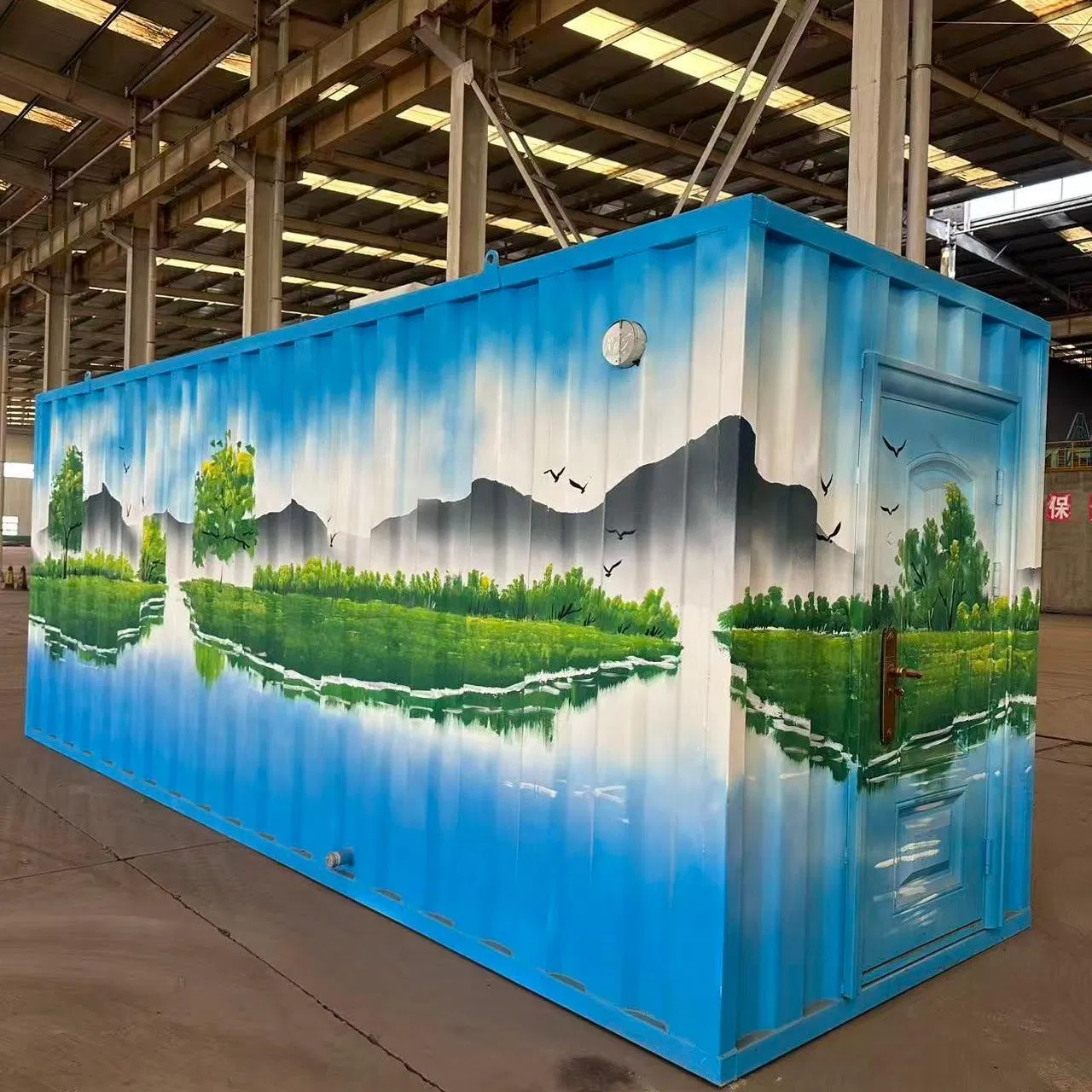

Flexible Installation: Can be placed above ground, underground, or in containerized mobile units to save space and reduce civil construction costs.
System capacity and treatment processes are customized based on influent water quality and flow rate to ensure compliant effluent discharge. The equipment is equipped with a PLC-based automatic control system, enabling unattended operation.

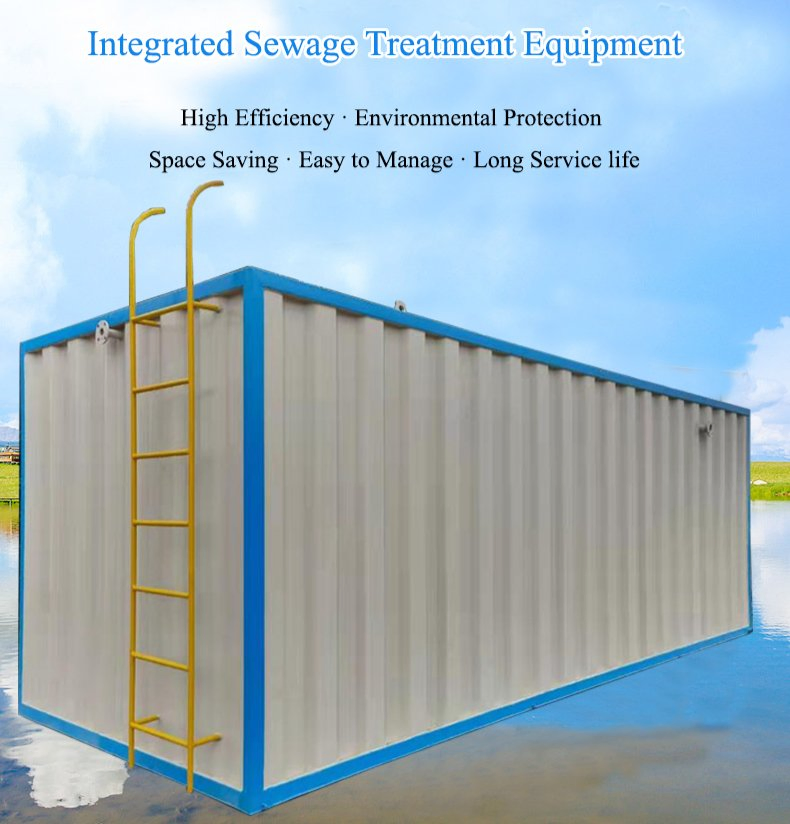

Sewage treatment equipment
Wastewater Purification System

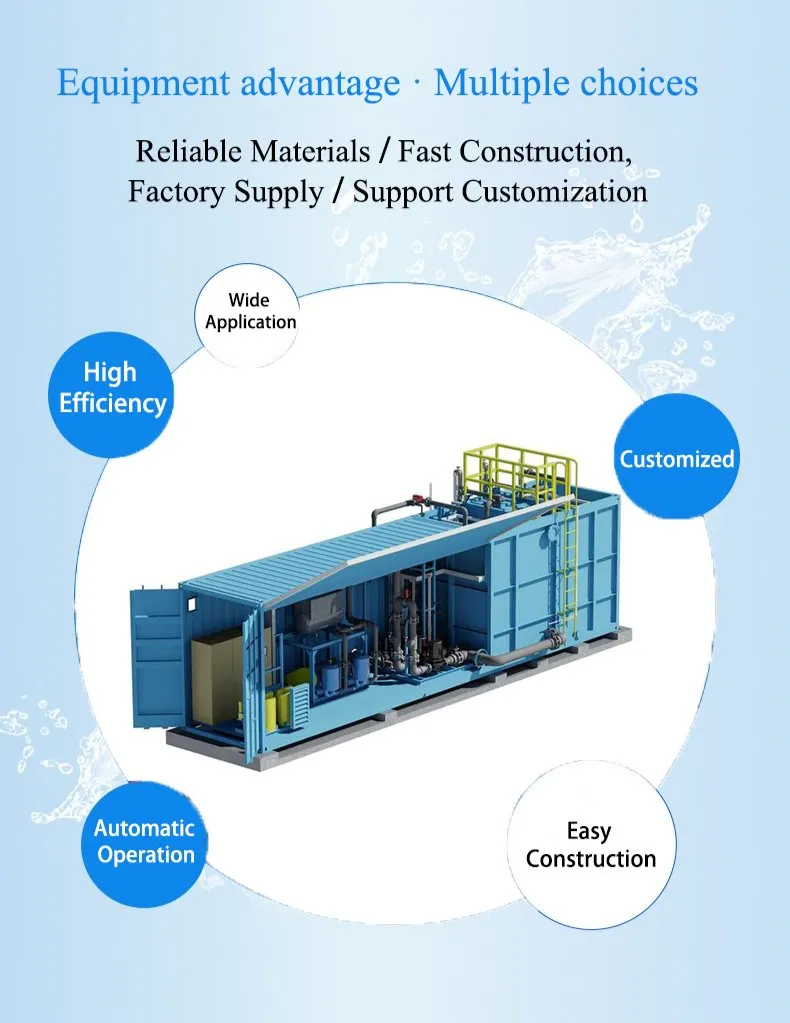

Modular Sewage Unit

Technical Parameters

Item NS-1 NS-2 NS-3 NS-4 NS-5 NS-6 NS-7 NS-8
Capacity (m³/h) 1 3 5 7.5 10 15 20 30
Primary Settling (m³) 1.8 5.5 9 14 18 27 36 50
Contact Oxidation (m³) 5 14.5 24 36 44 63 83 130
Total Weight (t) 5.5 6.5 8 11 17 20 21 29
Occupy Area (m²) 6 14 20 30 50 65 75 115

Sewage Treatment Process

1
Screening: Preliminary unit intercepts bulky materials like plastics and solids to prevent blockages.
2
Regulating: Evening out variations in flow volume and pollutant concentration.
3
Anaerobic/Anoxic: Breaking down complex organic compounds and removing nitrogen/phosphorus.
4
Aerobic Tank: Continuous aeration allows microorganisms to oxidize organic pollutants (COD/BOD).
5
Disinfection: Final UV or chemical dosing to eliminate pathogenic microorganisms.

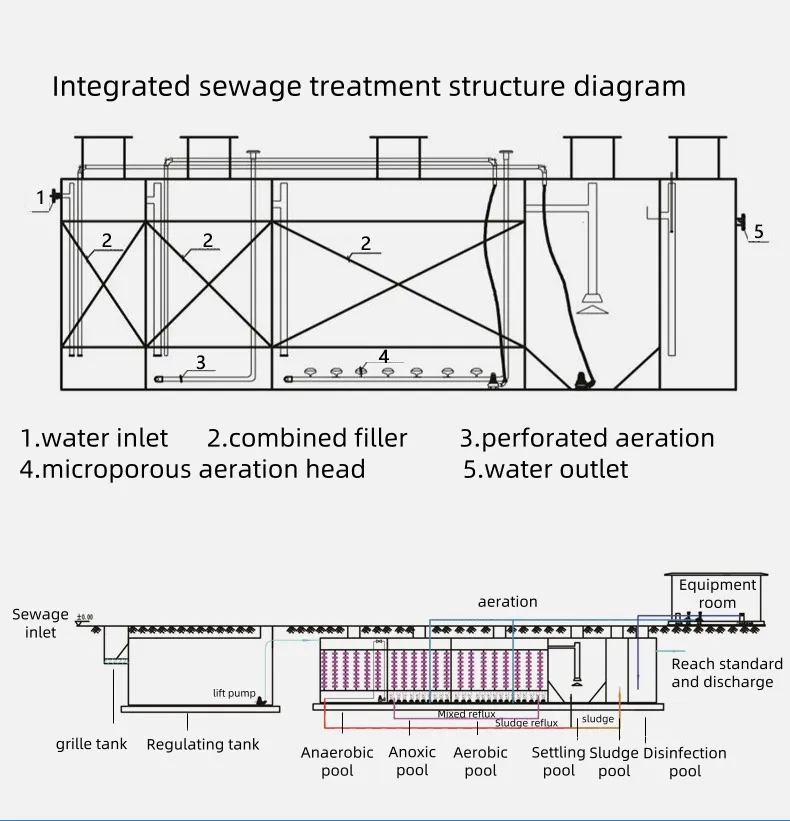

Treatment Process Diagram

Wide Range of Applications

Our systems are widely used for domestic sewage management in residential compounds, rural areas, schools, hotels, and hospitals. It is also highly effective for industrial effluent from food plants, laboratories, and manufacturing workshops.
Industrial Application
Community Application
Application Scenarios

Manufacturing & Production

With over 100 sets of processing machines and a dedicated team of engineers, we provide integrated solutions for sewage treatment, water purification, and waste incineration. Our production facility ensures stable output capacity and efficient order fulfillment for global environmental projects.
Factory Workshop
Testing Area

Frequently Asked Questions

How can I place an order for your equipment?
Simply send us an inquiry through the platform. Our sales team will review your requirements, discuss project details such as application and capacity, and provide a technical solution.
Do you support OEM or customized manufacturing?
Yes. We offer OEM and ODM services. Product design, specifications, and branding can be customized to meet your specific project requirements.
What is the typical lead time for production?
Production time depends on the product type and quantity. In most cases, standard equipment can be completed within approximately 3–4 weeks after confirmation.
What warranty do you provide for the equipment?
All equipment is covered by a one-year warranty starting from the date of delivery. We provide technical support and guidance during this period.
How is installation handled after delivery?
Detailed installation manuals and instructions are provided. If on-site assistance is required, we can arrange an engineer to visit (related travel costs are borne by the buyer).
What discharge standards can the equipment meet?
The system can be configured to meet various standards including Class A, urban discharge, or municipal reuse requirements depending on the selected process (AO, MBR, etc.).
