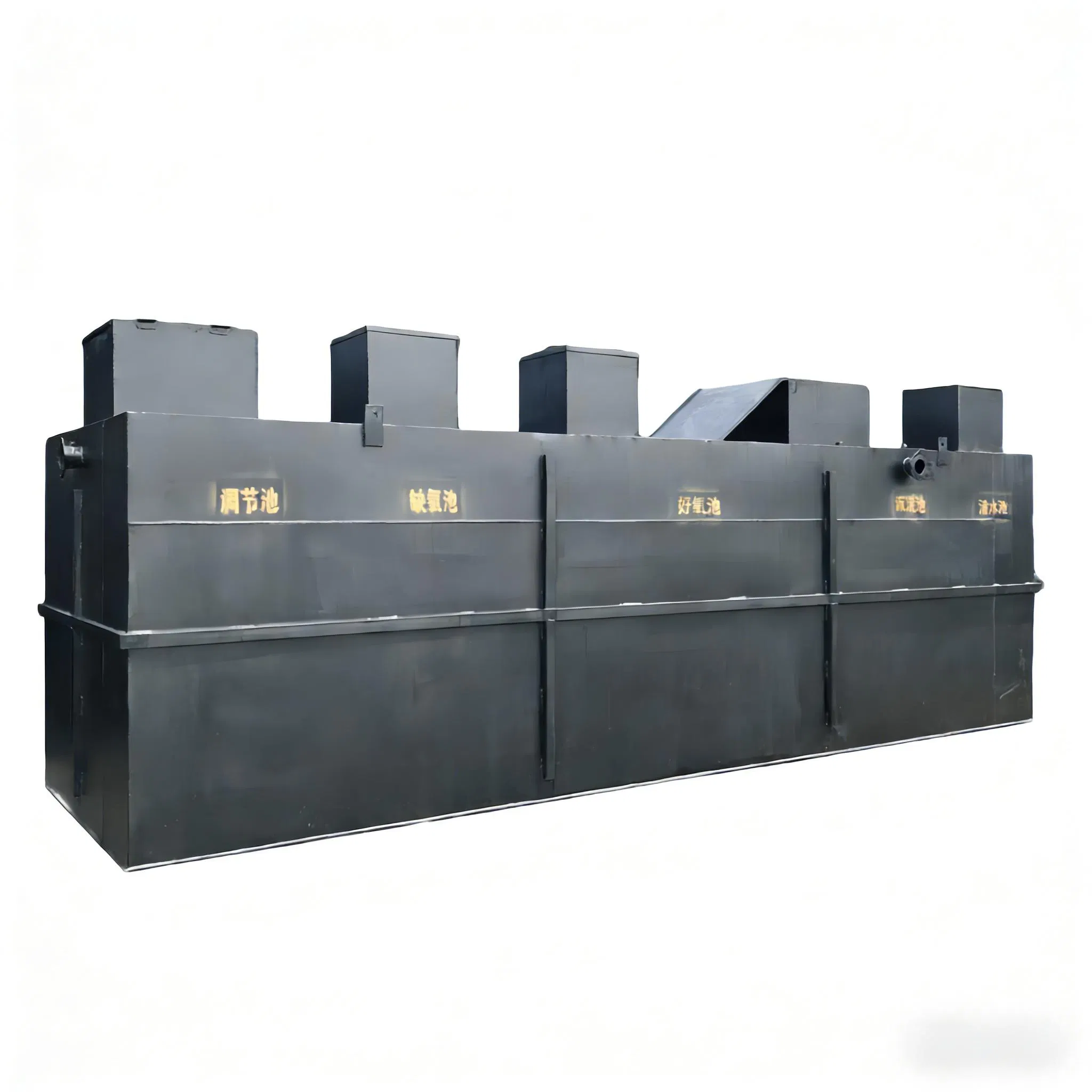

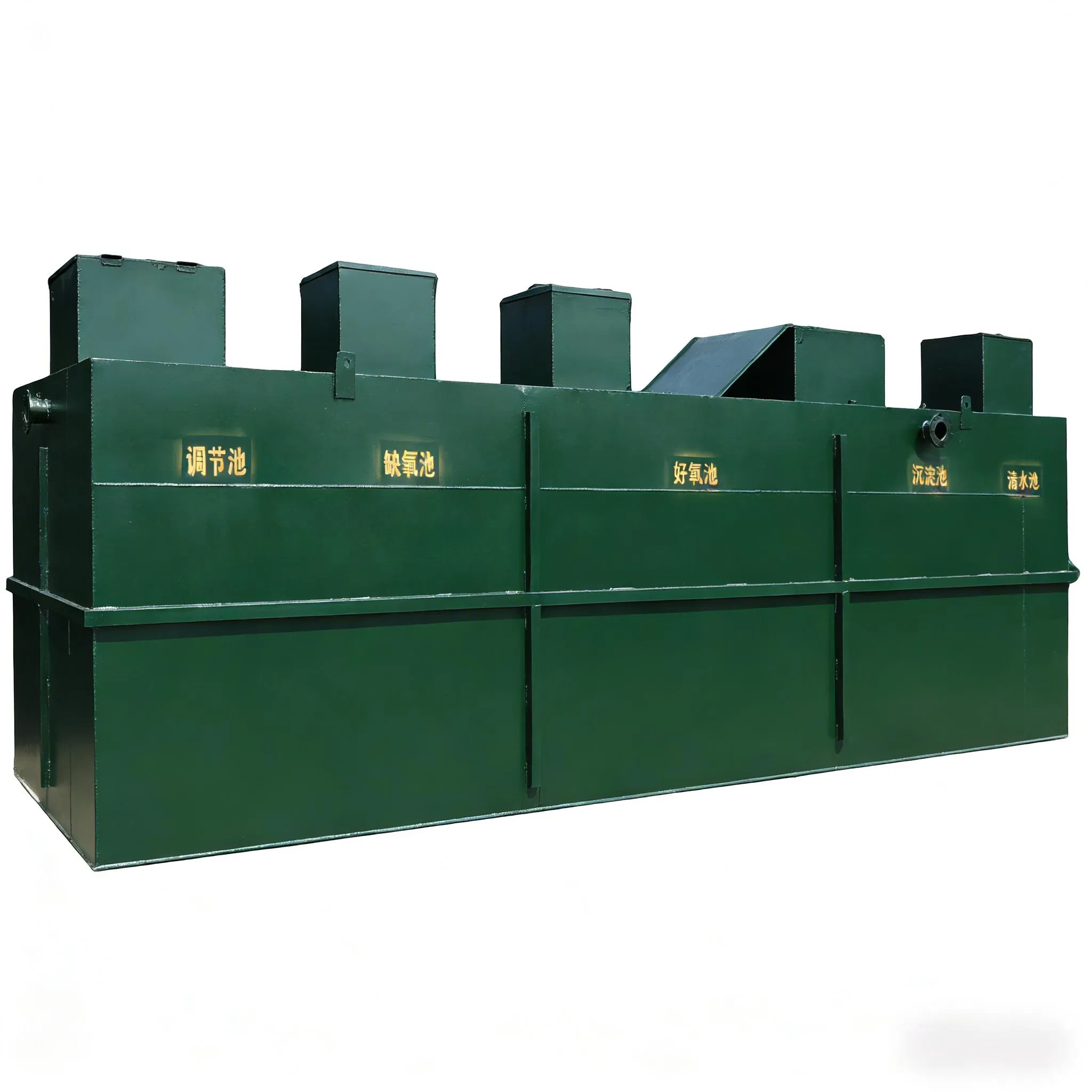

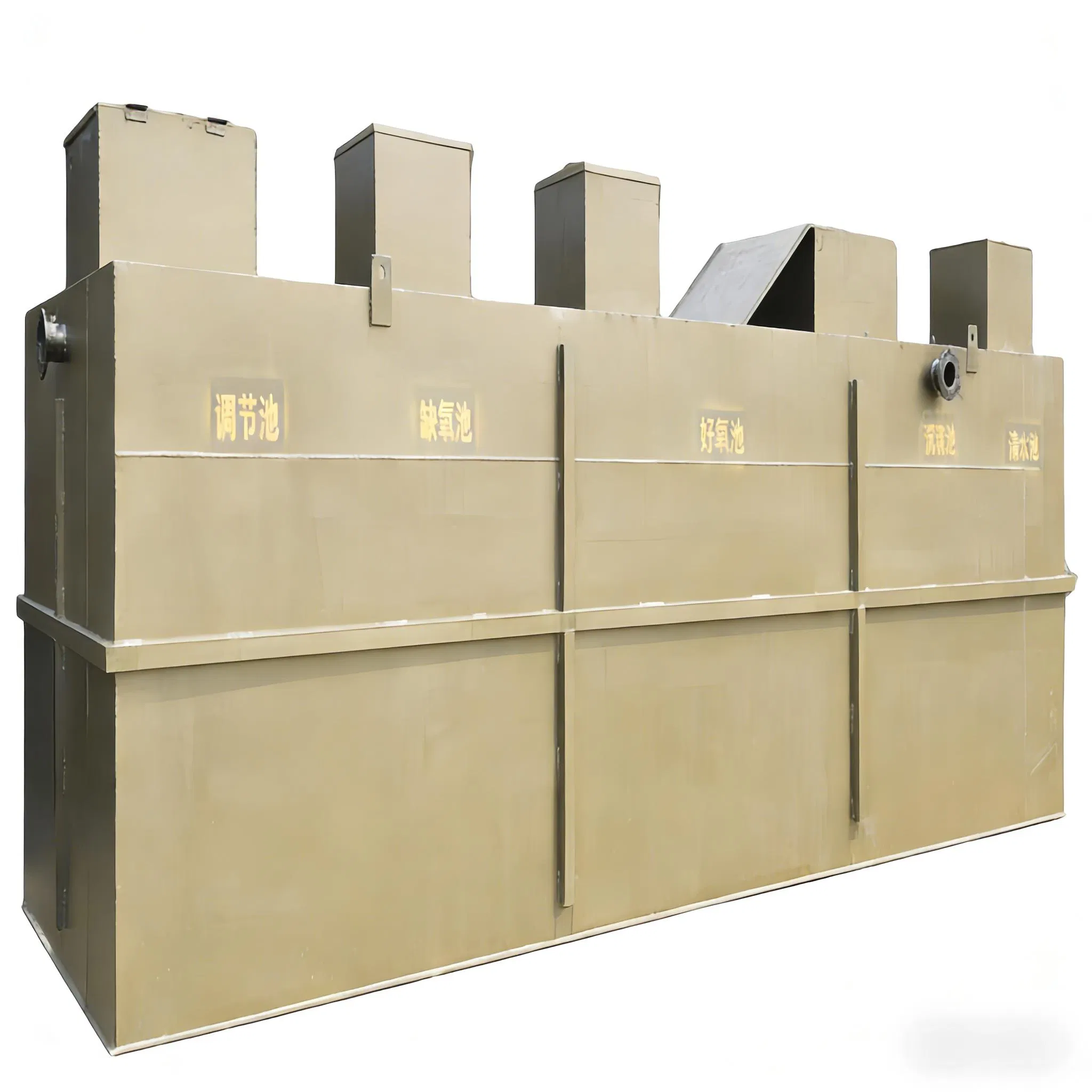

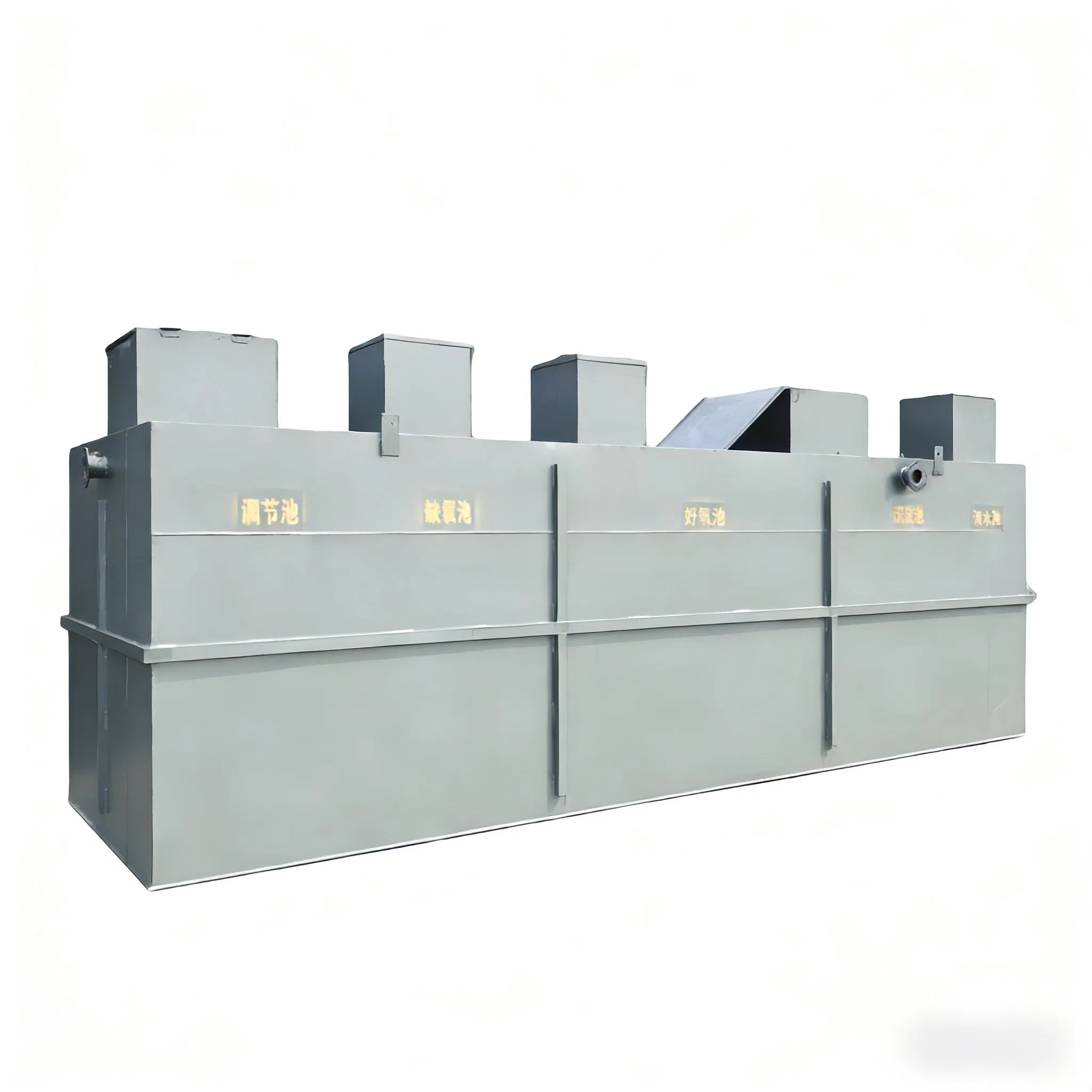

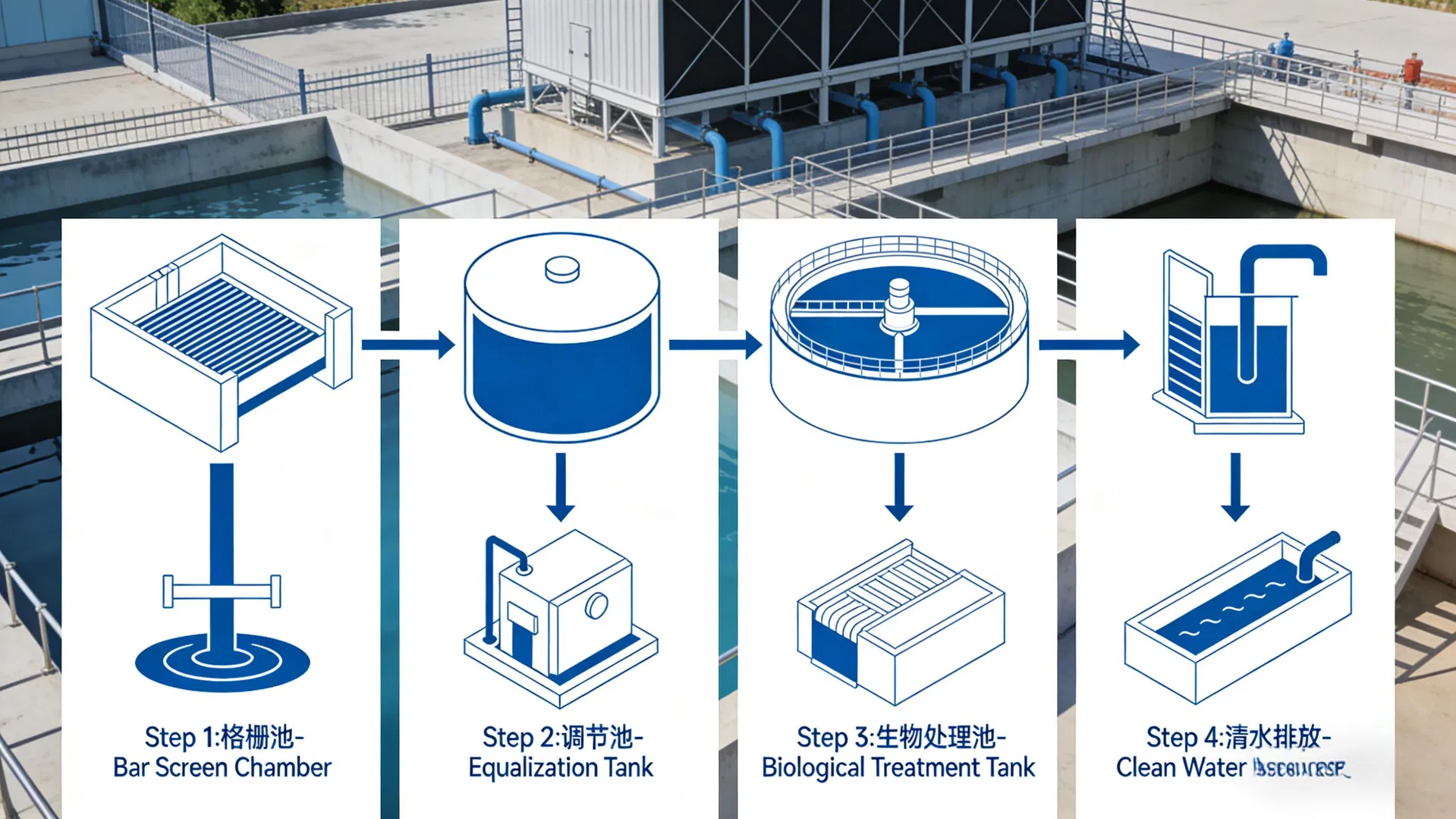

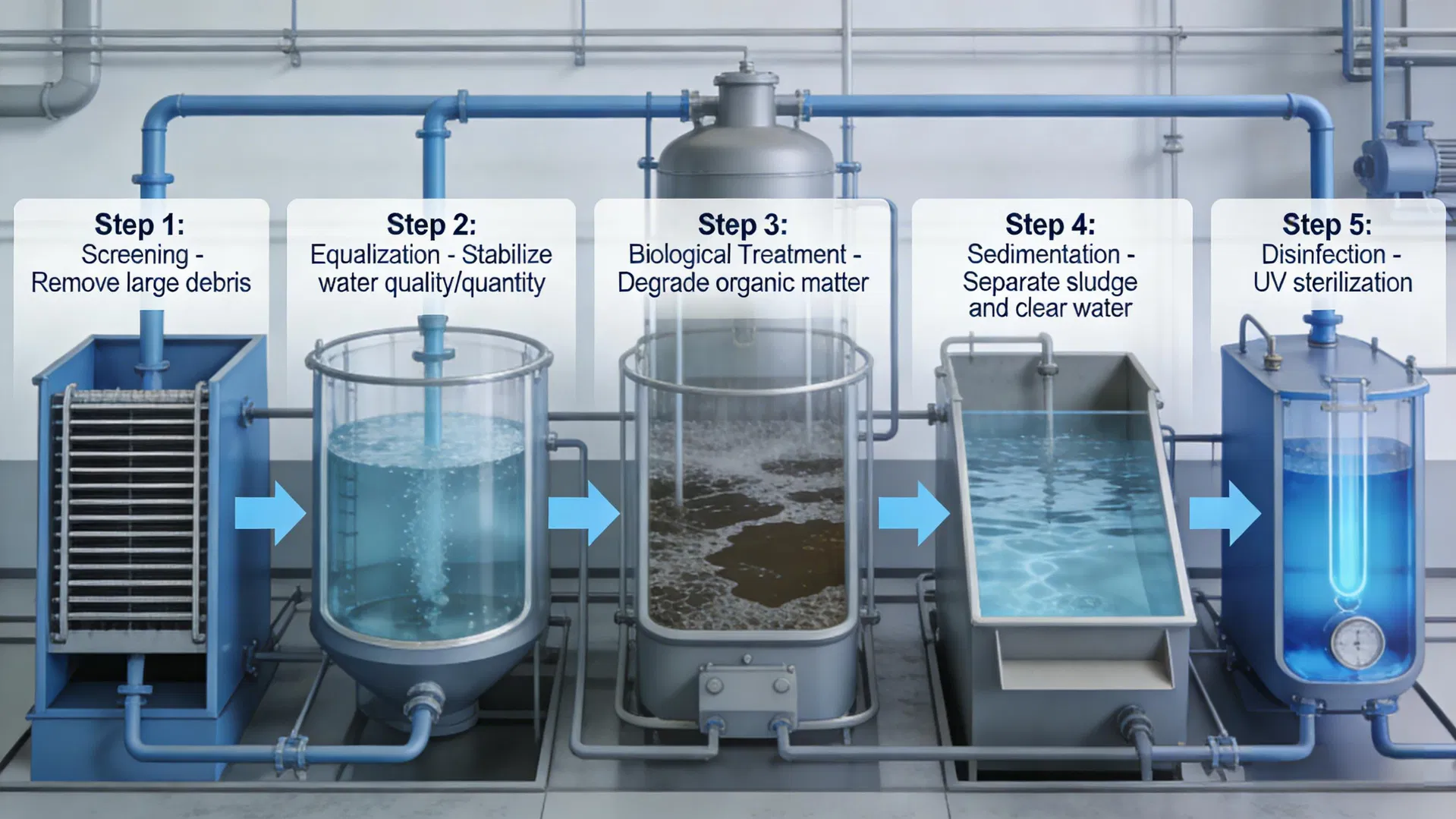

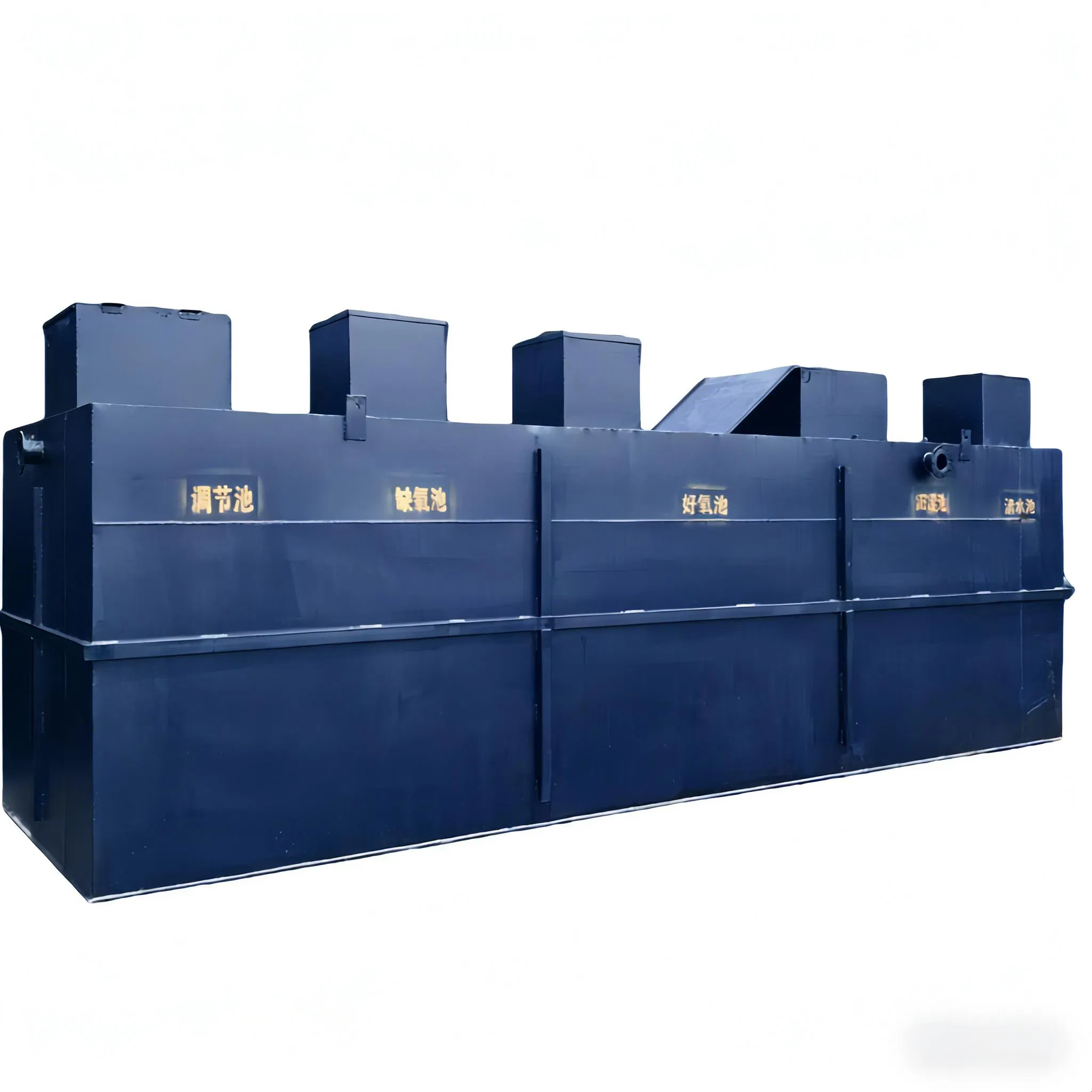

Integrated sewage treatment equipment is a complete set of environmental protection equipment integrating grilles, sedimentation, biochemical reaction, disinfection and other sewage treatment core processes into an integral box.
It features a compact structure, small footprint, convenient installation, and simple operation. It can directly treat domestic sewage as well as small and medium-sized industrial organic wastewater.
The effluent meets corresponding discharge standards, making it ideal for decentralized scenarios such as communities, villages, scenic spots, factories, and residential accommodation. Specifications can be customized according to water quantity and quality. Supports buried or open-air installation methods.

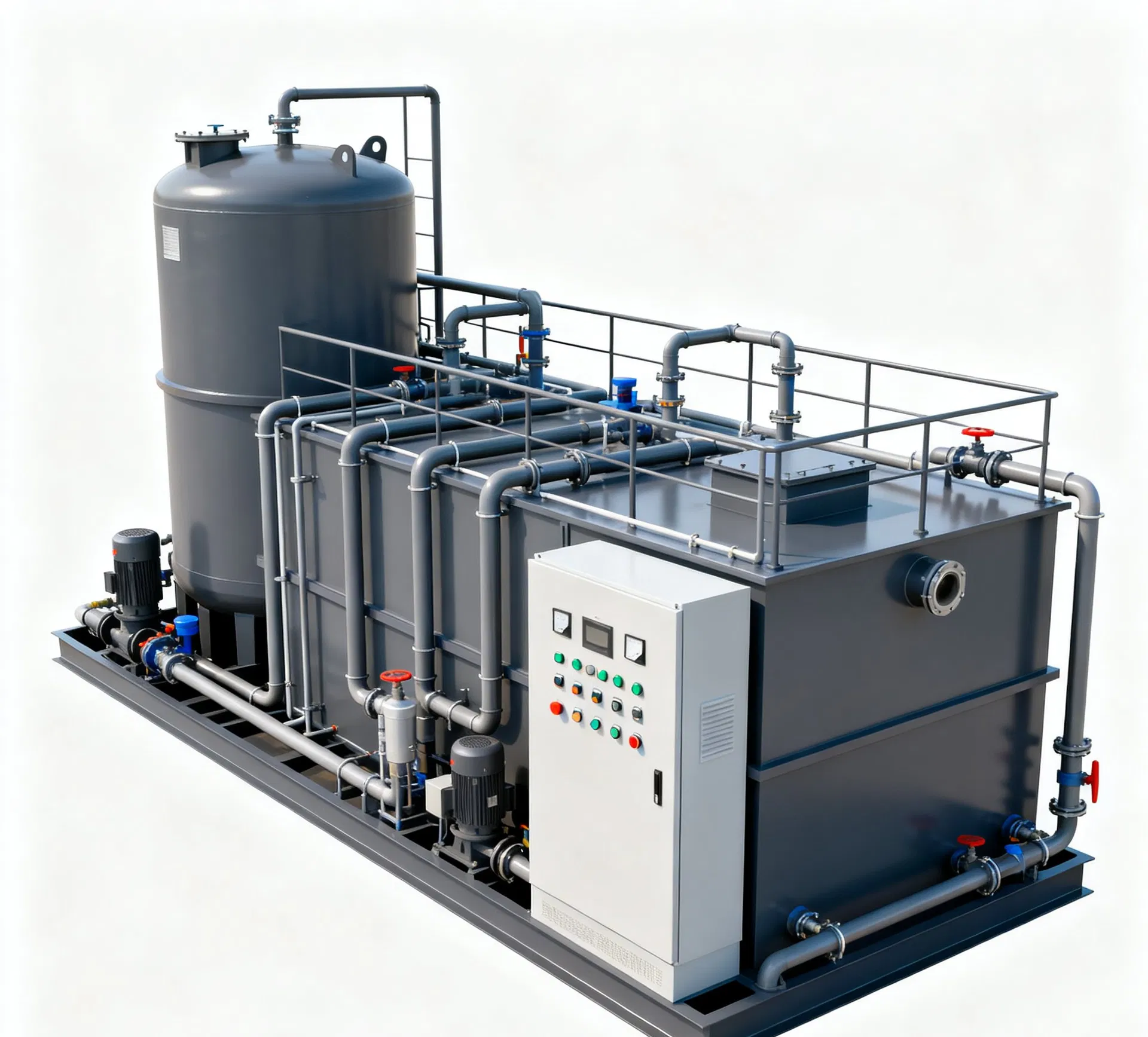

Common sewage treatment equipment processes include conventional MBBR process and MBR membrane process. They are typically composed of:
| Capacity (T/D) | Equipment Dimensions (m) | Conventional MBBR Configuration | MBR Membrane Configuration |
|---|---|---|---|
| 5 | 3.5*1.5*1.7m | 1 lifting pump, 1 fan, 1 return device, 1 disinfection, PLC | 1 lift, 1 fan, 1 return, 1 sludge, 1 suction, 1 backwash, disinfection, PLC |
| 10 | 4.0*2.0*2.2m | 1 lifting pump, 1 fan, 1 return device, 1 disinfection, PLC | 1 lift, 1 fan, 1 return, 1 sludge, 1 suction, 1 backwash, disinfection, PLC |
| 20 | 6.0*2.0*2.2m | 1 lifting pump, 1 fan, 1 return device, 1 disinfection, PLC | 1 lift, 1 fan, 1 return, 1 sludge, 1 suction, 1 backwash, disinfection, PLC |
| 50 | 11.5*2.0*2.2m | 2 lifting pumps, 2 fans, 1 return, 1 sludge, 1 disinfection, PLC | 2 lifting pumps, 2 fans, 1 return, 1 sludge, 2 suction, 1 backwash, PLC |
| 100 | 11.5*2.0*2.2m (x2) | 2 lifting pumps, 2 fans, 1 return, 1 sludge, 1 disinfection, PLC | 2 lifting pumps, 2 fans, 2 return, 1 sludge, 2 suction, 1 backwash, PLC |
| 200 | 11.5*2.0*2.2m (x3) | 2 lifting pumps, 2 fans, 2 return, 1 sludge, 1 disinfection, PLC | 2 lifting pumps, 2 fans, 2 return, 1 sludge, 2 suction, 1 backwash, PLC |
| 400 | 11.5*2.0*2.2m (x8) | 2 lifting pumps, 2 fans, 2 return, 1 sludge, 1 disinfection, PLC | 2 lifting pumps, 2 fans, 2 return, 1 sludge, 2 suction, 1 backwash, PLC |
