Product Description

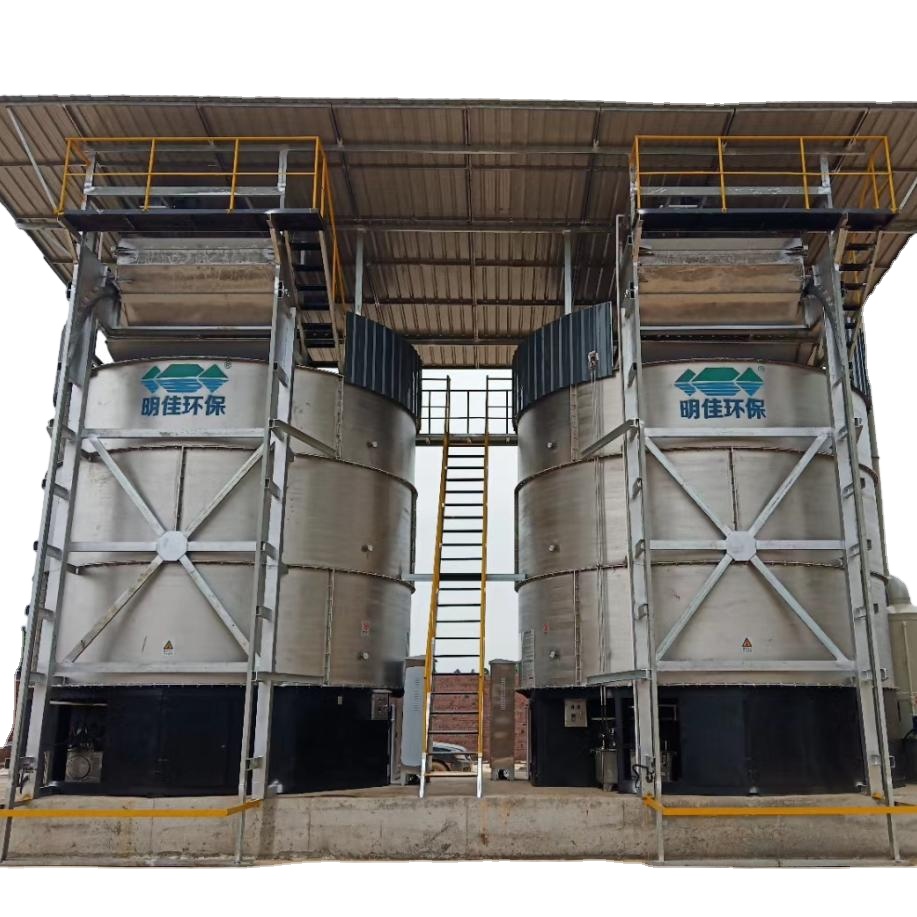

Agriculture Machinery Equipment - Organic Waste Composting Machine

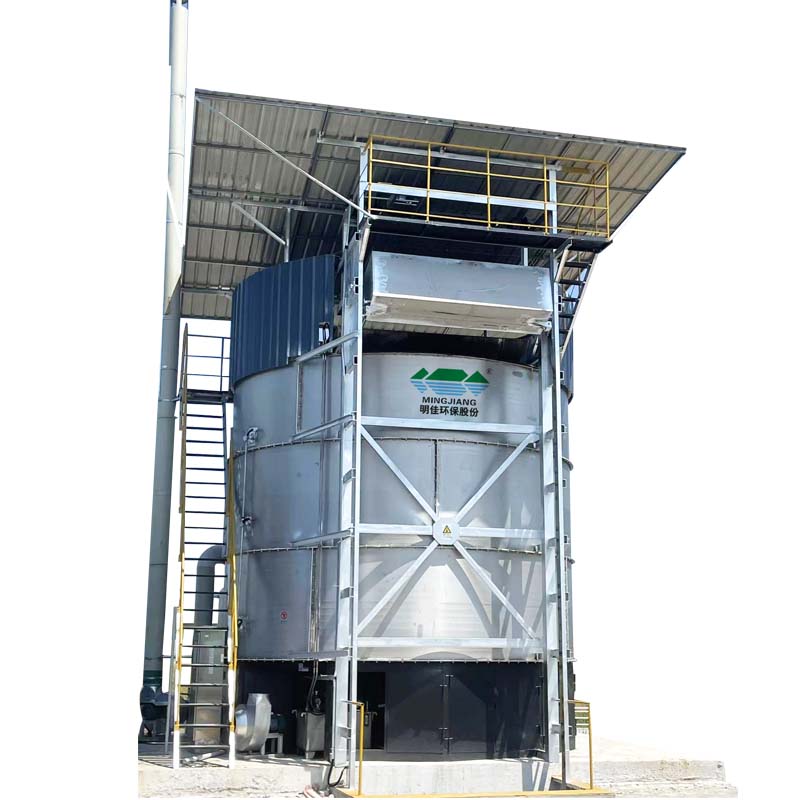

Organic Fertilizer Fermentation Tank
Introduction

The organic fertilizer fermentation tank is a vertical sealed structure that adopts the high-temperature aerobic fermentation principle. It is composed of an automatic lifting system, fermentation cabin, hydraulic drive system, deodorization system, and a microcomputer control box. Between two layers, it is filled with high-density polyurethane thermal insulation to effectively keep the temperature inside the tank stable and improve fermentation efficiency.

The raw material is put directly into the tank with an automatic lifting hopper. The machine is easily operated via microcomputer or controlled by mobile phone. It is mainly used for disposing of livestock and poultry manure and residual sludge from sewage treatment plants, achieving harmless, stable, energy-saving resource utilization. Suitable for pig, cow, and chicken farms. After fermentation, moisture is about 20%-30%, ready for packing and transport.

Product Details

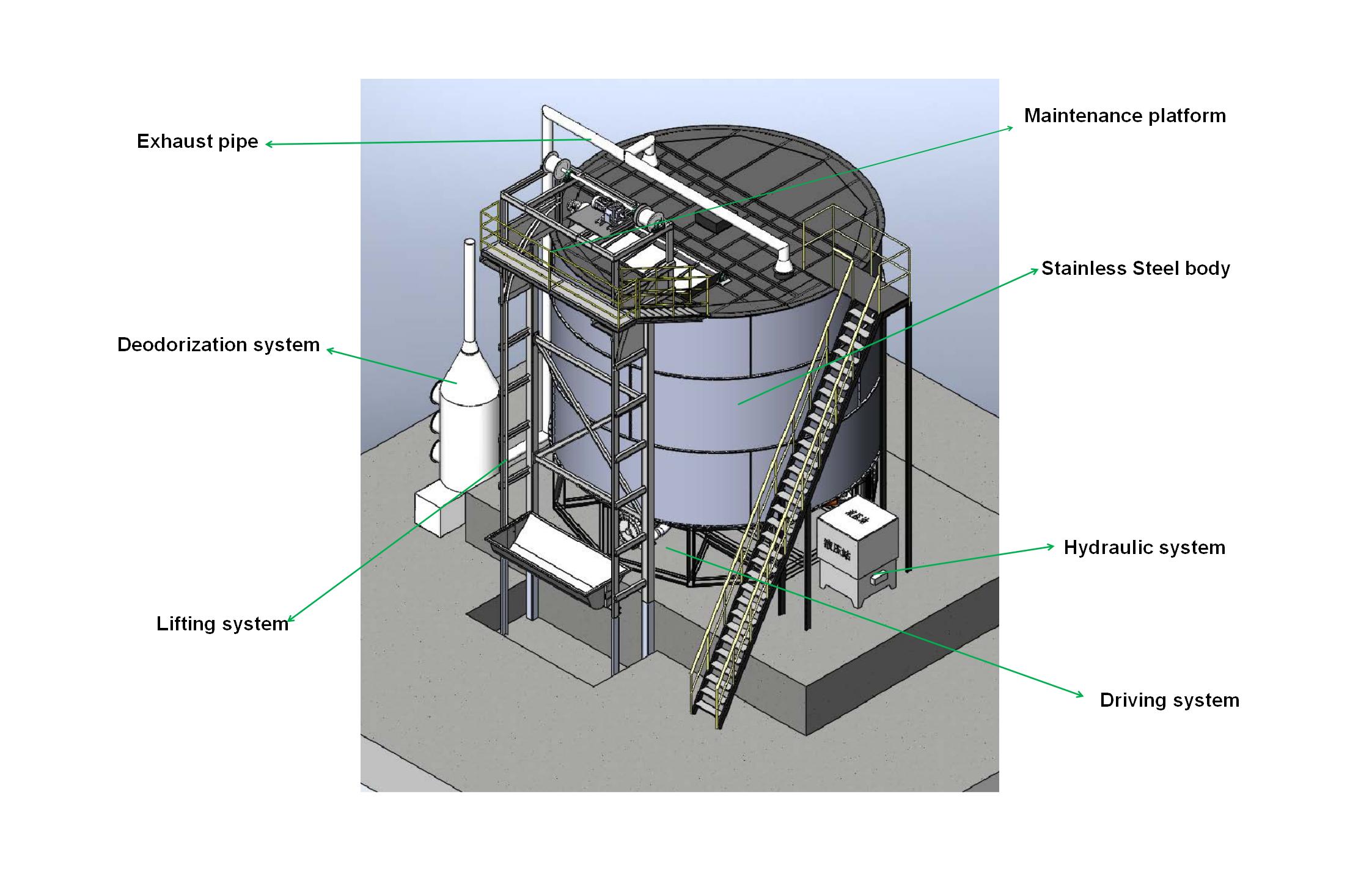

Product Details Display
Key Features
Direct-feed No need to add excipients; fresh livestock and poultry manure can be put in for fermentation directly.
Flexible Operation Small footprint, intelligent control, daily input and output with simple management.
Non-pollution Excellent leakproofness with an integrated deodorization system, resulting in barely any smell.
Durability Double-layer stainless steel body reduces corrosion and enhances long-term durability.
Fermentation Process

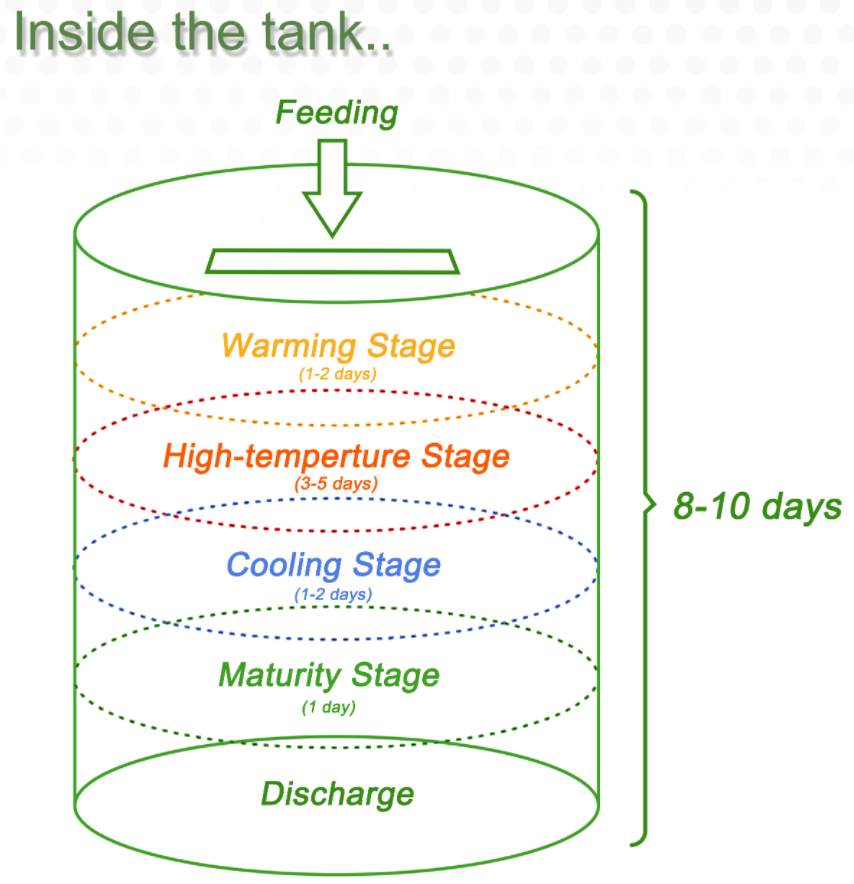

Fermentation Process Diagram
Technical Parameters
Model 11FFG-100 (Pig & Cow) 11FFG-100 (Chicken)
Body Diameter5.6m5.6m
Body Volume100100
Installed Power36.75kw39.25kw
Operating Power26.25kw23.75kw
Body MaterialDouble layer stainless steelDouble layer stainless steel
Hopper Volume1.5m³1.5m³
Air Blower Power2*7.5kw12.5kw
Exhaust Fan Power3kw3kw
Electrical ComponentSchneider, ChintSchneider, Chint
PLCFATEKFATEK

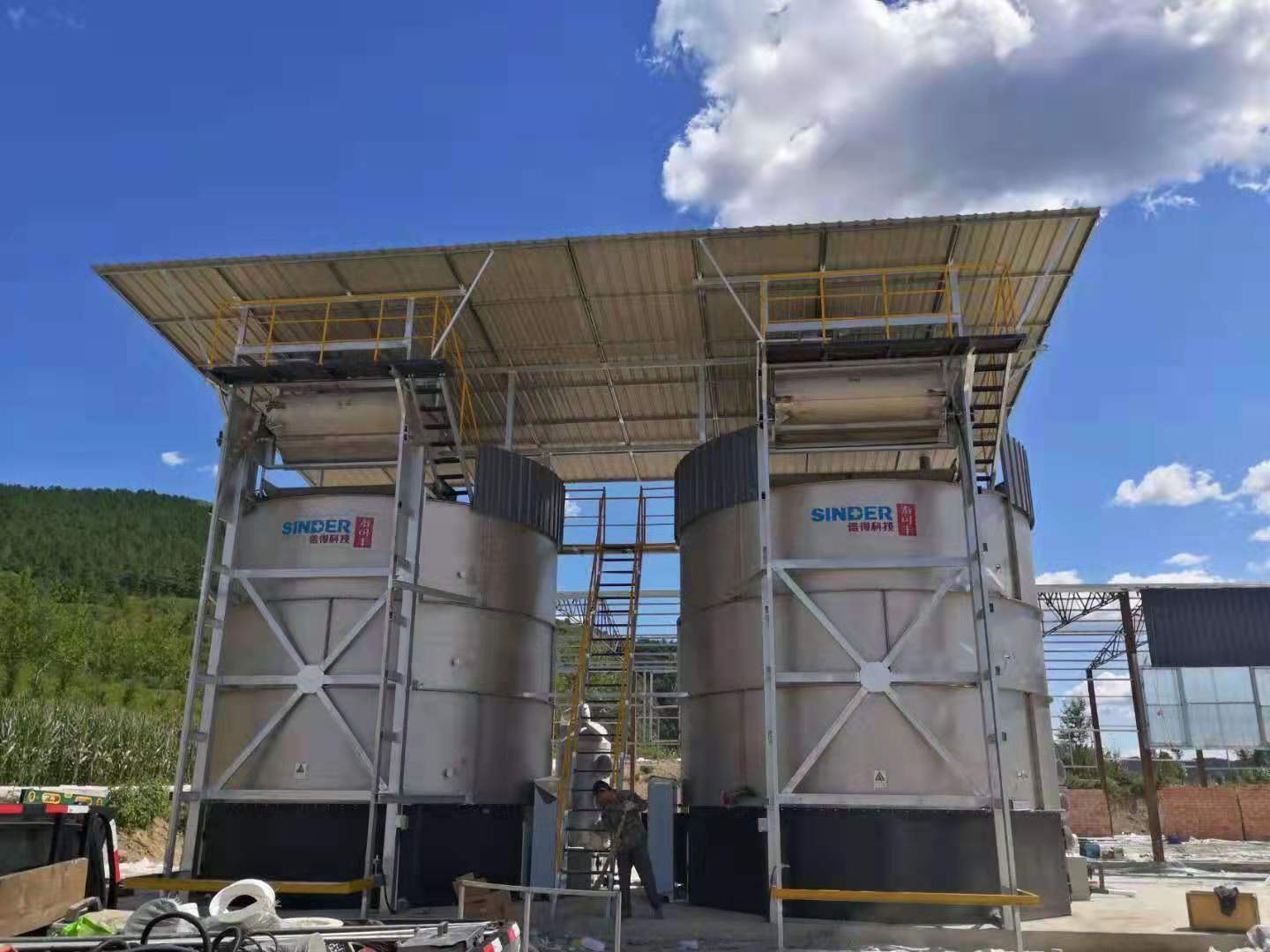

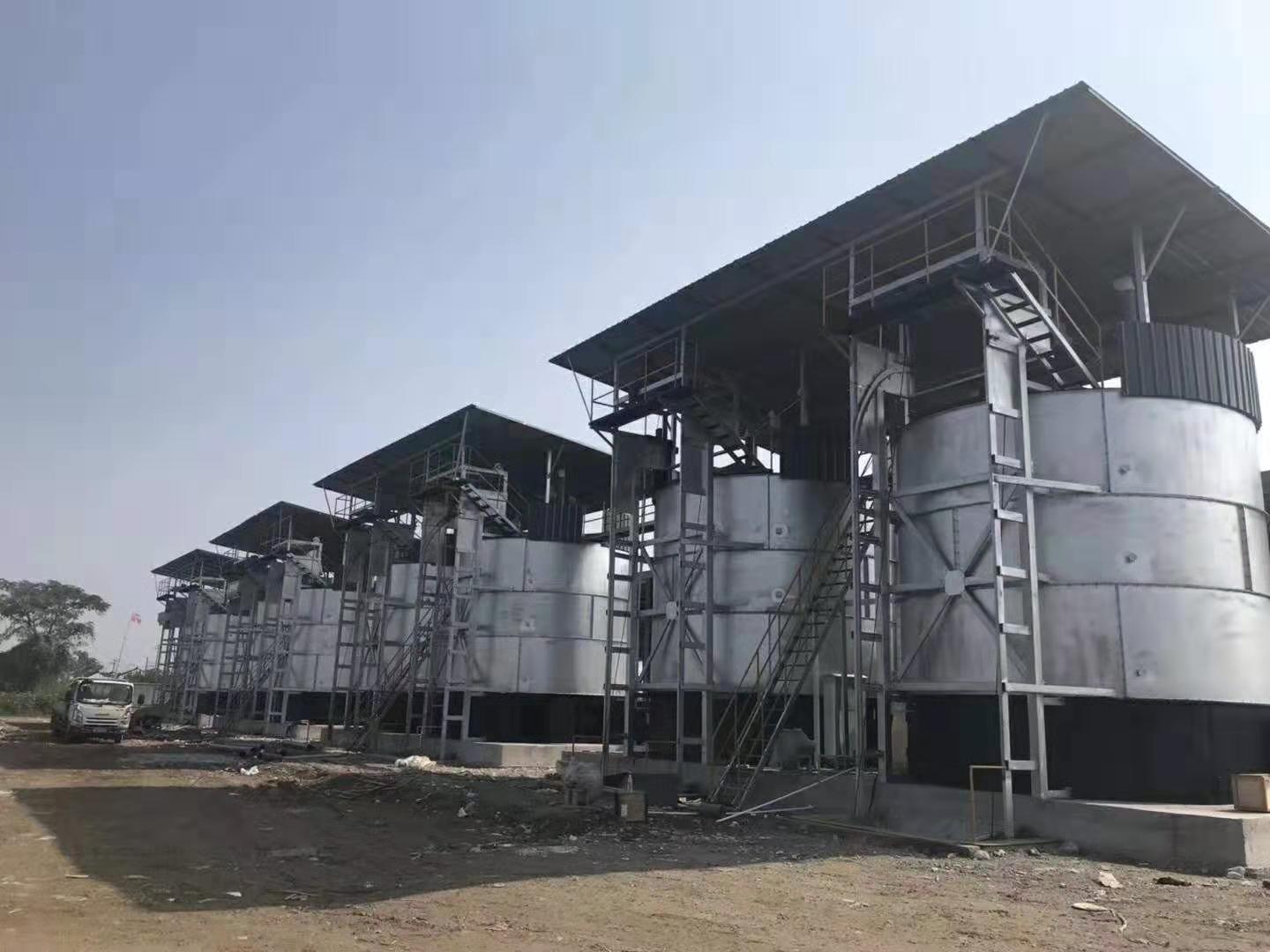

Customer Cases

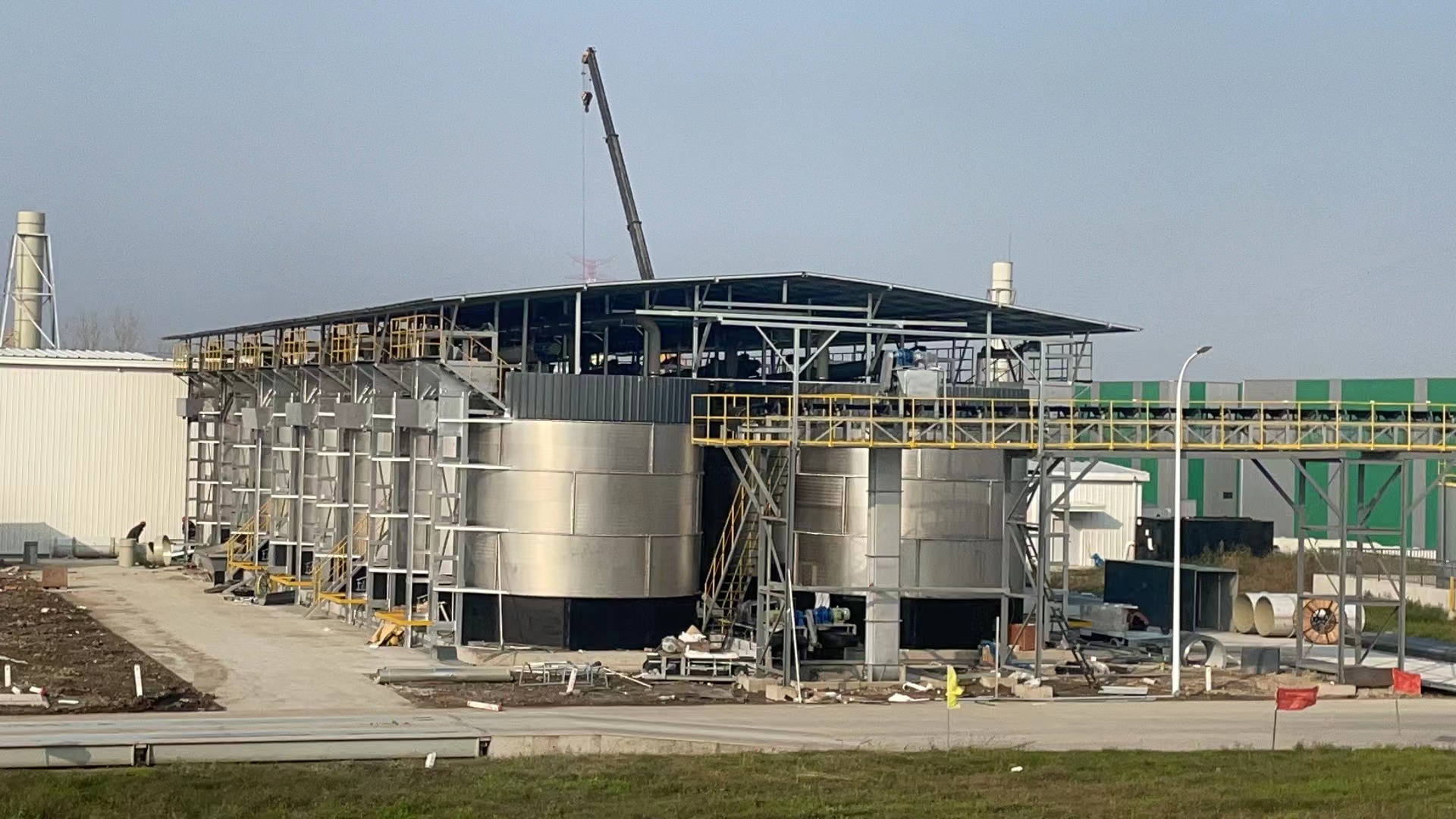

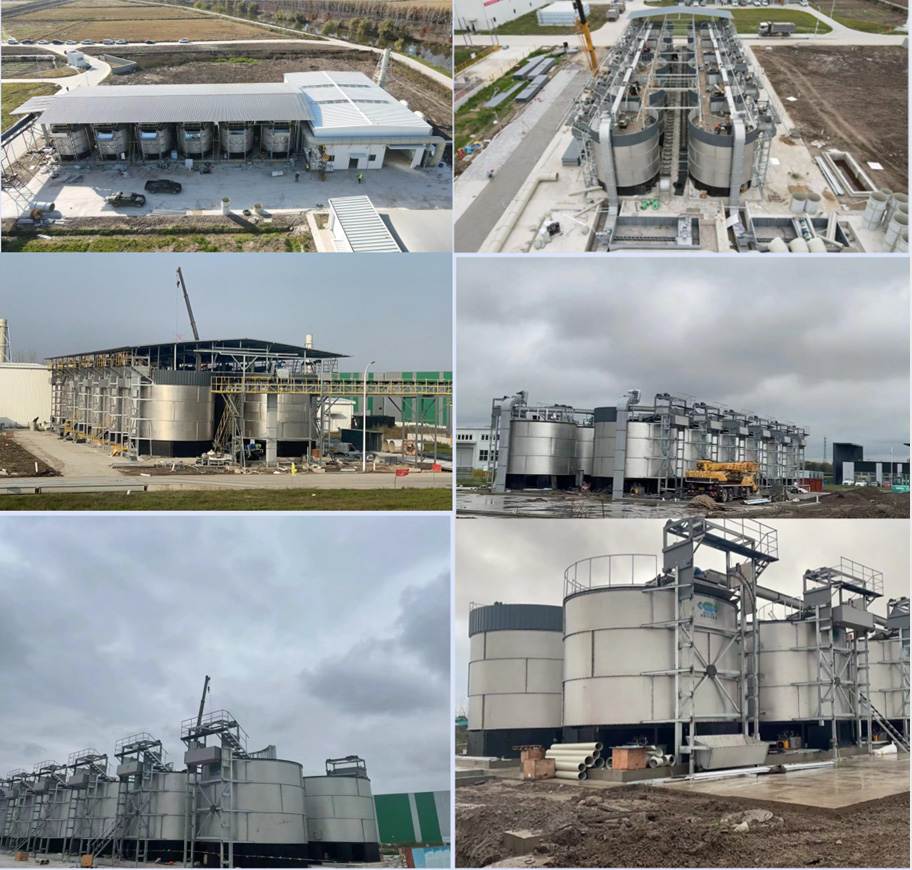

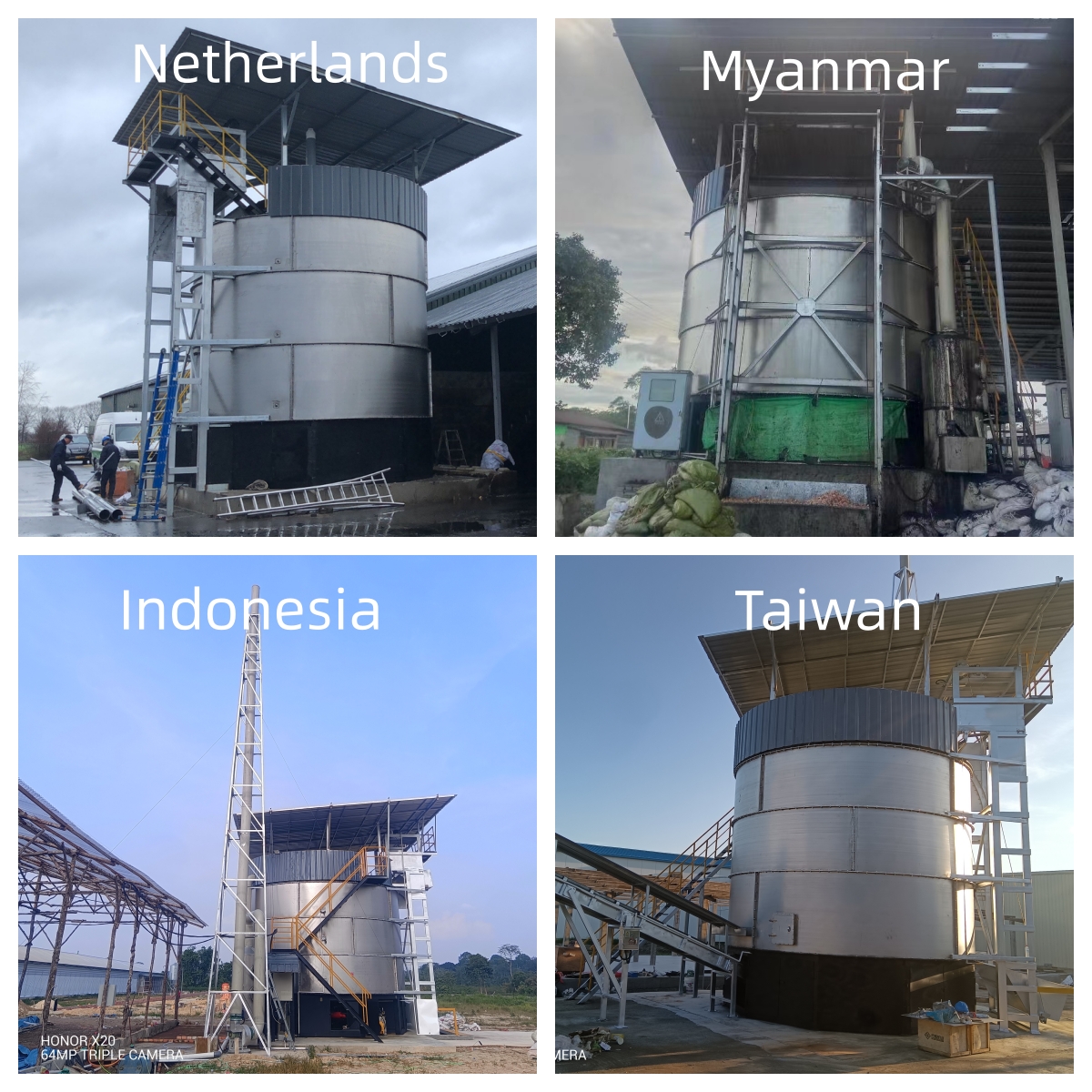

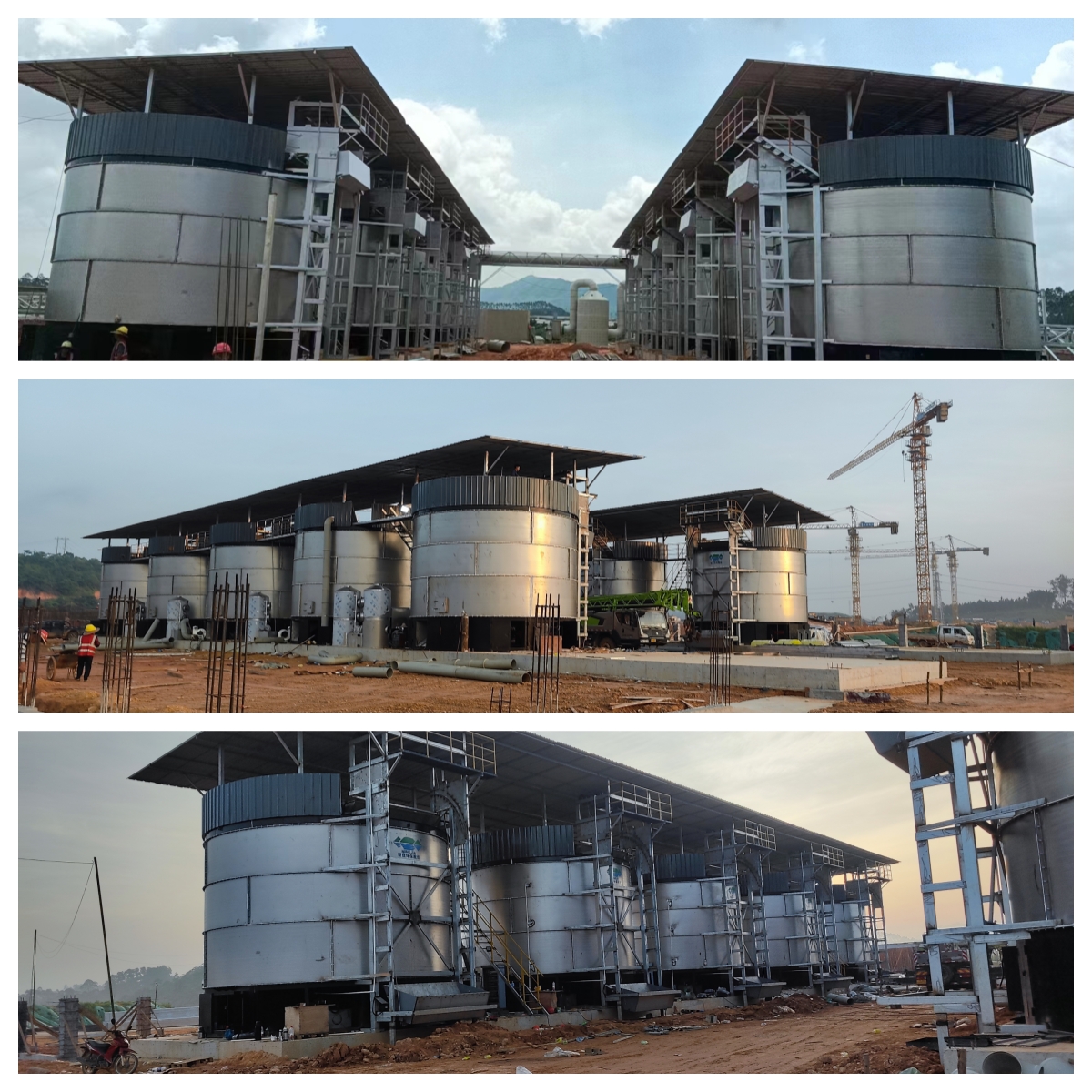

Case Study 1 Shanghai Project Guangdong Project
Applications
Application Range
Manufacturing & Shipment

We integrate technical resources from aquaculture, environmental protection, and the fertilizer industry. Our products including solid-liquid separators and organic fertilizer fermentation tanks have passed ISO9001 and CE certification, winning more than 120 national patents.

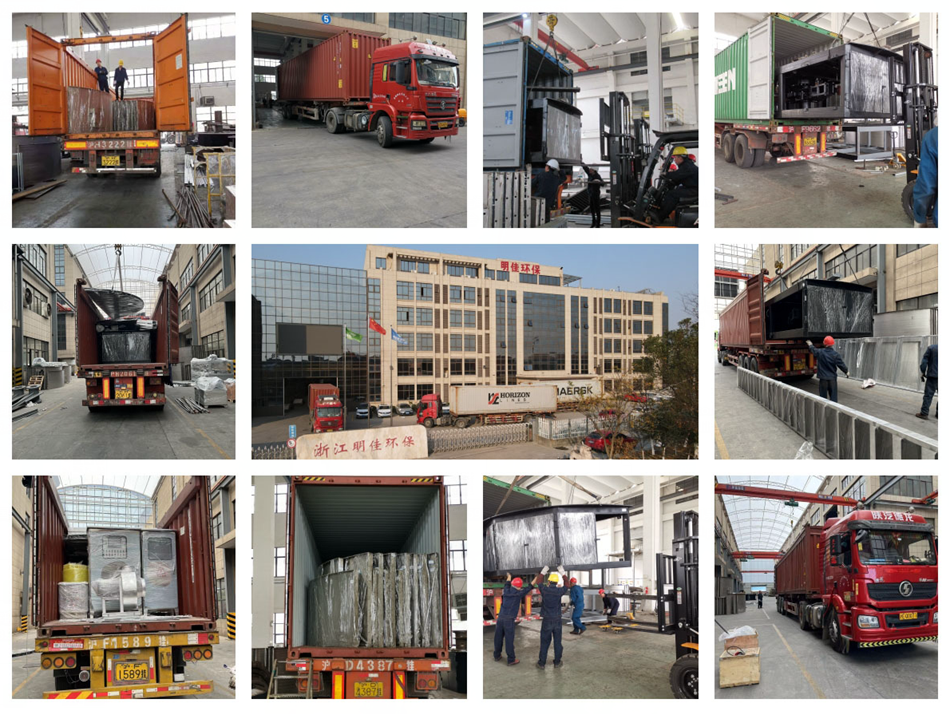

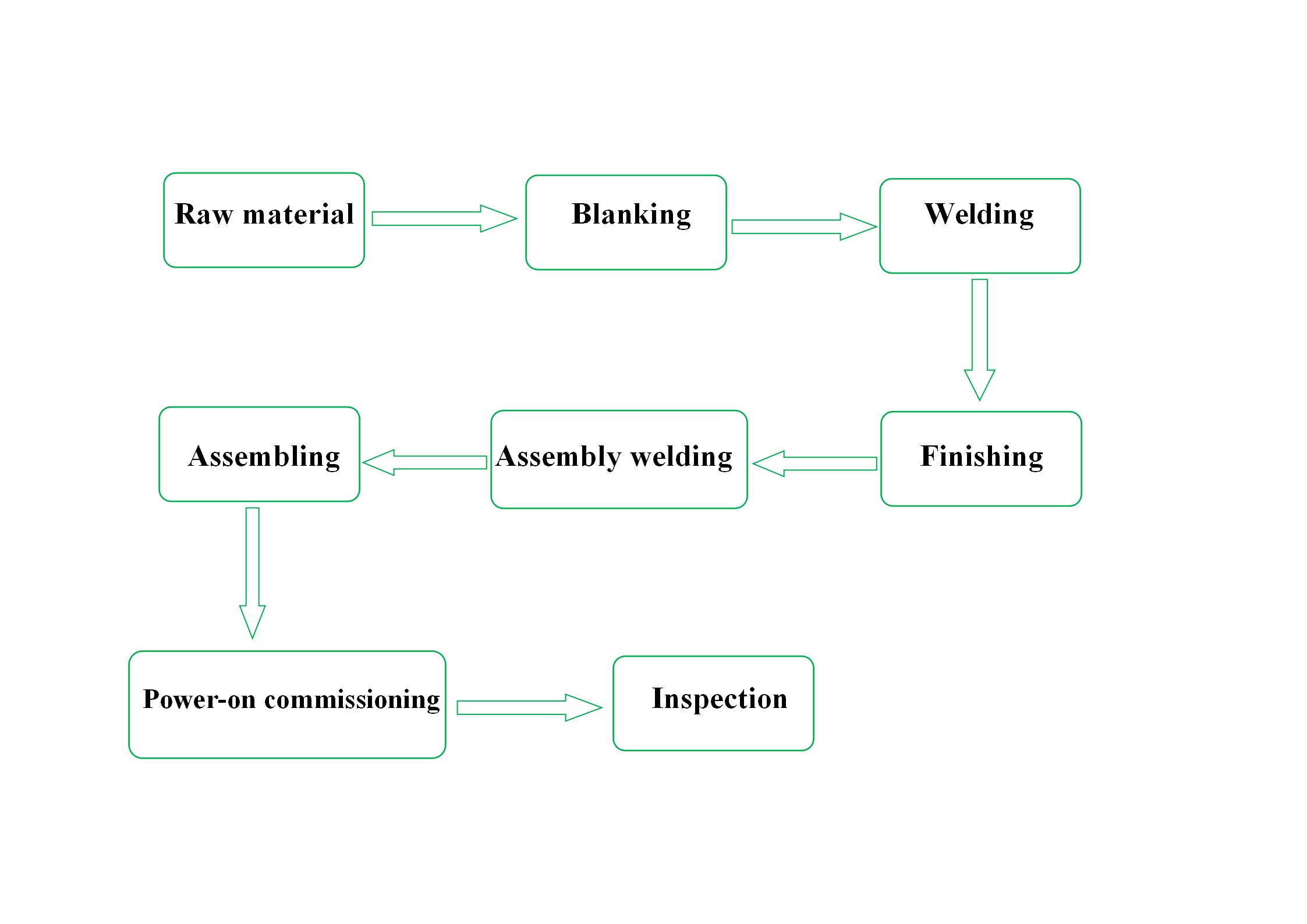

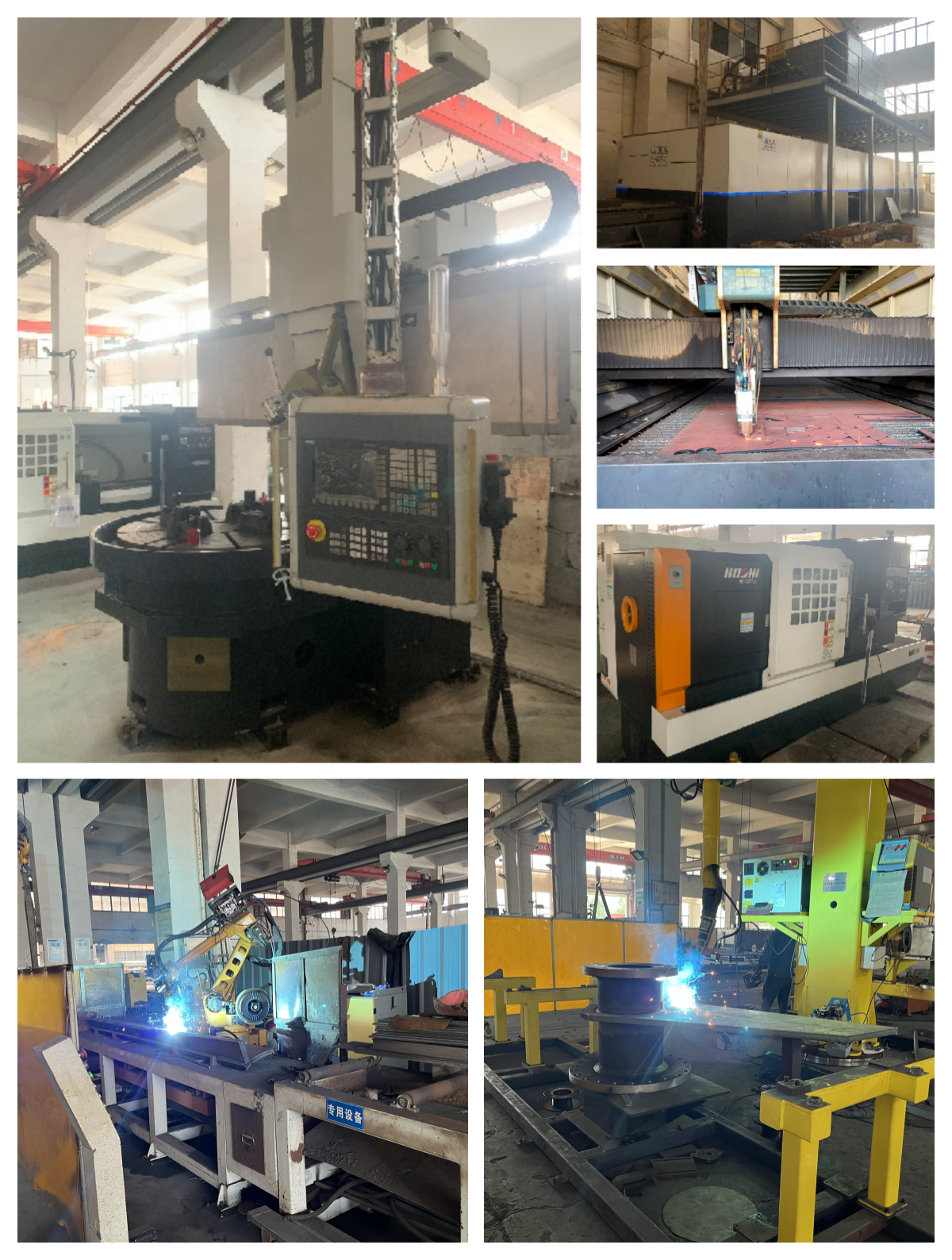

Production Process Shipment Preparation Production Equipment
Frequently Asked Questions
Do you have your own factory?
Yes, we are a direct manufacturer with our own production facilities.
What is the standard delivery time?
Generally 5 to 15 days for standard series. Customized or batch products typically require 10 to 60 days depending on the specifications.
How do you ensure product quality?
Our equipment is designed for maximum durability. We utilize skilled workers and a strict quality control system to ensure every machine achieves peak performance.
How does your after-sale service work for damaged parts?
We provide a 12-month guarantee. During this period, we provide replacement parts for damaged components. If a repair is minor, we may coordinate with the customer to cover fix costs.
Can I inspect the factory or see the machines in person?
Company inspections are always available. We also participate in 4 to 6 international industry exhibitions annually where we meet with customers for direct negotiation.
What certifications do your products hold?
Our organic fertilizer fermentation tanks and separators have passed ISO9001 and CE certification, holding over 120 national patents.
