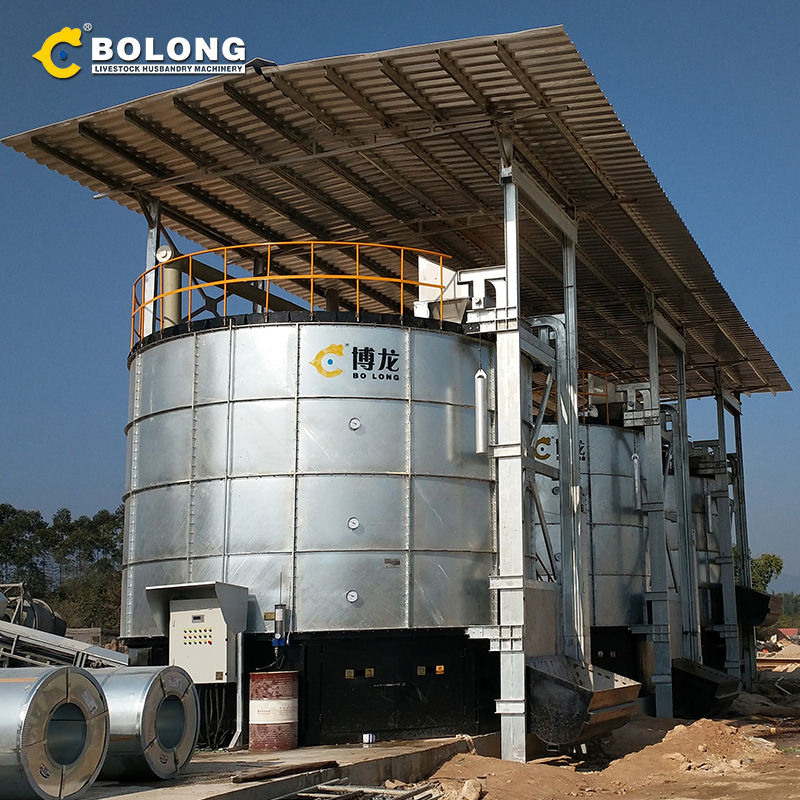

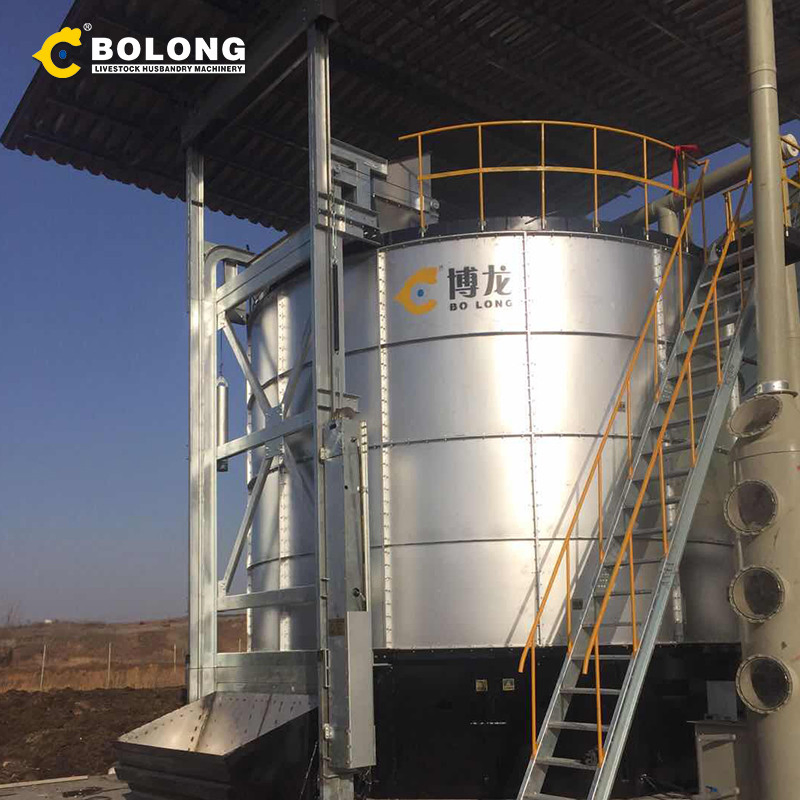

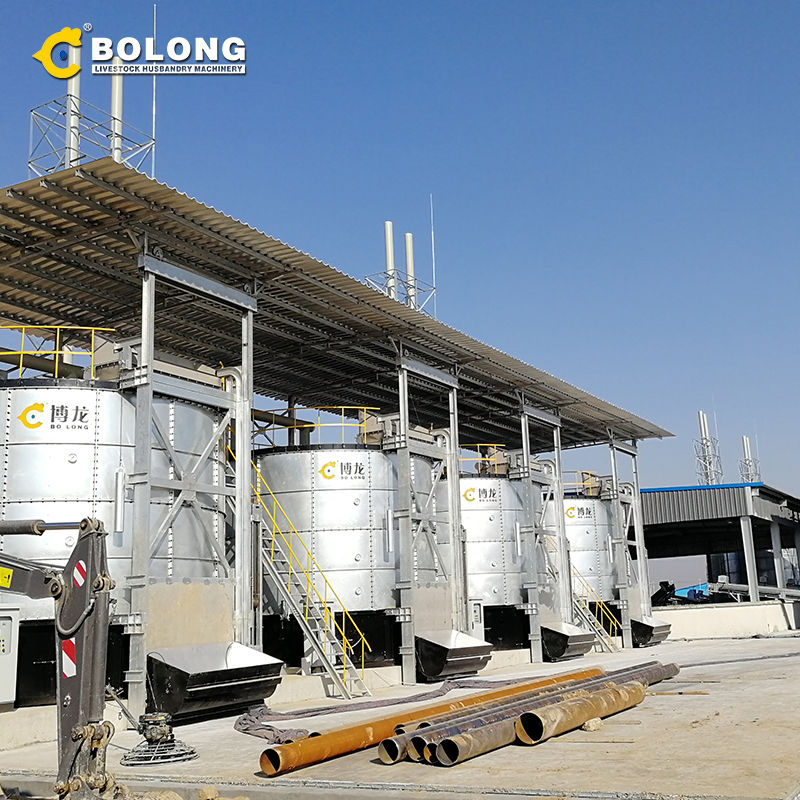

Automatic Composting Machine Cow Pig and Chicken Farm Equipment Compost Making Machines

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

Basic Specifications
Model NO.
102
Type
Poultry Manure Compost Machine
Voltage
380V
Certification
CE, ISO
Tank Volume
102m³
Minimum Area
60m²
Operating Power
29.5kw
Raw Material
304 Stainless Steel/Steel
Handling Capacity
8-12m³
Output
3-9m³
Packaging & Delivery
Package Size
600.00cm * 600.00cm * 840.00cm
Gross Weight
3500.000kg
Product Description
An organic fertilizer fermentation tank is a device that converts organic solid waste into organic fertilizer through aerobic fermentation of microorganisms in a closed container.

It utilizes the decomposition of microorganisms in nature, matures the materials through high temperature and microbial activity, kills harmful substances and reduces the moisture content and volume of the materials.

The working principle is to deliver oxygen to the materials in the tank through a vortex air pump, and continuously turn the materials under the action of the stirring shaft to maintain the activity of aerobic bacteria. These microorganisms will gradually heat up to 50-65 degrees, and after about 7 days of high-temperature fermentation, they will effectively kill insect eggs, pathogens and weed seeds.

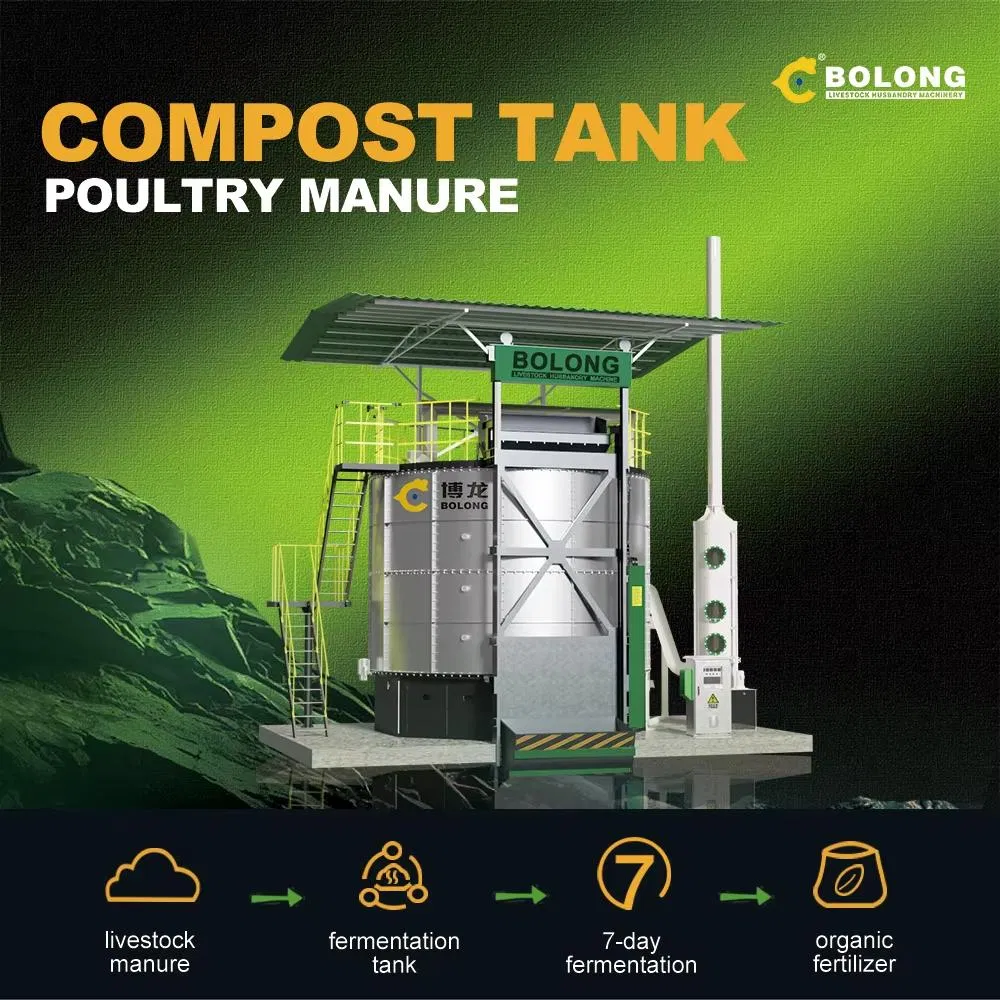

Composting Machine

In livestock farming, fermented livestock and poultry excreta becomes biofertilizer rich in nitrogenous compounds like ammonia, urea, nitrates; phosphorous; potassium ions; and organic matter. This enhances waste utilization and promotes improved plant growth leading to high yields.

Technical Parameters
Component Description Specification
Model11FFG-102
Bottom blower (KW)12.5*2
Hydraulic station (KW)7.5+3
Induced draft fan (KW)3
Auxiliary heater (KW)4
Installed power (KW)40.9
Operating power (KW)about 29.5
Product Gallery
Equipment Detail 1 Equipment Detail 2

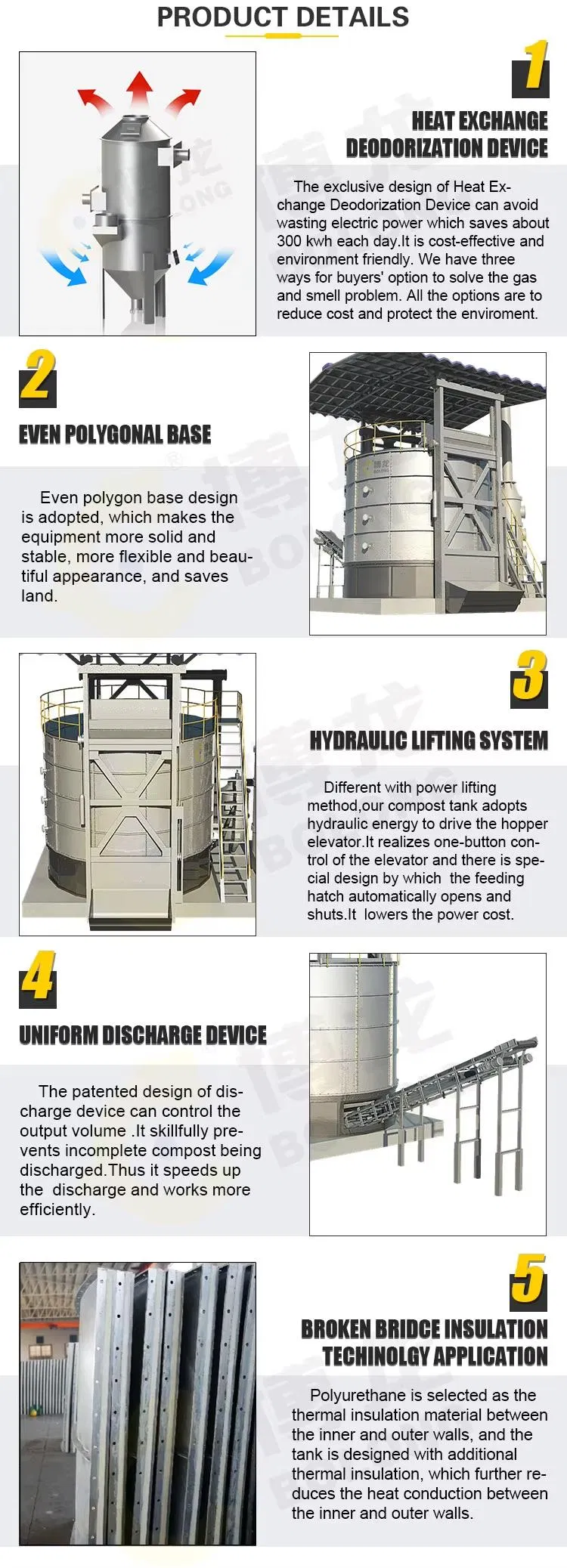

Process Chart

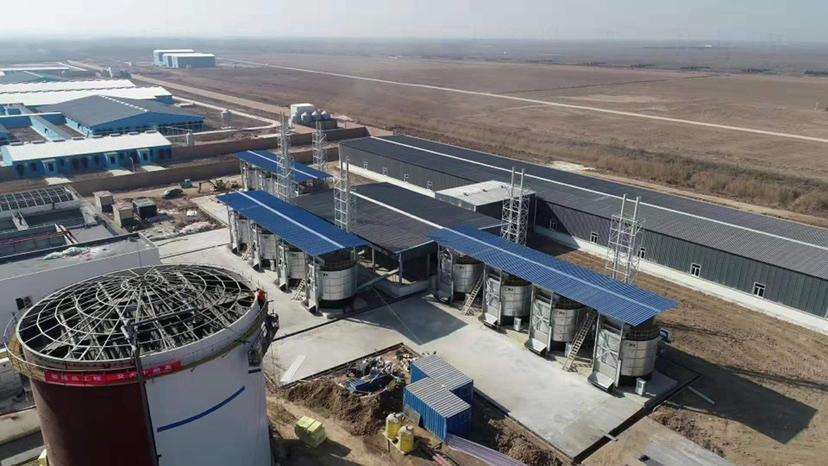

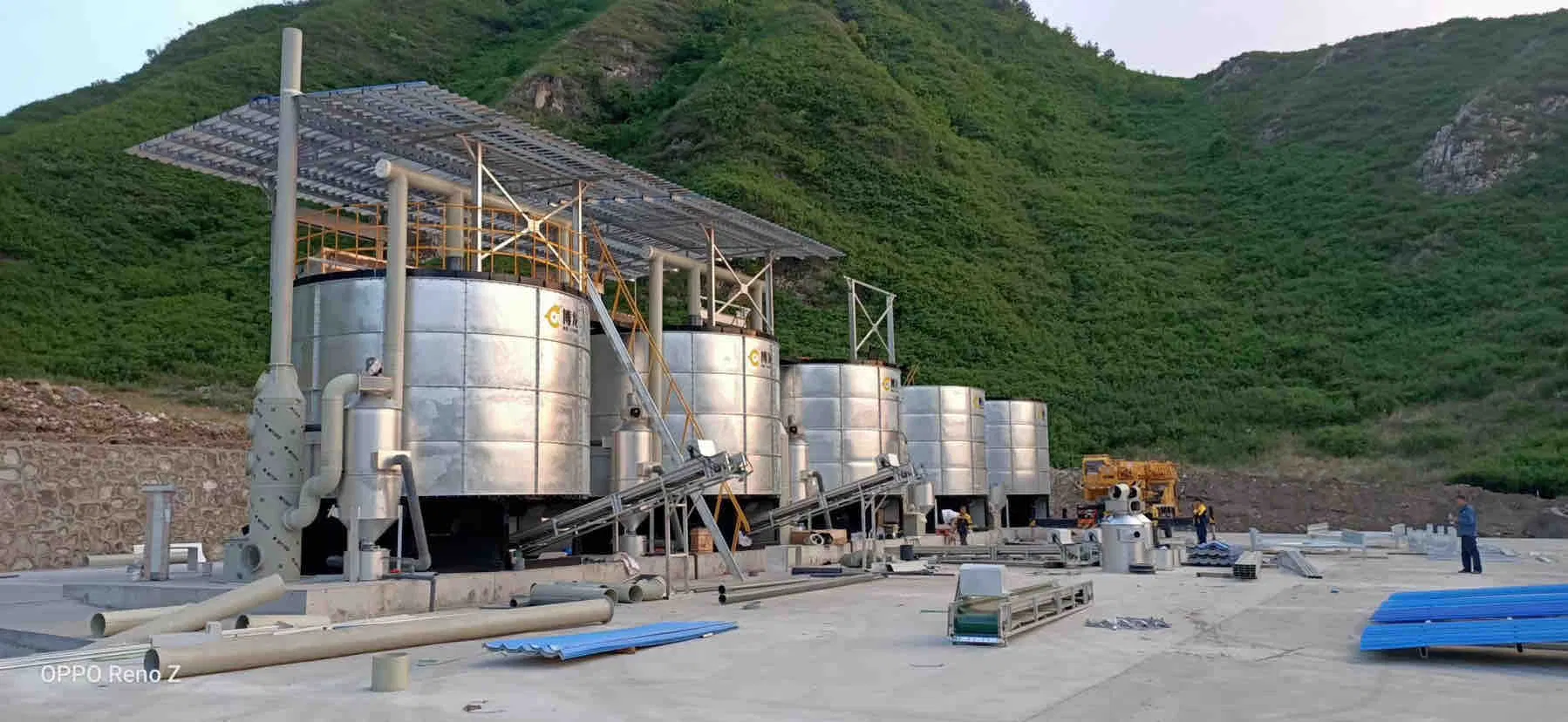

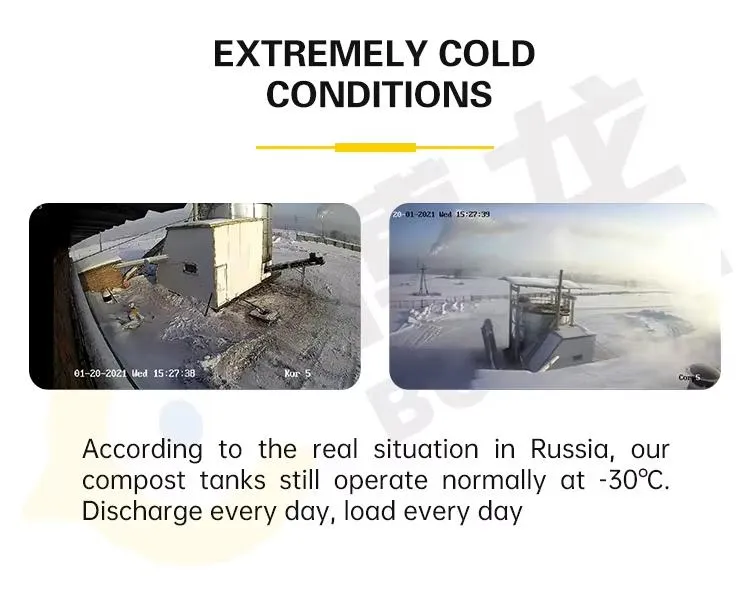

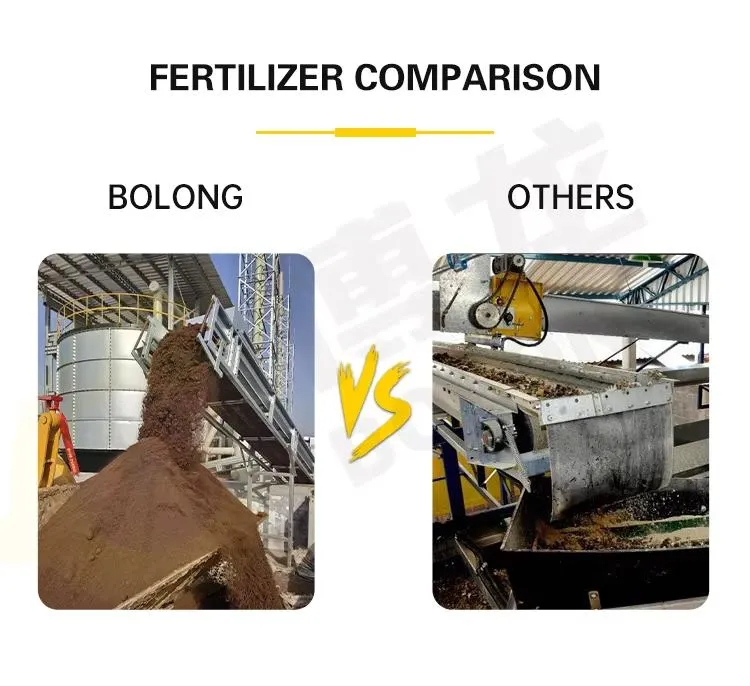

Site View 1 Site View 2 Site View 3

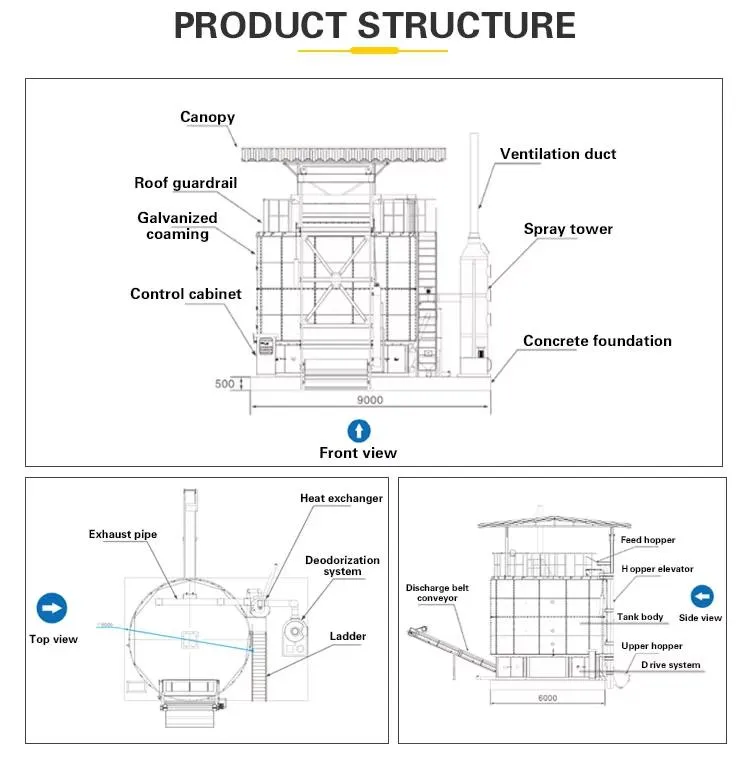

Internal Structure
Component 1 Component 2
Product Finish 1 Product Finish 2
Frequently Asked Questions
1. How long does the composting process take? The high-temperature fermentation process typically takes about 7 days to reach the standards of harmless and reduced treatment.
2. What temperature is maintained inside the tank? The microorganisms naturally generate heat, reaching temperatures between 50-65 degrees Celsius, which is sufficient to kill pathogens and weed seeds.
3. What are the main benefits of using this equipment? It effectively manages animal manure, reduces waste volume, kills harmful substances, and converts waste into high-quality organic biofertilizer.
4. Is the fermentation process automated? Yes, the entire process is highly automated, utilizing vortex air pumps for oxygen delivery and stirring shafts for continuous turning, which reduces manual labor.
5. What materials are used in the construction of the tank? The tank is constructed using high-quality 304 Stainless Steel or durable Steel to ensure long-term operation in farm environments.
6. What is the daily handling capacity of the Model 102? The equipment has a handling capacity of 8-12m³ per day, with an output of approximately 3-9m³ of finished organic fertilizer.
