Basic Information Overview
Automation:Automatic
Certification:ISO, CE
Bale density:550-650Kg/m³
Bale weight:1100-1400Kg/bale
Clamping cylinder:Φ180x100mm * 4PCS
Main motor:37Kw*3 + 7.5Kw*2
Oil valve:Quick automatic cartridge valve
Hopper size:2200mm
Cooling system:Water cooling (Independent loop)
Wiring way:Automatic threading & winding
HS Code:8422400000
Product Specifications (Heavy Duty Design)
| NO. |
Items |
Specifications |
| 1 | Bale size | W1100 × H1250 × L1800-2100 mm (adjustable) |
| 2 | Bale density | 550-600Kg/m³ |
| 3 | Bale weight | About 1200-1400Kg/bale |
| 4 | Main cylinder | Φ320x2700mm |
| 5 | Clamping cylinder | Φ180x100mm * 4 pcs + top Φ200x100mm * 1 pc |
| 6 | Clamping system | 3 sides clamping, two clamping gates |
| 7 | Wire feeding cylinder | φ90x1500mm |
| 8 | Cutting cylinder | φ90X50mm |
| 9 | Main motor | 45Kw + 45Kw + 2.2Kw + 7.5Kw |
| 10 | Claim motor | 7.5Kw |
| 11 | Conveyor motor | 7.5Kw |
| 12 | Conveyor width | 2200mm |
| 13 | Banding Wire | 5 wires (φ3mm) |
| 14 | Wiring way | Automatic threading, automatic winding |
| 15 | Operation type | Touch screen |
| 16 | Control mode | PLC Programmable control, HMI |
| 17 | Density adjustment | 3-sided floating tightening (5 cylinders) |
| 18 | Density control | Set density pressure (PLC control) |
| 19 | Feeding control | Material level switch (PLC) |
| 20 | Main cylinder command | Material forward compression (PLC) |
| 21 | Bale length control | Length switch (PLC) |
| 22 | Frame plate | 200 I-steel base, 16mm bottom plate |
| 23 | Cooling system | Water cooling, Independent loop, 2.2Kw pump |
| 24 | Conveyor horizontal part | 4500mm |

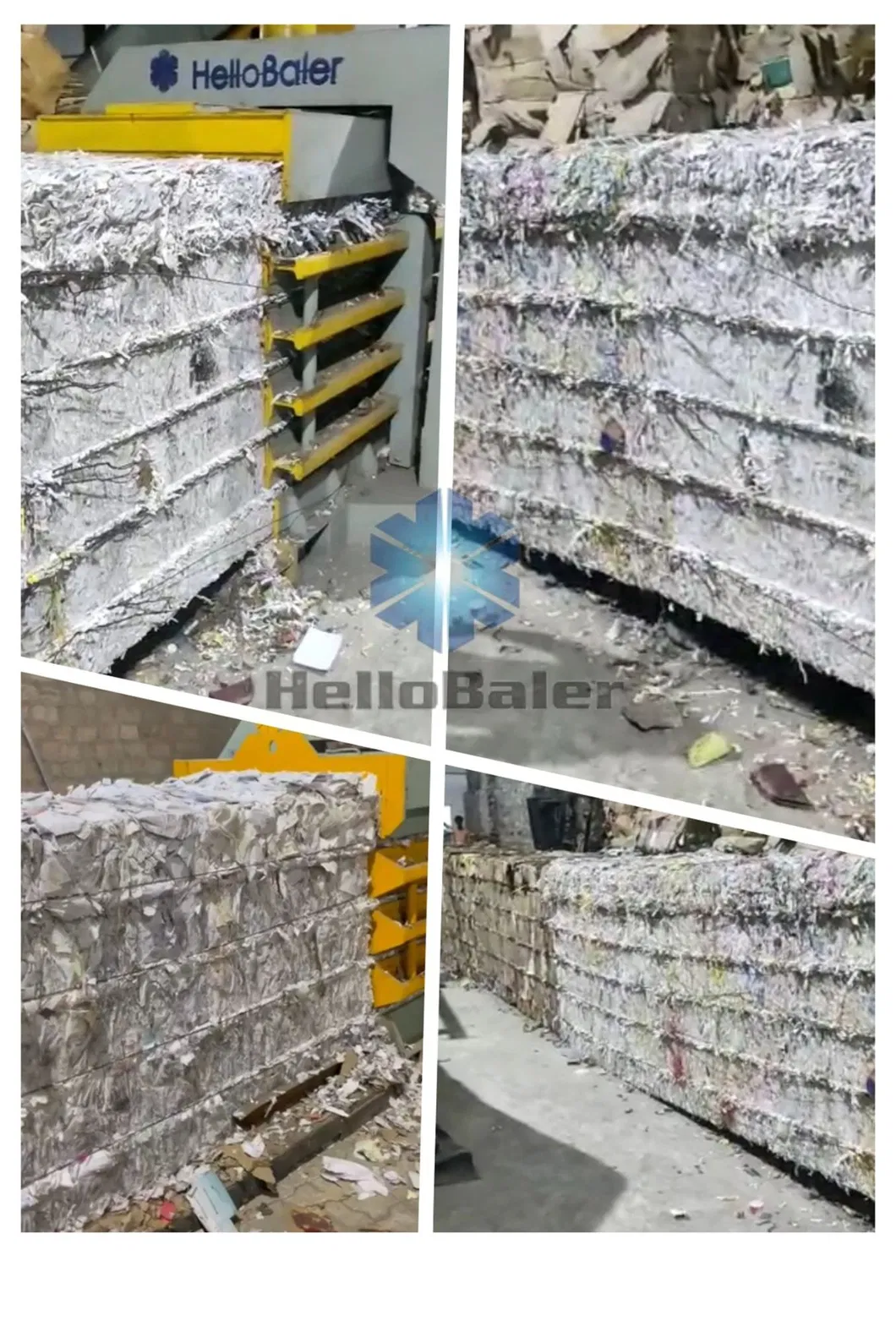

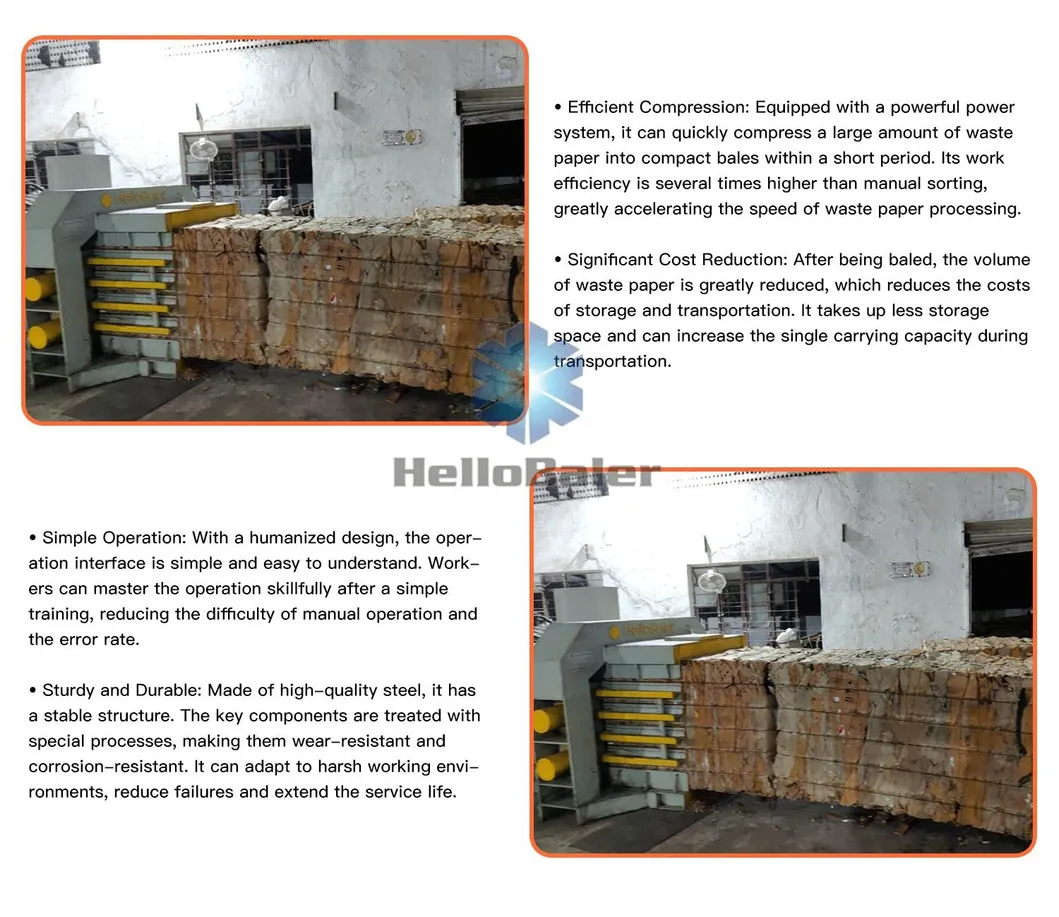

Product Application & Advantages
✔
Efficient Compression: Equipped with a powerful power system, it can quickly compress a large amount of waste paper into compact bales. Its work efficiency is several times higher than manual sorting.
✔
Significant Cost Reduction: Volume reduction lowers storage and transportation costs, increasing single carrying capacity during transport.
✔
Simple Operation: Humanized touch screen interface allows workers to master the operation quickly after simple training.
✔
Sturdy and Durable: Made of high-quality steel with wear-resistant and corrosion-resistant key components, extending the service life in harsh environments.

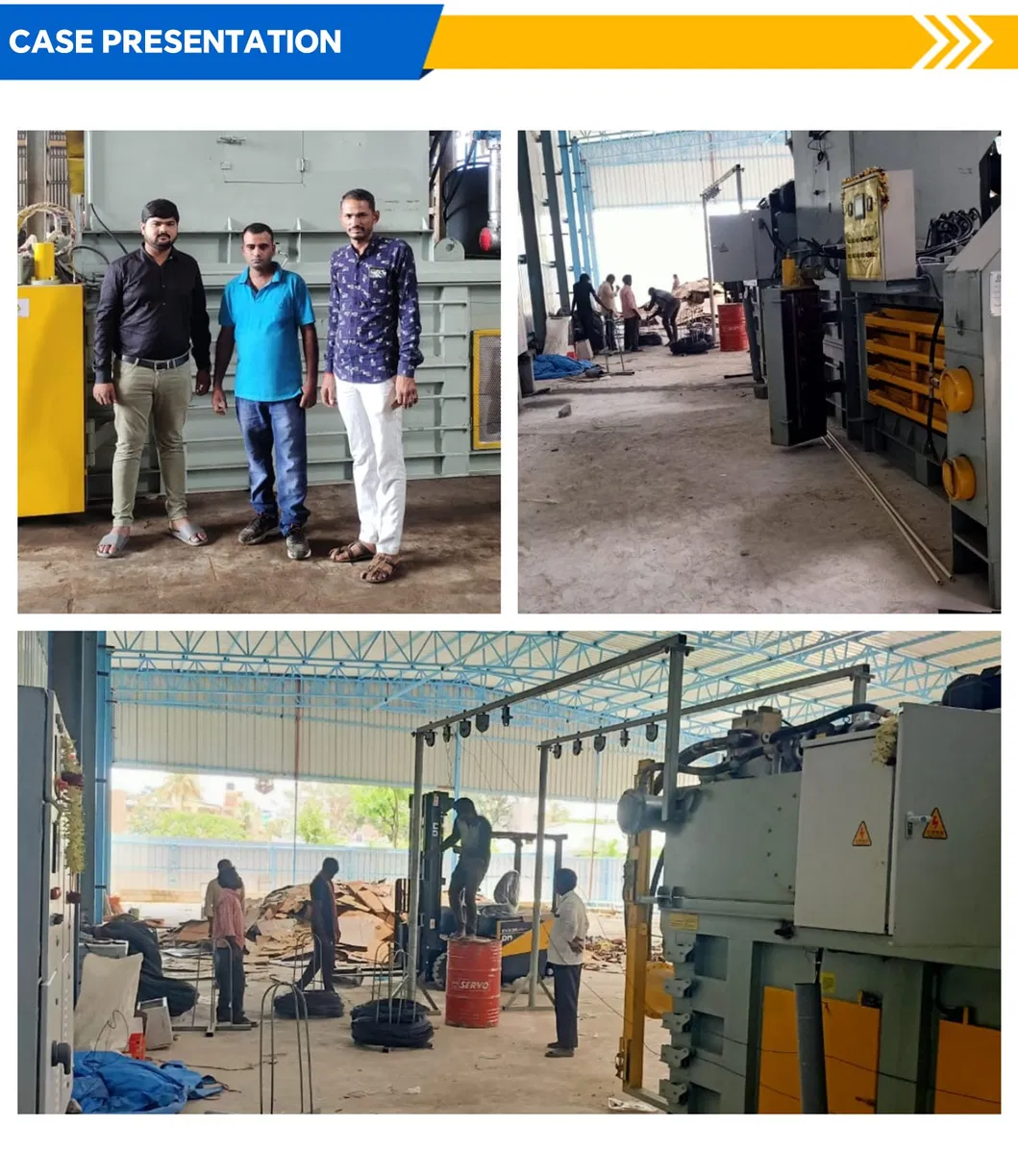

Certifications

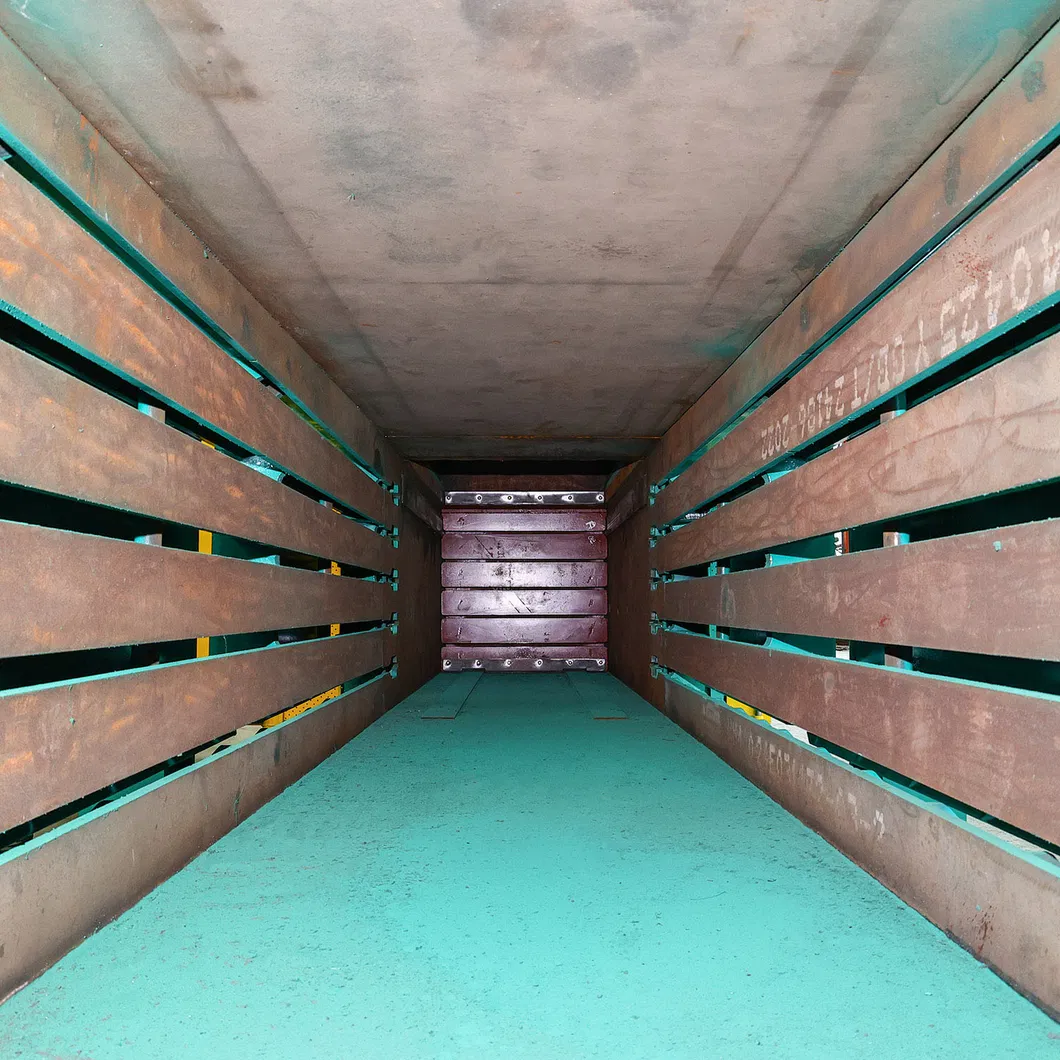

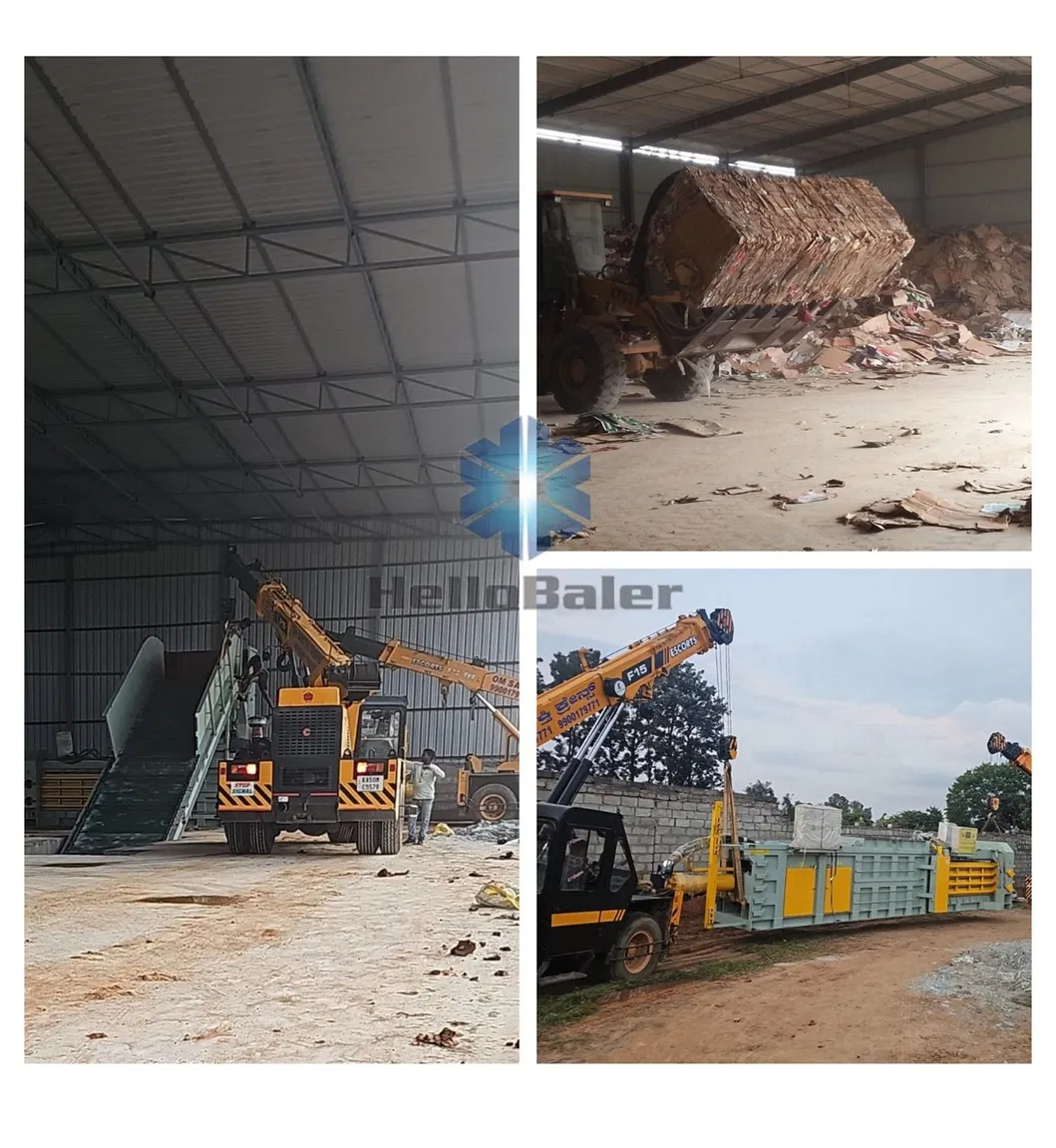

Packaging & Shipping
Frequently Asked Questions
Q1: What is the average bale density of the automatic baler?
The machine achieves a high bale density of 550-650Kg/m³, depending on the specific raw materials being processed.
Q2: How does the automatic wiring system work?
The baler features an automatic threading and winding system controlled by the PLC, ensuring the bales are securely tied without manual intervention.
Q3: Is the machine easy to operate for new workers?
Yes, the machine is equipped with a user-friendly touch screen HMI (Human-Machine Interface) and a programmable PLC control system, making it simple to operate after basic training.
Q4: What kind of cooling system does the baler use?
It utilizes an independent loop water cooling system with a cooling tower and a 2.2Kw oil circulation pump to maintain optimal operating temperatures.
Q5: Can the bale length be adjusted?
Yes, the bale length is adjustable between 1800mm and 2100mm via the PLC-controlled length switch.
Q6: What certifications does the equipment carry?
The equipment is fully certified with CE and ISO9001:2008 standards, ensuring high quality and international safety compliance.
