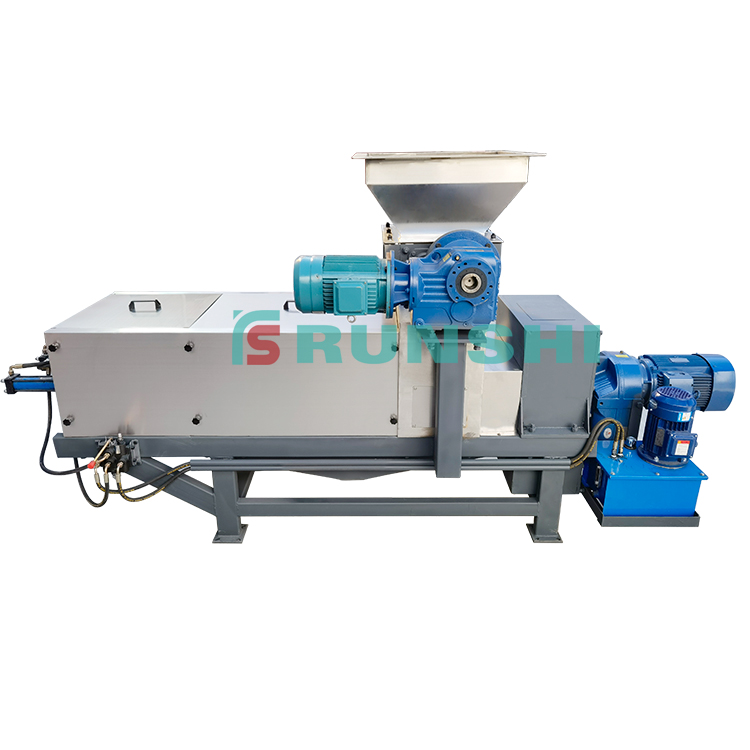

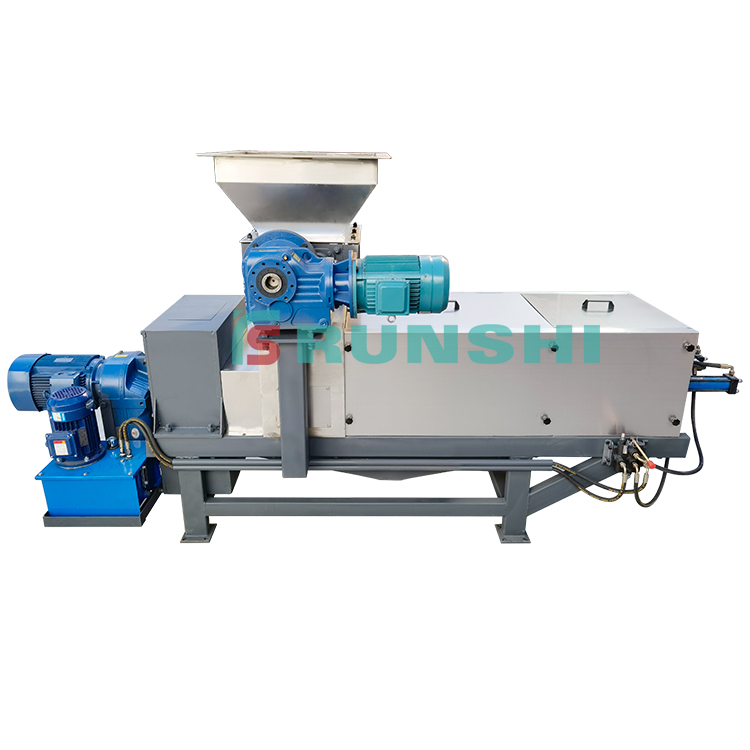

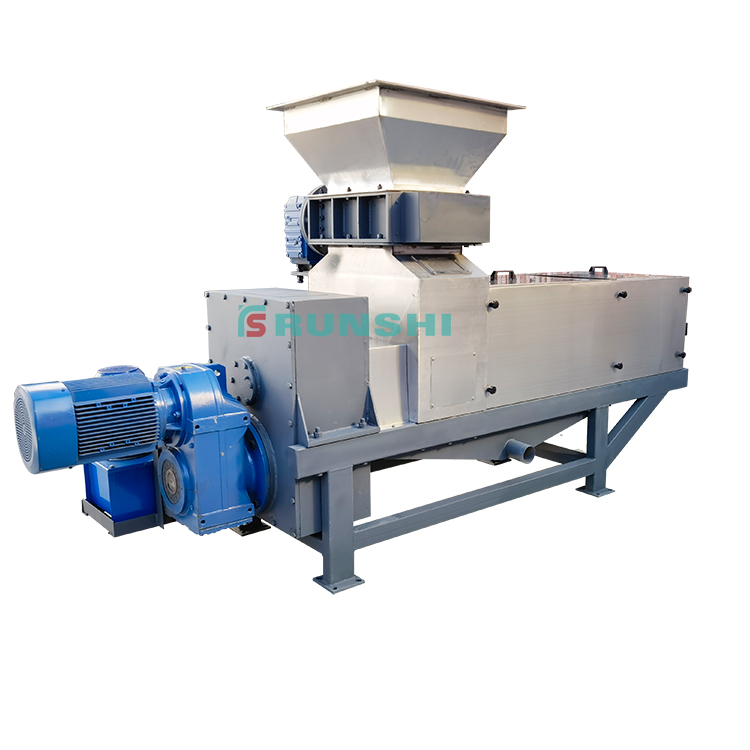

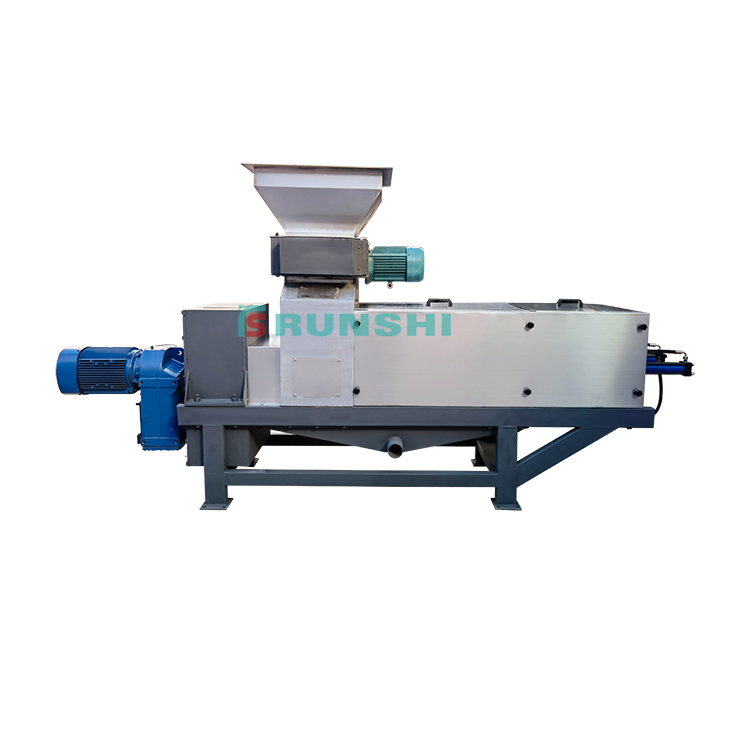

City Garbage Dewatering Machine Organic Compost Machine Food Waste Crushing Machine

Product Description

Introduction of food waste crushing machine

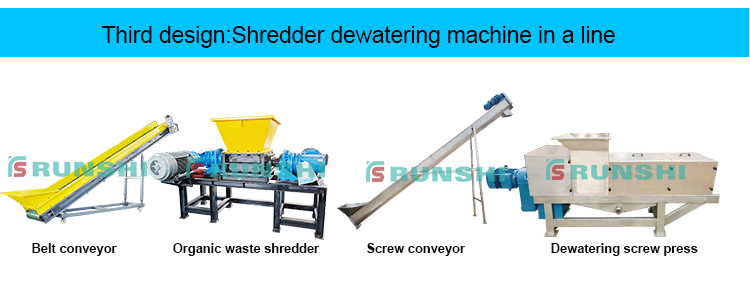

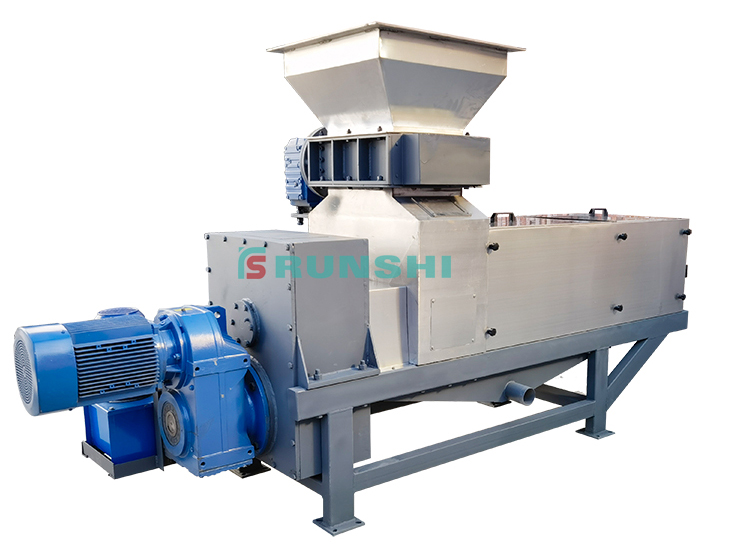

Food waste dewatering machine is mainly consist of shredder and screw press part. Food waste dewatering machine is mainly used to dewatering press the liquid separated from solid waste. Matering being shredded to small particles, then go into the screw press machine. It separate liquid and solid by screw press to punch the material with screen and end core, so the liquid will discharge from the screen hole, the dewatered residues will discharge from the end cone space.

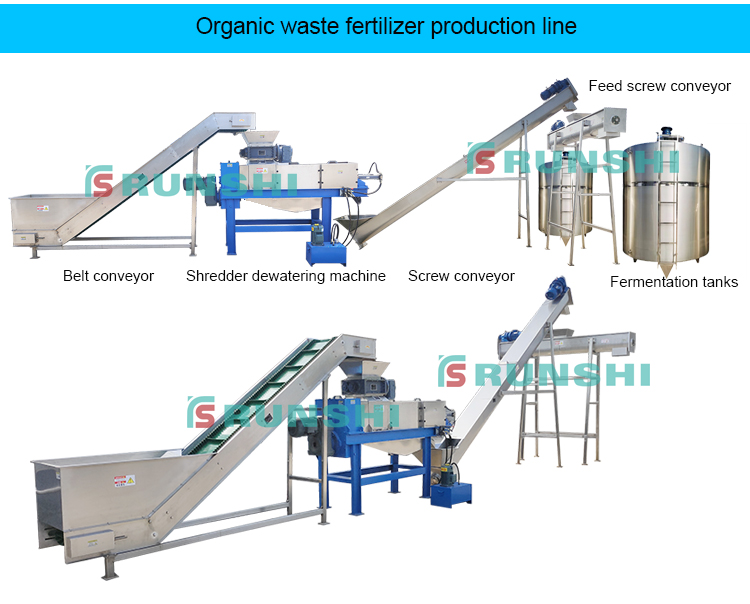

Dewatered residues and liquid can do liquid fertilizer or solid fertilizer, which are better for environment.

Food Waste Crushing Machine

Screw press pressure adjust part can be spring or by hydraulic system. When tight the pressure part, the interval of discharge area begin small, then press chamber has more big pressure, so the discharge material moisture content lower. We have single screw press machine and double screw press machine, different material use different type screw press machine.

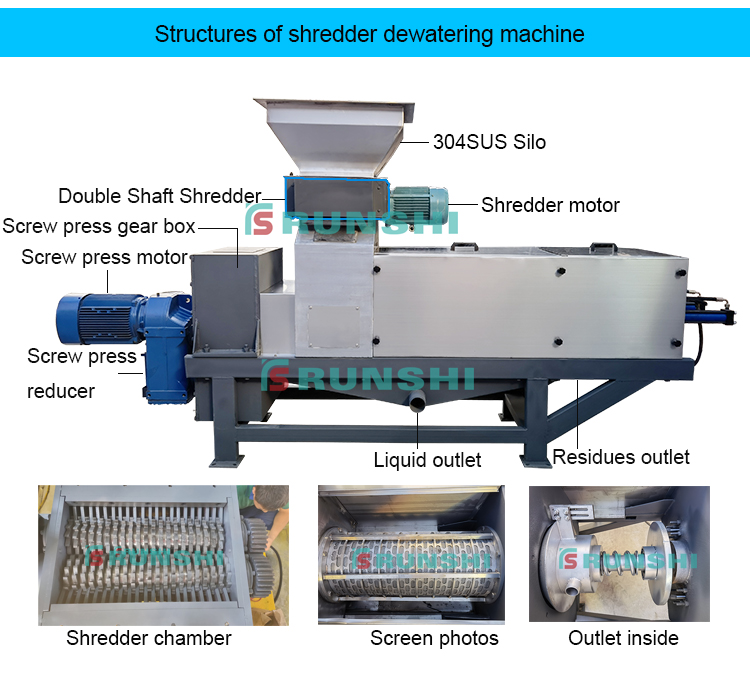

Screw Press Mechanism

Applicable Material

Food waste dewatering machine is mainly use to shred dewatering the food waste, kitchen waste, vegetable waste, fruit and vegetable, other biomass materials, etc.

Applicable materials list

Specification Data

Model RS-180 RS-260 RS-350 RS-420 RS-500 RS-600
Capacity 0.2-0.5t/h 1-1.5t/h 2-3t/h 3-5t/h 8-10t/h 12-15t/h
Screw diameter 180mm 260mm 350mm 420mm 500mm 600mm
Rotation speed 5-15r/min
Pressure adjusted Spring ≤6Mpa ≤6Mpa ≤6Mpa
Hydraulic Power Without Without Without 1.5kw 2.2kw 2.2kw
Motor power 3KW 5.5KW 7.5KW 11KW 18.5KW 22KW
Screen diameter 190mm 270mm 360mm 430mm 510mm 610mm
Dimension (m) 1.8*0.7*1.3 2.2*1*1.3 3.1*1*1.7 3.58*1*1.8 4.2*1.1*1.8 5.6*1.1*1.8
Weight 600KG 1100KG 1500KG 2700KG 3600KG 4600KG
Machine technical drawing

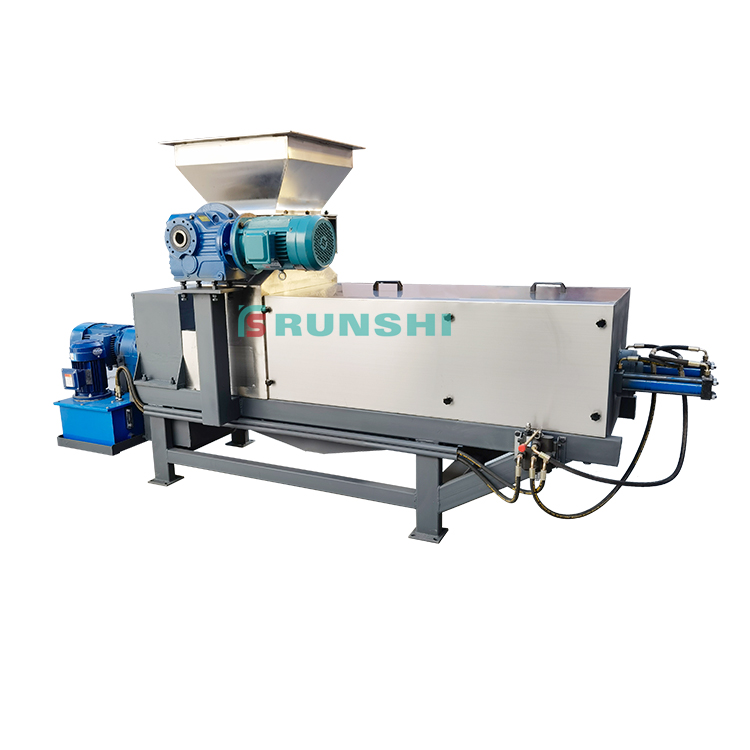

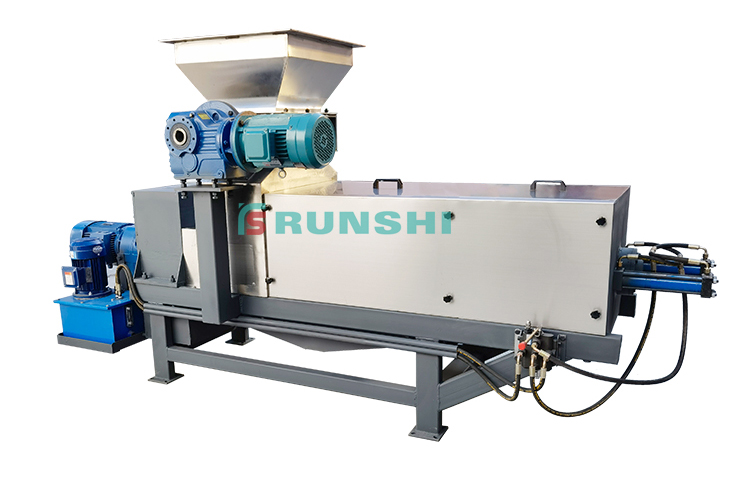

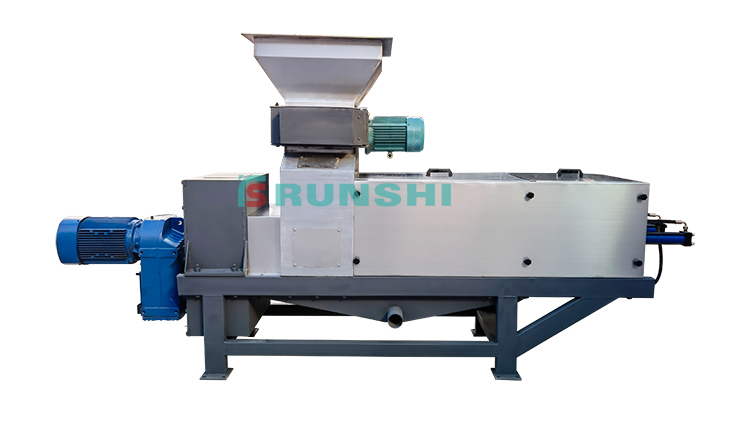

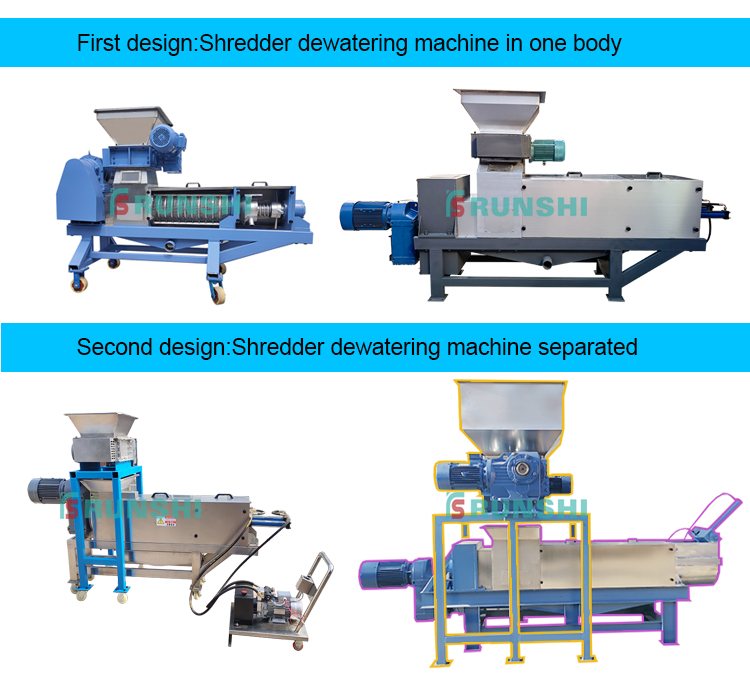

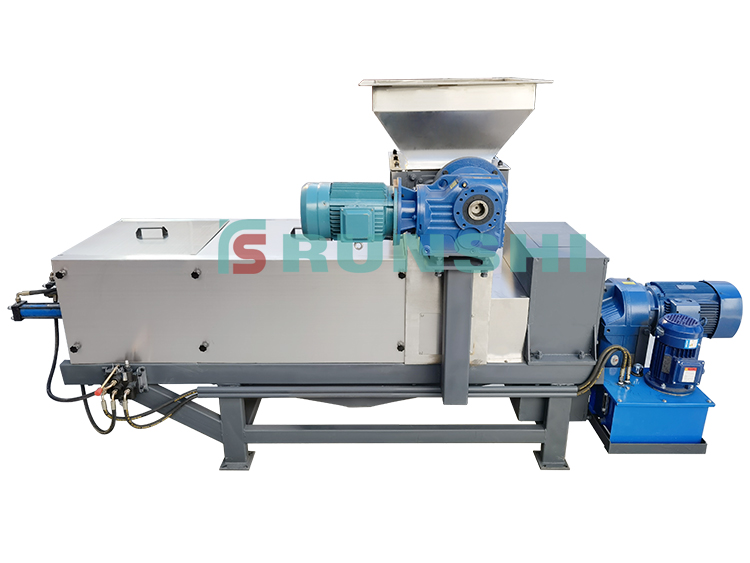

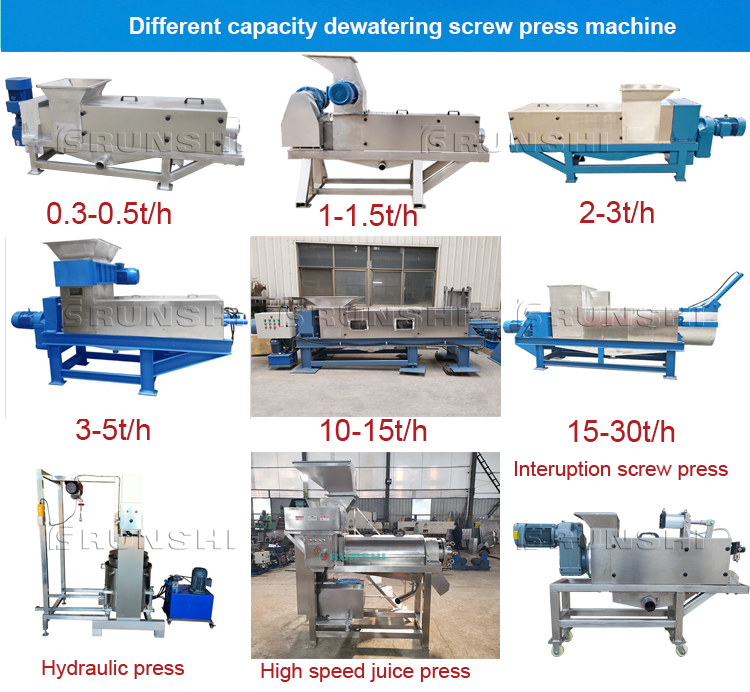

Photos Show

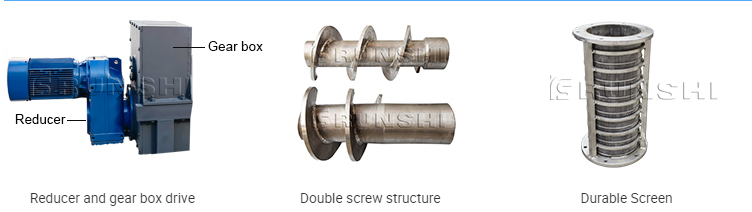

Key Design Details

Double screw structure, screw variable diameter and pitch, low noise.
Reducer and gear box drive, slow rotate speed, with big pressure.
Durable and weight body, which work stable.

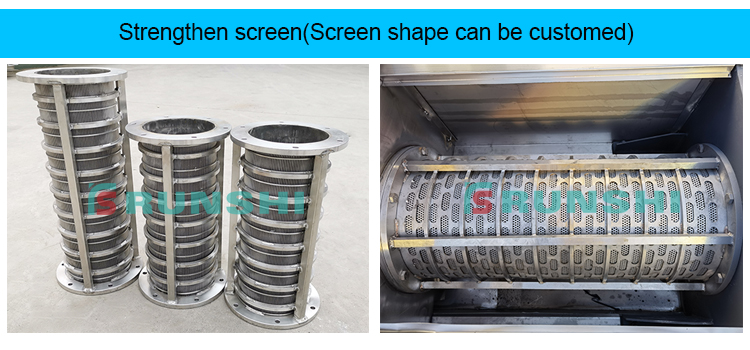

Screw and screen adopt high quality food grade 304SUS.

Related Solutions

Fruit, Vegetable & Waste Shredders

Frequently Asked Questions

Q1: How do I install the food waste crushing machine?
We provide comprehensive videos and photos that demonstrate exactly how to operate and install the machine. Our technical support is available 12-24 hours online to assist you.
Q2: What materials are suitable for this machine?
The machine is specifically designed for food waste, kitchen waste, vegetable waste, fruits, and various biomass materials requiring dewatering.
Q3: How is the pressure adjusted for dewatering?
Depending on the model, pressure is adjusted via a spring system or a hydraulic system. Tightening the pressure part reduces the discharge interval, increasing pressure and resulting in lower moisture content.
Q4: Is the machine durable enough for food processing?
Yes, both the screw and the screen are manufactured using high-quality food-grade 304SUS stainless steel, ensuring durability and hygiene.
Q5: What is the warranty and after-sales service?
We provide a one-year free warranty. After the warranty period expires, we continue to supply spare parts at favorable prices to ensure your long-term operation.
Q6: Can the machine handle different capacities?
We offer a range of models from RS-180 (0.2-0.5t/h) up to RS-600 (12-15t/h) to meet different industrial requirements.
