Electric Farm Equipment for Pig and Chicken Automatic Composting Machine

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

Basic Information
Model NO.
102
Type
Poultry Manure Compost Machine
Voltage
380V
Certification
CE, ISO
Tank Volume
102m³
Occupied Area
60m²
Operating Power
29.5kw
Raw Material
304 Stainless Steel/Steel
Function
Manage Manure and Make Organic Fertilizer
Hopper Volume
1.3m³
Handling Capacity
8-12m³
Output
3-9m³
Packaging & Delivery
Package Size
600.00cm * 600.00cm * 840.00cm
Gross Weight
3500.000kg
Transport Package
Container
Product Description

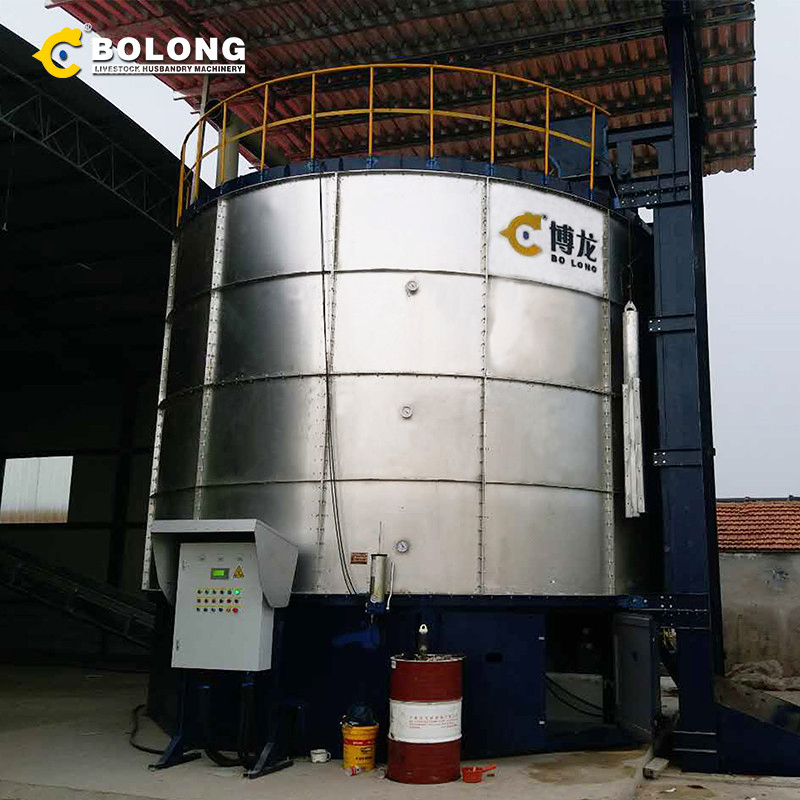

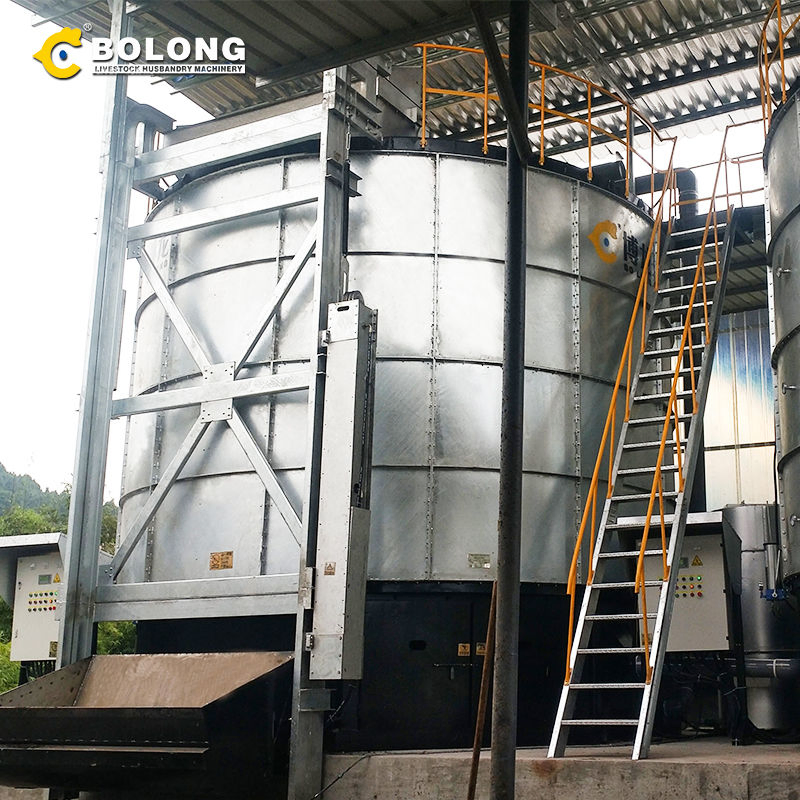

Automatic Composting Machine
An organic fertilizer fermentation tank is a device that converts organic solid waste into organic fertilizer through aerobic fermentation of microorganisms in a closed container. It utilizes the decomposition of microorganisms in nature, matures the materials through high temperature and microbial activity, kills harmful substances and reduces the moisture content and volume of the materials.

The working principle of the organic fertilizer fermentation tank is to deliver oxygen to the materials in the tank through a vortex air pump, and continuously turn the materials under the action of the stirring shaft to maintain the activity of aerobic bacteria. These microorganisms will gradually heat up to 50-65 degrees, and after about 7 days of high-temperature fermentation, they will effectively kill insect eggs, pathogens and weed seeds, and reach the standards of harmless and reduced treatment. The entire fermentation process is highly automated, which reduces manual operation links and improves production efficiency.

In livestock farming, incorporation of fermentation technology can highly enhance feed nutritional value. Processed via microbial action, fermented livestock and poultry excreta becomes biofertilizer rich in nitrogenous compounds like ammonia, urea, nitrates or nitrites; phosphorous as phosphate salts; potassium ions; and organic matter. It enhances waste utilization. Organic fertilizers not only enhance soil fertility but also promote improved plant growth leading to high yields.

In general, as an important environmental protection equipment, organic fertilizer fermentation tank is beneficial to the development of agriculture and animal husbandry. In the pursuit of sustainable development today, organic fertilizer fermentation tank will play its advantages in more fields.
Composting Equipment Composting Equipment Detail

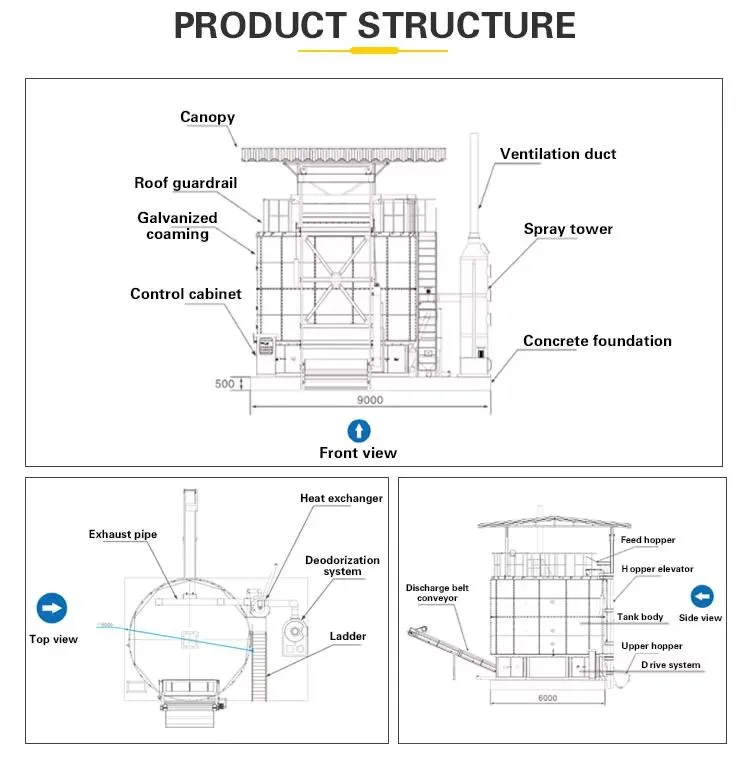

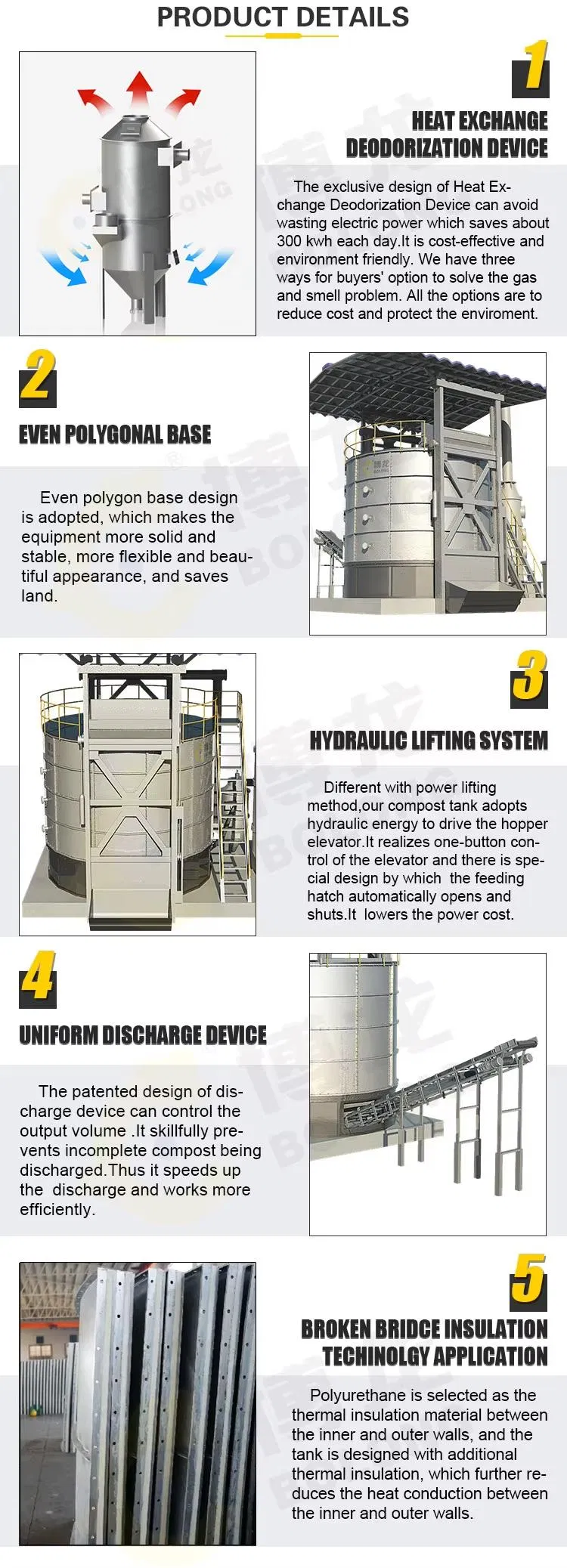

Machine Structure
Component Item Specifications
Model11FFG-102
Bottom blower (KW)12.5*2
Hydraulic station (KW)7.5+3
Induced draft fan (KW)3
Auxiliary heater (KW)4
Installed power (KW)40.9
Operating power (KW)about 29.5
Frequently Asked Questions
What is the primary function of the organic fertilizer fermentation tank?
The tank is designed to convert organic solid waste, such as poultry manure, into high-quality organic fertilizer through a controlled aerobic fermentation process.
How long does the fermentation process take?
The high-temperature fermentation process typically takes about 7 days to effectively process the materials and reach harmless standards.
Does the machine kill pathogens and pests?
Yes, the internal temperature reaches 50-65 degrees Celsius during fermentation, which effectively kills insect eggs, pathogens, and weed seeds.
What are the power requirements for the 102 model?
The installed power is 40.9 KW, with an average operating power of approximately 29.5 KW, running on a 380V voltage system.
What materials are used in the construction of the tank?
The tank is constructed using high-quality 304 stainless steel and steel to ensure durability and resistance to corrosion during the fermentation process.
Is the fermentation process automated?
Yes, the entire process is highly automated, utilizing vortex air pumps and stirring shafts to maintain optimal conditions with minimal manual intervention.
