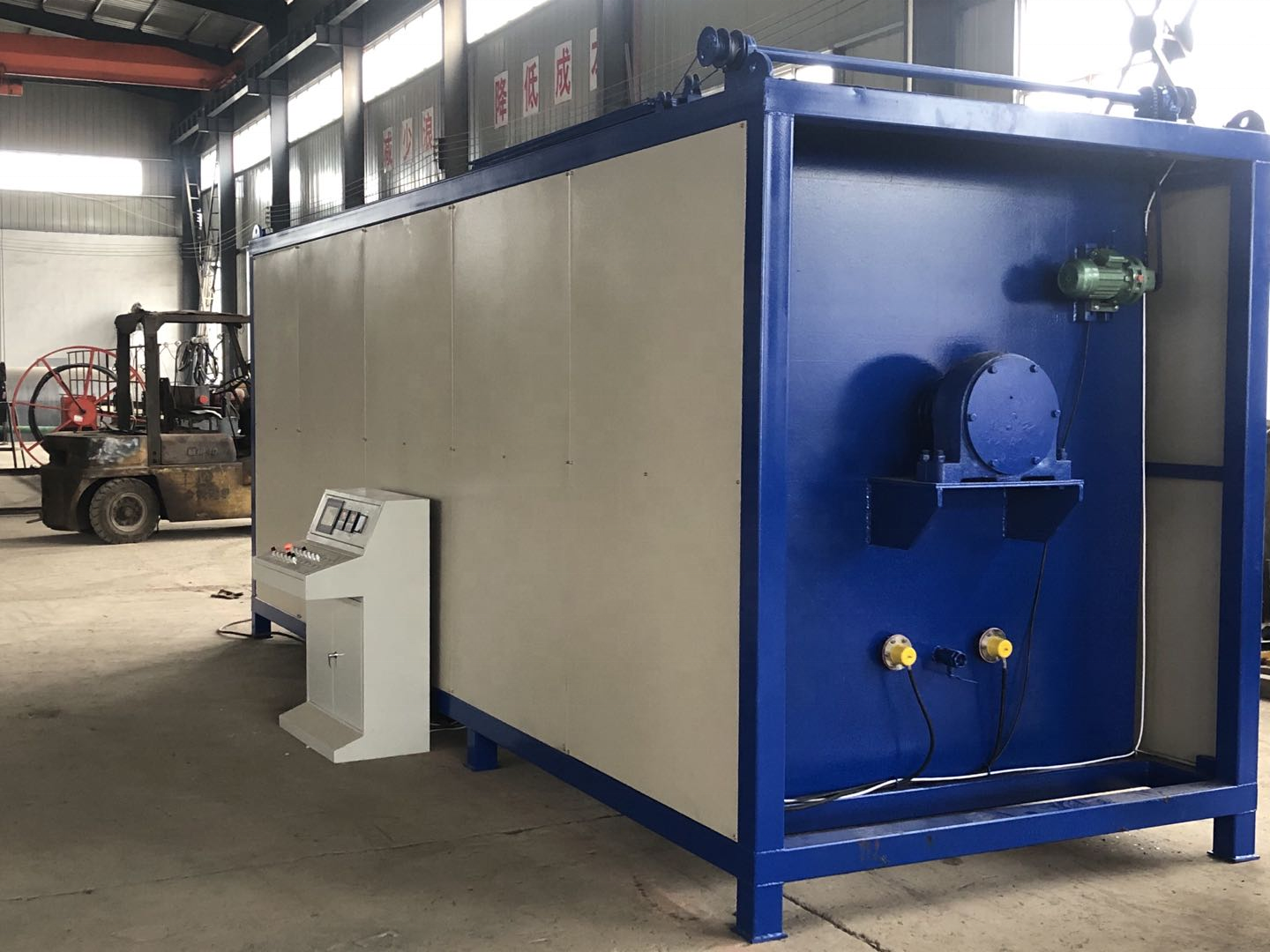

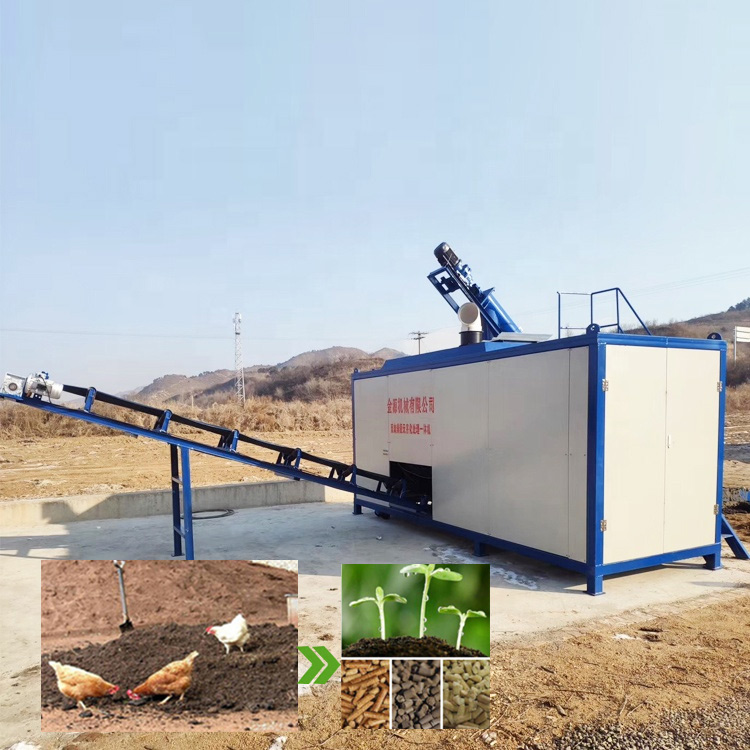

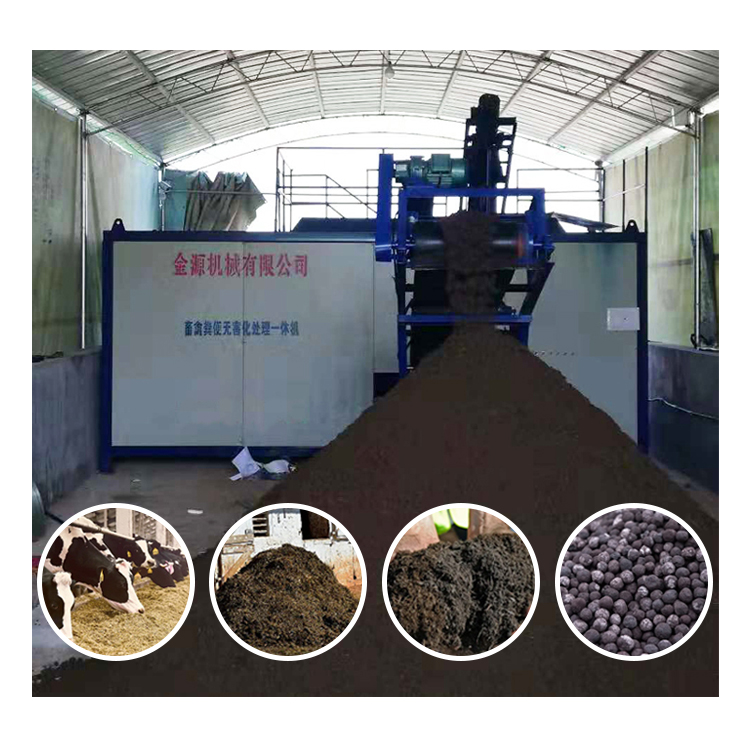

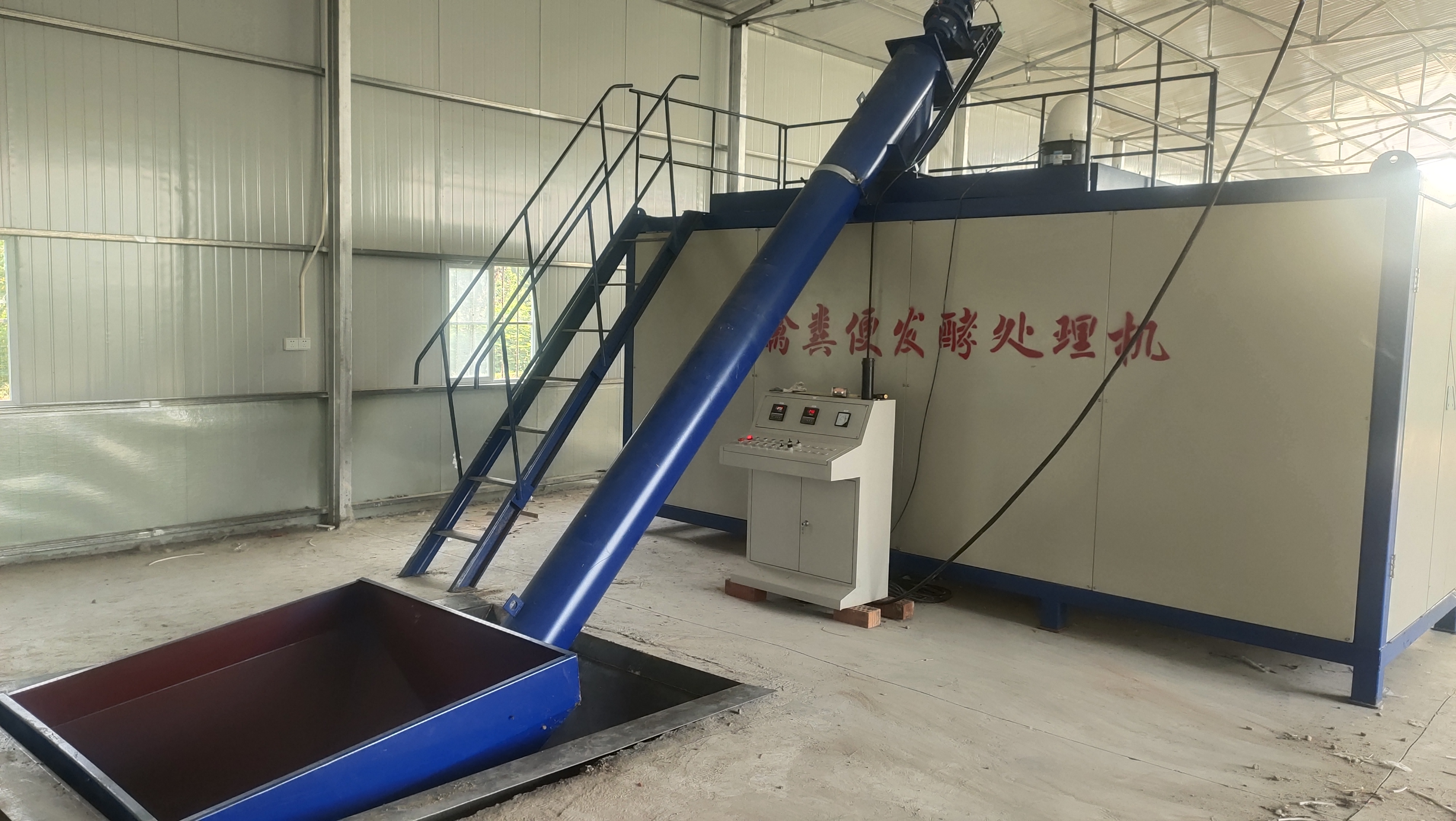

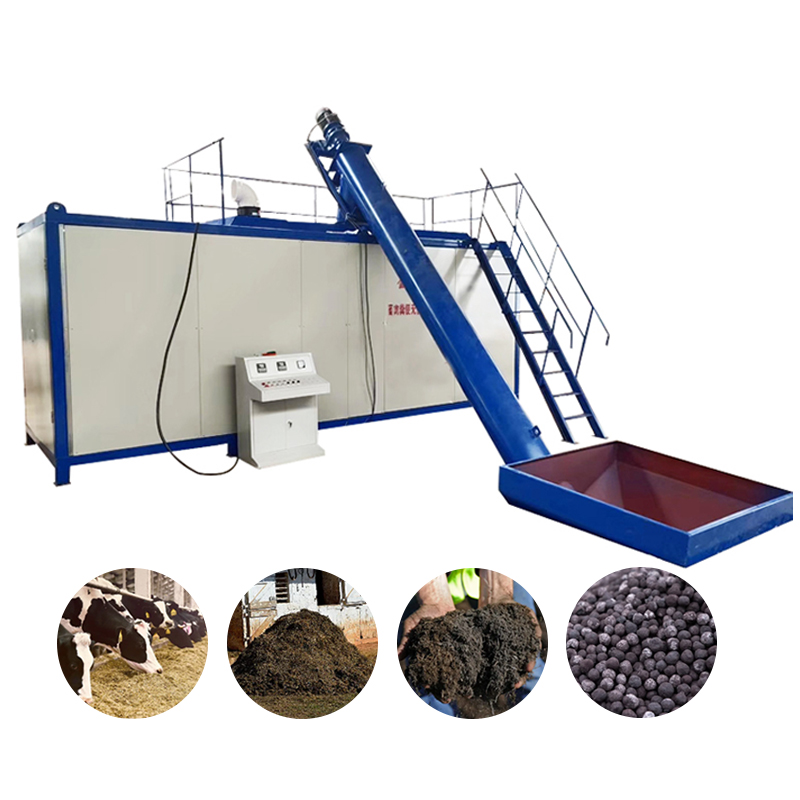

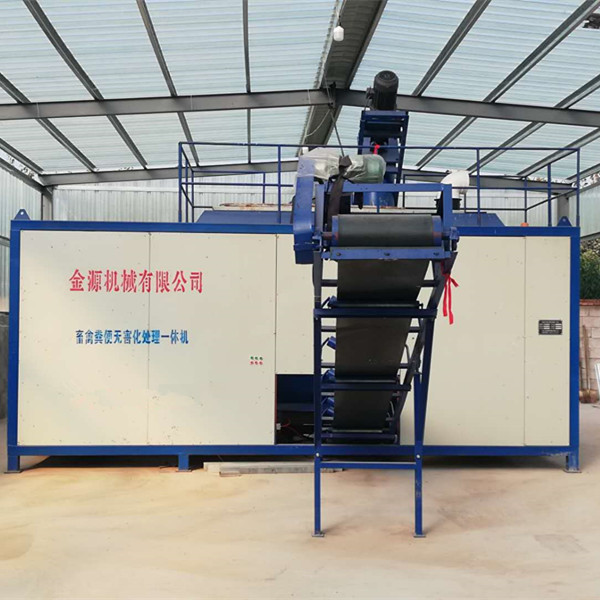

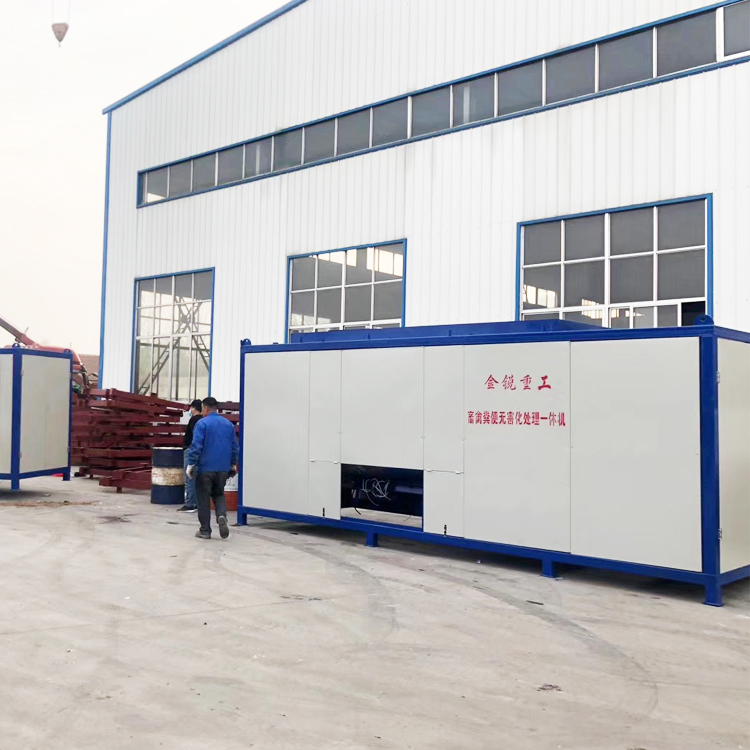

The Chicken manure fermentation equipment, also known as the Livestocks excrements intelligent fermentation all-in-one machine, is specifically designed for high-temperature fermentation of livestock manure in farms and residual sludge in sewage treatment plants.
It is highly suitable for various agricultural environments, including pig farms, cow farms, and chicken farms. The equipment integrates deodorization, sterilization, and high-efficiency fermentation into a single automated process.
| Model | Unit | 11FFQ-4 | 11FFQ-6 | 11FFQ-8 | 11FFQ-10 | 11FFQ-12 |
| Volume of tank | M³ | 4 | 6 | 8 | 10 | 12 |
| Processing capacity | M³ | 3 | 5 | 7 | 9 | 11 |
| Mixing Power | KW | 7.5 | 11 | 15 | 15 | 18.5 |
| Heating power | KW | 10 | 20 | 30 | 30 | 30 |
| Screw conveyor | - | 325mm x6m | 325mm x6m | 325mm x6m | 425mmx6m | 425mmx6m |
| Using size | m | 10x4.8x4 | 11x5.2x4.5 | 11x5.6x4.5 | 11x6x4.5 | 11x6.2x4.5 |
| Weight | T | 6 | 7 | 7.6 | 8.5 | 9 |

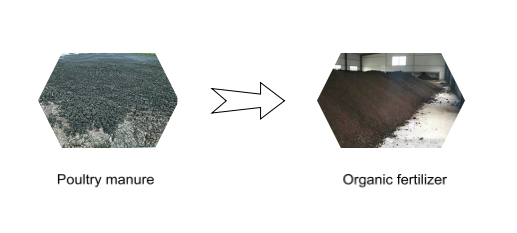

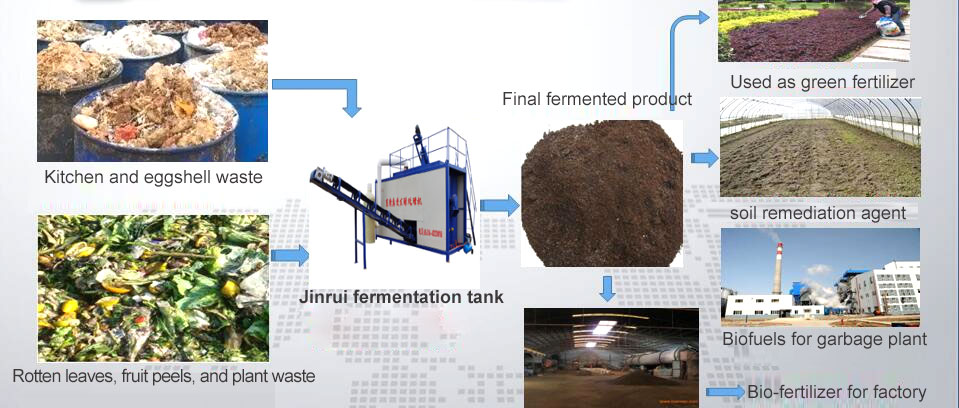

1. Preparation: Adjust carbon-nitrogen ratio and moisture content of raw materials.
2. Feeding: Transport materials into the fermentation tank.
3. Fermentation: High-temperature aerobic fermentation for deodorization, insecticidal action, and decomposition.

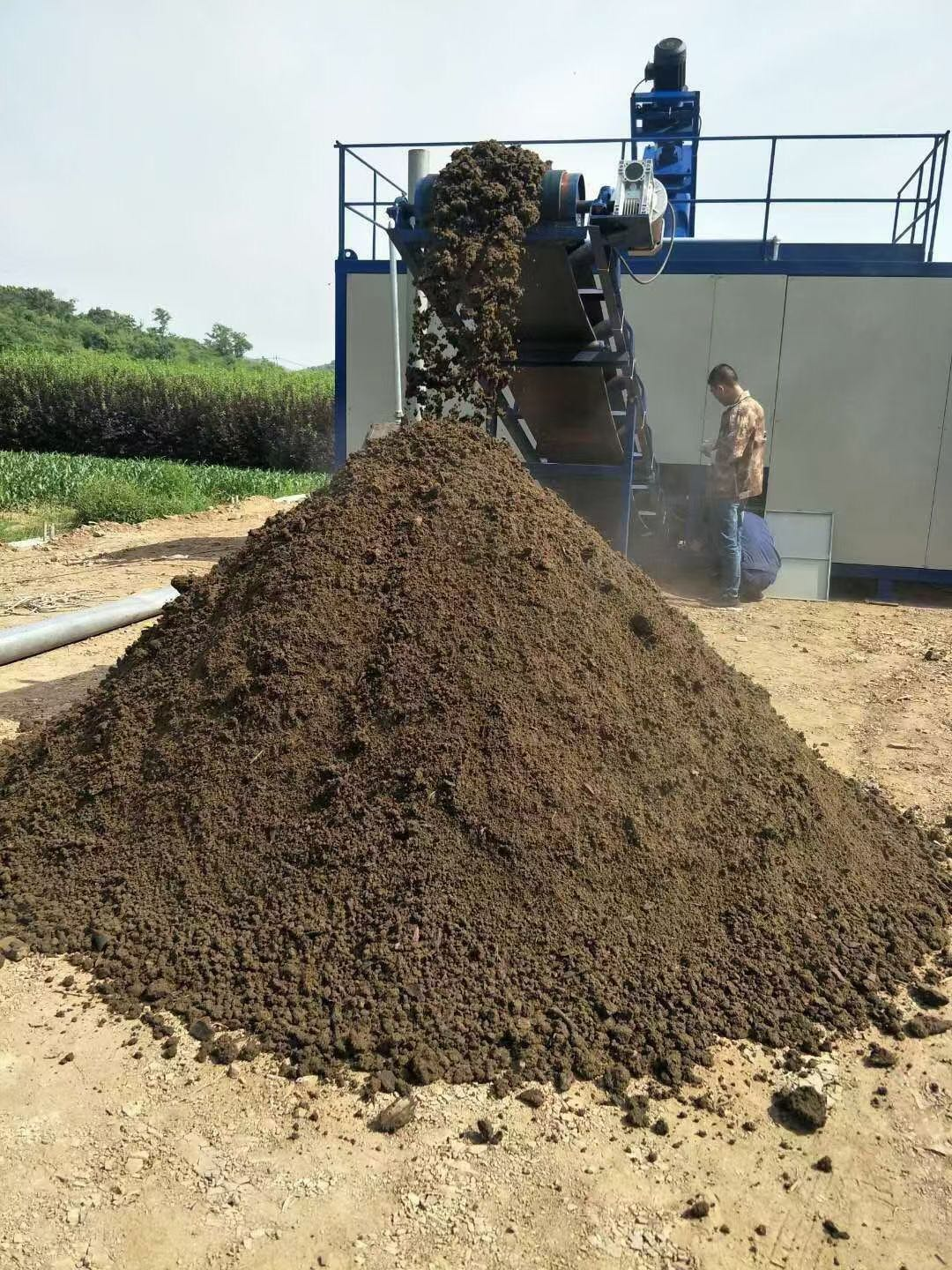

4. Discharge: Ready for bagging after 5-7 days of ground stacking.
