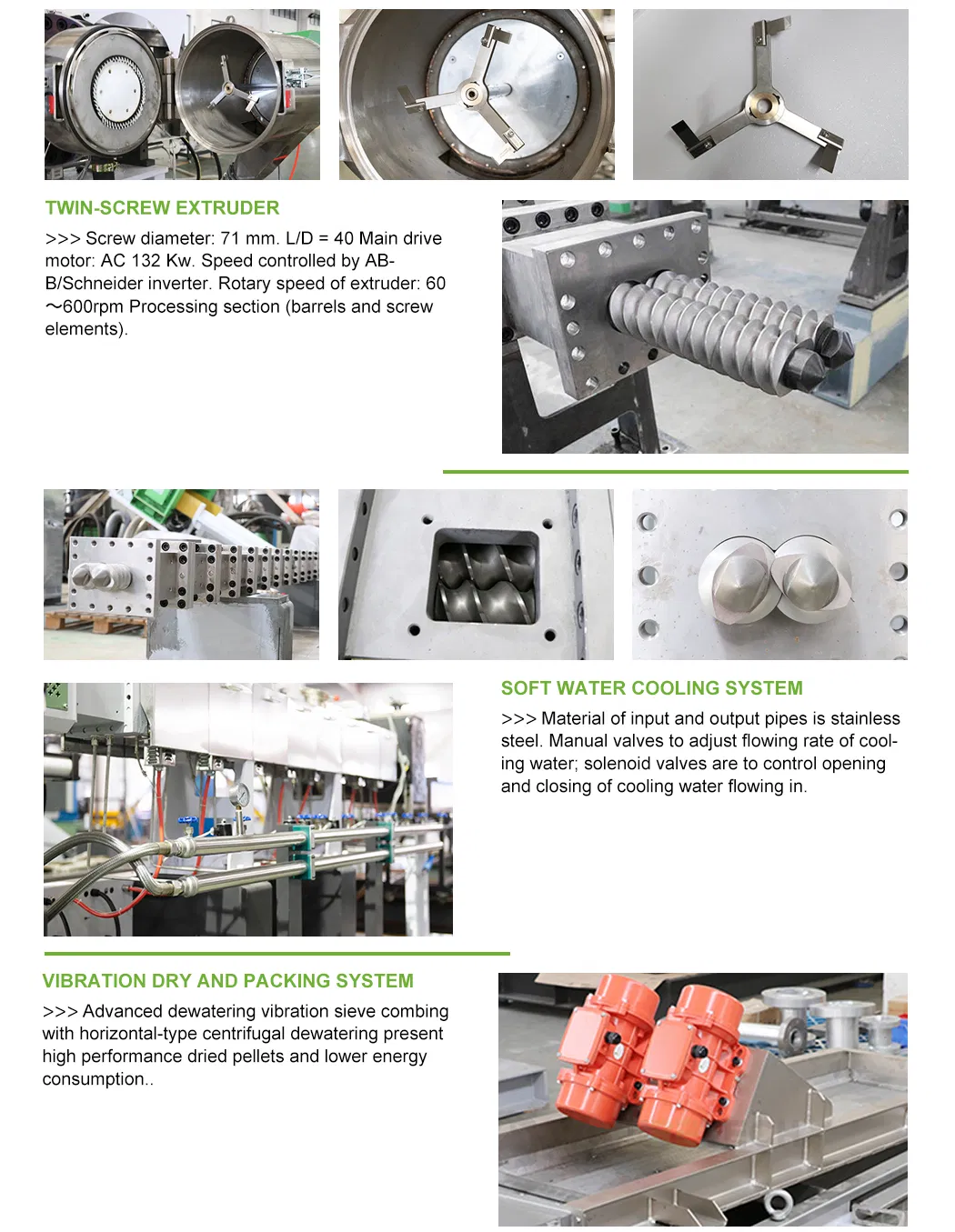

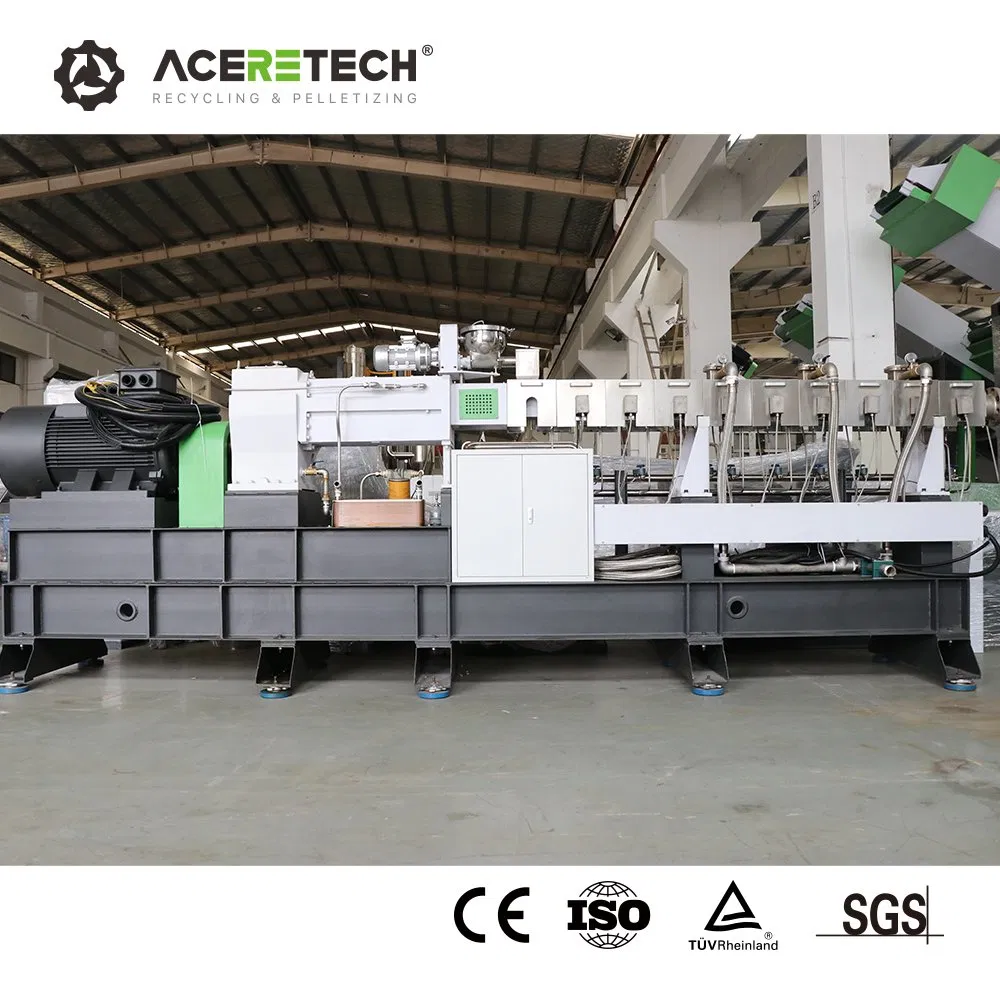

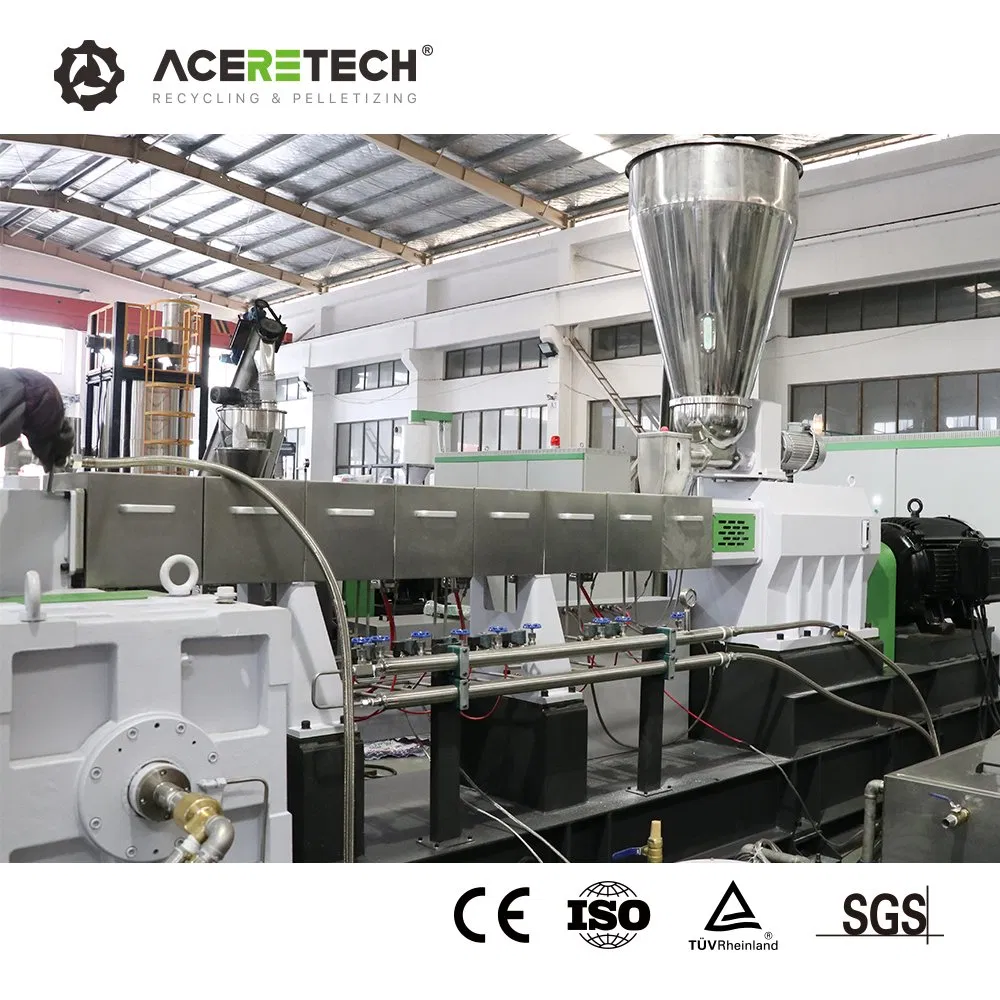

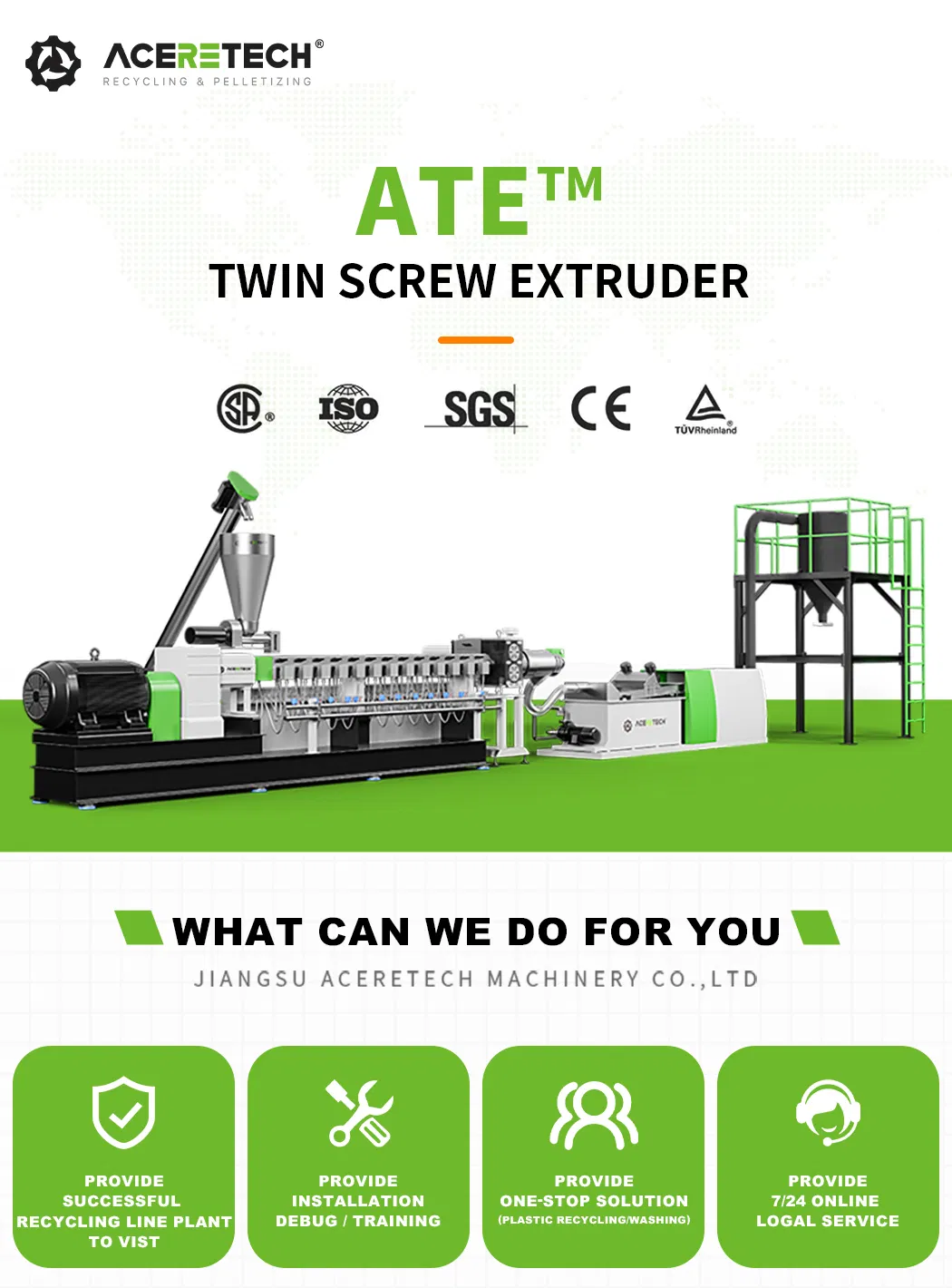

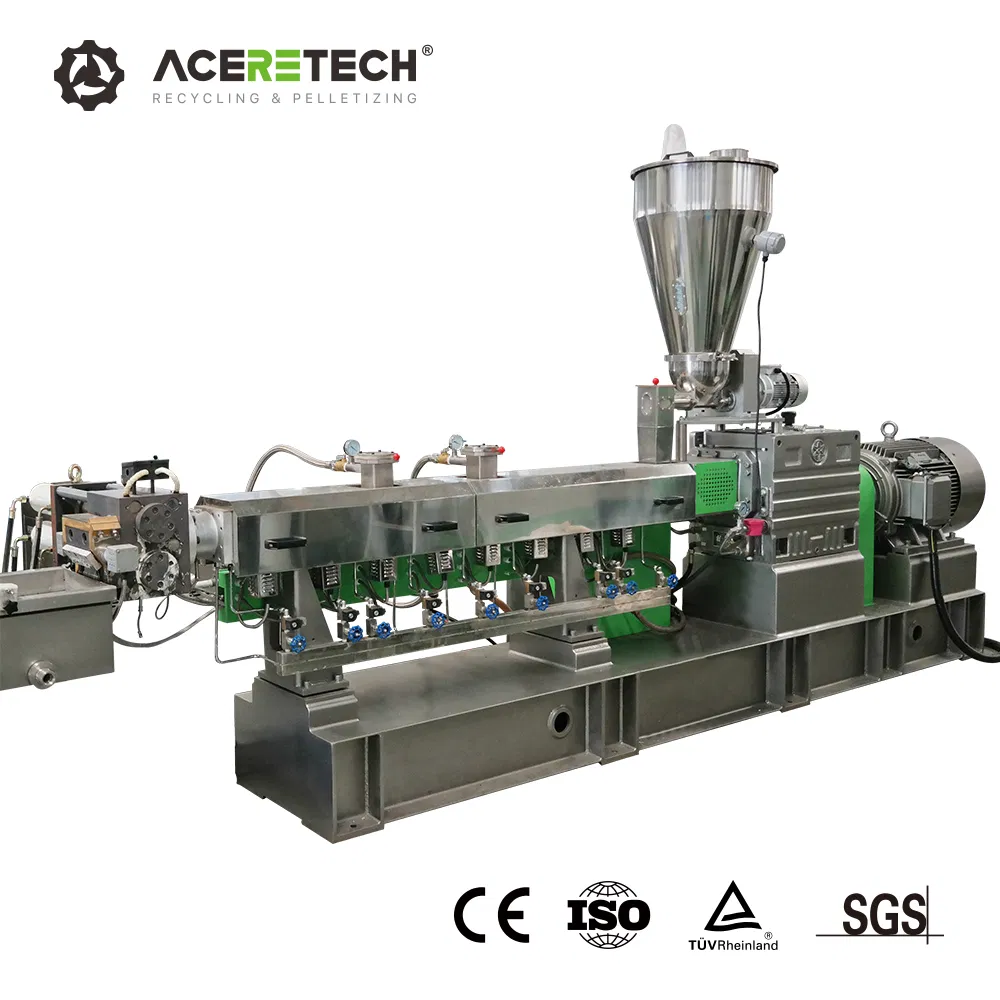

The ATE Series Co-rotating Parallel Twin Screw Extruder pelletizing machine consists of a motor drive, torque distribution gearbox, processing section, temperature controlling units, die section, and down-stream pelletizing system. It is a specialized and reliable system designed for high-performance plastic processing.
Adopting modular design principles and component standardization manufacturing, the ATE Twin Screw Extruder presents stable and reliable performance. Thanks to this modular approach, these extruders provide highly customizable solutions according to specific process requirements. Based on different output torque grades, the ATE series includes basic and efficiency types.
Multiple cutting systems can be combined with the ATE Twin Screw Extruder, including strand pelletizing, hot-face cutting, and underwater pelletizing.
| Machine Size | ATE35 | ATE52 | ATE65 | ATE75 | ATE95 |
|---|---|---|---|---|---|
| Dia. of screw (mm) | 35.6 | 51.4 | 65.4 | 71 | 93 |
| L/D | 32-64 | 32-64 | 32-64 | 32-64 | 32-64 |
| Screw speed Max (rpm) | 600 | 600 | 600 | 600 | 600 |
| Torque per shaft (Nm) | 115 | 415 | 675 | 990 | 2365 |
| Specific torque T/A3 | 4.2 | 5.2 | 4.8 | 4.6 | 5 |
| Output (kg/h) | 40-80 | 150-250 | 200-400 | 300-700 | 550-1500 |
