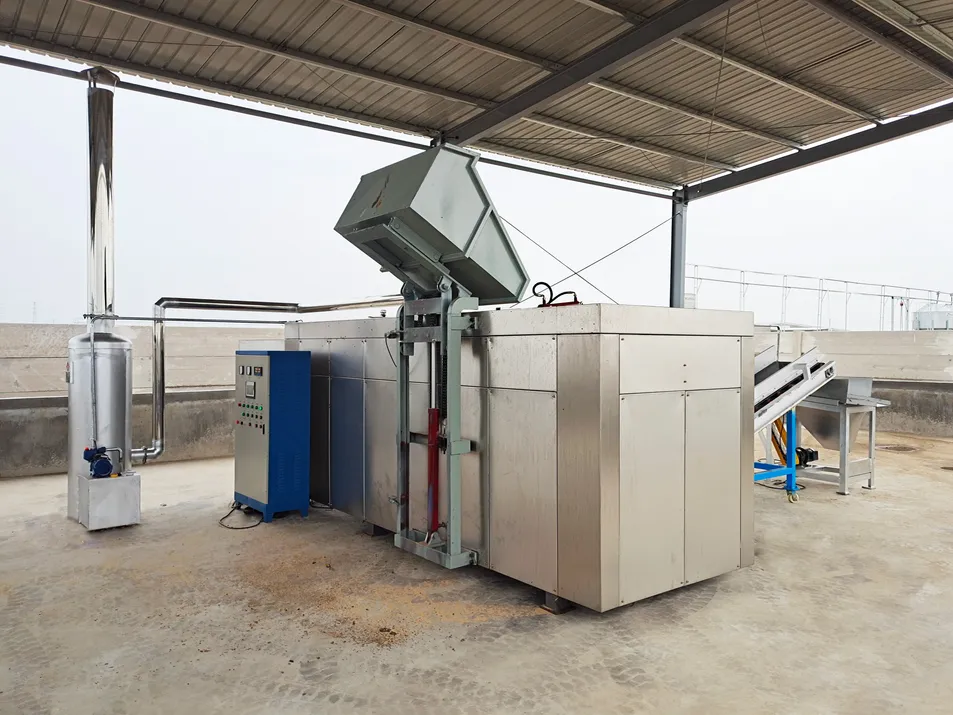

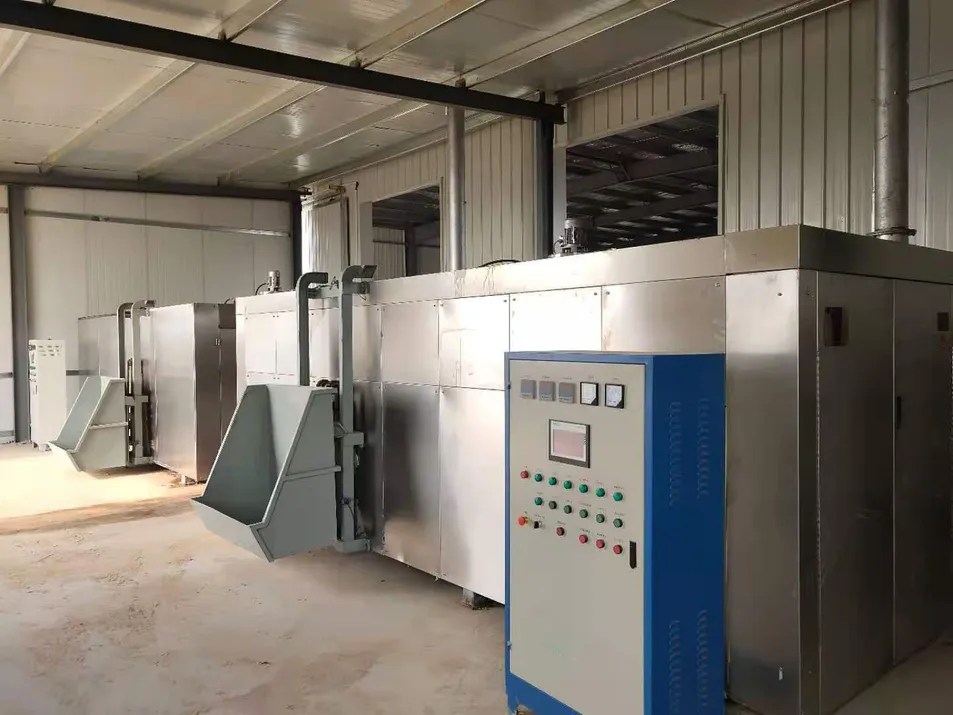

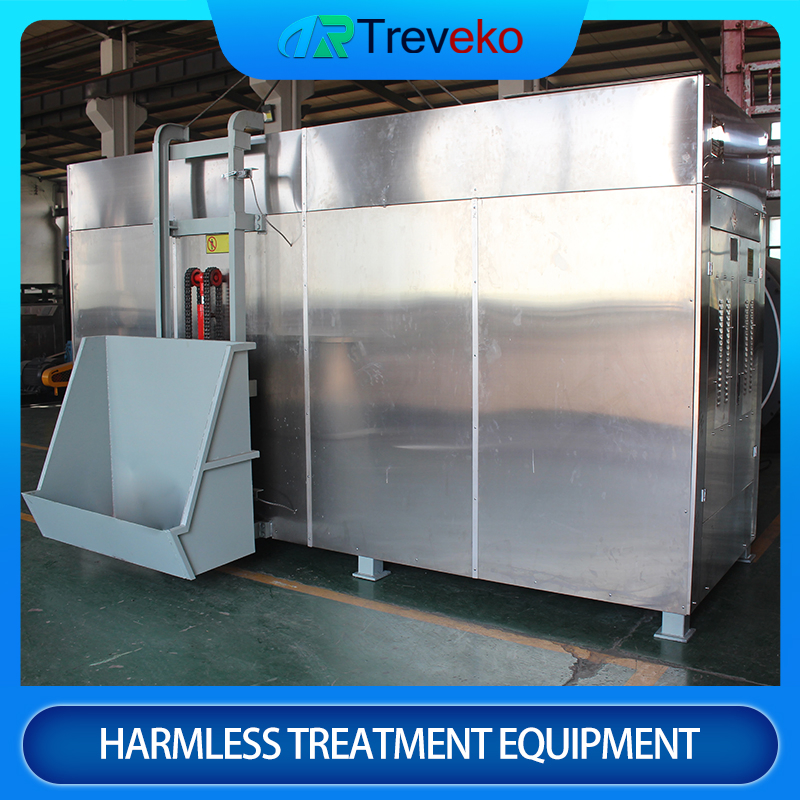

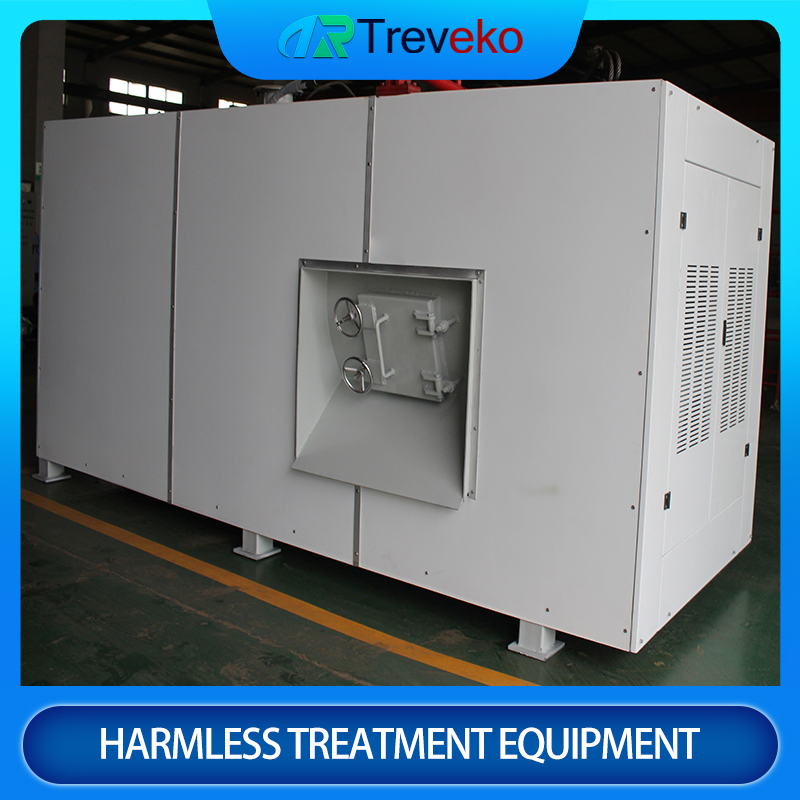

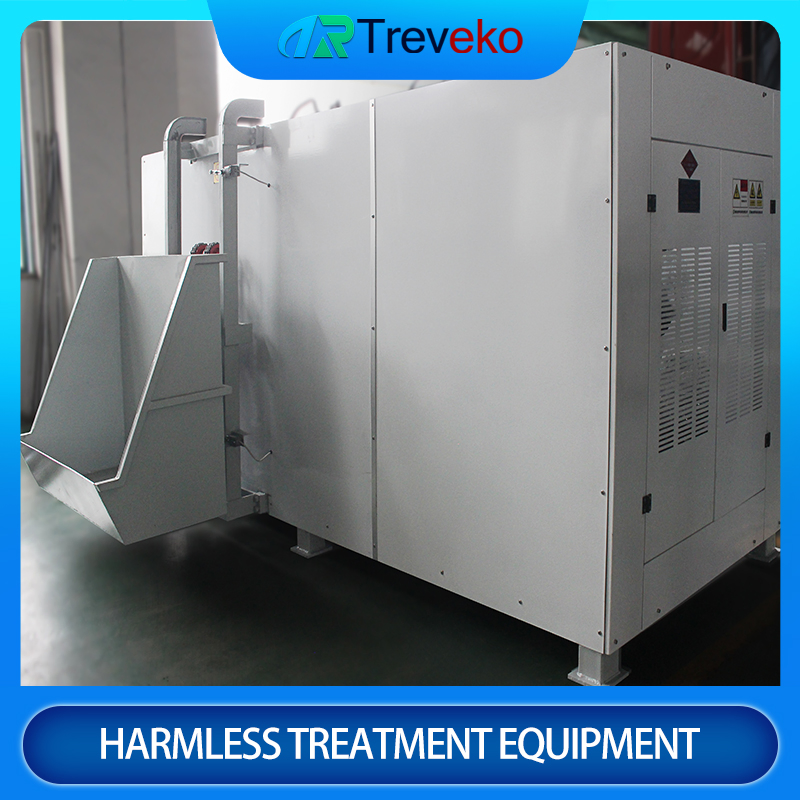

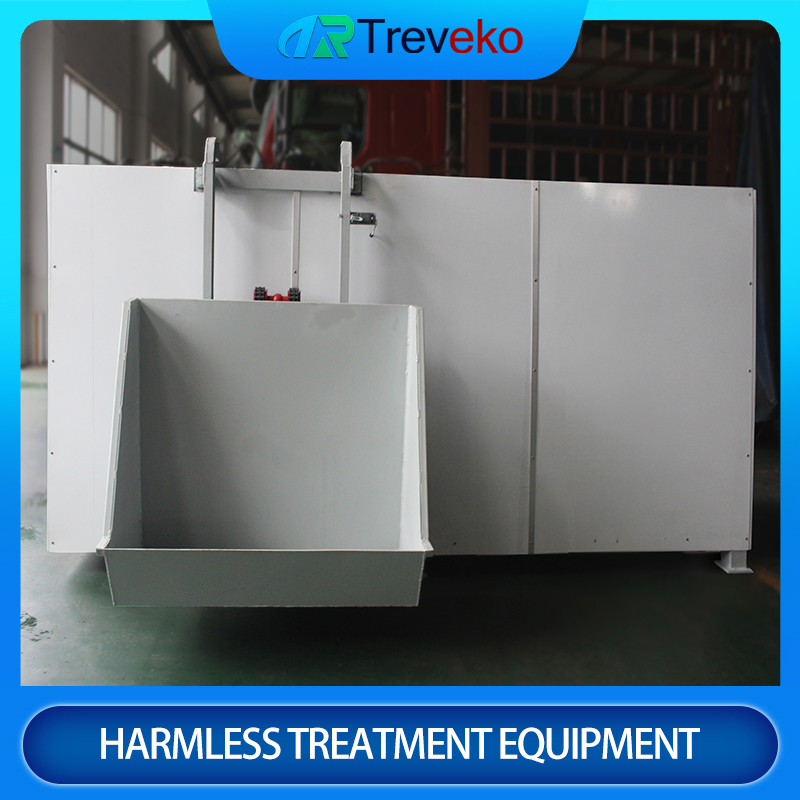

A fermentation machine is a specialized piece of equipment that utilizes microbial biochemical processes to efficiently, stably, and harmlessly degrade and transform organic materials under controlled environmental conditions (temperature, humidity, oxygen supply, and pH). Its core function is to accelerate the maturation, stabilization, or resource utilization of organic materials by optimizing fermentation conditions. It is widely used in organic waste treatment, biofertilizer production, feed fermentation, and biomass energy production.
| Model | Chamber Dimensions (mm) | Storage Volume | Processing Volume | Main Power | Spindle Speed | External Dimensions |
|---|---|---|---|---|---|---|
| TR-FJJ/ST-700 | U1000x2000 | 2.0m³ | 700KG/batch | 4kw | 2R/min | 4280x1460x1900 |
| TR-FJJ/ST-1000 | U1100x2400 | 2.8m³ | 1000KG/batch | 4kw | 2R/min | 4680x1540x2000 |
| TR-FJJ/ST-1500 | U1200x2700 | 3.9m³ | 1500KG/batch | 5.5kw | 2R/min | 5240x1600x2100 |
| TR-FJJ/ST-2000 | U1300x3200 | 4.5m³ | 2000KG/batch | 7.5kw | 2R/min | 5700x1700x2230 |
Adopts PID intelligent constant temperature technology (20-75℃) and automatic humidity regulation (50-65%). Variable frequency aeration ensures dissolved oxygen concentration ≥5mg/L.
Double Helix Mixing Shaft with high-torque design for three-dimensional uniform turning. Permeable Bed Plate shortens the fermentation cycle by 30-50%.
Preset modes for fast fermentation, deep composting, and low-temperature drying. Supports remote monitoring and fault warning through IoT options.
Standard capacities from 1-20m³, expandable through parallel connections to meet large-scale industrial processing requirements.
