Anaerobic Digestion Vessel for Fertilizers Industrial Composting Tank Fermenter for Bioorganic Fertilizers

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

📋

Basic Specifications

Type
Poultry Manure Compost Machine
Voltage
380V
Certification
CE, ISO
Tank Volume
102m³
Occupied Area
60m²
Operating Power
29.5kw
Raw Material
304 Stainless Steel/Steel
Function
Manage Manure and Make Organic Fertilizer
Handling Capacity
8-12m³
Output
3-9m³
⚙️

Product Description

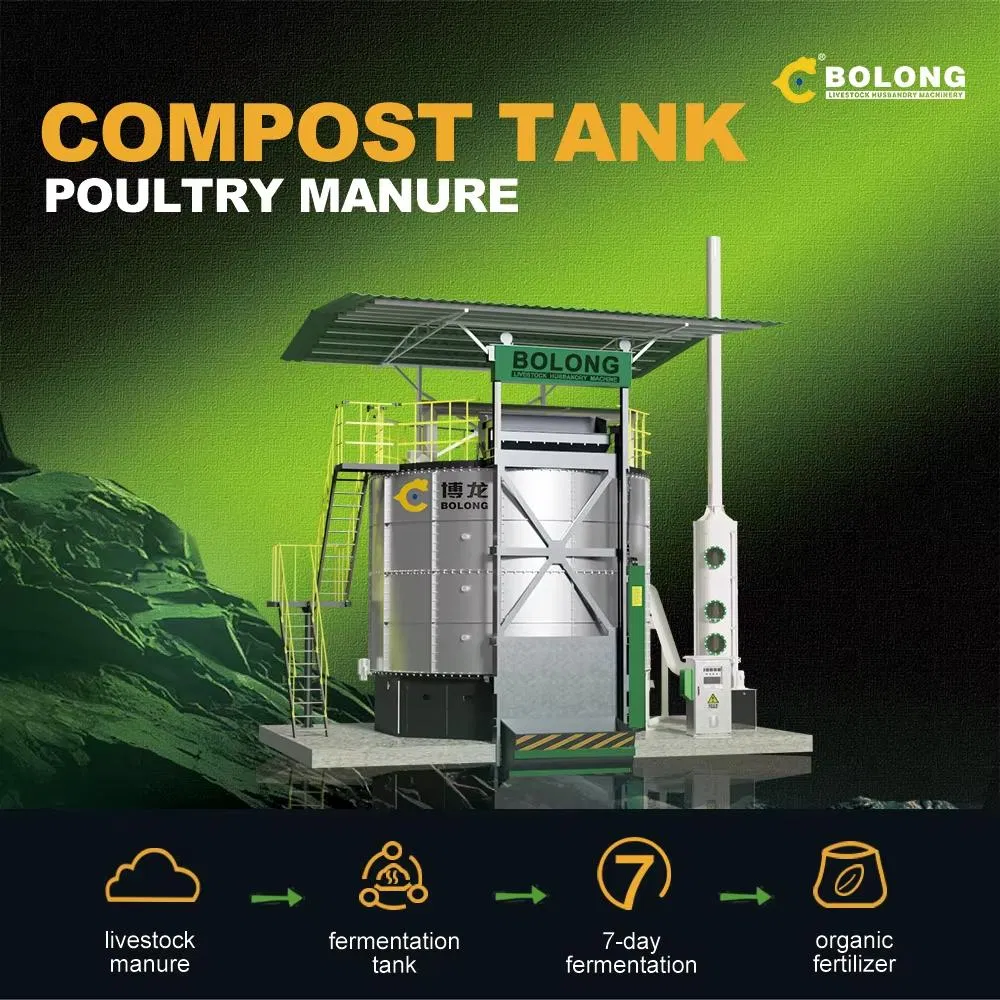

Composting Tank

An organic fertilizer fermentation tank is a device that converts organic solid waste into organic fertilizer through aerobic fermentation of microorganisms in a closed container. It utilizes the decomposition of microorganisms in nature, matures the materials through high temperature and microbial activity, kills harmful substances and reduces the moisture content and volume of the materials.

The working principle of the organic fertilizer fermentation tank is to deliver oxygen to the materials in the tank through a vortex air pump, and continuously turn the materials under the action of the stirring shaft to maintain the activity of aerobic bacteria. These microorganisms will gradually heat up to 50-65 degrees, and after about 7 days of high-temperature fermentation, they will effectively kill insect eggs, pathogens and weed seeds, and reach the standards of harmless and reduced treatment. The entire fermentation process is highly automated, which reduces manual operation links and improves production efficiency.

In livestock farming, incorporation of fermentation technology can highly enhance feed nutritional value. Processed via microbial action, fermented livestock and poultry excreta becomes biofertilizer rich in nitrogenous compounds like ammonia, urea, nitrates or nitrites; phosphorous as phosphate salts; potassium ions; and organic matter. It enhances waste utilization. Organic fertilizers not only enhance soil fertility but also promote improved plant growth leading to high yields.

📊

Technical Parameters

Model 11FFG-102
Bottom blower (KW)12.5*2
Hydraulic station (KW)7.5+3
Induced draft fan (KW)3
Auxiliary heater (KW)4
Installed power (KW)40.9
Operating power (KW)about 29.5
🖼️

Product Display

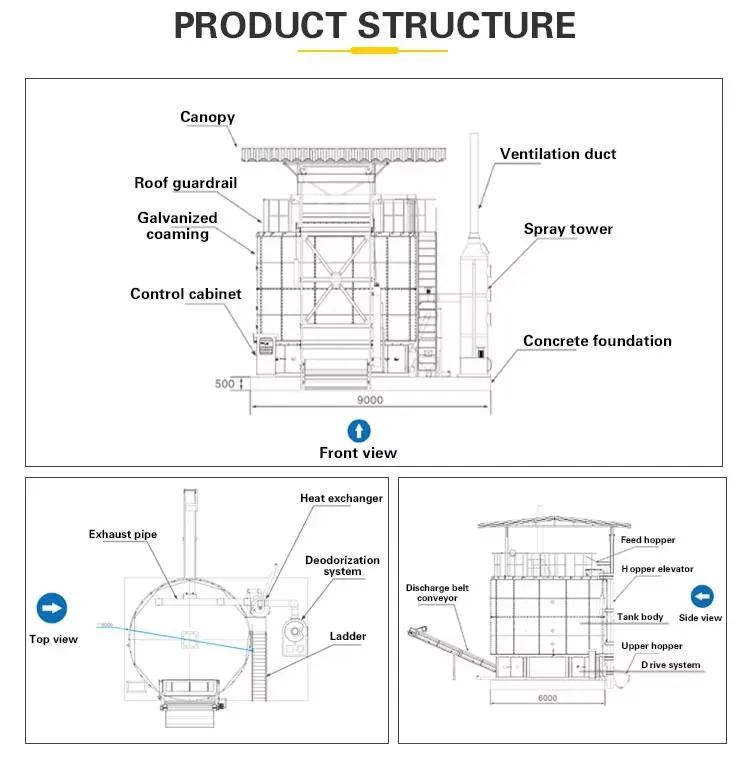

Equipment View 1 Equipment View 2

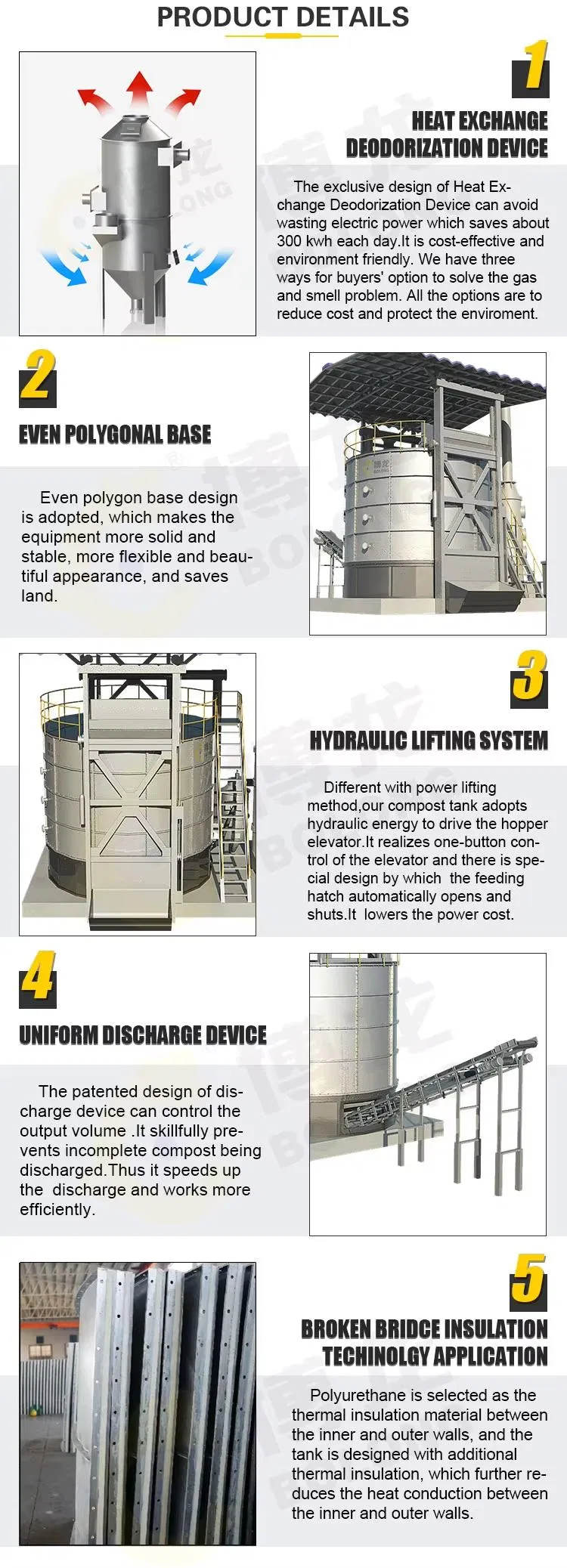

Technical Diagram

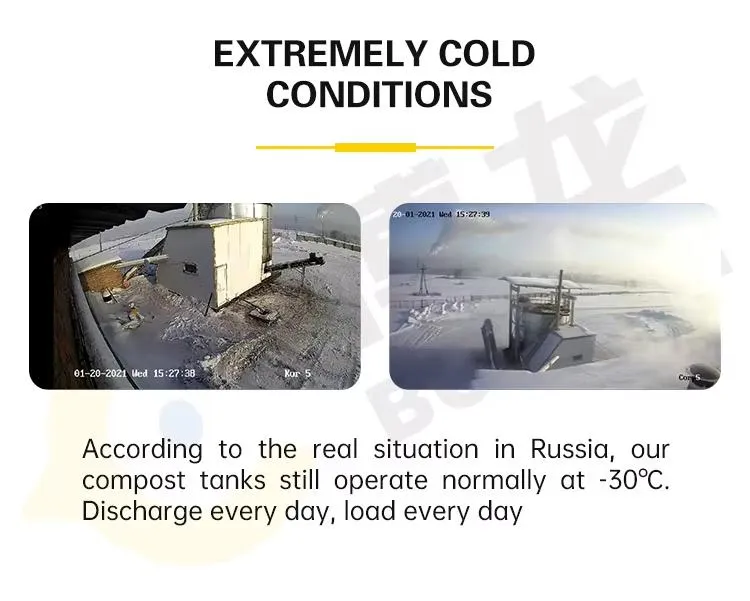

Operational View 1 Operational View 2 Operational View 3
Site Installation 1 Site Installation 2
Detail 1 Detail 2 Detail 3

Frequently Asked Questions

1. How long does the fermentation process take?
The entire high-temperature aerobic fermentation process typically takes about 7 days to complete, transforming waste into stable organic fertilizer.
2. What temperature does the tank reach during operation?
Microbial activity naturally raises the temperature inside the tank to between 50-65 degrees Celsius, which is sufficient to kill pathogens and insect eggs.
3. Is the fermentation process automated?
Yes, the system is highly automated. It features automatic oxygen delivery via vortex air pumps and continuous material turning via a stirring shaft.
4. What kind of waste can this equipment handle?
It is designed for organic solid waste, specifically livestock and poultry excreta, converting it into high-value biofertilizer.
5. What are the space requirements for the 102m³ tank?
This specific model requires a minimum occupied area of approximately 60m², making it highly efficient for its processing volume.
6. What materials are used in the construction of the tank?
The tank is constructed using high-quality materials including 304 stainless steel and reinforced steel to ensure durability and corrosion resistance.
