Drum Composting Vessel Continuous Feed Fermentation Tank Aerated Fermentation

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

📋

Basic Specifications

Type
Poultry Manure Compost Machine
Voltage
380V
Certification
CE, ISO
Tank Volume
102m³
Minimum Occupied Area
60m²
Operating Power
29.5kw
Raw Material
304 Stainless Steel/Steel
Function
Manage Manure and Make Organic Fertilizer
Hopper Volume
1.3m³
Handling Capacity
8-12m³
Output
3-9m³
Package Size
160.00cm * 71.00cm * 90.00cm
Package Gross Weight
2000.000kg
HS Code
8436800000
⚙️

Product Overview

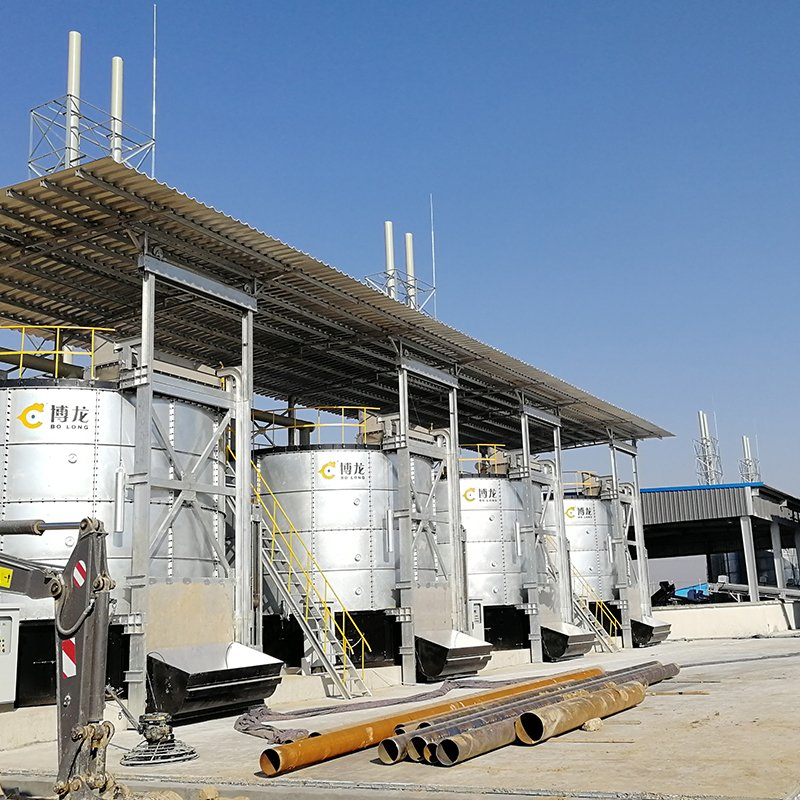

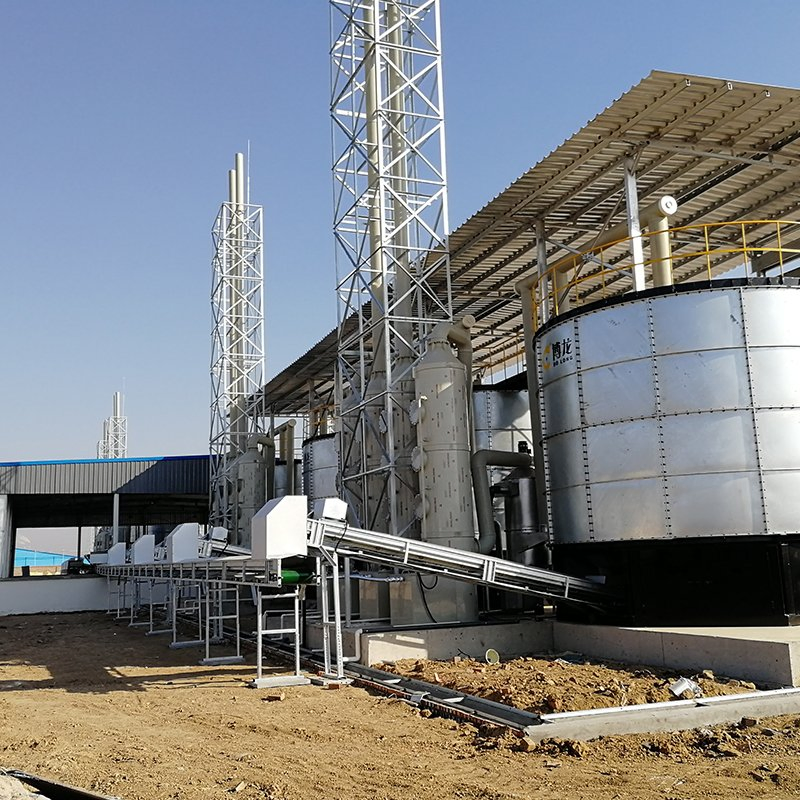

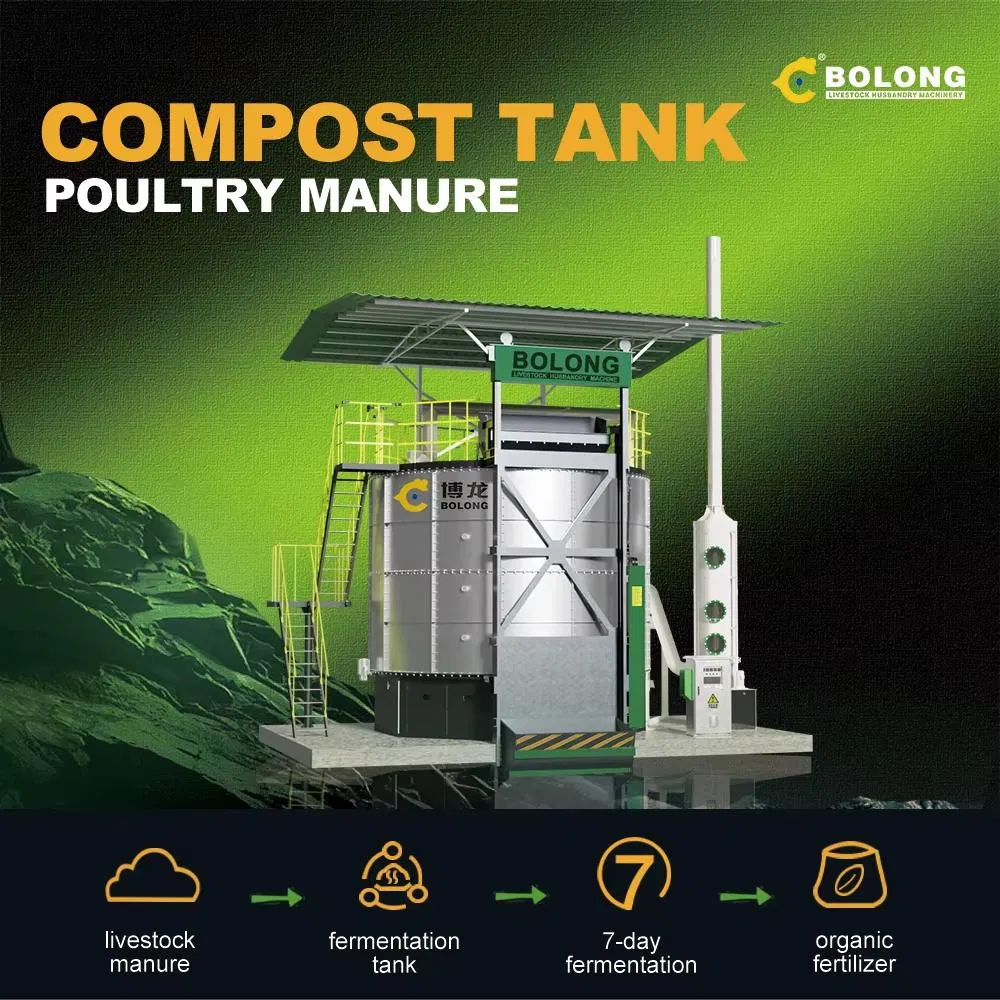

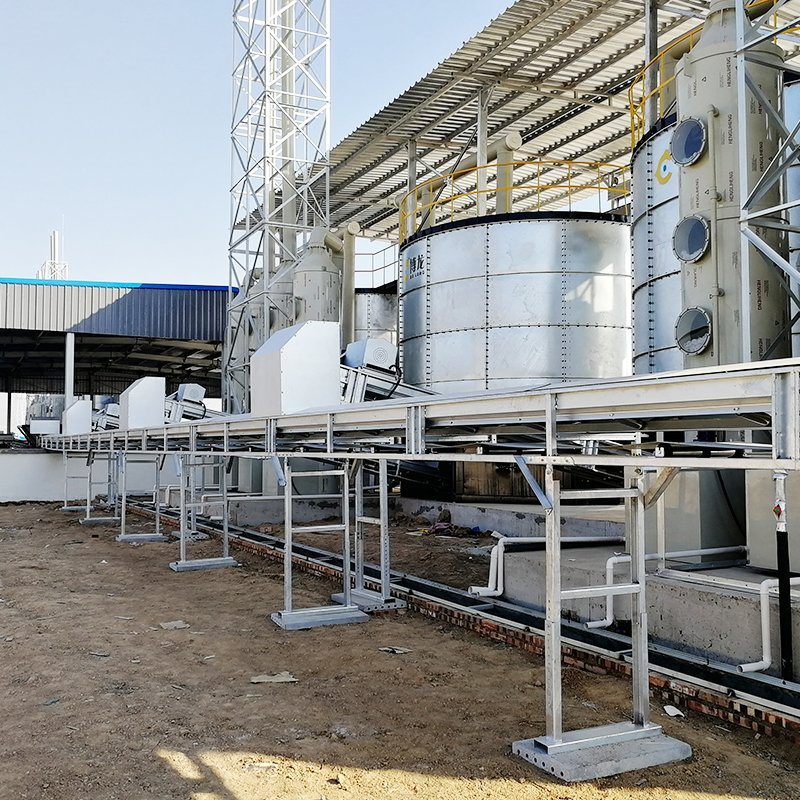

Composting Vessel
An organic fertilizer fermentation tank is a device that converts organic solid waste into organic fertilizer through aerobic fermentation of microorganisms in a closed container. It utilizes the decomposition of microorganisms in nature, matures the materials through high temperature and microbial activity, kills harmful substances and reduces the moisture content and volume of the materials.

The working principle of the organic fertilizer fermentation tank is to deliver oxygen to the materials in the tank through a vortex air pump, and continuously turn the materials under the action of the stirring shaft to maintain the activity of aerobic bacteria. These microorganisms will gradually heat up to 50-65 degrees, and after about 7 days of high-temperature fermentation, they will effectively kill insect eggs, pathogens and weed seeds, and reach the standards of harmless and reduced treatment. The entire fermentation process is highly automated, which reduces manual operation links and improves production efficiency.

In livestock farming, incorporation of fermentation technology can highly enhance feed nutritional value. Processed via microbial action, fermented livestock and poultry excreta becomes biofertilizer rich in nitrogenous compounds like ammonia, urea, nitrates or nitrites; phosphorous as phosphate salts; potassium ions; and organic matter. It enhances waste utilization. Organic fertilizers not only enhance soil fertility but also promote improved plant growth leading to high yields.

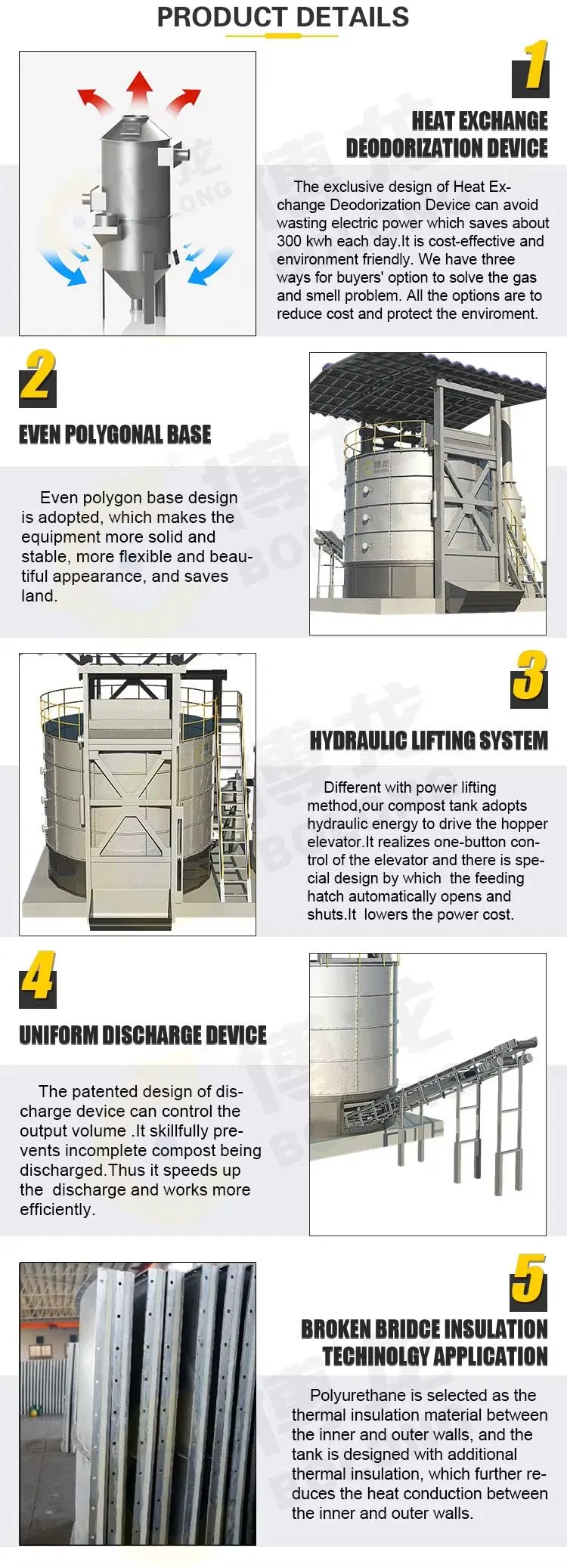

Technical Diagram
📊

Technical Parameters

Model11FFG-102
Bottom blower (KW)12.5*2
Hydraulic station (KW)7.5+3
Induced draft fan (KW)3
Auxiliary heater (KW)4
Installed power (KW)40.9
Operating power (KW)about 29.5

Frequently Asked Questions

1. How long does the fermentation process take?
The process typically takes about 7 days of high-temperature fermentation to complete the maturation and harmless treatment.
2. Does the equipment effectively kill pathogens and pests?
Yes, the internal temperature reaches 50-65 degrees Celsius, which effectively kills insect eggs, pathogens, and weed seeds.
3. What is the material of the fermentation tank?
The tank is constructed using high-quality 304 Stainless Steel or Steel for durability and corrosion resistance.
4. Is the operation of the machine complicated?
The entire fermentation process is highly automated, which significantly reduces manual operation and improves production efficiency.
5. What is the main function of this equipment?
The primary function is to manage livestock manure and convert it into high-quality organic biofertilizer rich in nitrogen, phosphorous, and potassium.
6. What is the handling capacity of the 102m³ tank?
The machine has a handling capacity of 8-12m³ and an output range of 3-9m³ of finished organic fertilizer.
