Fermentation System for Compost Closed Vessel Composting Unit Fermenting Tank for Organic Waste

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

i

Basic Specifications

Type
Poultry Manure Compost Machine
Voltage
380V
Certification
CE, ISO
Tank Volume
102m³
Occupied Area
60m²
Operating Power
29.5kw
Raw Material
304 Stainless Steel/Steel
Function
Manage Manure & Organic Fertilizer
Handling Capacity
8-12m³
Output
3-9m³
Origin
China
HS Code
8436800000
📦

Packaging & Delivery

Package Size
160.00cm * 71.00cm * 90.00cm
Gross Weight
2000.00kg

Product Description

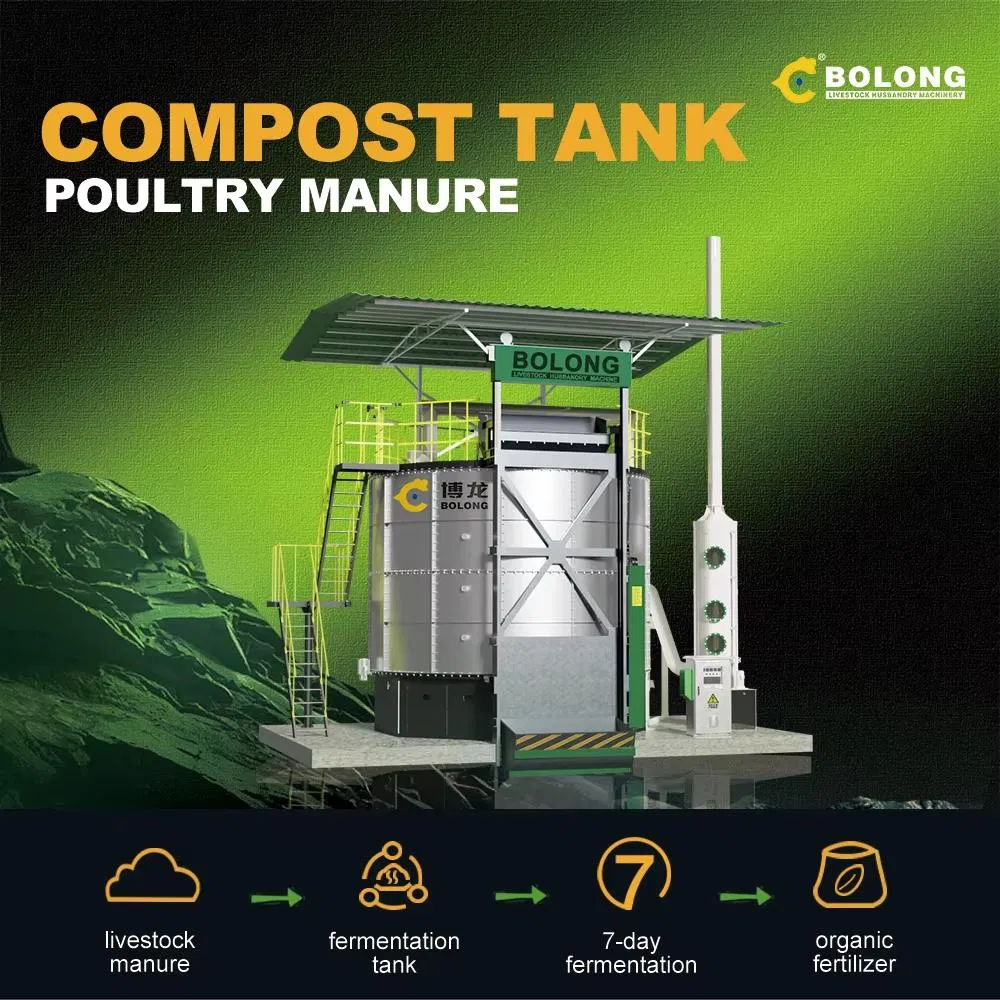

Fermentation System Unit
An organic fertilizer fermentation tank is a device that converts organic solid waste into organic fertilizer through aerobic fermentation of microorganisms in a closed container. It utilizes the decomposition of microorganisms in nature, matures the materials through high temperature and microbial activity, kills harmful substances and reduces the moisture content and volume of the materials.

The working principle is to deliver oxygen to the materials in the tank through a vortex air pump, and continuously turn the materials under the action of the stirring shaft to maintain the activity of aerobic bacteria. These microorganisms will gradually heat up to 50-65 degrees, and after about 7 days of high-temperature fermentation, they will effectively kill insect eggs, pathogens and weed seeds, and reach the standards of harmless and reduced treatment. The entire fermentation process is highly automated, which reduces manual operation links and improves production efficiency.

In livestock farming, incorporation of fermentation technology can highly enhance feed nutritional value. Processed via microbial action, fermented livestock and poultry excreta becomes biofertilizer rich in nitrogenous compounds like ammonia, urea, nitrates or nitrites; phosphorous as phosphate salts; potassium ions; and organic matter. It enhances waste utilization. Organic fertilizers not only enhance soil fertility but also promote improved plant growth leading to high yields.
Compost Process

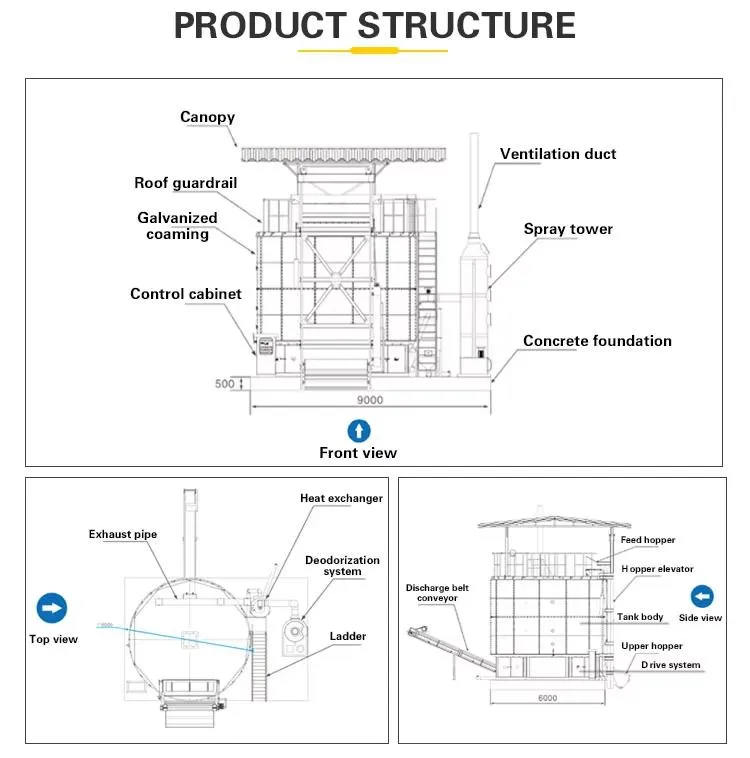

Equipment Detail

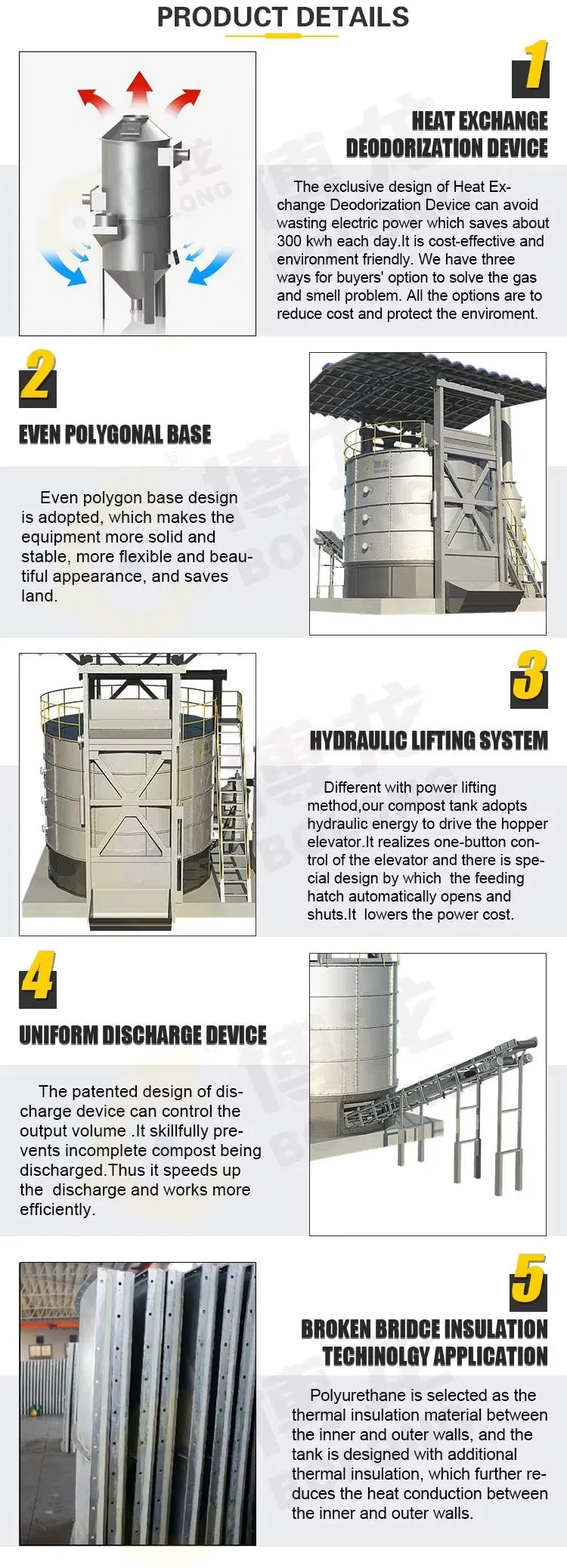

System Overview
Technical Parameter Details (Model 11FFG-102)
Bottom blower(KW)12.5*2
Hydraulic station(KW)7.5+3
Induced draft fan(KW)3
Auxiliary heater(KW)4
Installed power(KW)40.9
Operating power(KW)about 29.5
Fermentation Tank View 1
Fermentation Tank View 2
Fermentation Tank View 3
Technical Drawing
Application Scenario
Organic Fertilizer Sample
Installation 1
Installation 2
?

Frequently Asked Questions

How does the organic fertilizer fermentation tank work?
It uses aerobic fermentation driven by microorganisms in a closed environment. A vortex air pump supplies oxygen while a stirring shaft ensures uniform decomposition and high-temperature microbial activity.
How long is the fermentation cycle?
Typically, the high-temperature fermentation process takes about 7 days to effectively process the materials into fertilizer.
What temperature is reached during the process?
The system maintains a temperature between 50-65 degrees Celsius, which is sufficient to kill pathogens, insect eggs, and weed seeds.
What are the primary materials used for the tank?
The tank is constructed using high-quality 304 stainless steel or durable steel to ensure longevity and resistance to corrosion.
Is the fermentation process automated?
Yes, the entire process is highly automated, which significantly reduces the need for manual operation and improves overall production efficiency.
What is the capacity of this specific unit?
This model features a 102m³ tank volume with a daily handling capacity of 8-12m³ and an output of 3-9m³ of organic fertilizer.
