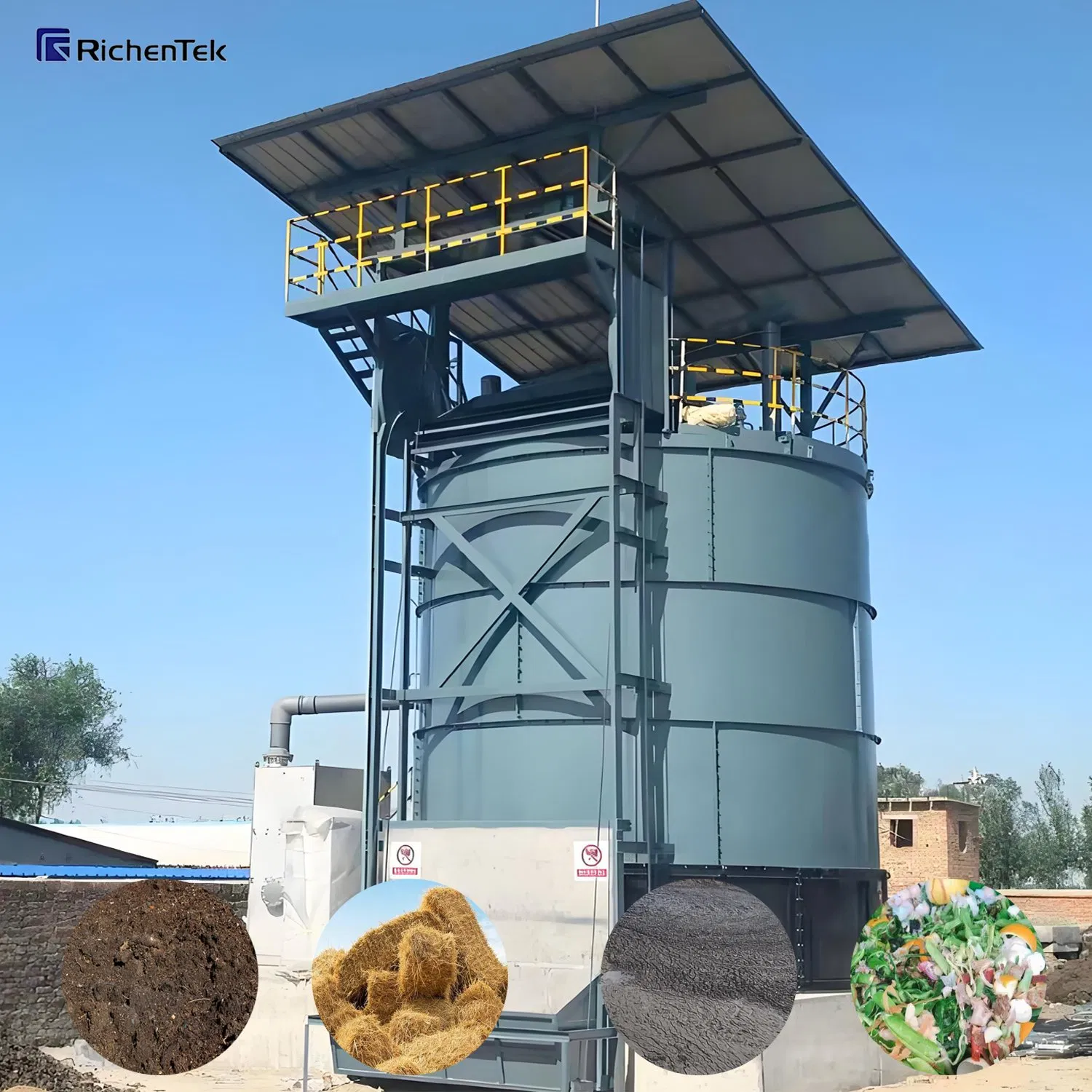

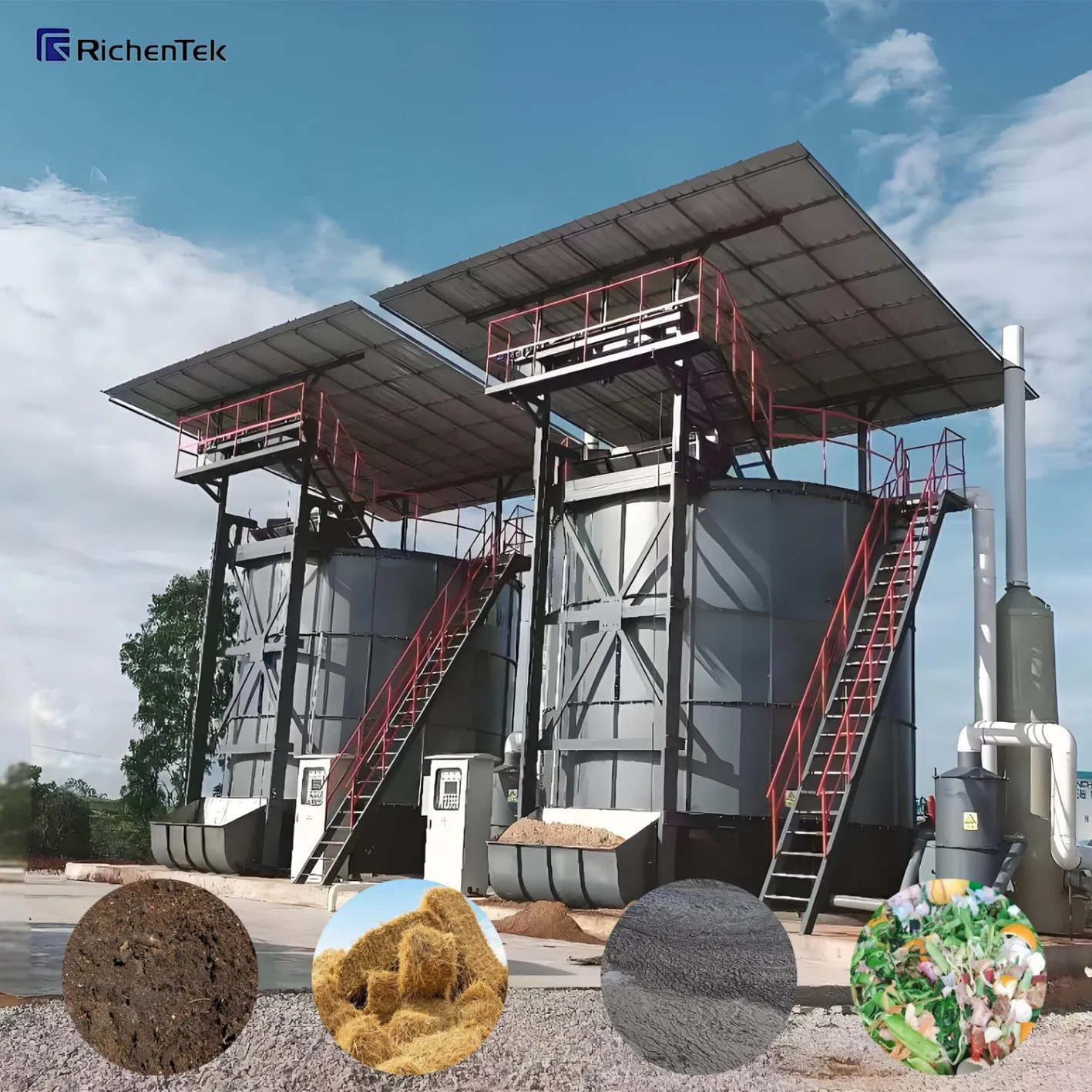

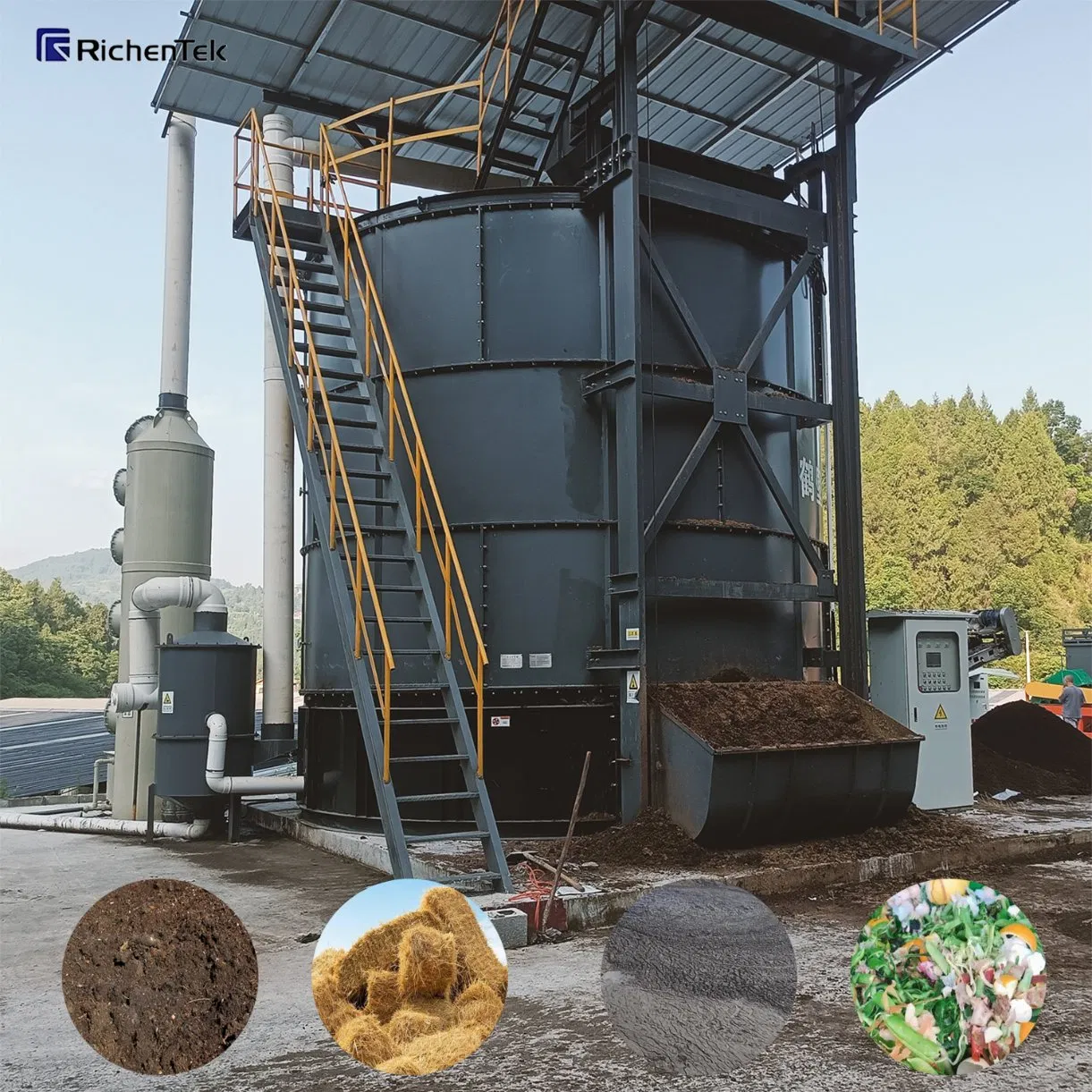

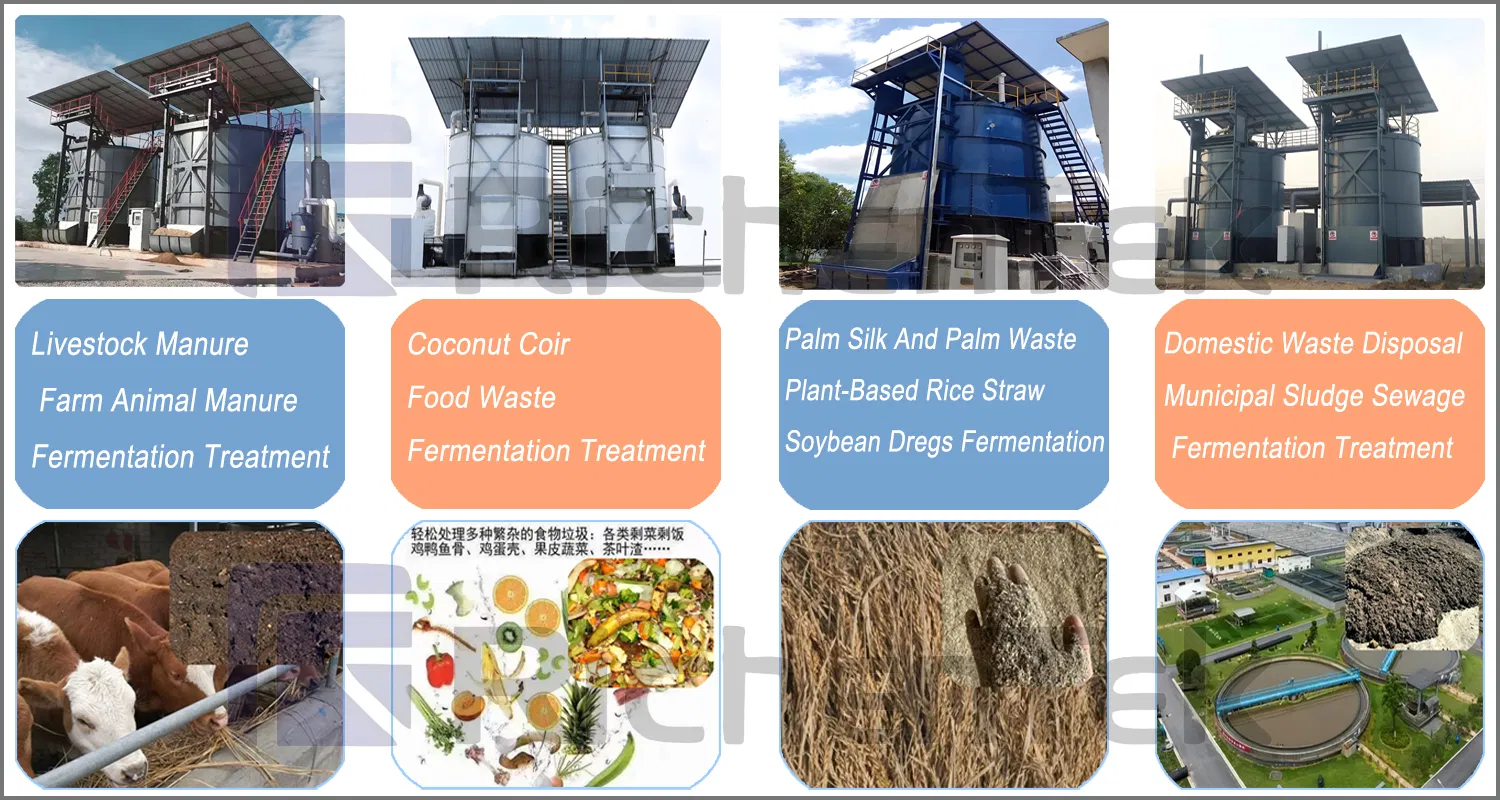

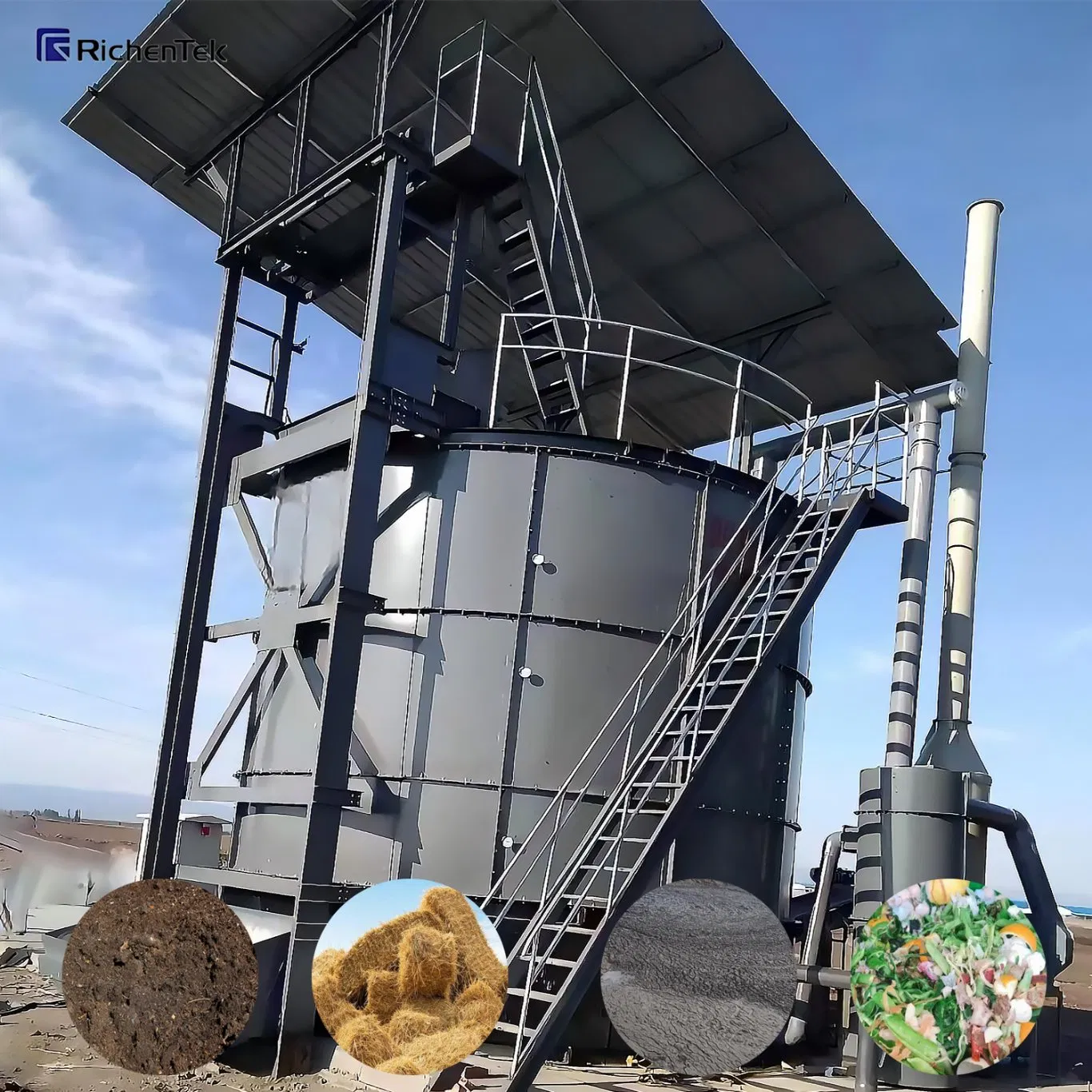

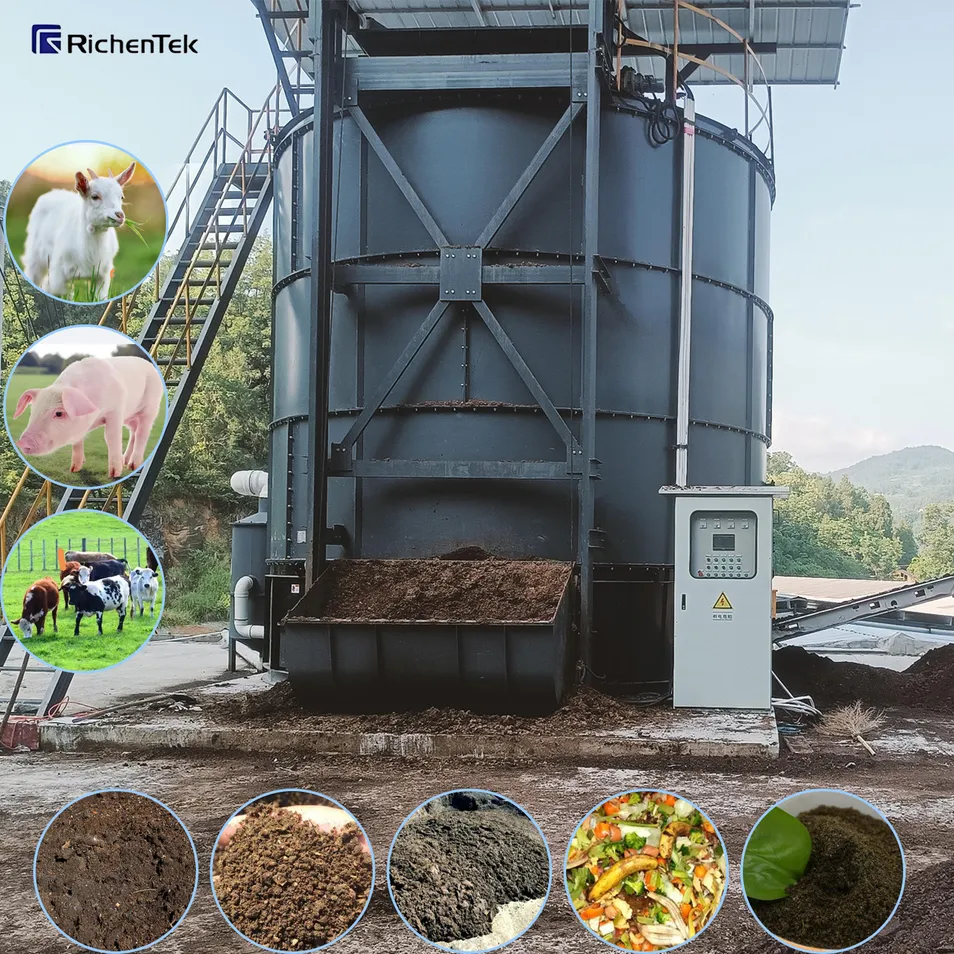

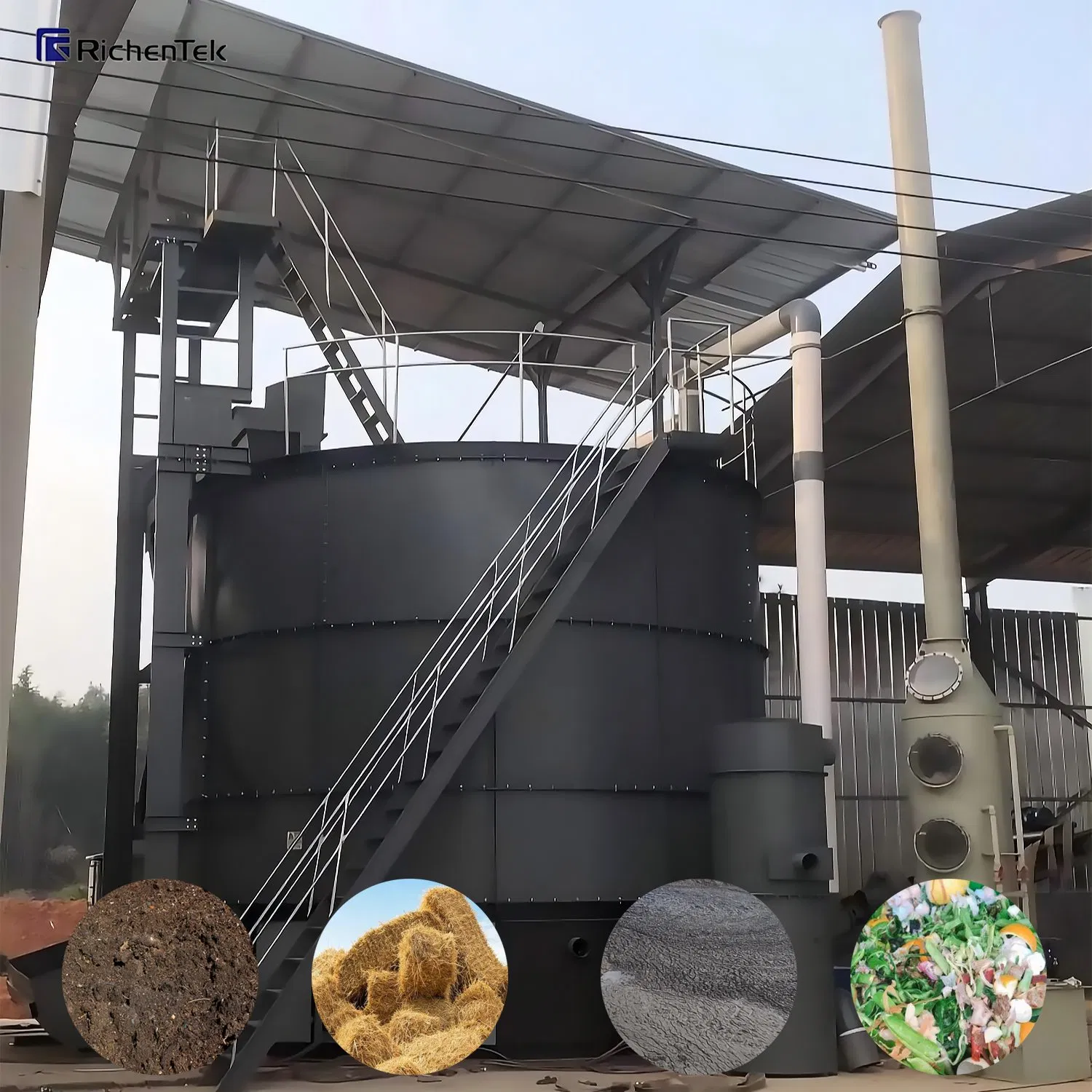

The Vertical Fermentation Tank represents the future of intelligent fertilizer production. Designed for high efficiency and environmental friendliness, it provides a compact solution for modern organic fertilizer plants. This industrial bioreactor system is engineered to handle various organic wastes, converting them into high-quality fertilizer through high-temperature aerobic digestion.
The unique vertical, multi-layer design eliminates the need for vast land areas required by traditional composting. It maximizes land use efficiency, ideal for plants with limited footprints.

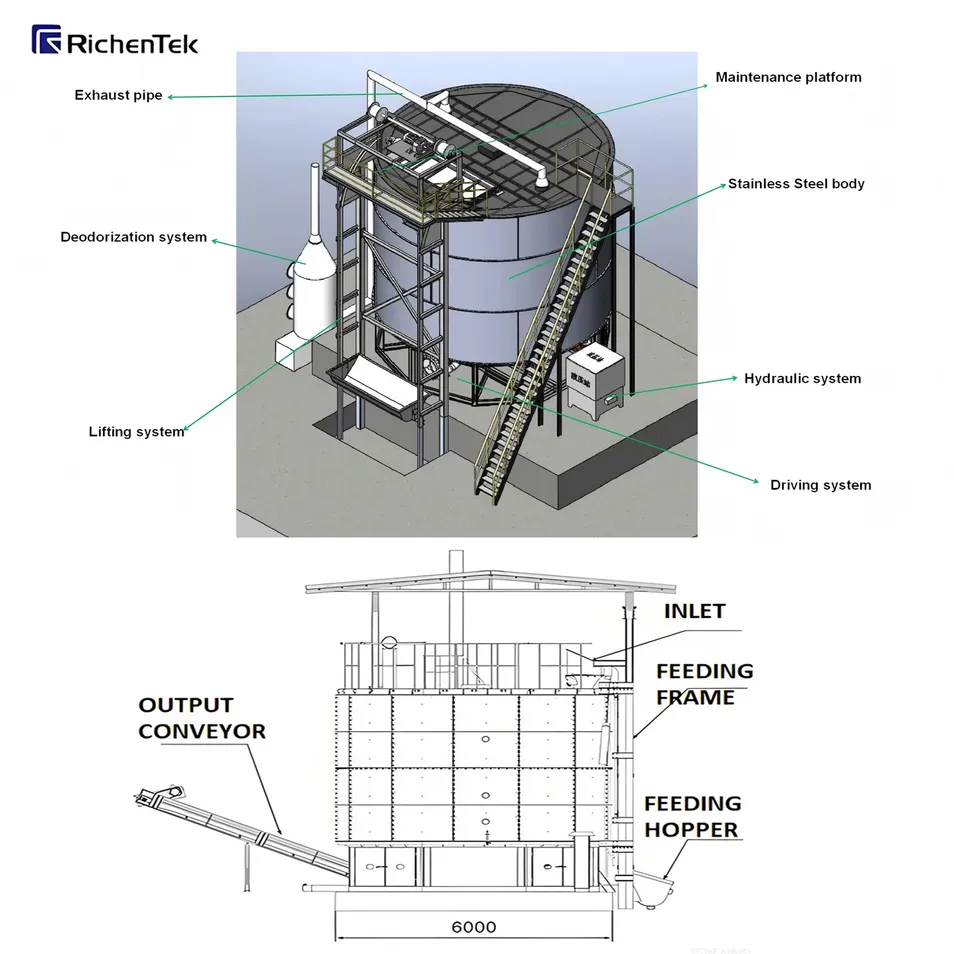

Achieve true unmanned production with automated top-feeding and bottom-discharging systems, ensuring 24/7 continuous operation and reducing manual labor costs.
Fully enclosed negative-pressure design with integrated exhaust gas treatment containers effectively treats odorous gases like ammonia and H2S.
Leverages natural heat-rising principles to recycle fermentation heat, significantly reducing the need for auxiliary heating and lowering energy consumption.
| Model | MJFJ-35YT | MJFJ-55YT | MJFJ-80YT | MJFJ-100YT |
|---|---|---|---|---|
| Tank Capacity | 35m³ | 55m³ | 80m³ | 100m³ |
| Installed Power | 21.7kW | 27.7kW | 38.2kW | 41.2kW |
| Tank Diameter | 3.6m | 4.2m | 5.0m | 5.6m |
| Tank Material | Double-layer Stainless Steel (Inner & Outer) | |||
| Insulation | High-Density Polyurethane | |||
| Model | MJFJ-120A | MJFJ-160 | MJFJ-220 | MJFJ-280 |
|---|---|---|---|---|
| Effective Volume | 120m³ | 160m³ | 220m³ | 280m³ |
| Footprint | 72m² | 70m² | 80m² | 100m² |
| Installed Power | 52KW | 64.5KW | 80KW | 96KW |
| Tank Diameter | 6m | 7m | 8m | 9m |
Focuses on gravity-fed continuous processing and extreme space optimization. Best for urban-adjacent plants and fully automated production lines.

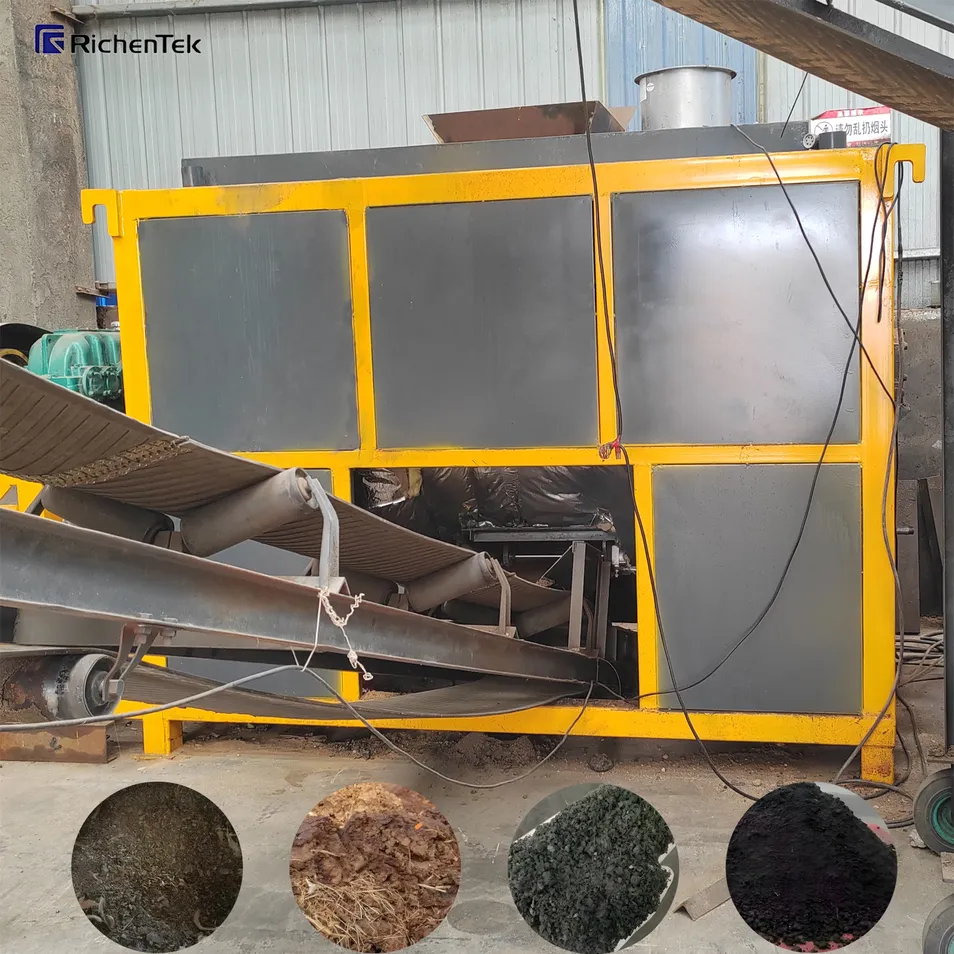

Offers superior mixing for highly viscous and fibrous materials (straw/manure). Features a simpler mechanical structure and lower initial investment.

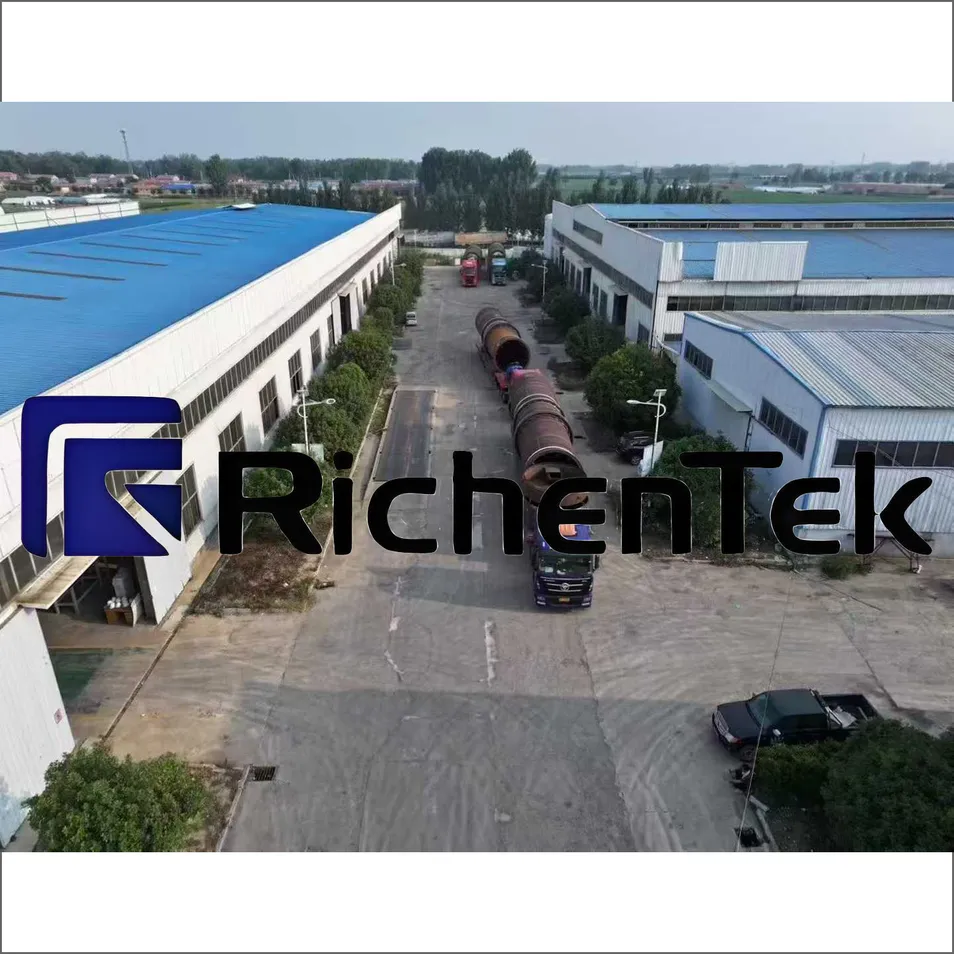

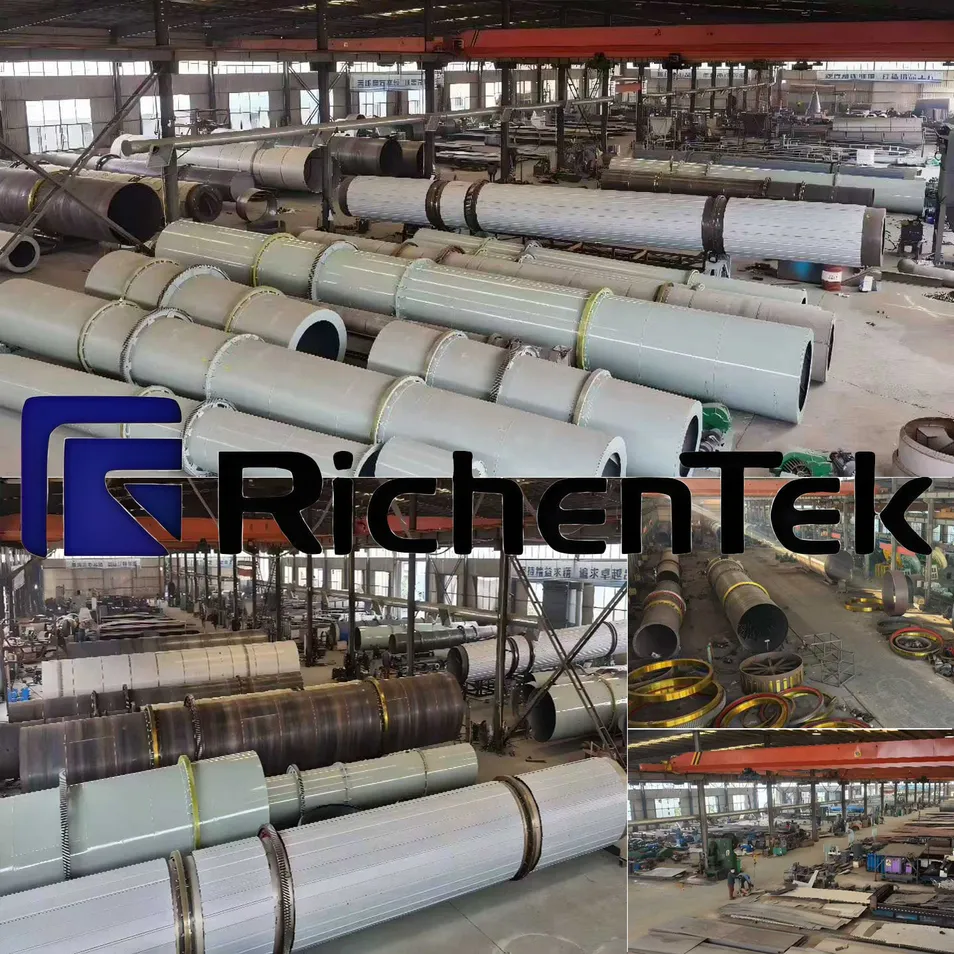

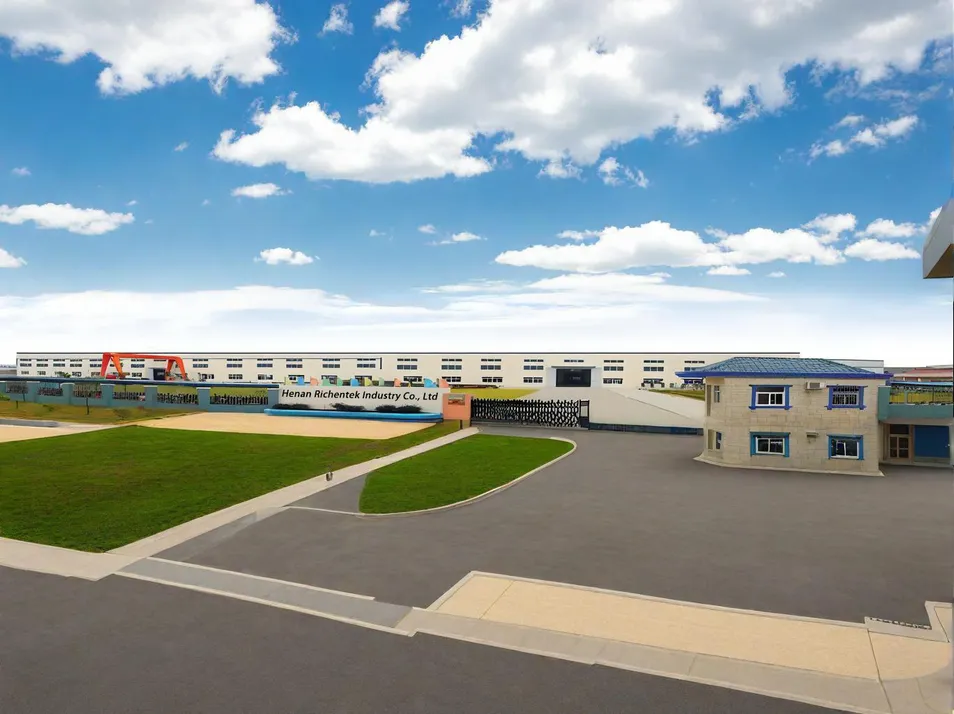

We provide comprehensive turnkey solutions for fertilizer production. With large-scale production capacity and multiple quality inspections, we ensure all equipment meets international standards before shipment.
