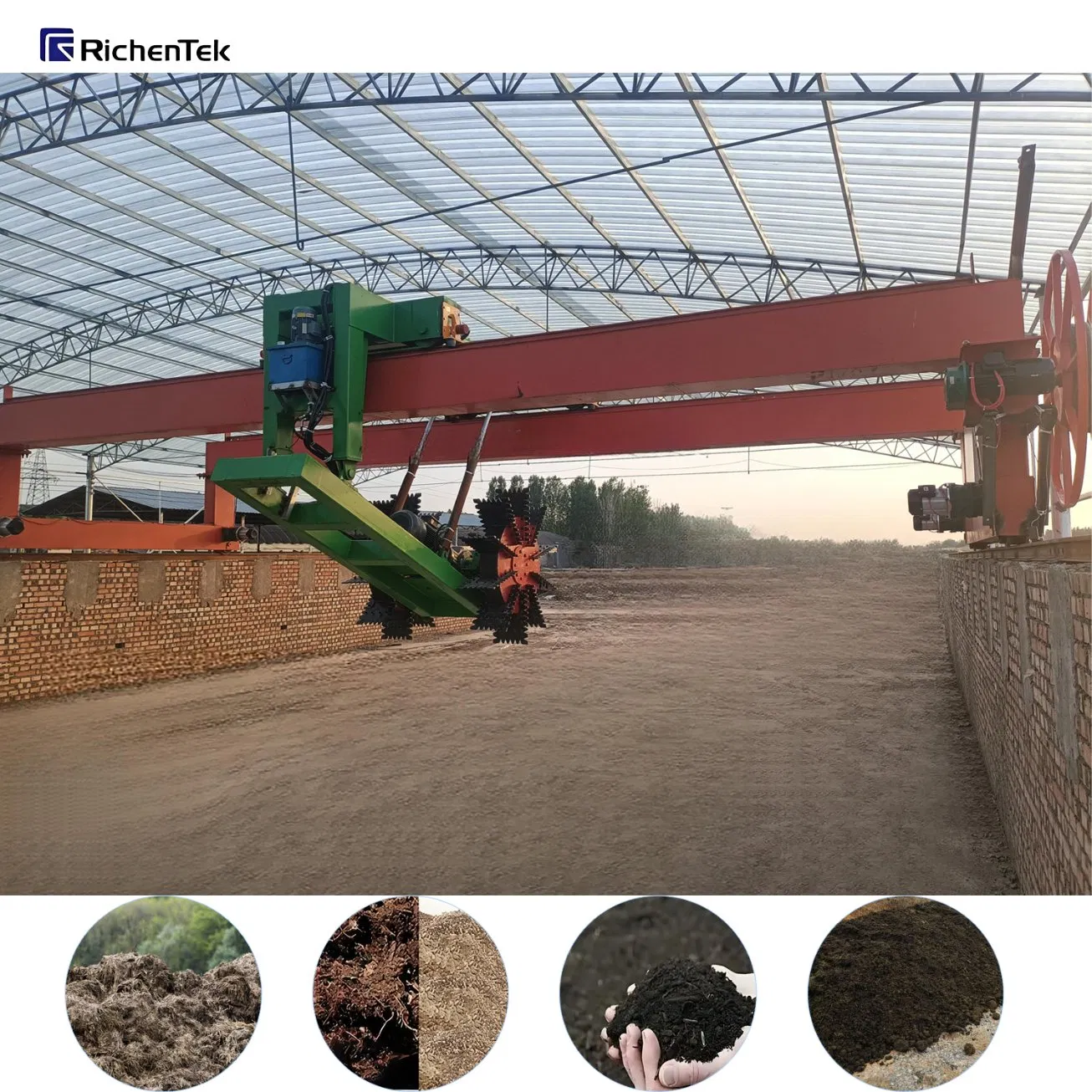

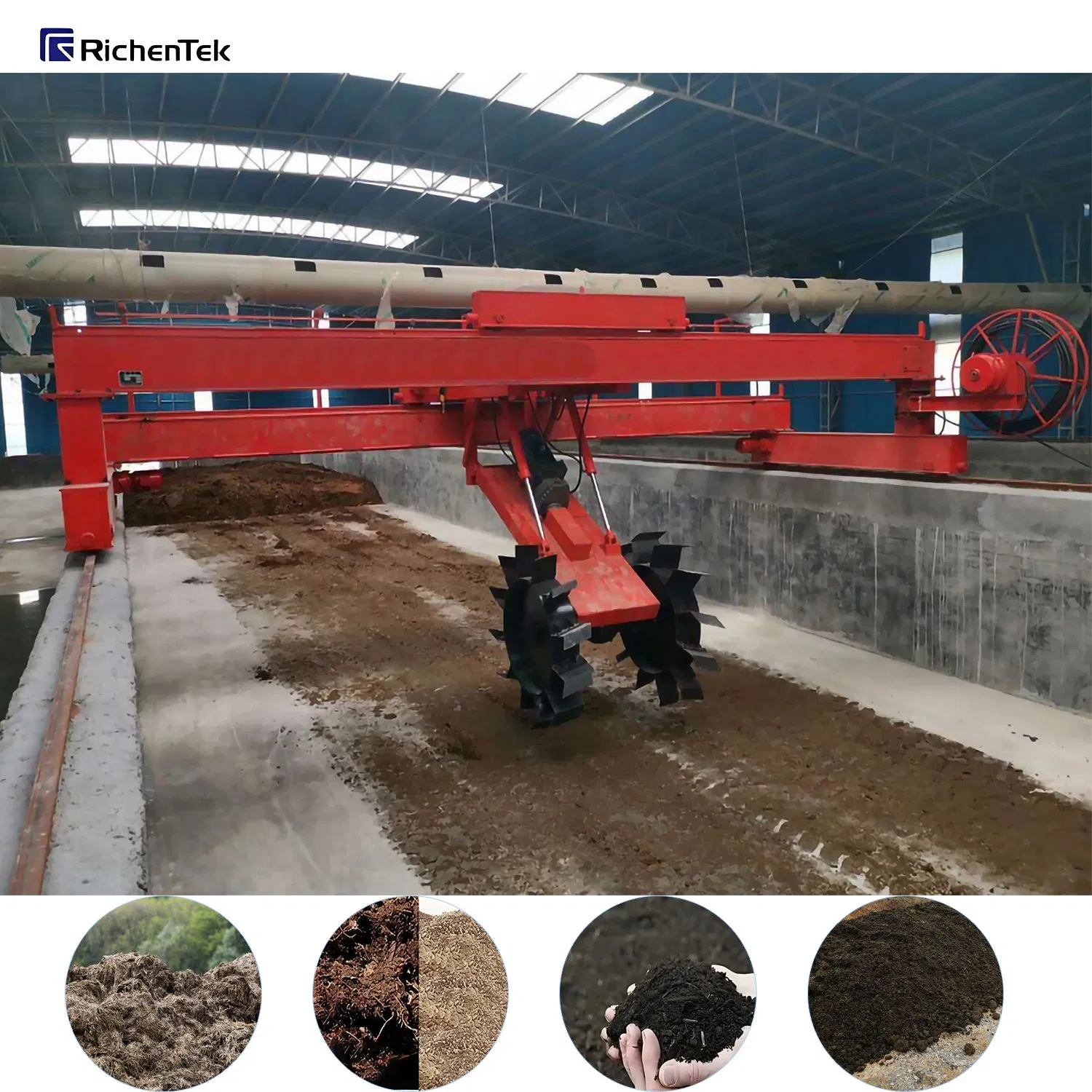

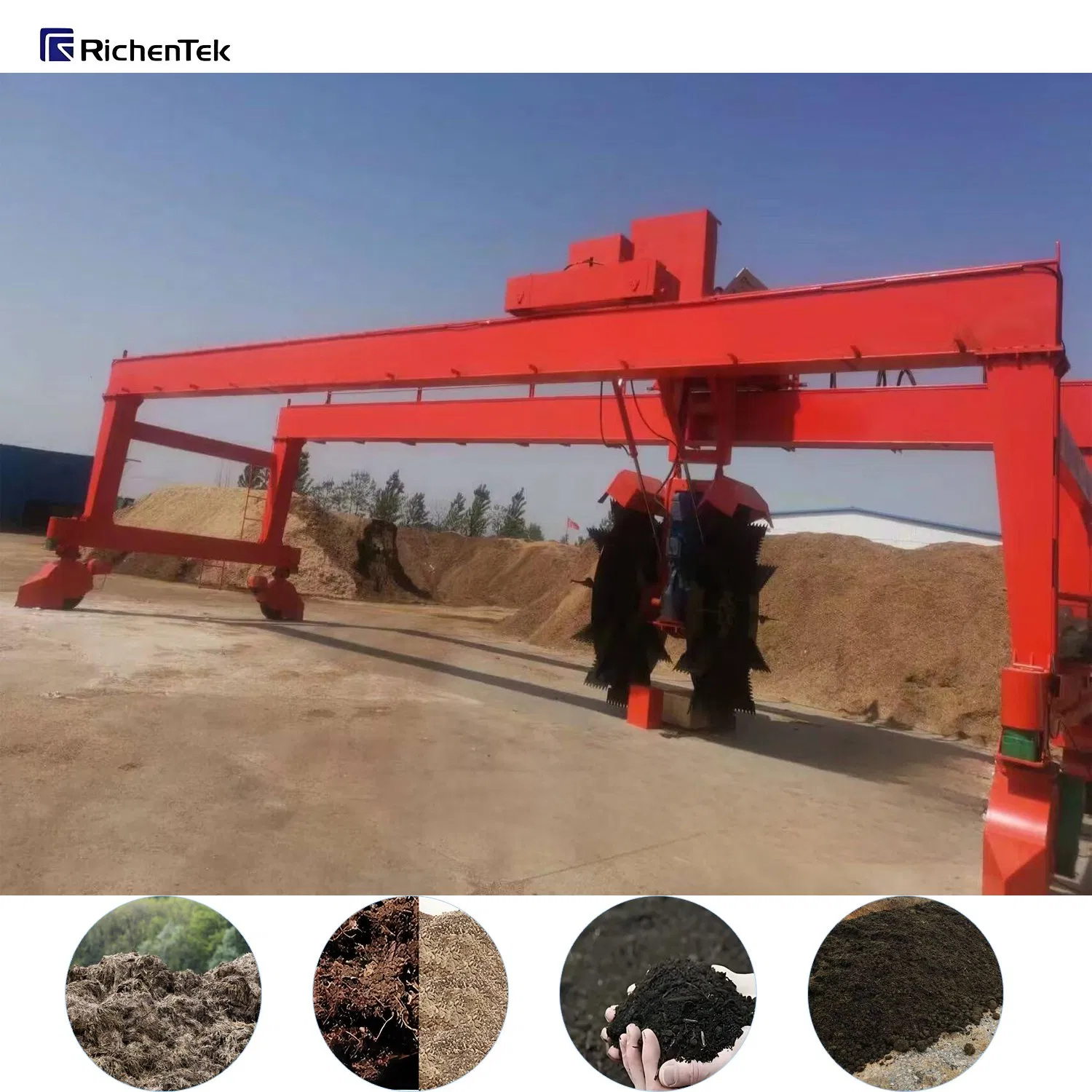

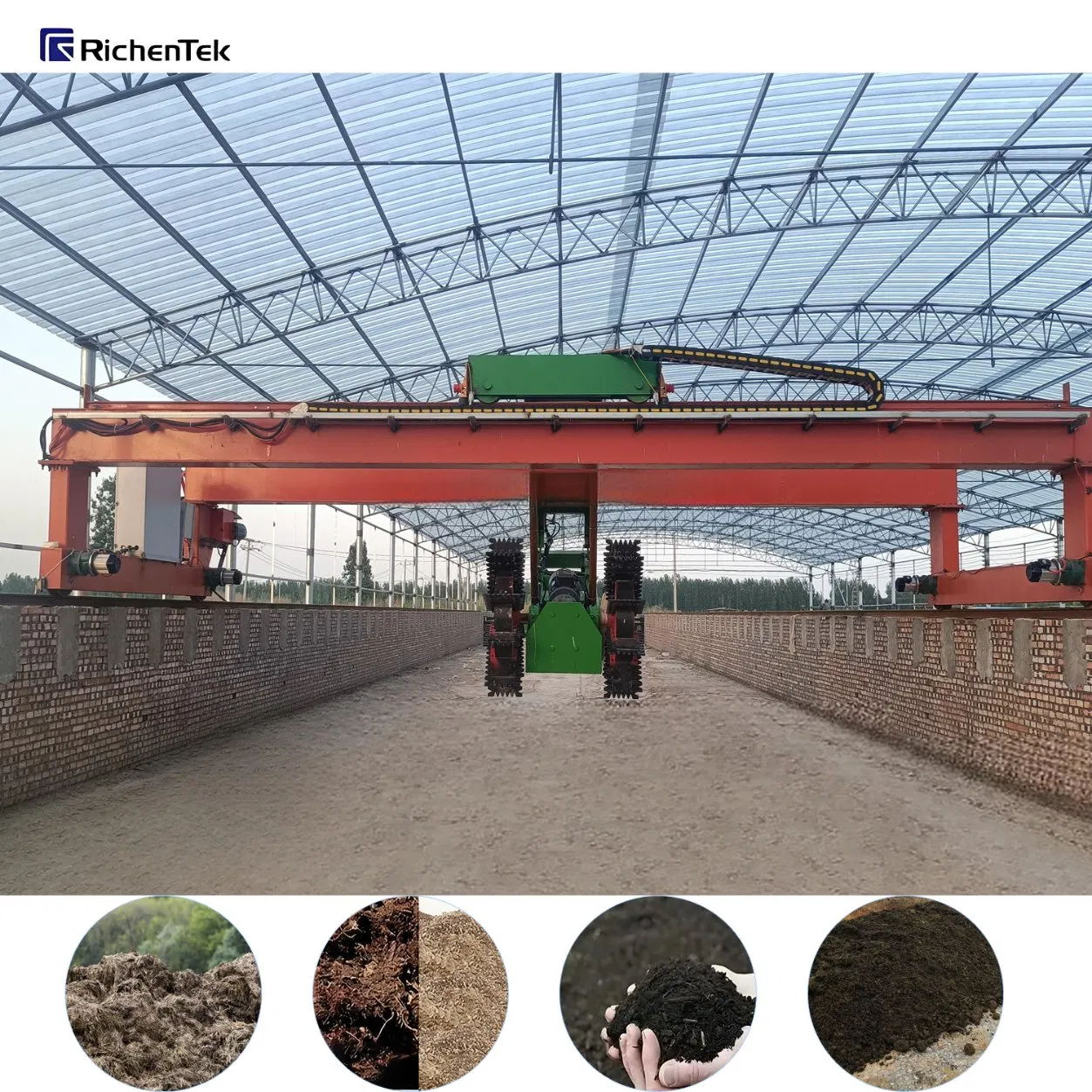

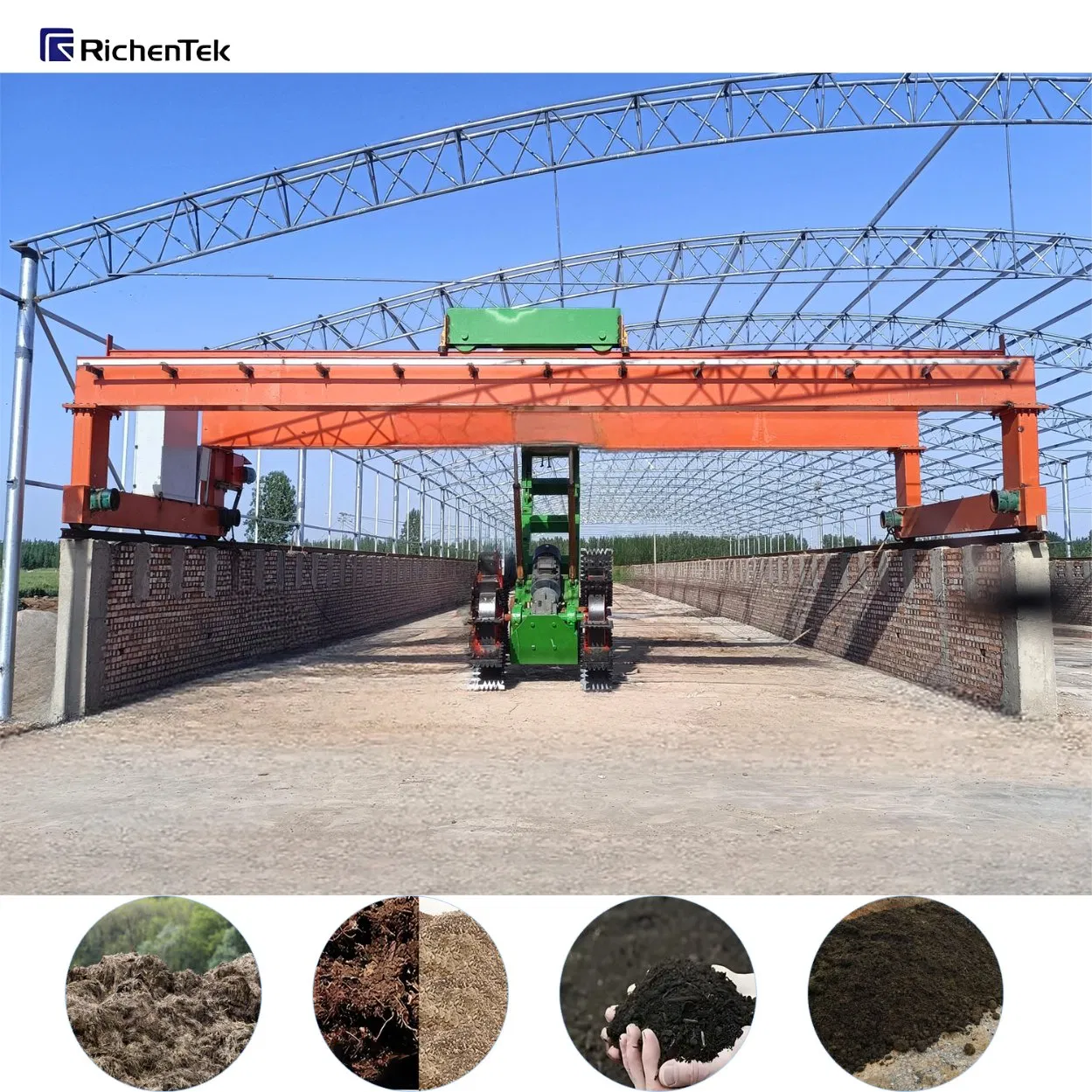

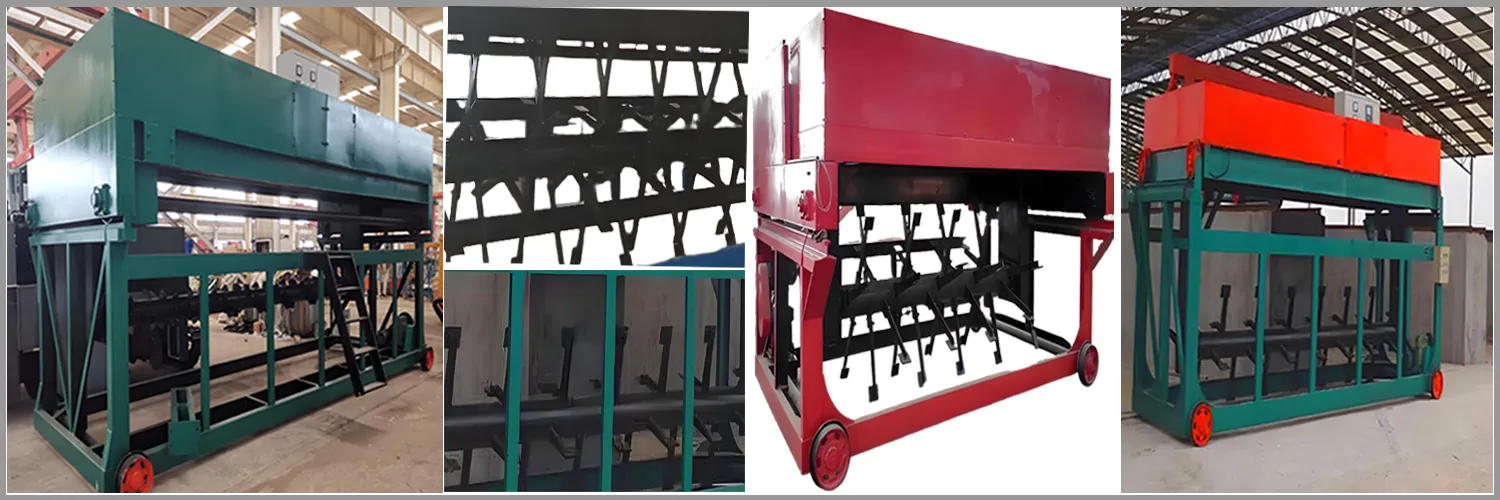

The Wheel Disc Compost Turner Machine is a professionally engineered solution designed for the bio-fermentation process of organic waste. It is widely utilized in organic fertilizer production to perform efficient mixing, cooling, oxygen infusion, and material transfer, ensuring optimal fermentation conditions.
Applicable Materials: Livestock manure, straw, distillery residues, cake meals, sludge, and other organic wastes.
Applications: Organic fertilizer plants, sewage treatment plants, large-scale seedling substrate factories, compound fertilizer plants, sugar mills, and microbial fertilizer plants.
| Model | Disc Diameter | Working Width | Working Depth | Power | Capacity |
|---|---|---|---|---|---|
| XGFP-6000 | Φ1600mm | 5600mm | 1000-1500mm | 44kw | 280-600m³/h |
| XGFD-10000 | Φ1600mm | 9600mm | 1000-1500mm | 44kw | 280-600m³/h |
| XGFP-15000 | Φ1600mm | 14600mm | 1000-1500mm | 44kw | 280-600m³/h |
| XGFP-6000 (v2) | Φ2200mm | 5600mm | 1200-1600mm | 44kw | 280-600m³/h |
| XGFD-10000 (v2) | Φ2200mm | 9600mm | 1200-1600mm | 45.6kw | 280-600m³/h |
| XGFP-20000 | Φ2200mm | 19600mm | 1200-1600mm | 45.6kw | 280-600m³/h |
| XGFP-30000 | Φ2200mm | 29600mm | 1200-1600mm | 45.6kw | 280-600m³/h |

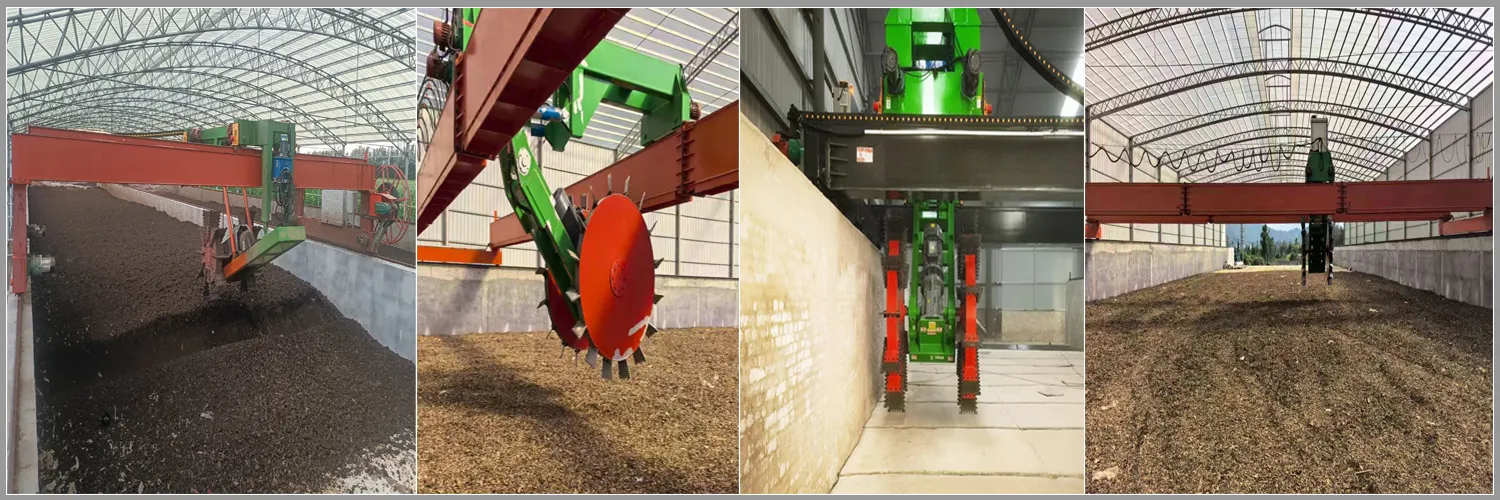

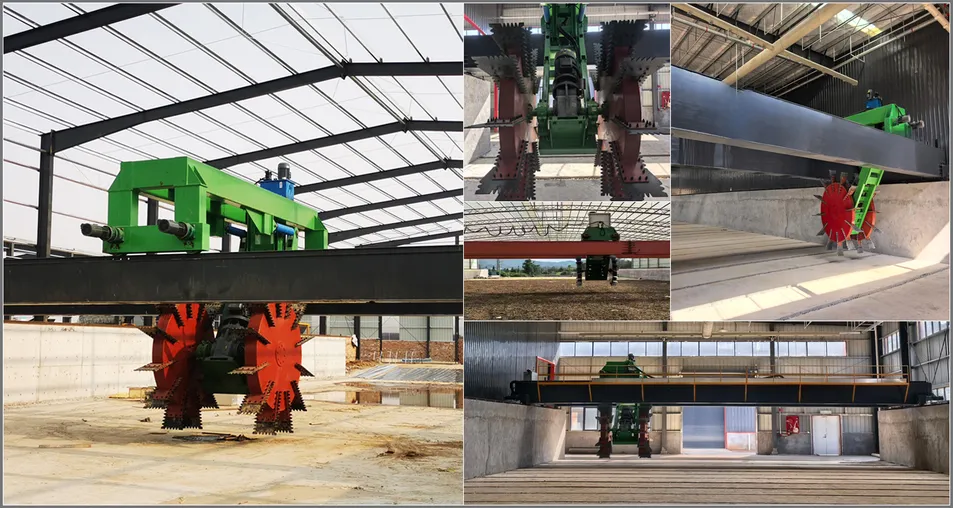

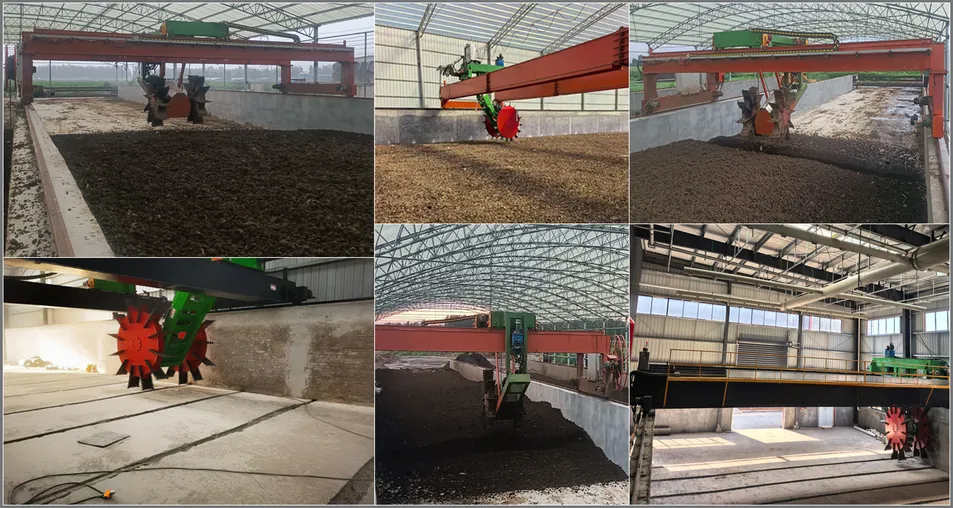

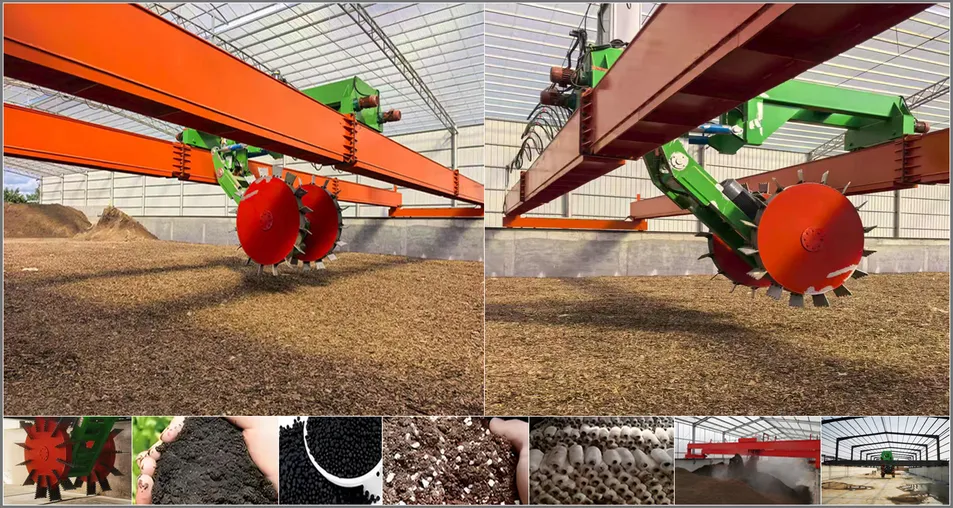

The machine moves longitudinally to the rear of the material layer, activating rotary discs that lift and throw material backward. This symmetrical high-speed rotation achieves uniform cutting, significantly increasing oxygen contact and promoting aerobic fermentation.

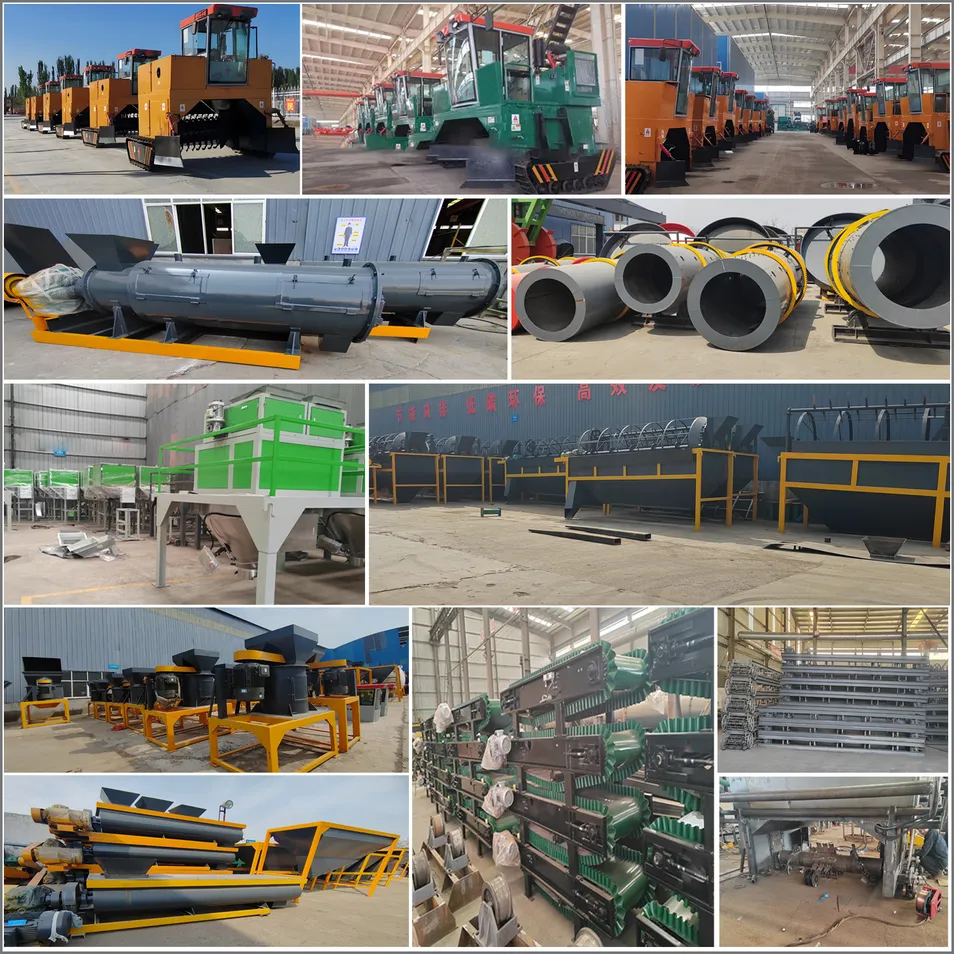

With large-scale production capacity and multiple quality inspections, we ensure compliance and reliable performance. Our engineering team provides end-to-end solutions, from process design to installation and commissioning.
Our equipment is suitable for livestock manure (cow, pig, chicken), agricultural straw, sludge from sewage plants, sugar mill residues, and other organic waste materials.

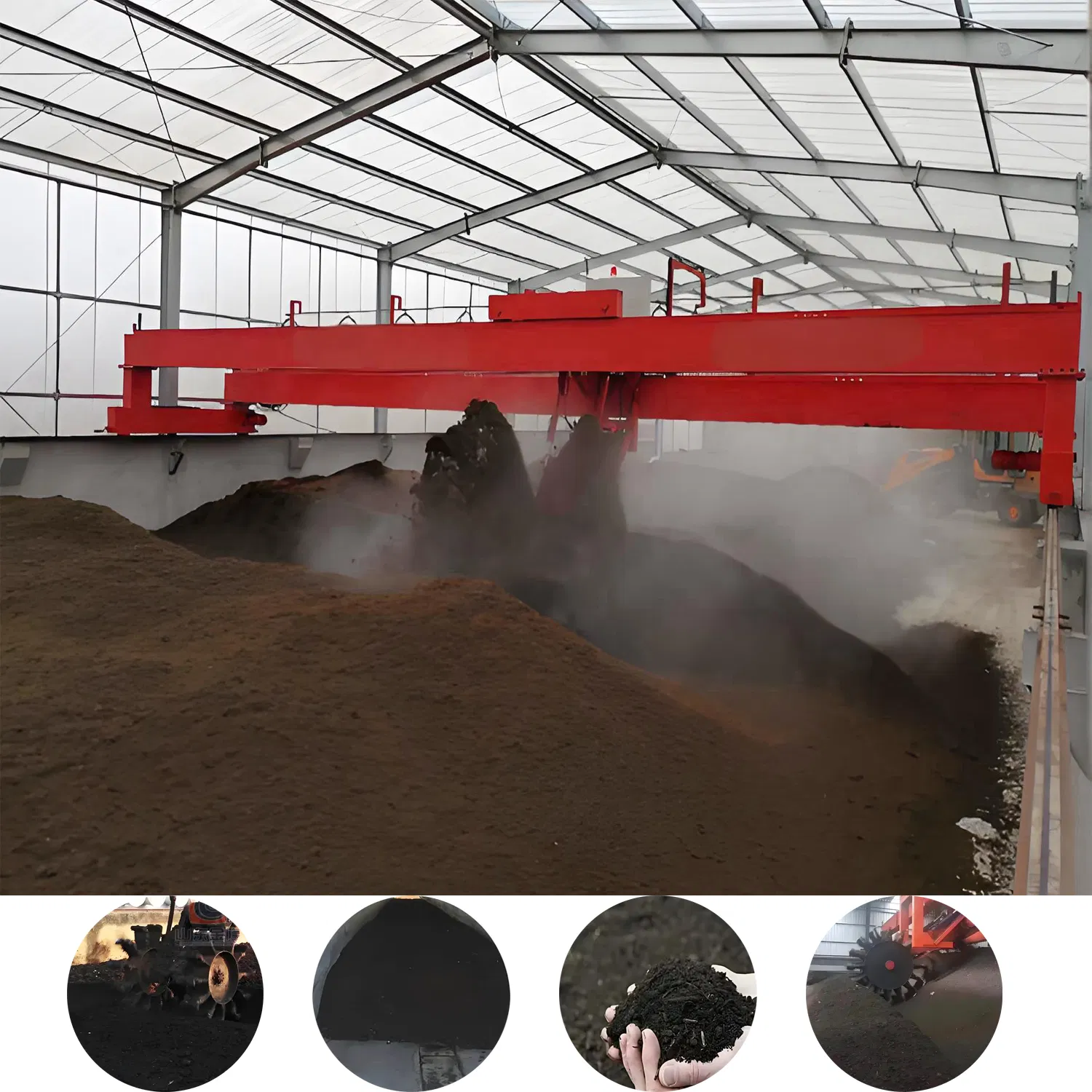

By utilizing symmetrical high-speed rotating discs, the machine ensures thorough oxygenation and cooling. This mechanical turning can shorten the maturation cycle by 7–10 days compared to traditional methods.
Yes, the machine features a PLC control system and can be operated manually or via remote control. It includes lifting functions and forward/reverse rotation for flexible maneuvering.

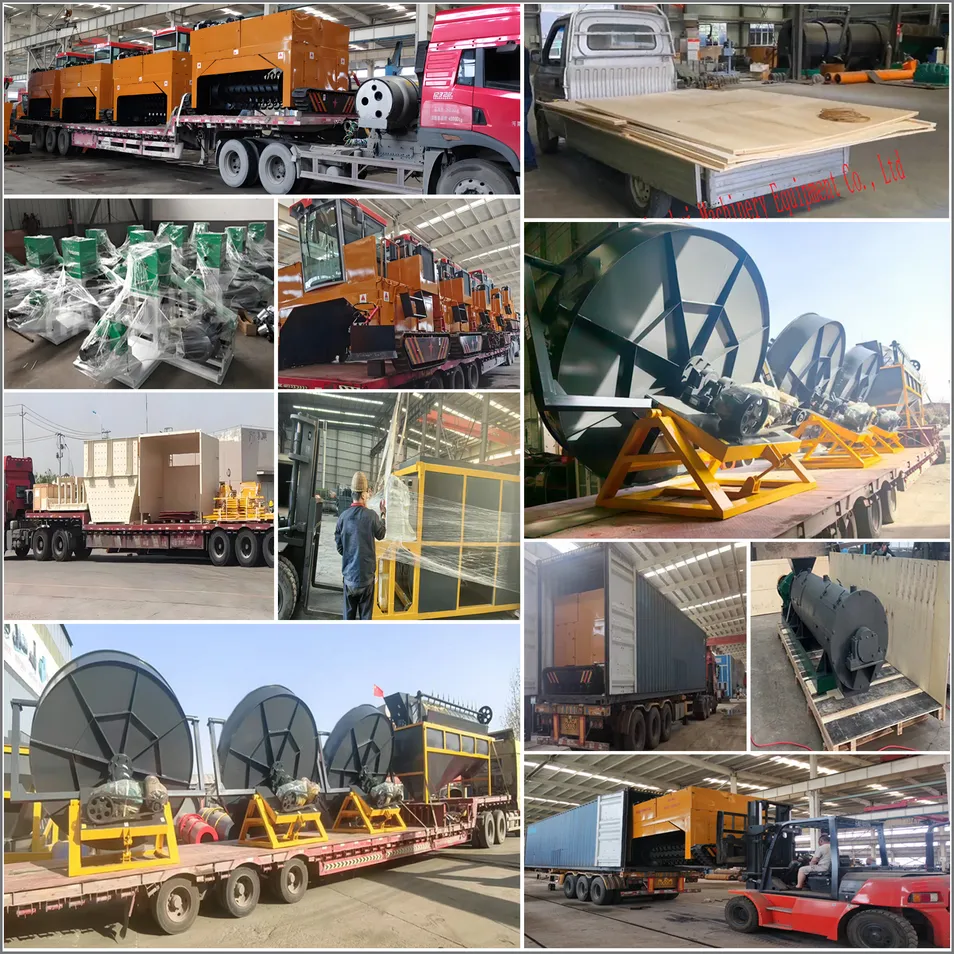

Standard models can typically be shipped within 15 days. For customized solutions involving specific spans or depths, delivery usually takes 15–30 days.
Yes, we provide professional installation services and comprehensive operator training to ensure your project starts smoothly and operates efficiently.
While the turner manages the fermentation stage, our complete production lines include granulators with customizable molds to produce fertilizer particles of different sizes and shapes.
