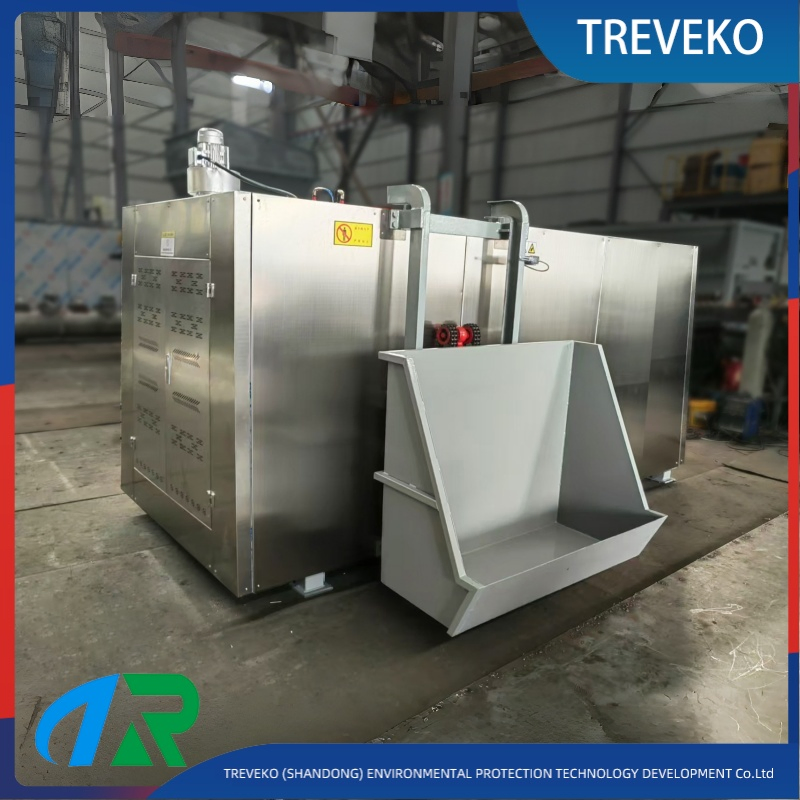

Automated Animal Waste Fermentation System Equipment for Disease Free Livestock Management

Basic Information

Model NO.:TR-FJJ/ST-2000

Condition:New

Certification:CE

Automation:Automatic

Screw:Twin-Screw

Treatment:Broken

Storage Capacity:4.5m³

Processing Capacity:2000kg/Batch

Control System:PLC

Heating Method:Heat Transfer Oil

Main Unit Power:7.5kw

Spindle Speed:2r/Min

Product Description

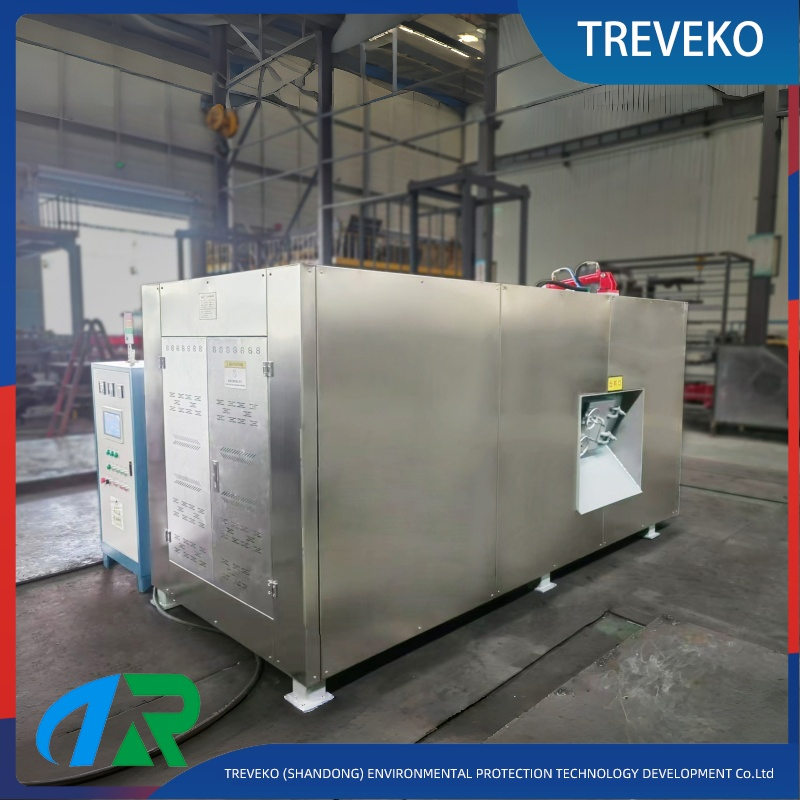

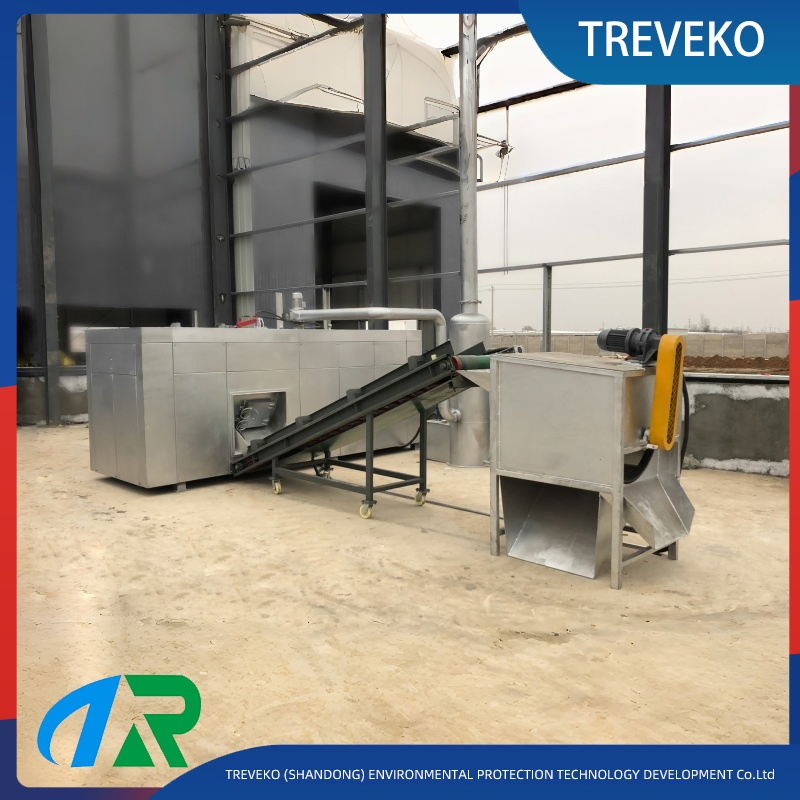

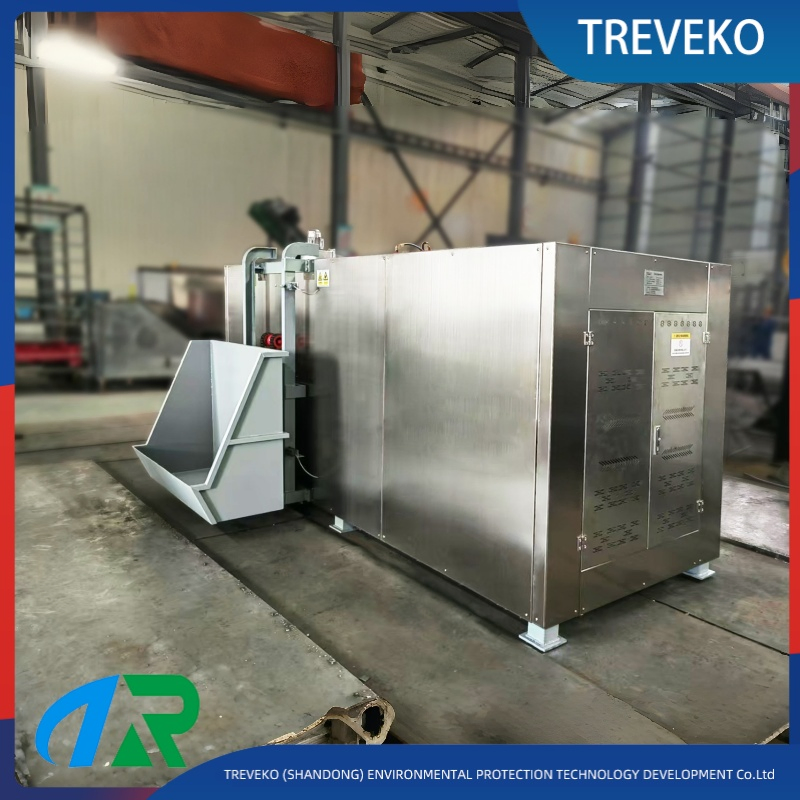

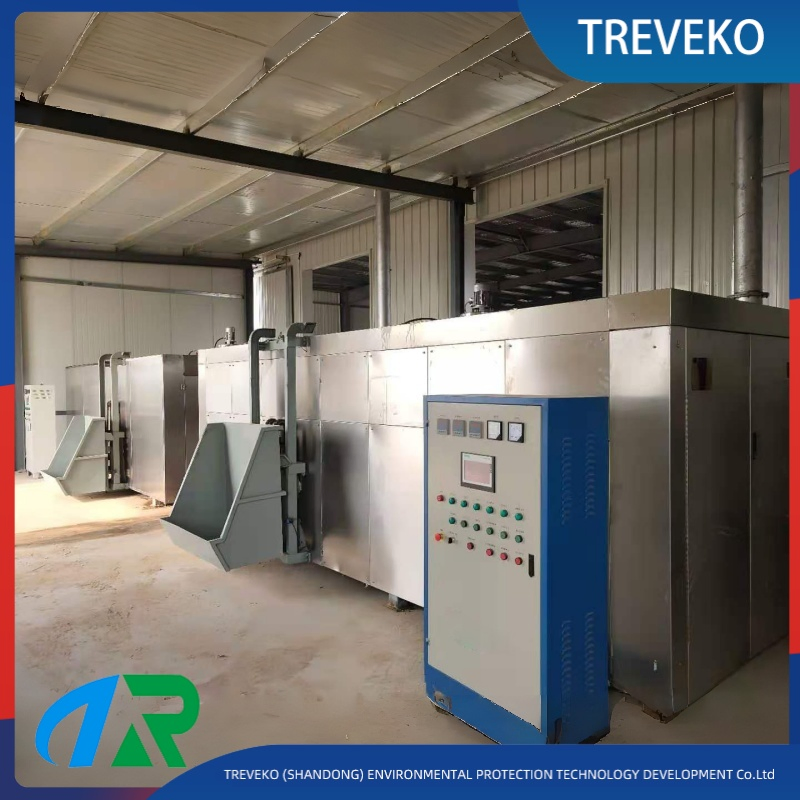

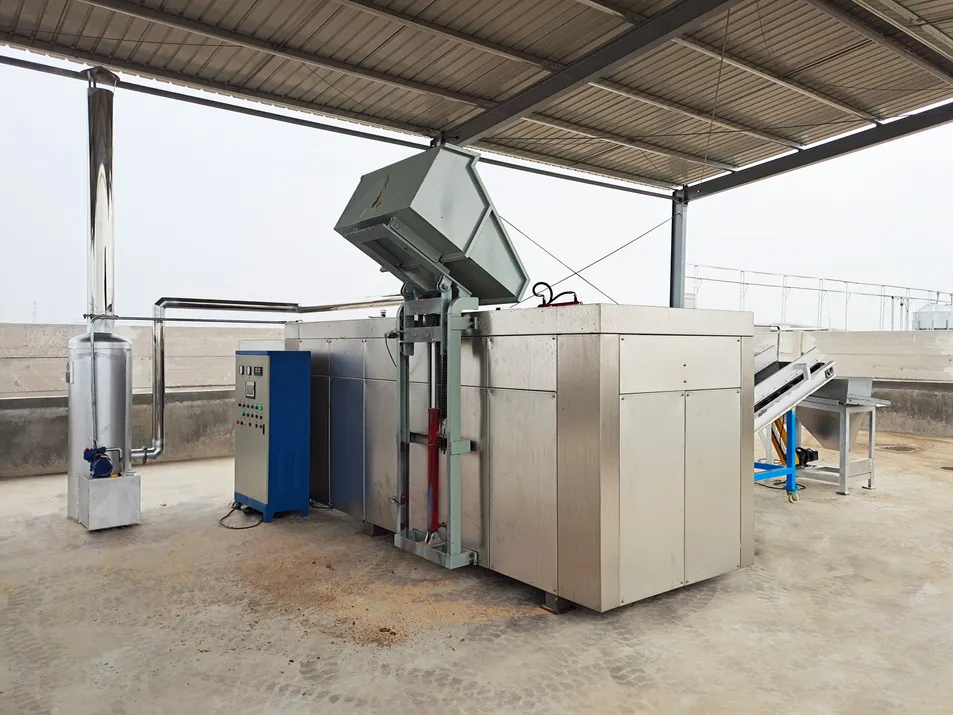

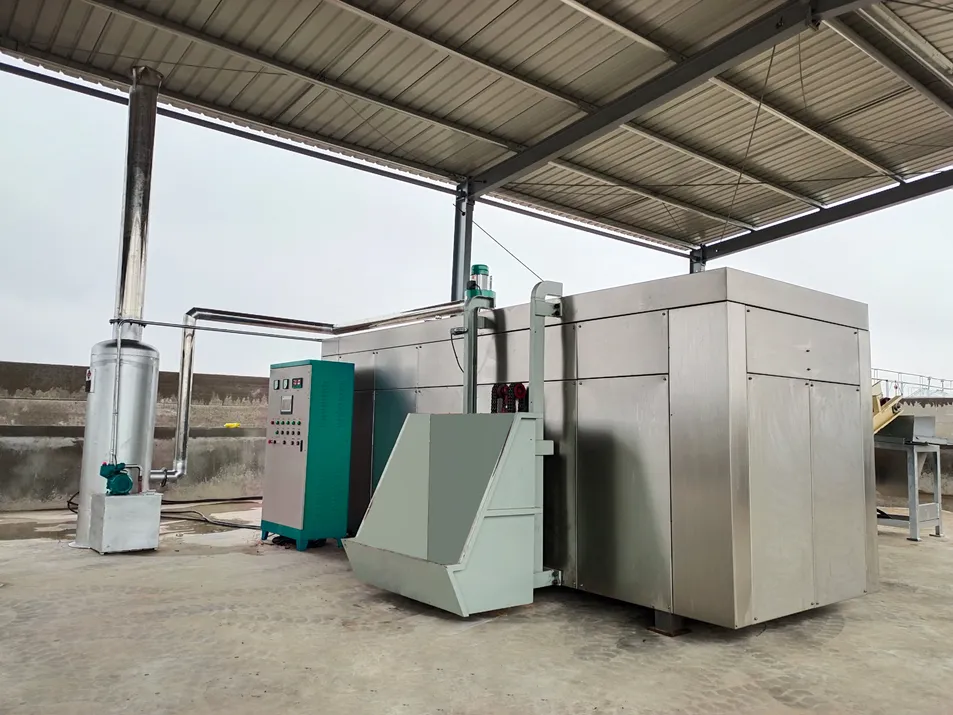

Automated Animal Waste Fermentation System

A fermentation machine is a specialized piece of equipment that utilizes microbial biochemical processes to efficiently, stably, and harmlessly degrade and transform organic materials under controlled environmental conditions (temperature, humidity, oxygen supply, and pH). Its core function is to accelerate the maturation, stabilization, or resource utilization of organic materials by optimizing fermentation conditions. It is widely used in organic waste treatment, biofertilizer production, feed fermentation, and biomass energy production.

Specifications

Model	Chamber Dimensions (mm)	Storage Volume	Processing Volume	Main Unit Power	Spindle Speed	External Dimensions
TR-FJJ/ST-700	U1000x2000	2.0m³	700KG/batch	4kw	2R/min	4280x1460x1900
TR-FJJ/ST-1000	U1100x2400	2.8m³	1000KG/batch	4kw	2R/min	4680x1540x2000
TR-FJJ/ST-1500	U1200x2700	3.9m³	1500KG/batch	5.5kw	2R/min	5240x1600x2100
TR-FJJ/ST-2000	U1300x3200	4.5m³	2000KG/batch	7.5kw	2R/min	5700x1700x2230

Equipment Characteristics

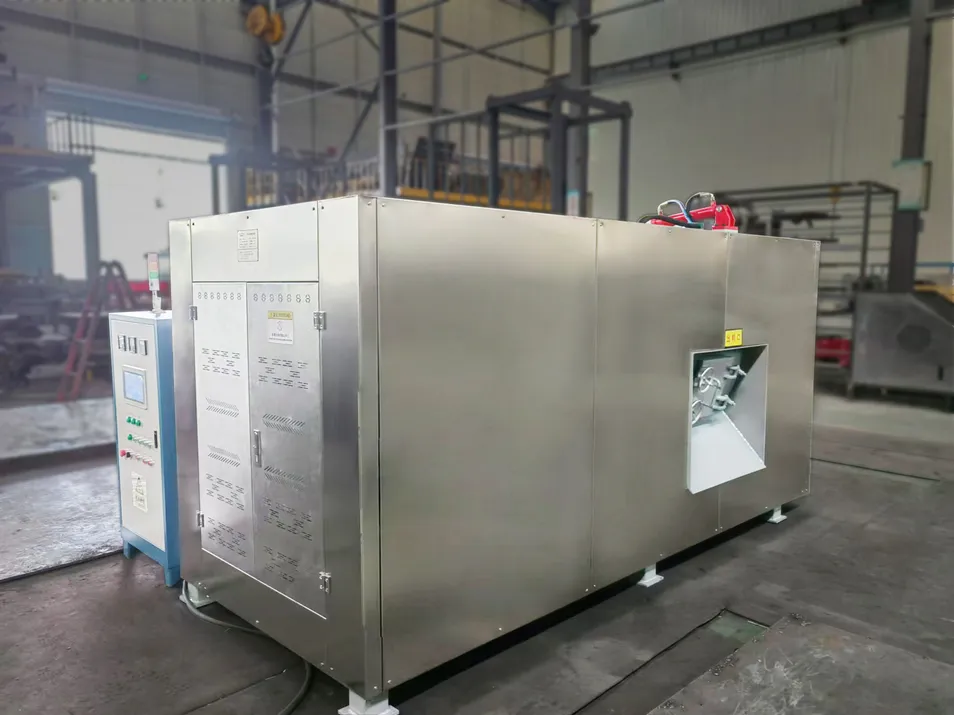

1. Intelligent Environmental Control System

Temperature Control Module: Adopts PID intelligent constant temperature technology, working range 20-75℃, accuracy ±1.5℃.

Humidity Regulation: Automatic spraying/ventilation system to maintain material moisture content in the optimal range of 50-65%.

Oxygen Supply Design: Variable frequency aeration or mechanical turning to ensure dissolved oxygen concentration ≥5mg/L.

2. High-Efficiency Mixing and Mass Transfer

Double Helix Mixing Shaft: Low-speed, high-torque design for three-dimensional uniform material turning.

Permeable Bed Plate: Improves air permeability uniformity and shortens the fermentation cycle by 30-50%.

Anti-adhesion Lining: Food-grade or stainless steel mirror panel for easy cleaning and maintenance.

3. Modular and Automated Design

PLC + Touch Screen Control: Preset multiple modes such as "fast fermentation," "deep composting," and "low-temperature drying".

IoT Option: Supports remote monitoring, data export, and fault warning.

Related Products

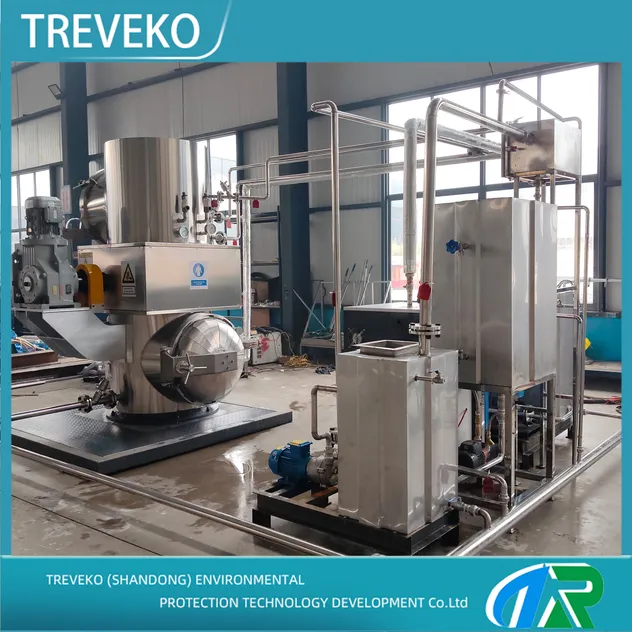

Vertical High-Temperature Steam Sterilizer

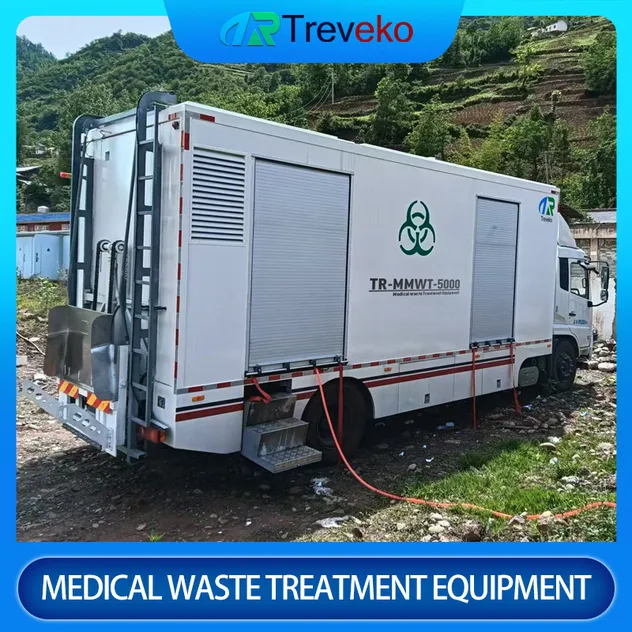

Vehicle-mounted Mobile Microwave Disinfection

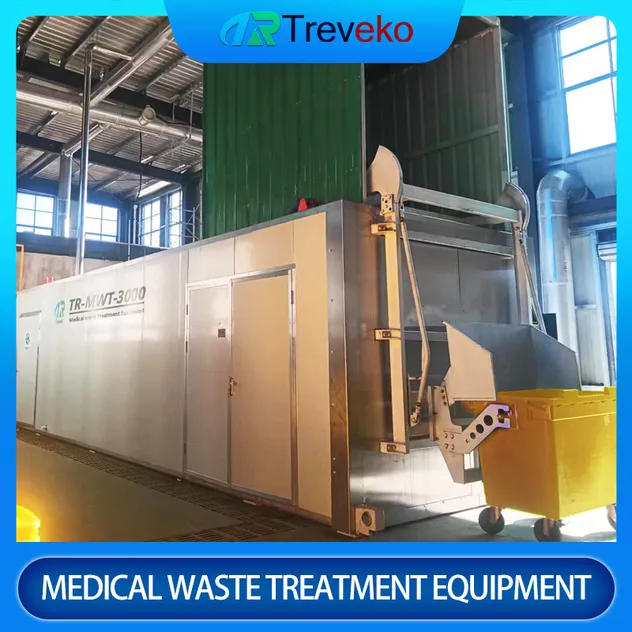

Fixed-type Microwave Sterilization Equipment

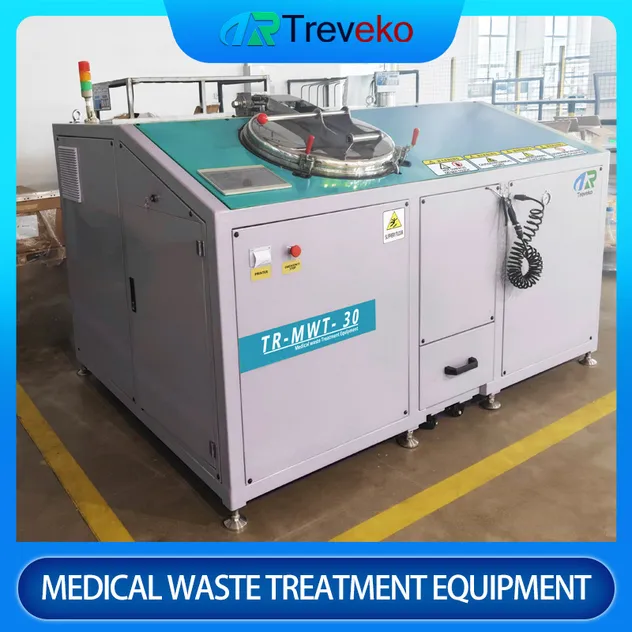

Small Microwave Sterilization Equipment

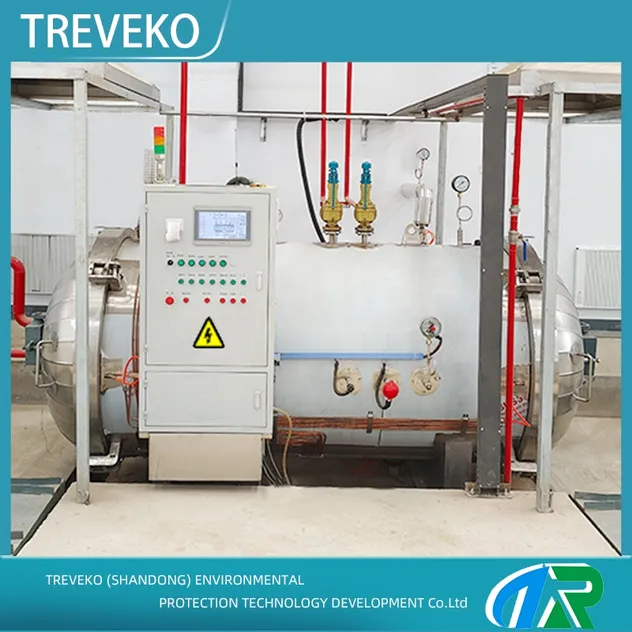

Medical Waste High-Temperature Autoclave

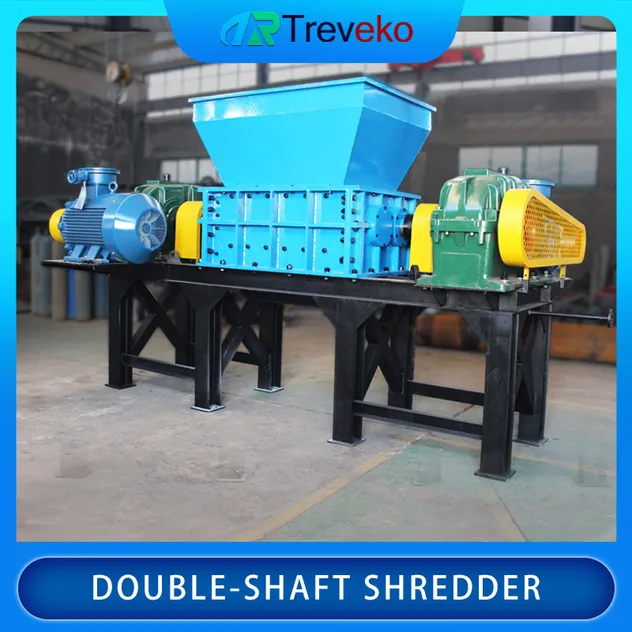

Double-shaft Shredder

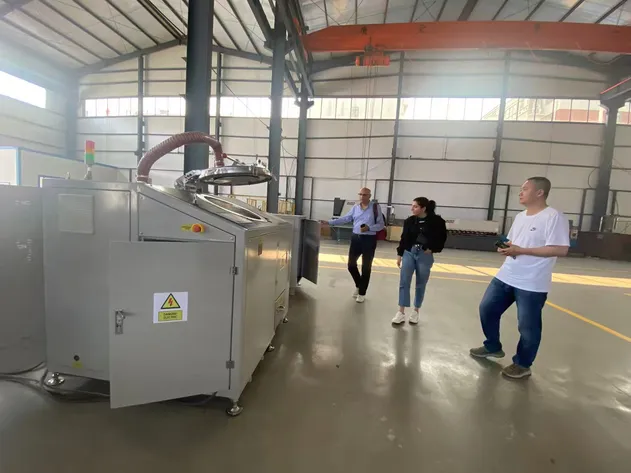

Customer Visits

Frequently Asked Questions

Q1: Are you a direct manufacturer? Yes, we have our own professional factory for equipment manufacturing and quality control.

Q2: Can the equipment be customized to meet specific requirements? Yes. We support customization of core parameters such as processing capacity, overall size, and control system configurations.

Q3: How is the delivery handled? Delivery terms are resolved via negotiation according to the customer's specific location and logistical needs.

Q4: What is the warranty period for the fermentation equipment? We provide a 1-year warranty and free repair services if quality problems emerge within the warranty period.

Q5: What heating method does the machine use? The system primarily utilizes heat transfer oil for stable and uniform temperature control during the fermentation process.

Q6: Is the control system easy to operate? Yes, the machine features a PLC touch screen control system with preset modes, making it automated and user-friendly.
