The Future of Intelligent Fertilizer Production

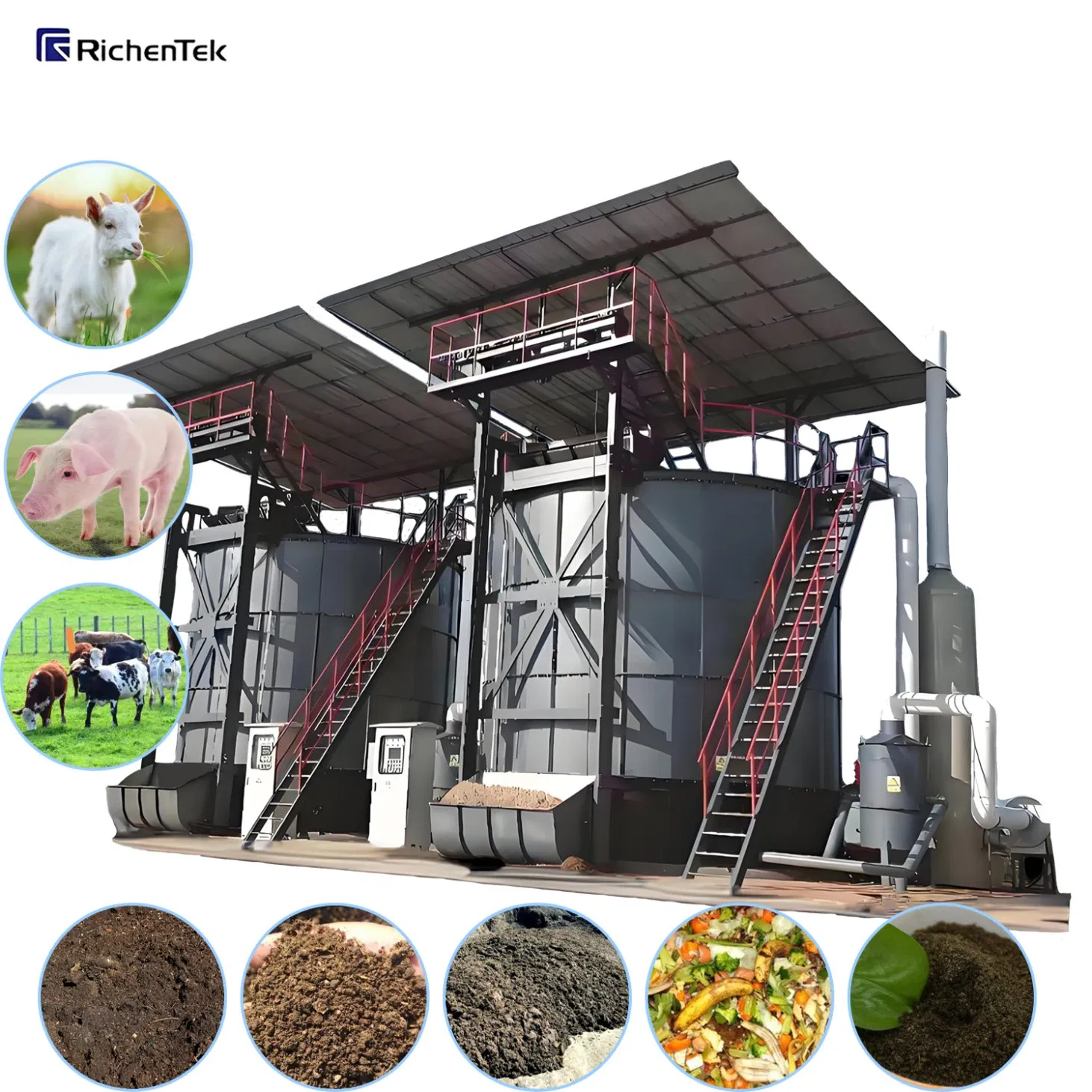

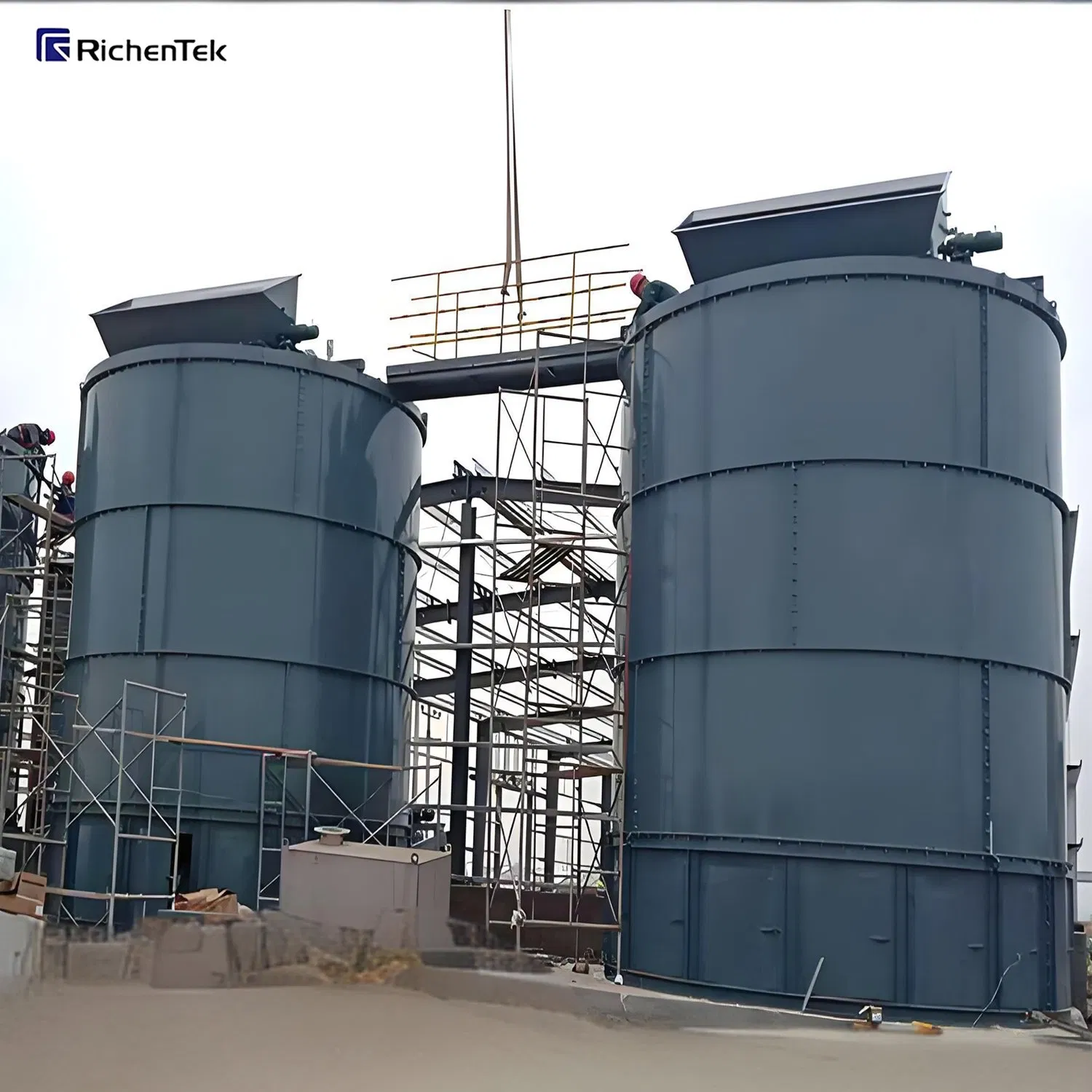

In an era of rising land costs and stringent environmental regulations, your fertilizer plant needs a compact, intelligent, and green fermentation solution. Our Vertical Fermentation Tank is engineered for this purpose. It's not just equipment; it's your strategic partner for enhancing competitiveness and achieving sustainable growth.

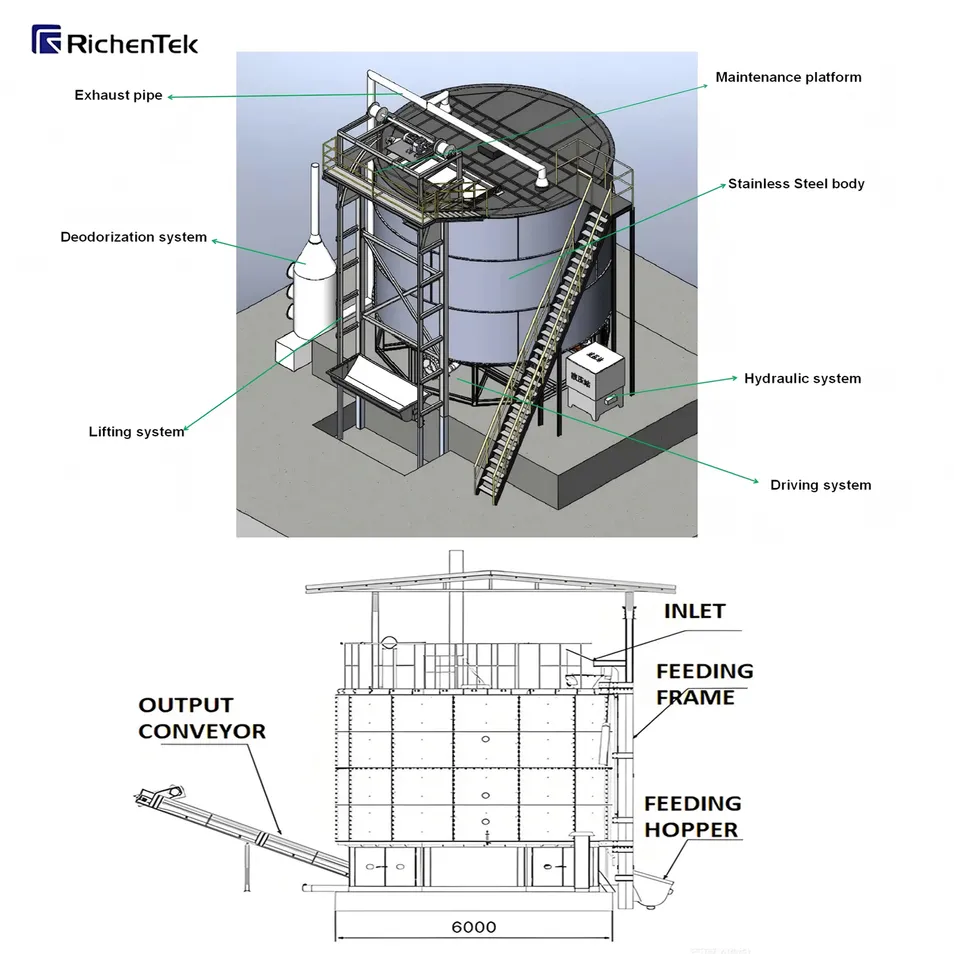

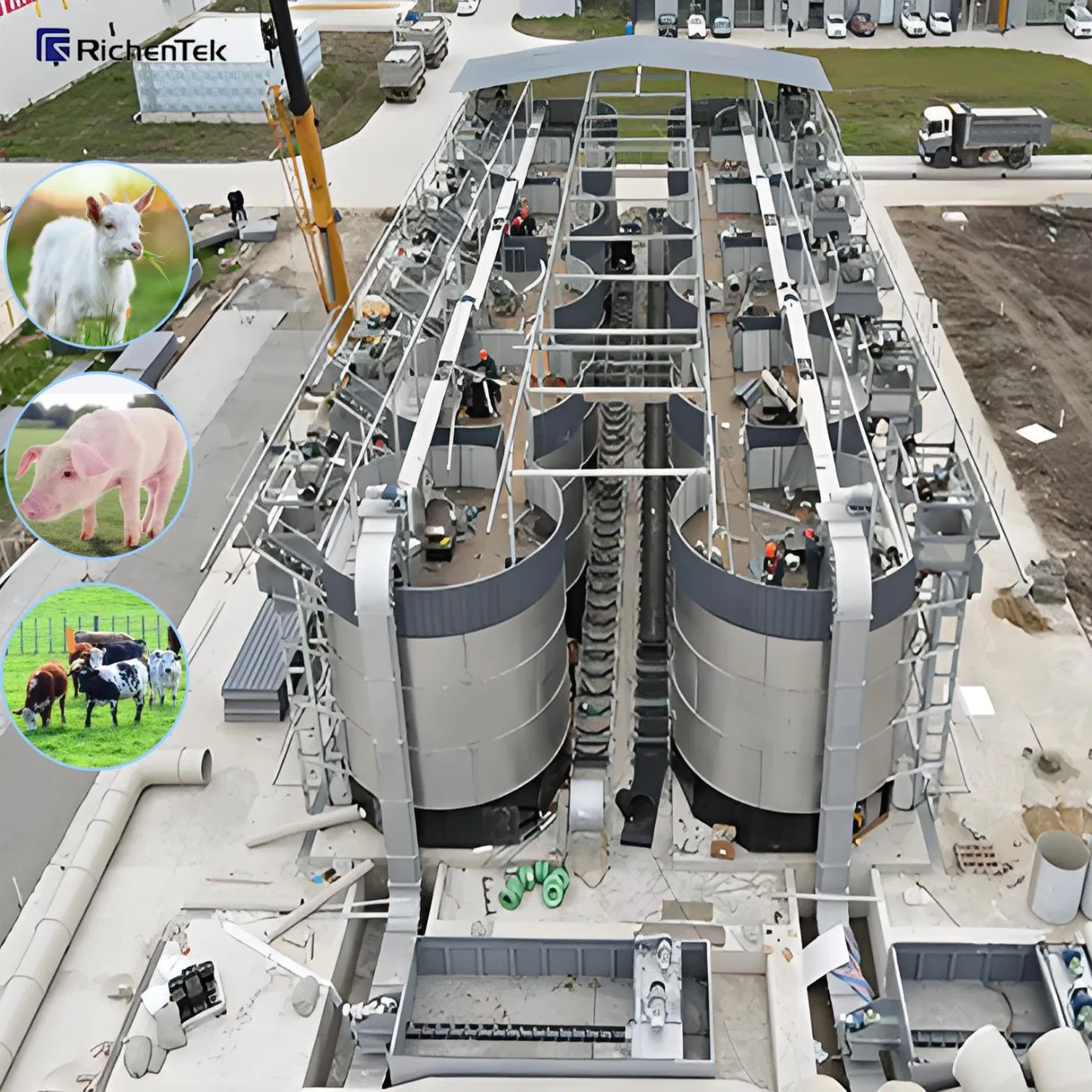

1. Space-Saving Design: Unique vertical, multi-layer design eliminates the need for vast expanses of land. It delivers large-scale fermentation capacity with a minimal footprint.
2. Fully Automated: Achieve true "unmanned" production with automated top-feeding and bottom-discharging for 24/7 continuous operation.
3. Environmental Compliance: Fully enclosed, negative-pressure design treats all odorous gases (ammonia, H2S), meeting strict environmental regulations.
4. Thermal Efficiency: Recycles natural heat generated from fermentation, reducing the need for auxiliary heating and lowering operational costs.
5. Precise Control: Advanced PLC control system for real-time monitoring of temperature, oxygen levels, and moisture.
| Model | MJFJ-35YT | MJFJ-55YT | MJFJ-8OYT | MJFJ-100YT |
|---|---|---|---|---|
| Tank Capacity | 35m³ | 55m³ | 80m³ | 100m³ |
| Installed Power | 21.7kW | 27.7kW | 38.2kW | 41.2kW |
| Tank Diameter | 3.6m | 4.2m | 5.0m | 5.6m |
| Tank Material | Double-layer Stainless Steel (Inner & Outer) | |||
| Insulation | High-Density Polyurethane | |||
| Model | MJFJ-120A | MJFJ-160 | MJFJ-220 | MJFJ-280 |
|---|---|---|---|---|
| Effective Volume | 120m³ | 160m³ | 220m³ | 280m³ |
| Footprint | 72m² | 70m² | 80m² | 100m² |
| Installed Power | 52KW | 64.5KW | 80KW | 96KW |
| Tank Diameter | 6m | 7m | 8m | 9m |

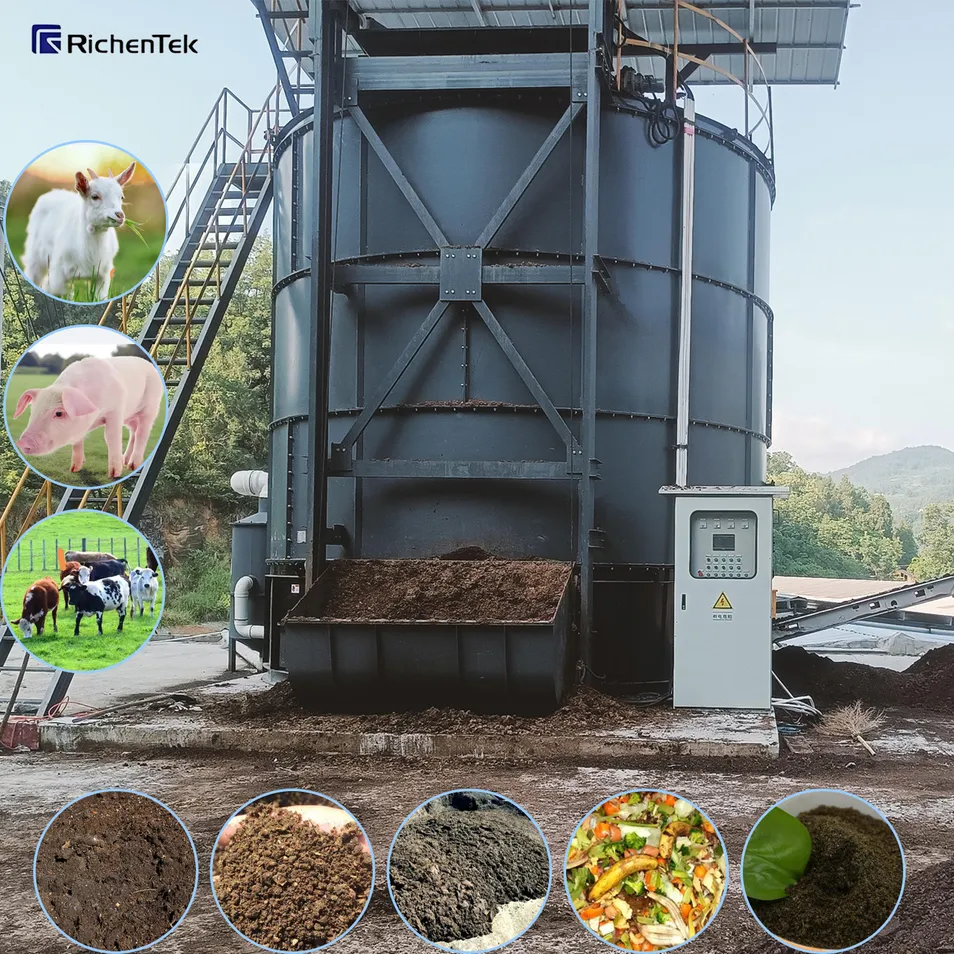

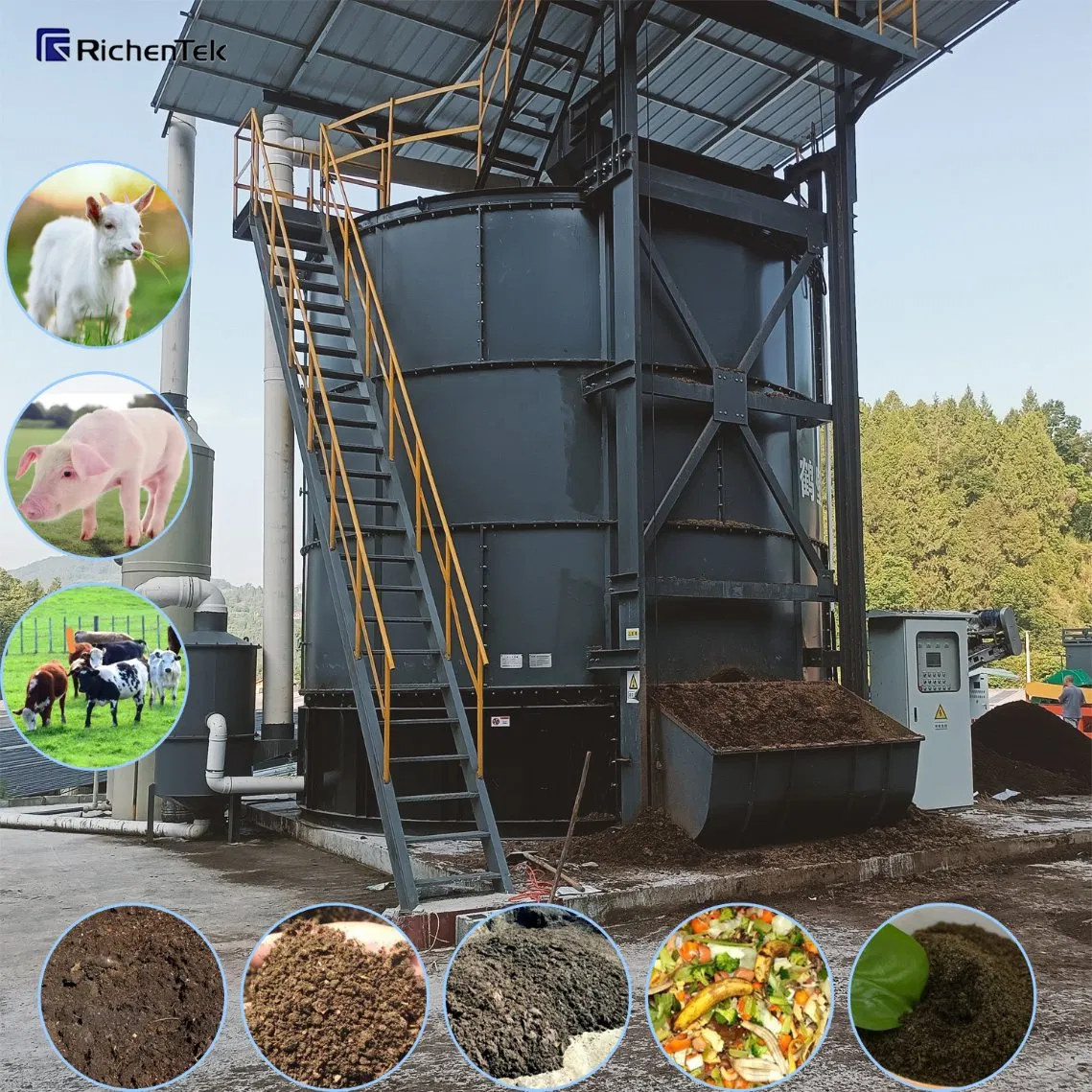

Vertical Type: Best for limited space, high automation, and maximum environmental control.

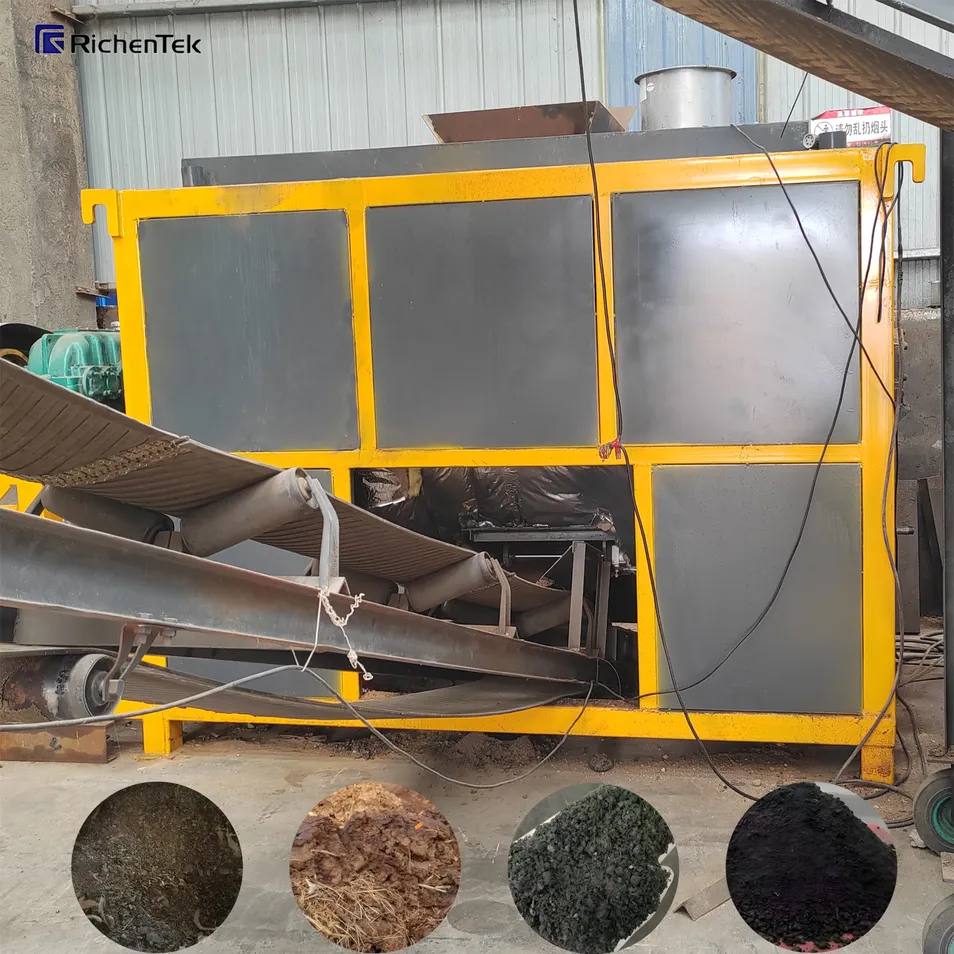

Horizontal Type: Superior mixing for high-viscosity materials and cost-effective initial investment.

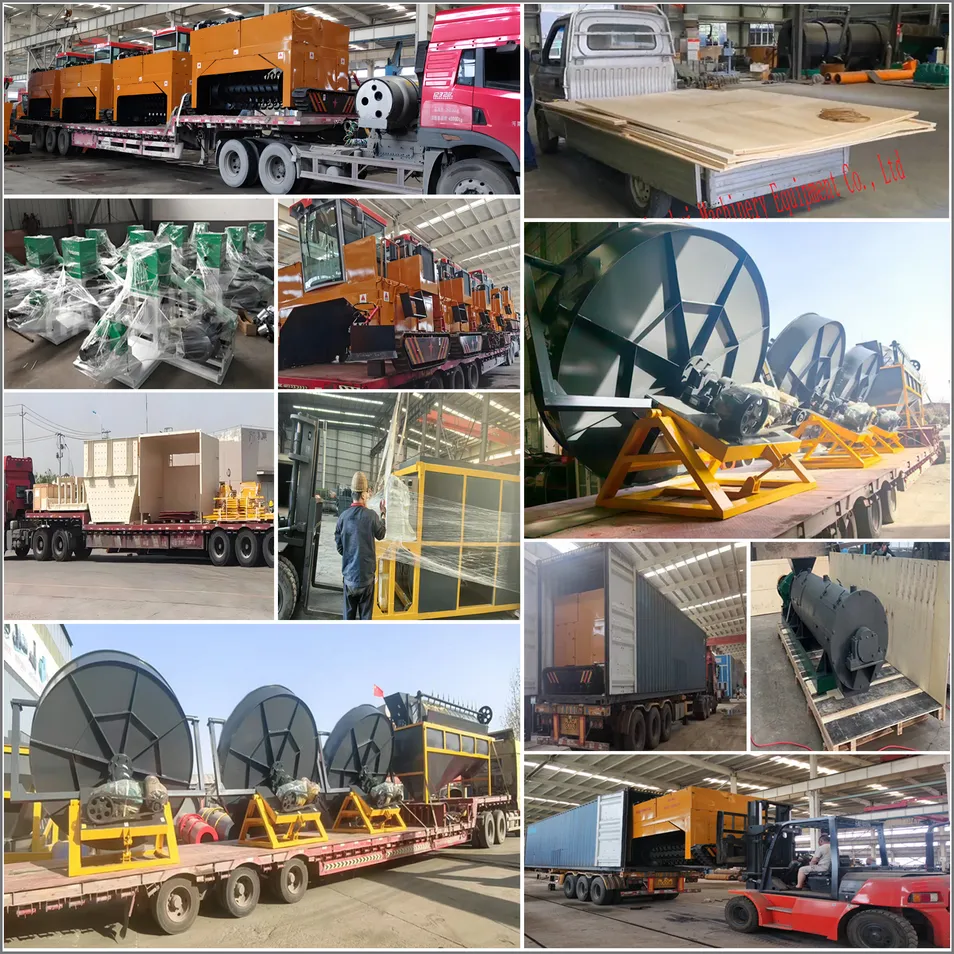

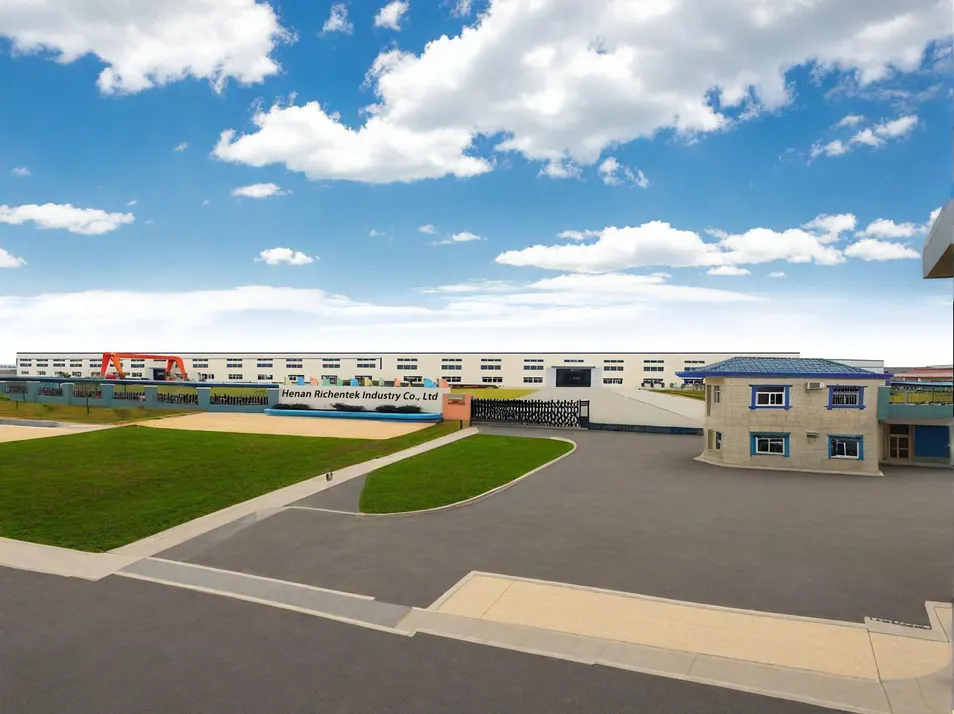

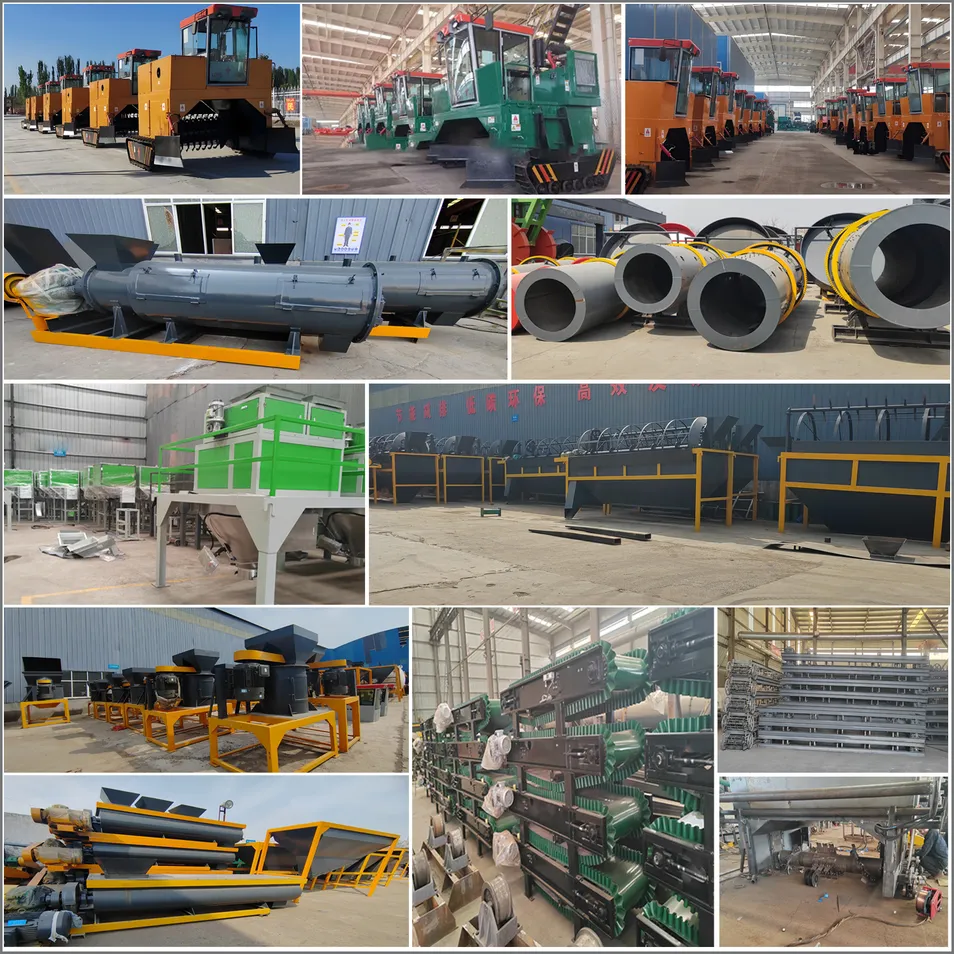

Our company specializes in the R&D, manufacturing, and service of complete fertilizer production equipment. We provide "Turnkey" project solutions from process design to installation and commissioning. Our equipment reaches over 100 countries worldwide.
