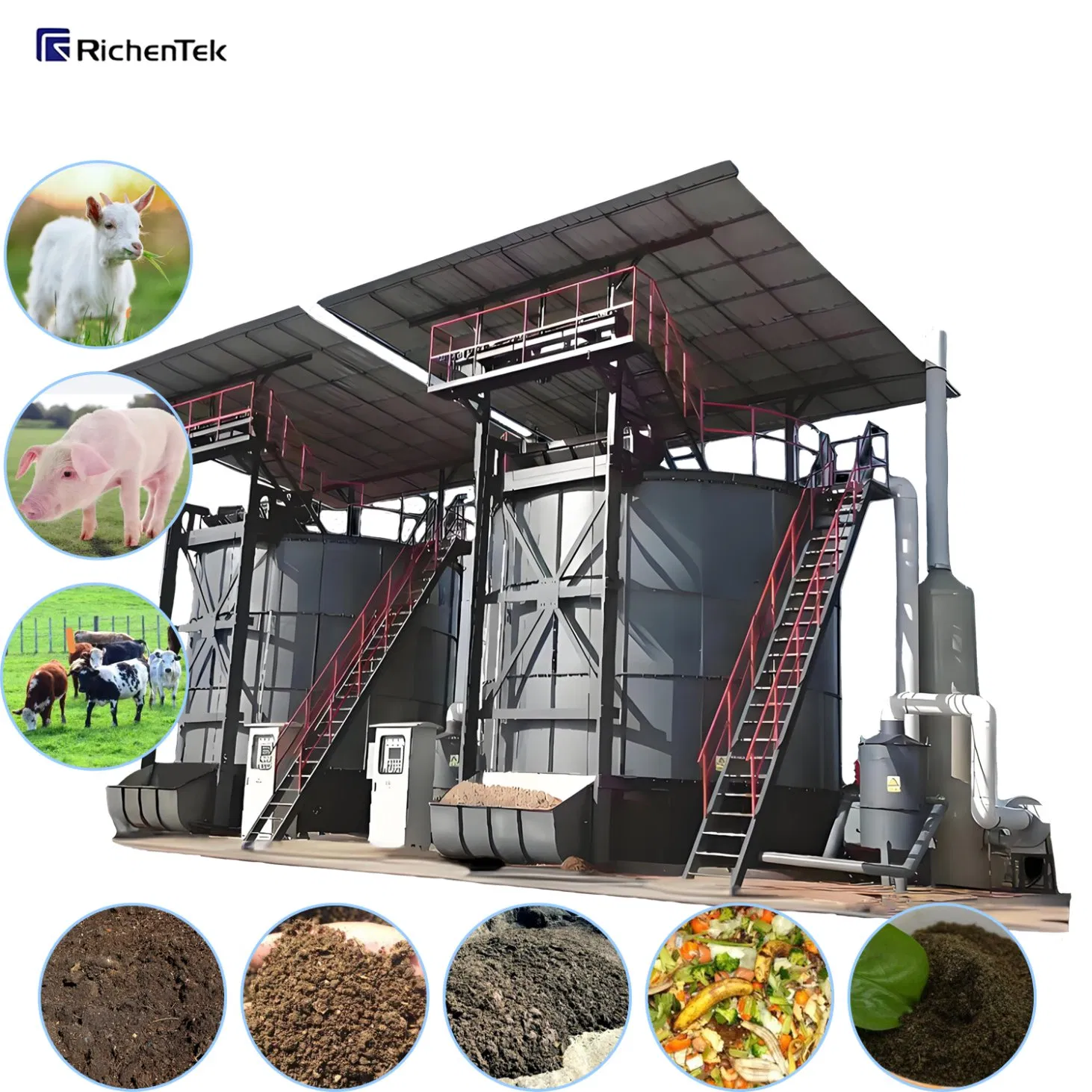

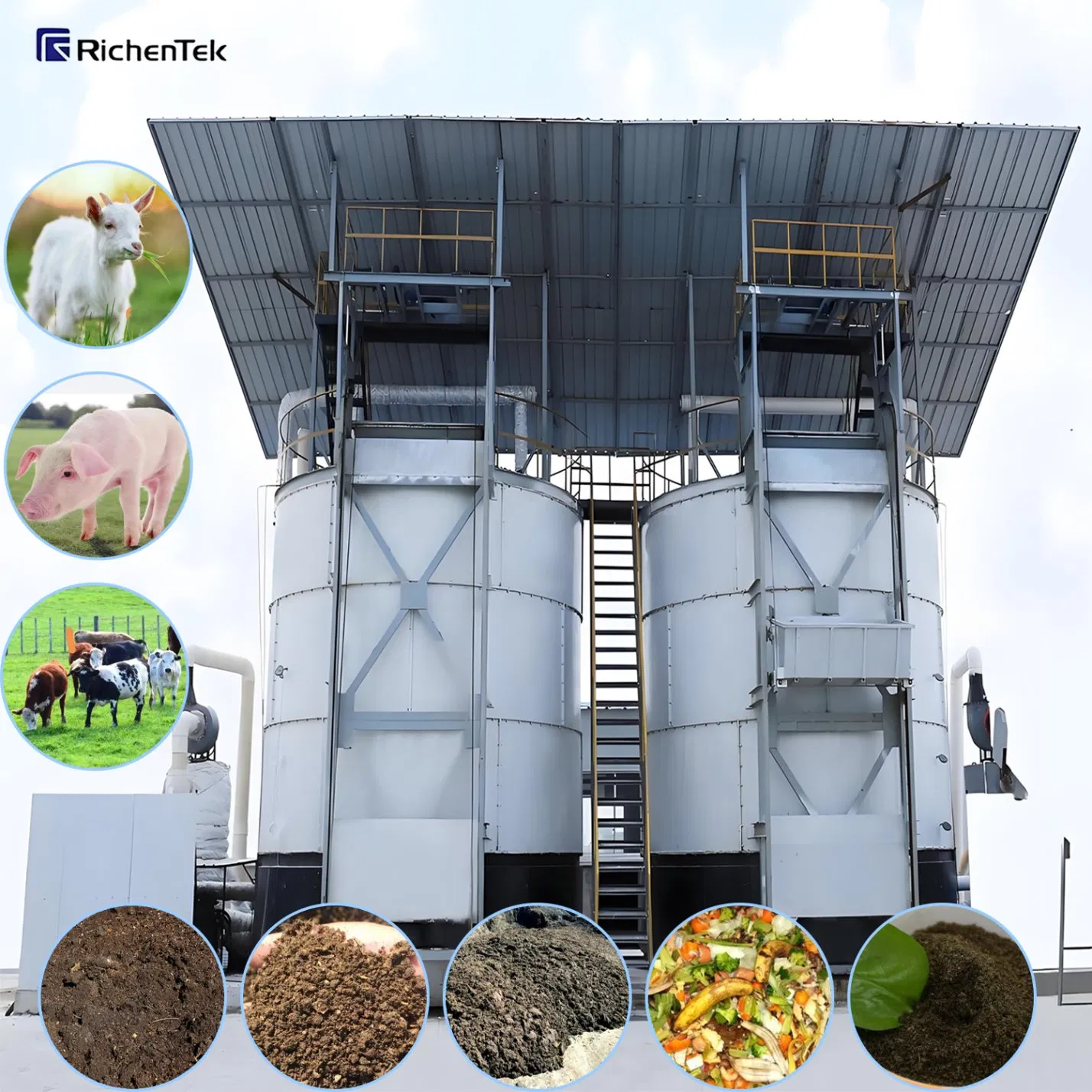

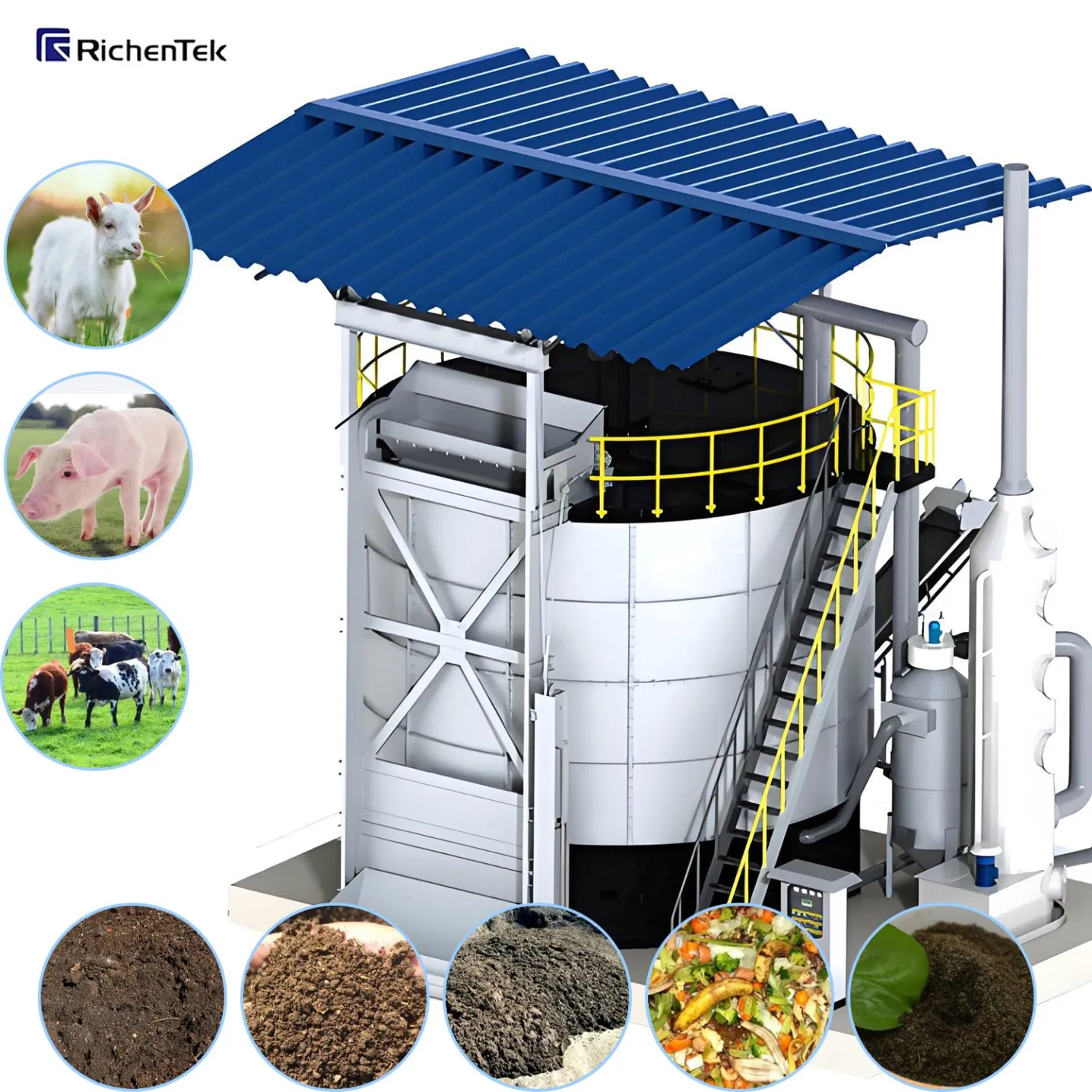

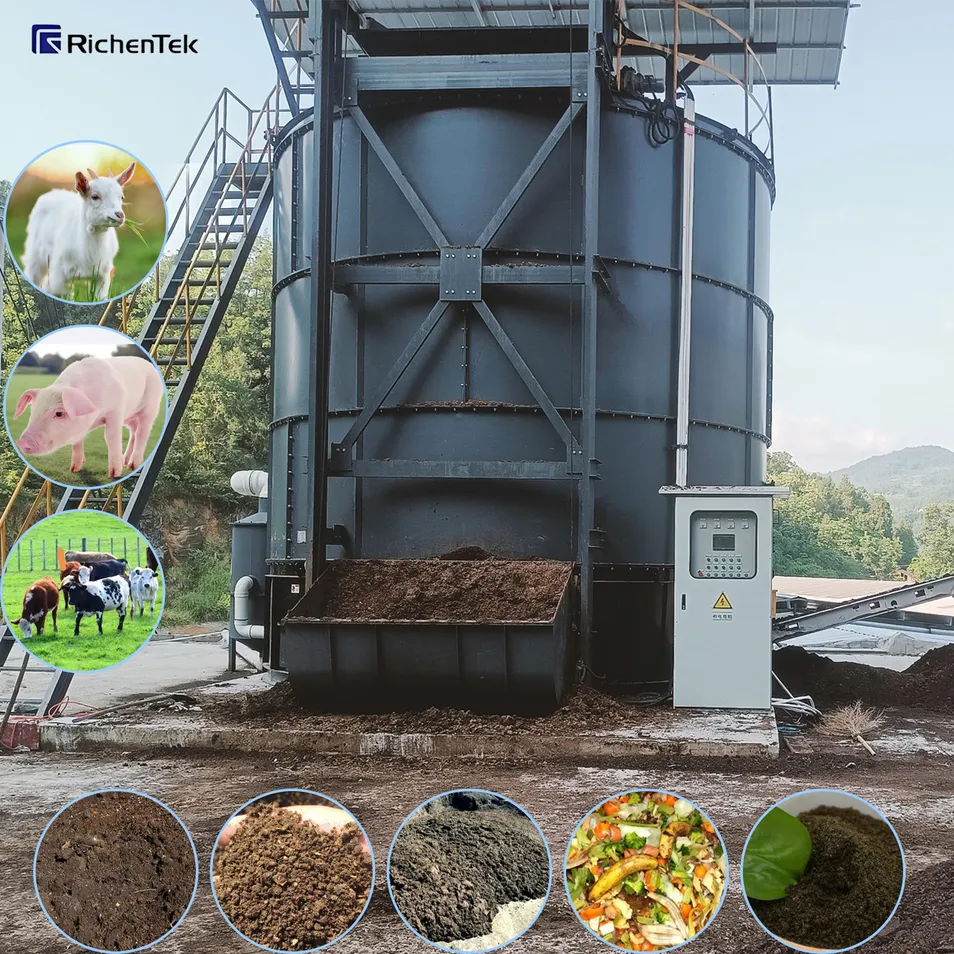

Our Vertical Fermentation Tank is an efficient & eco-friendly solution for modern fertilizer plants. In an era of rising land costs and stringent environmental regulations, this compact, intelligent, and green fermentation solution is engineered for sustainable growth and enhanced competitiveness.
Vertical, multi-layer design eliminates the need for vast land areas, significantly reducing land costs while maximizing capacity.
Achieve true "unmanned" production with automated top-feeding and bottom-discharging for 24/7 continuous operation.
Fully enclosed negative-pressure design with high-efficiency exhaust treatment to contain and treat all odorous gases.
Recycles heat generated from fermentation, reducing auxiliary heating needs and leading to substantial energy savings.
| Model | MJFJ-35YT | MJFJ-55YT | MJFJ-8OYT | MJFJ-100YT |
|---|---|---|---|---|
| Tank Capacity | 35m³ | 55m³ | 80m³ | 100m³ |
| Installed Power | 21.7kW | 27.7kW | 38.2kW | 41.2kW |
| Operating Power | 14kW | 18kW | 25kW | 26.5kW |
| Tank Diameter | 3.6m | 4.2m | 5.0m | 5.6m |
| Tank Material | Double-layer Stainless Steel (Inner & Outer) | |||
| Insulation Material | High-Density Polyurethane | |||
| Deodorization | PP Double-Layer Spray Tower | |||
| Model | MJFJ-120A | MJFJ-160 | MJFJ-220 | MJFJ-280 |
|---|---|---|---|---|
| Footprint | 72m² | 70m² | 80m² | 100m² |
| Effective Volume | 120m³ | 160m³ | 220m³ | 280m³ |
| Installed Power | 52KW | 64.5KW | 80KW | 96KW |
| Tank Diameter | 6m | 7m | 8m | 9m |

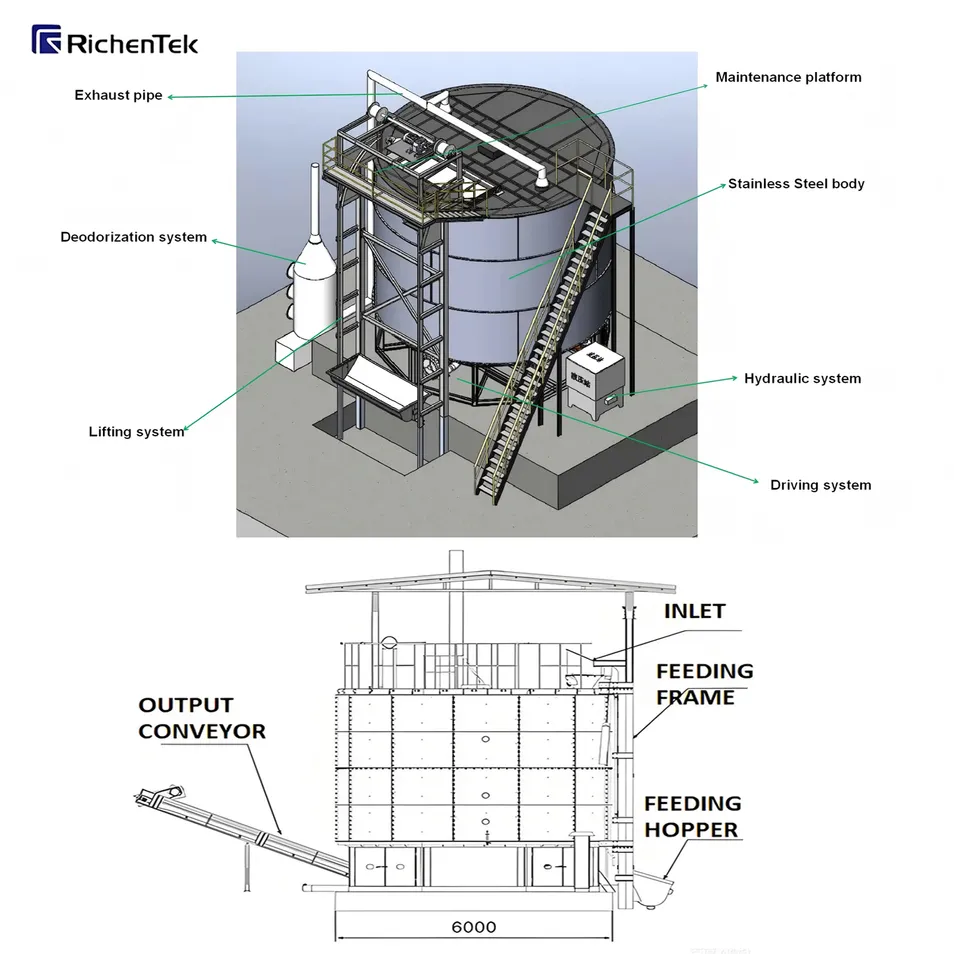

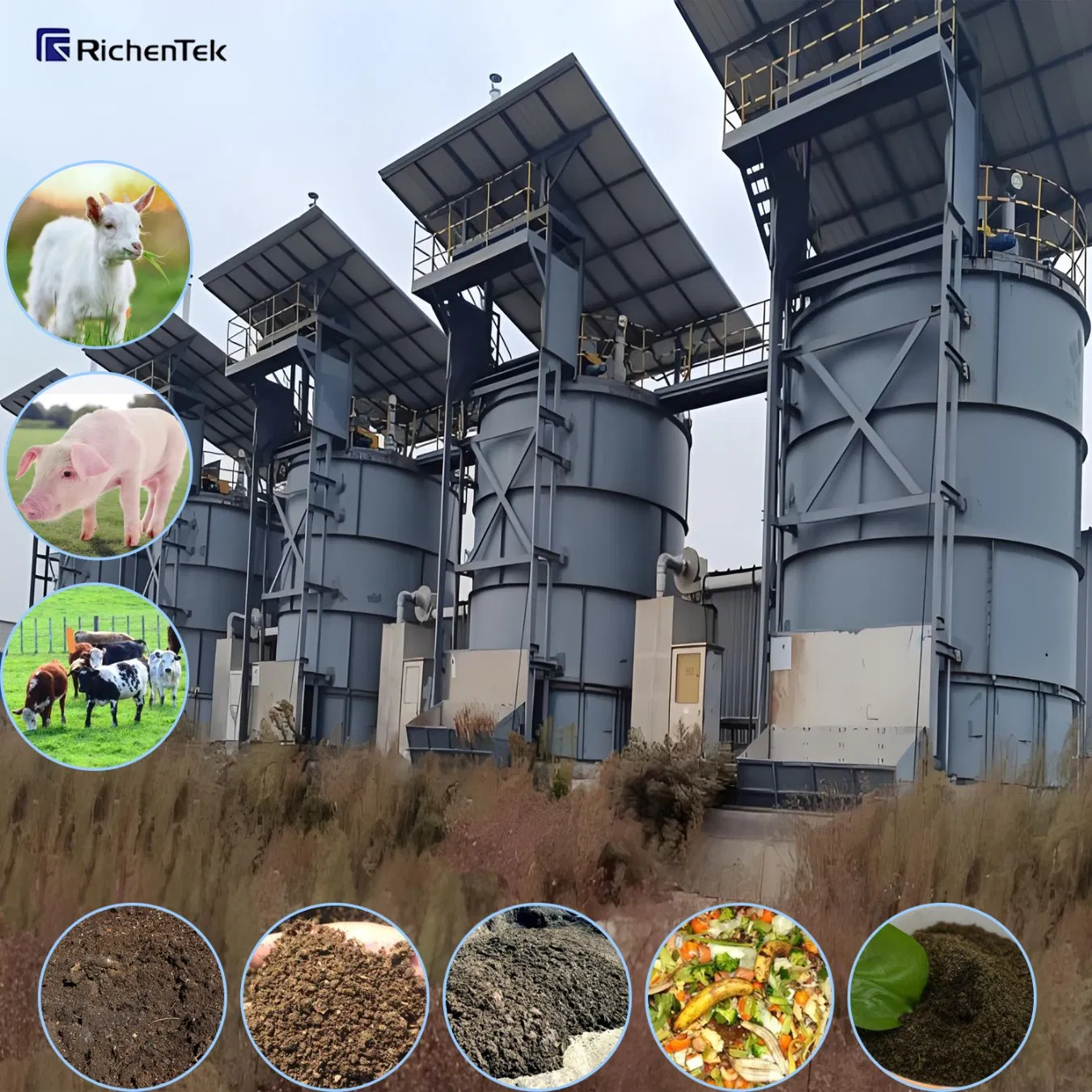

Materials descend by gravity from top to bottom. Maximizes land efficiency, offers high automation potential, and superior odor control in a fully enclosed structure.

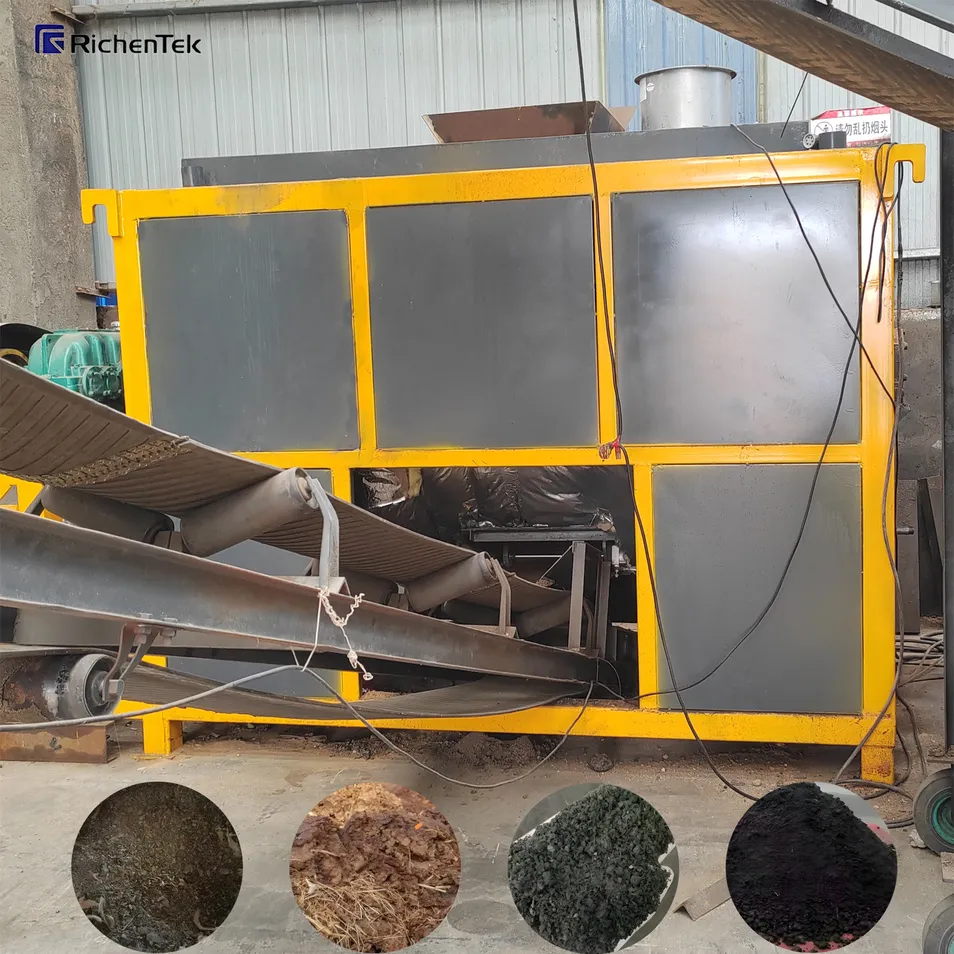

Internal rotating mixing for even oxygen distribution. Adaptable for highly viscous materials and offers straightforward mechanical maintenance.
24/7 Technical Hotline: Get immediate assistance anytime with our around-the-clock support service.
Rapid Response: We resolve quality or operational issues promptly and efficiently.
Professional Installation: Our technicians ensure smooth start-up with on-site installation and comprehensive operator training.
