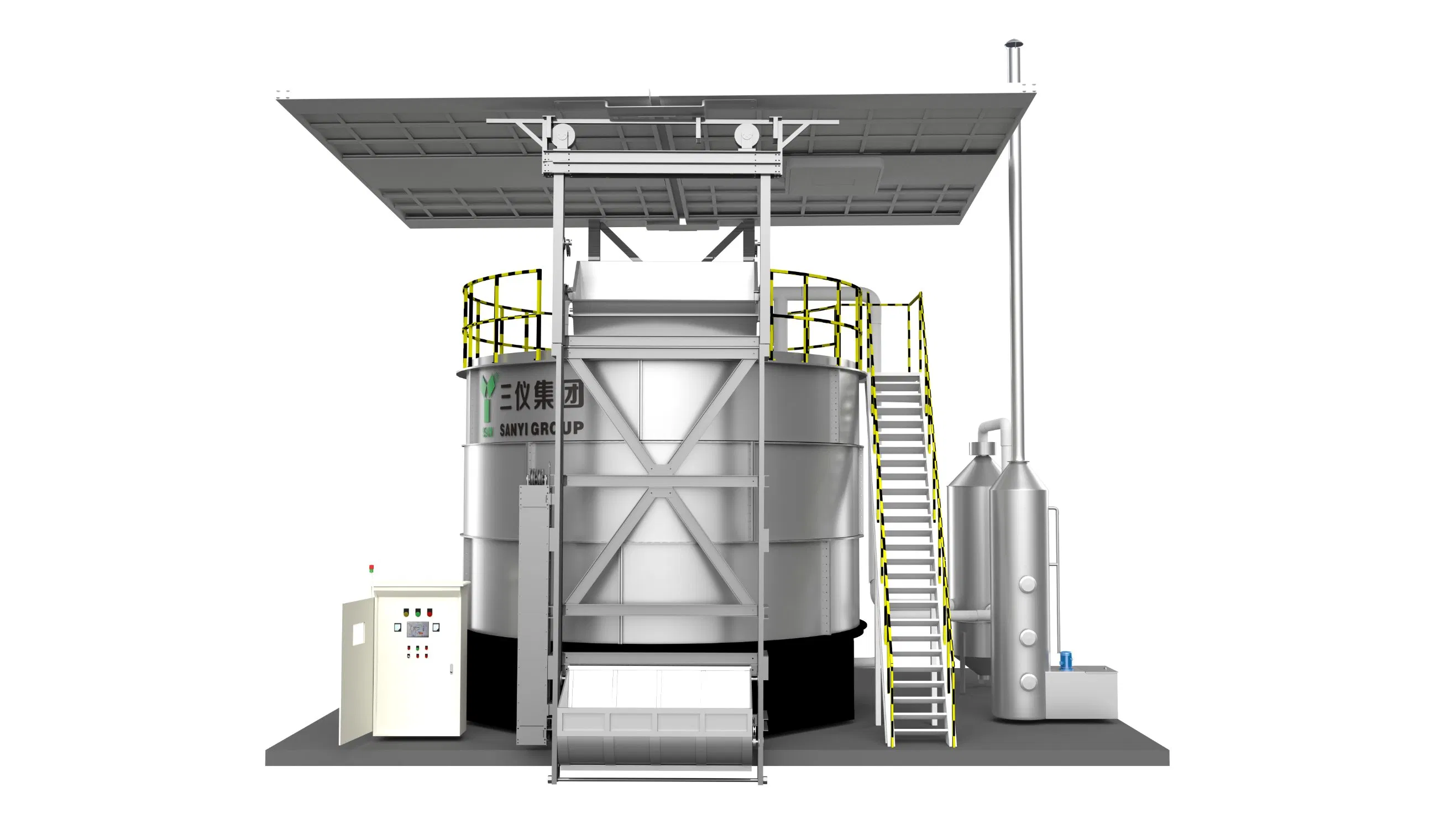

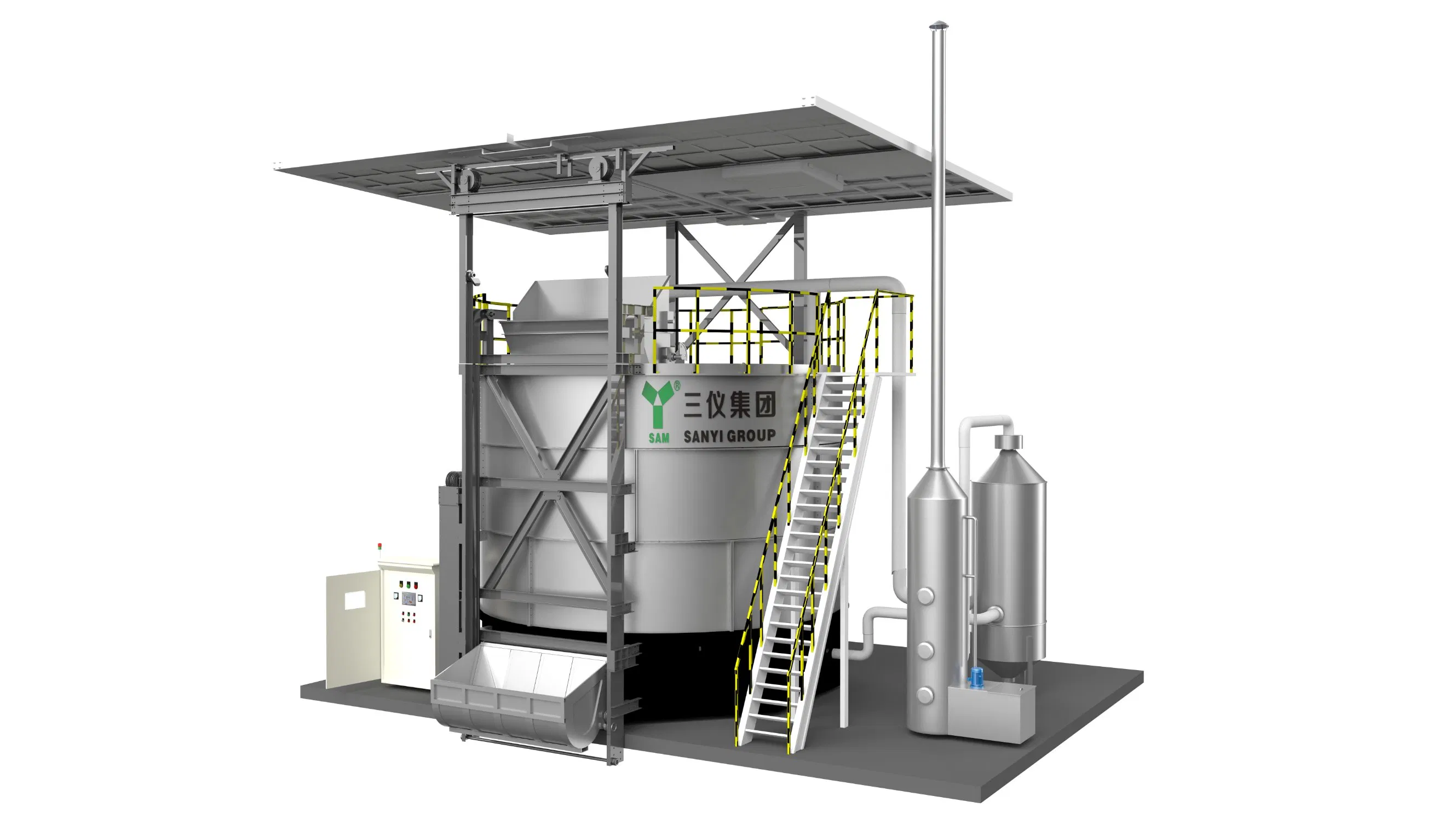

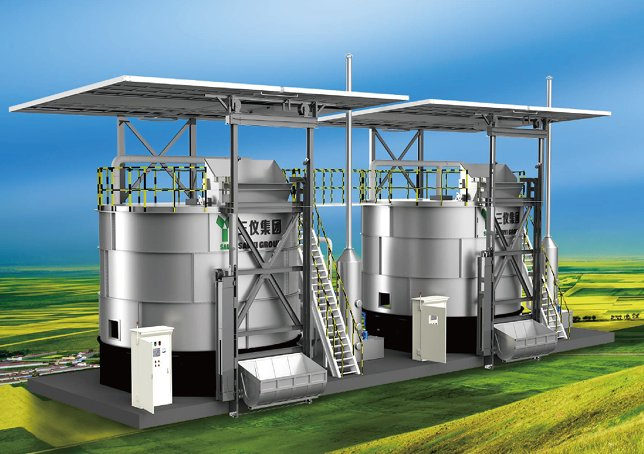

Agricultural Machinery Fermentation Composting Organic Material Industrial Composting Equipment Composting Machine
Agricultural Machinery Fermentation Composting Organic Material Industrial Composting Equipment Composting Machine
Agricultural Machinery Fermentation Composting Organic Material Industrial Composting Equipment Composting Machine
Agricultural Machinery Fermentation Composting Organic Material Industrial Composting Equipment Composting Machine
Agricultural Machinery Fermentation Composting Organic Material Industrial Composting Equipment Composting Machine
1 / 5
Agricultural Machinery Fermentation Composting Organic Material Industrial Composting Equipment Composting Machine
Agricultural Machinery Fermentation Composting Organic Material Industrial Composting Equipment Composting Machine
Agricultural Machinery Fermentation Composting Organic Material Industrial Composting Equipment Composting Machine
Agricultural Machinery Fermentation Composting Organic Material Industrial Composting Equipment Composting Machine
Agricultural Machinery Fermentation Composting Organic Material Industrial Composting Equipment Composting Machine

Agricultural Machinery Fermentation Composting Organic Material Industrial Composting Equipment Composting Machine

Send Inquiry

Product Description

Product Overview
Our technology has developed a 2.0 version of energy-saving fermentation tank, which uses four major energy-saving technologies to achieve effective energy saving of 40%. Taking manure with a water content of 75% as an example, the power consumption per ton of the 2.0 energy-saving version is reduced from about 60 degrees to about 35 degrees compared to the 1.0 version.

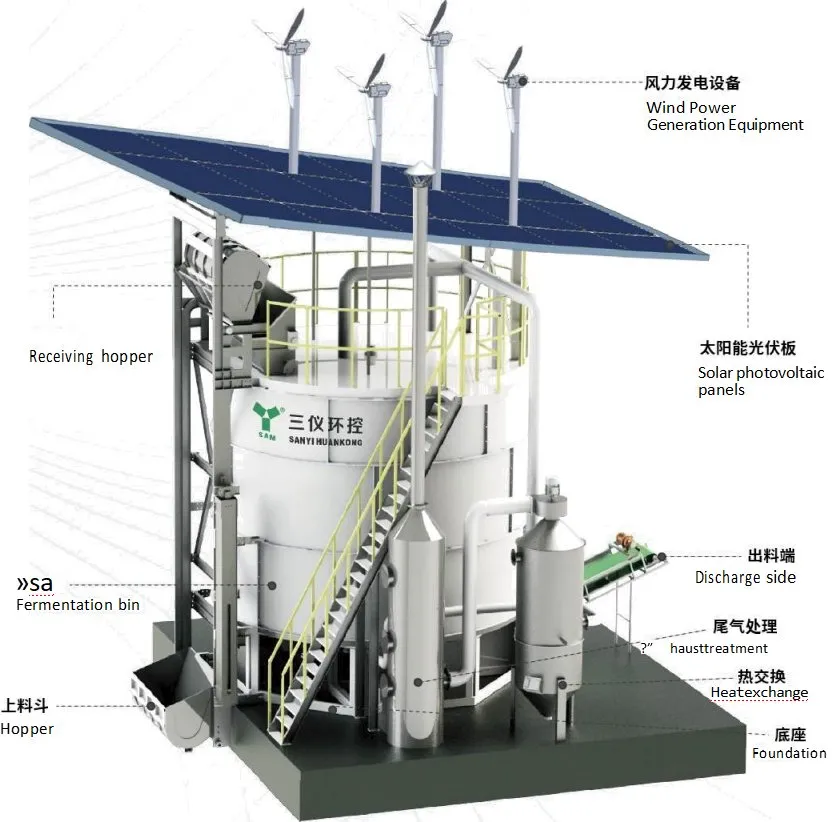

Fermentation Composting Equipment

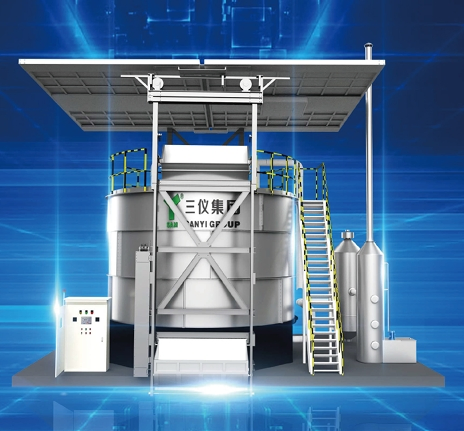

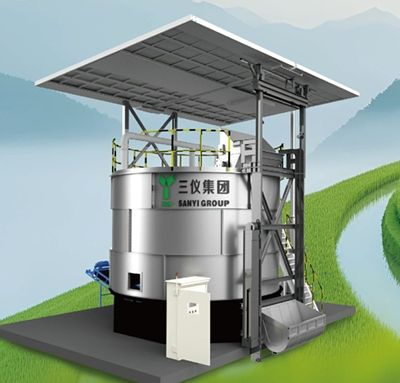

Equipment Introduction
The whole equipment structure is divided into three parts:
  • Lower part: Base part distributing hydraulic stations, scroll air pumps, cylinders, heating systems, and mixing shafts.
  • Middle part: Double-layer insulated tanks with automatic control systems and export devices. The inner wall is lined with 304 stainless steel plate to extend the life of the tank and reduce residue. Polyurethane foam is used for thermal insulation.
  • Upper part: Composed of wind and rain shed, testing platform, and exhaust facilities. Attached equipment includes automatic bucket elevator, exhaust gas filtering/deodorizing system, and heat exchange system.
Process Principle
Livestock and poultry manure added to the fermentation equipment in the closed warehouse, through intelligent microorganisms aerobic fermentation at high temperature, rapid degradation of manure odor and harmful substances, transformed into soil-friendly organic matter. The temperature during the fermentation process can reach 65-75°C, which can effectively kill insect eggs and pathogenic bacteria. The high-quality organic fertilizer produced reaches the NY52S-2021 quality standard.

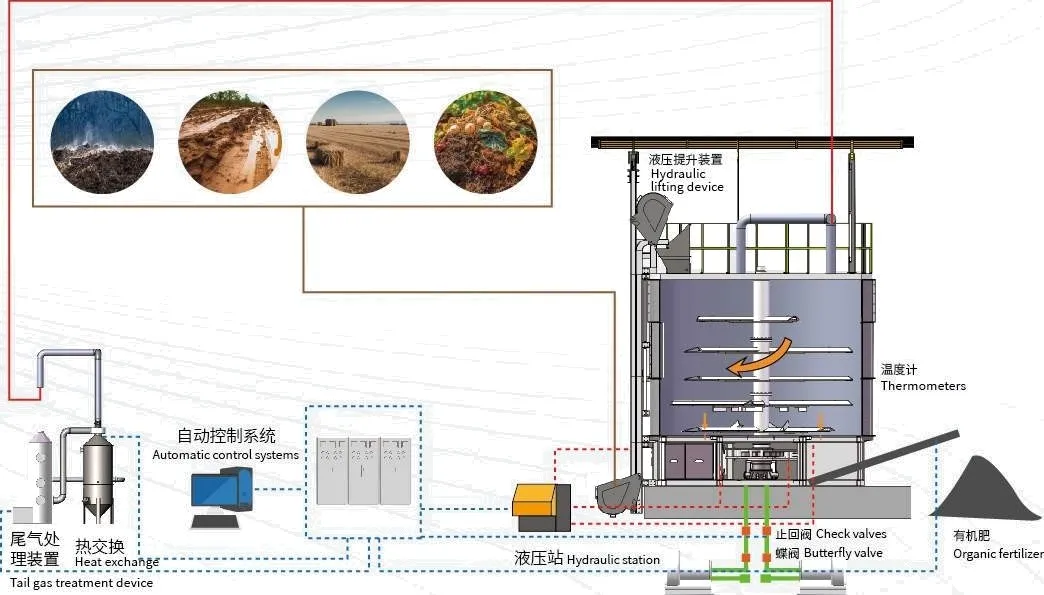

Process Principle Diagram
Process Advantages
📉 Low Operating Costs
Utilizing aerobic bacteria high-temperature fermentation technology ensures short treatment cycles and minimal running costs.
⏱️ Short Fermentation Cycle
Only about 15 days for a fermentation cycle. Realizes daily input of manure and daily output of fertilizer.
📋 Standardized Production
Real-time display and recording of process parameters for accurate control of each production link.
📐 Small Footprint
A single unit requires only 70-105 square meters of floor space depending on the model.
🍃 Environmental Compliance
Biological deodorization with multi-layer filtration ensures gas discharge standards are met without secondary pollution.
🤖 High Automation
PLC control equipment allows a single person to manage the entire fermentation treatment process.
Applications
Suitable for the harmless treatment and resource utilization of organic waste such as chicken manure, dry clean pig manure, solid-liquid separation solid manure, sludge, and kitchen waste.
Application 1
Application 2
Application 3
Product Parameters

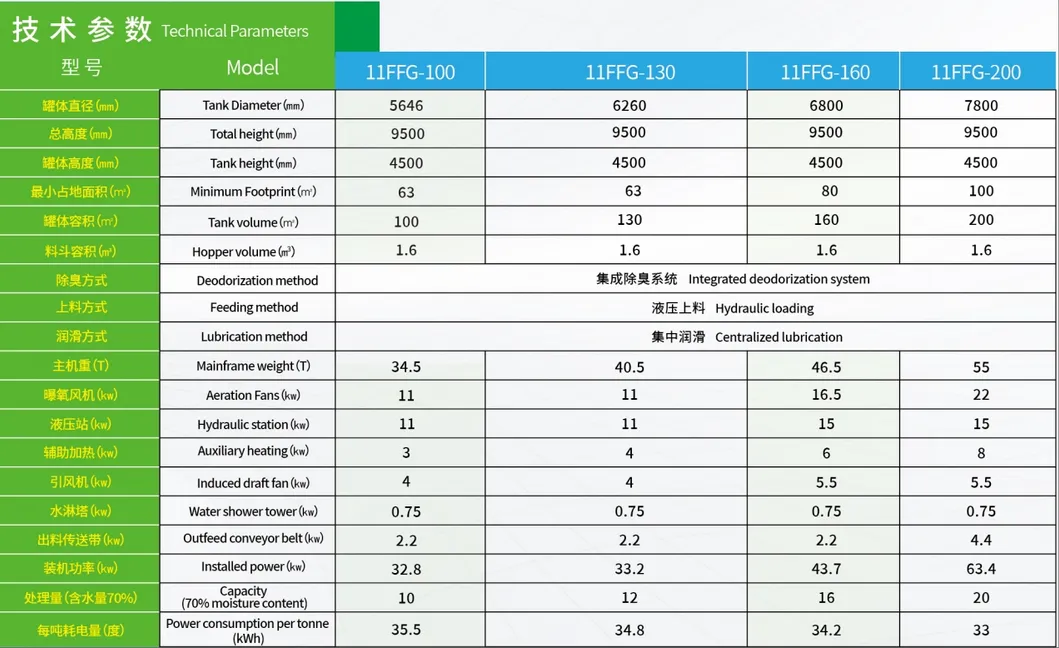

Product Parameters Table

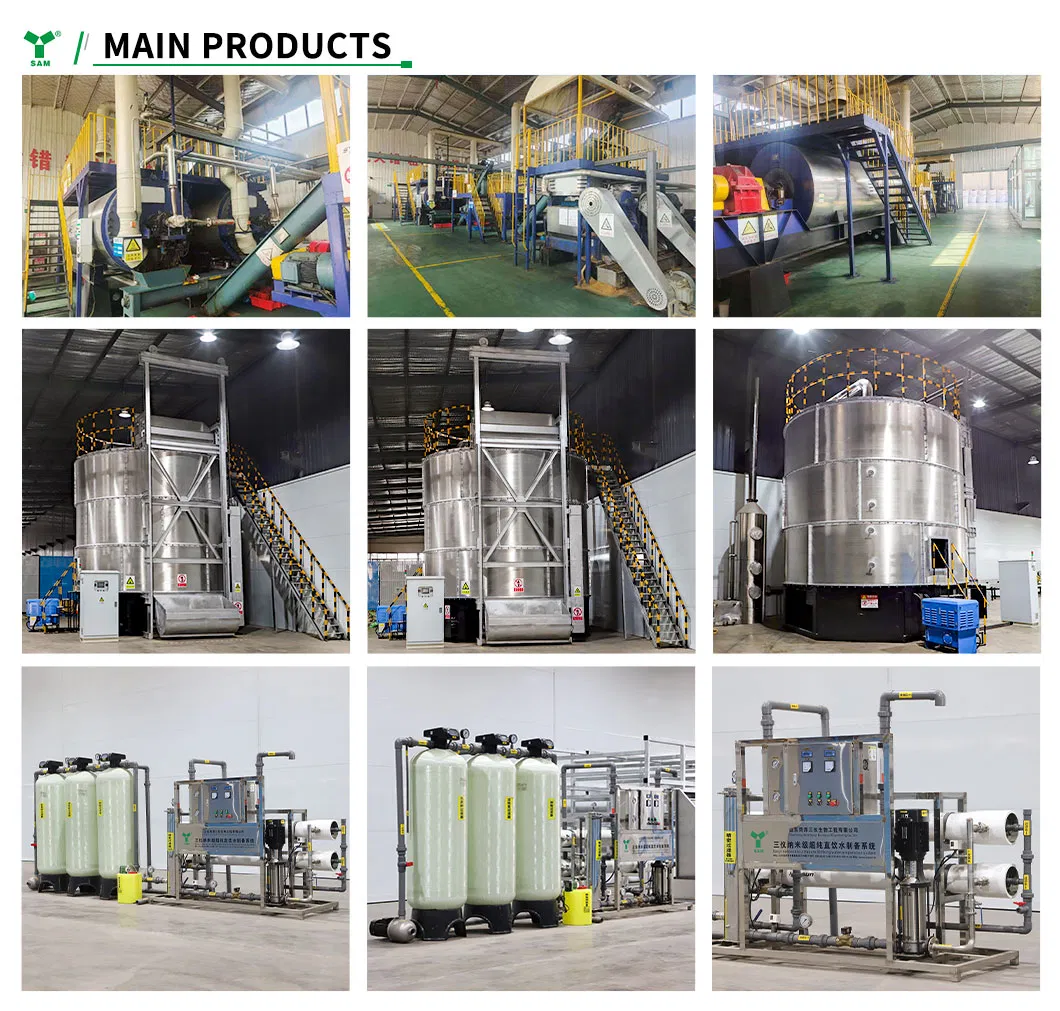

Main Products
Main Products Gallery
Group Profile
The Group was founded in December 1998. Its industries cover animal husbandry and environmental protection, animal health, feed additives, biological veterinary drugs, diagnostic preparations, biological feed and other fields. It currently has three production parks.

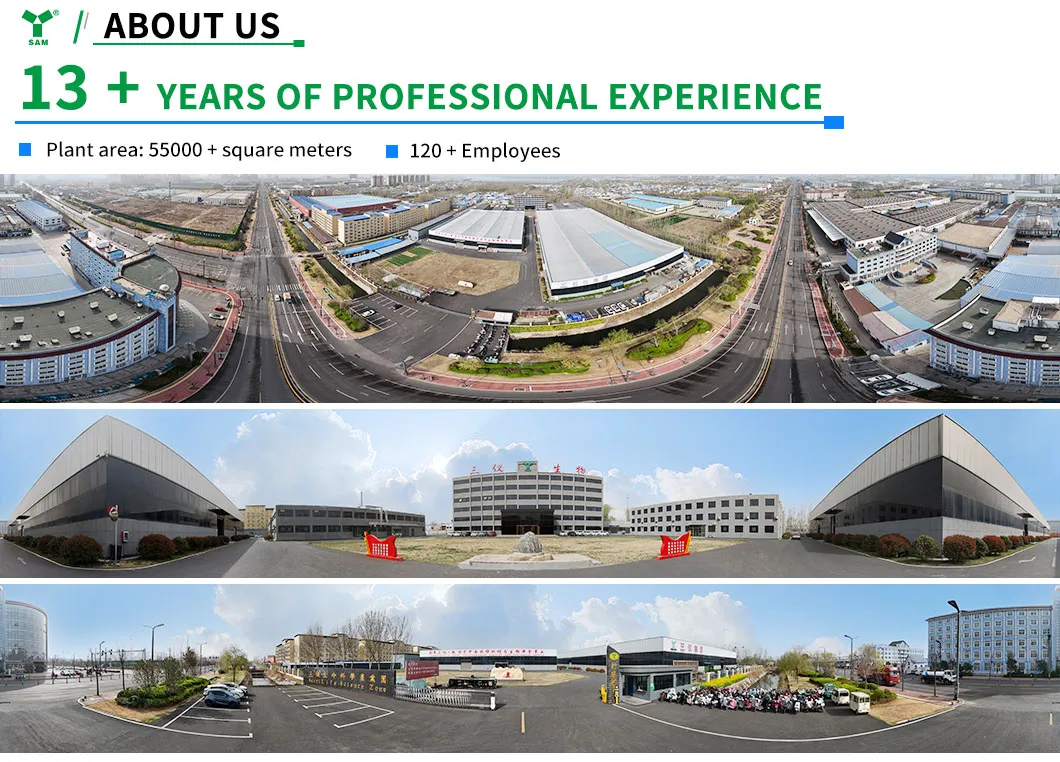

Facility Image
The facility established in 2012 focuses on three major industrial sectors: pasture environmental protection, pasture disinfection, and new feed additives. With 120 employees and a factory area of 55,000 square meters, it is a key subsidiary of the Group.

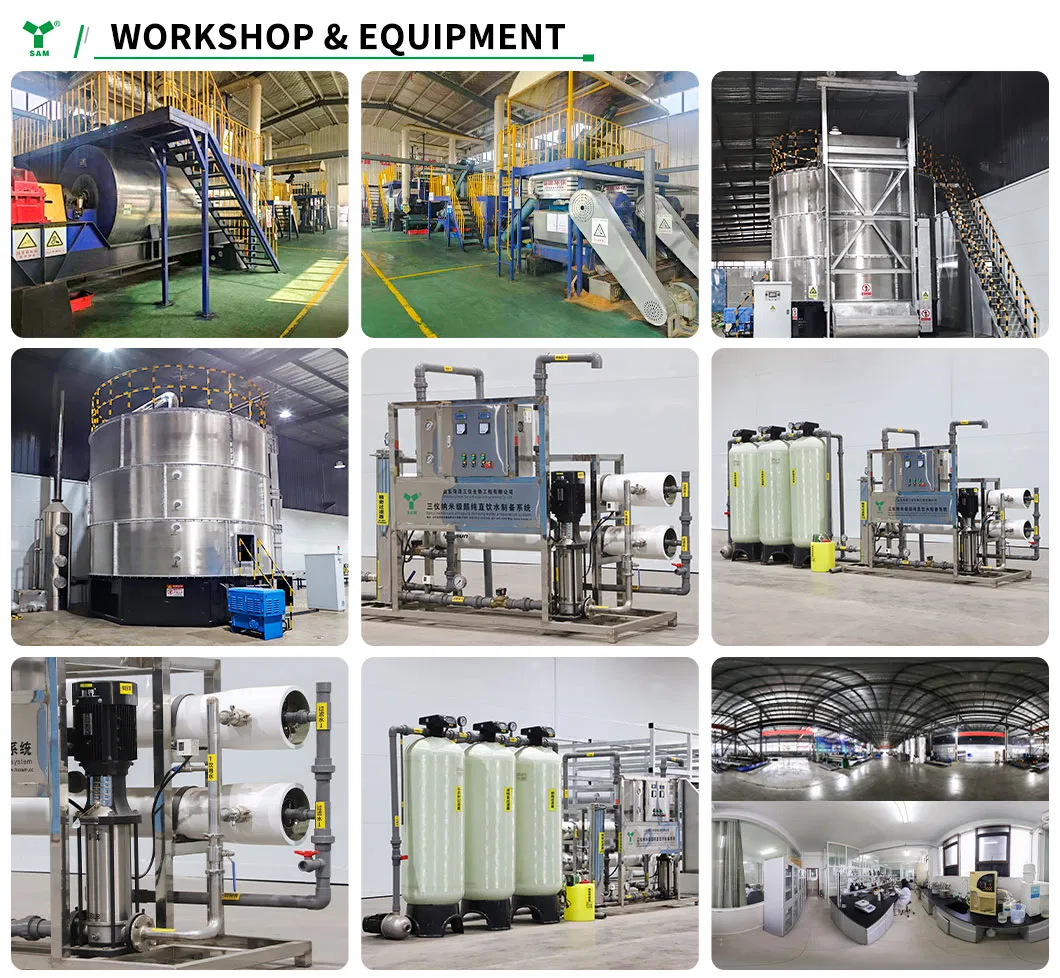

Factory Overview
Exhibitions & Certifications
Exhibitions
Certifications
Packaging & Shipping
Logistics
Frequently Asked Questions
1. What fields is the high temperature aerobic fermentation tank mainly used in?
The high temperature aerobic fermentation tank can be used for Livestock and poultry manure (pig manure/chicken manure/cow manure) composting, organic waste (straw and garden waste) recycling, municipal sludge, kitchen waste and fruit and vegetable waste.
2. What information is needed before ordering?
Please advise your requirements for the overall treatment process, provide a material quality report for the material type, the maximum treatment capacity required for design, and the final product use.
3. How long is the lead time?
Generally, it is 20 days, depending on your specific needs and project scales.
4. Do you provide OEM service?
Yes, we provide high-quality OEM services and also provide customized products according to buyer requirements.
5. What other services can you provide?
We provide free technical support at any time and can assist you in designing the entire treatment process of your project.
6. What is the energy efficiency of the 2.0 version?
The 2.0 energy-saving version reduces power consumption from 60 degrees down to approximately 35 degrees per ton, representing a 40% improvement in energy efficiency.
