| Model NO. | TR-FJJ/ST-1000 | Condition | New |
|---|---|---|---|
| Certification | CE | Automation | Automatic |
| Screw | Twin-Screw | Treatment | Broken |
| Tank Dimensions | U1000X2000 mm | Storage Capacity | 2.0m³ |
| Processing Capacity | 700 Kg/Batch | Main Unit Power | 4kw |
| Spindle Speed | 2r/Min | Heating Method | Heat Transfer Oil |
| Control System | PLC | Origin | China |
Our technology enterprise is committed to becoming an industry pioneer in the integration of environmental protection technology and high-end intelligent manufacturing. We focus deeply on ecological environment governance and sustainable development, driving the industry towards intelligence, refinement, and resource utilization through disruptive technological innovations.
We have established a comprehensive industrial ecosystem spanning the entire value chain, from cutting-edge R&D and intelligent manufacturing of core equipment to digital operations services. By strictly adhering to world-class quality standards, we ensure exceptional quality at every stage.

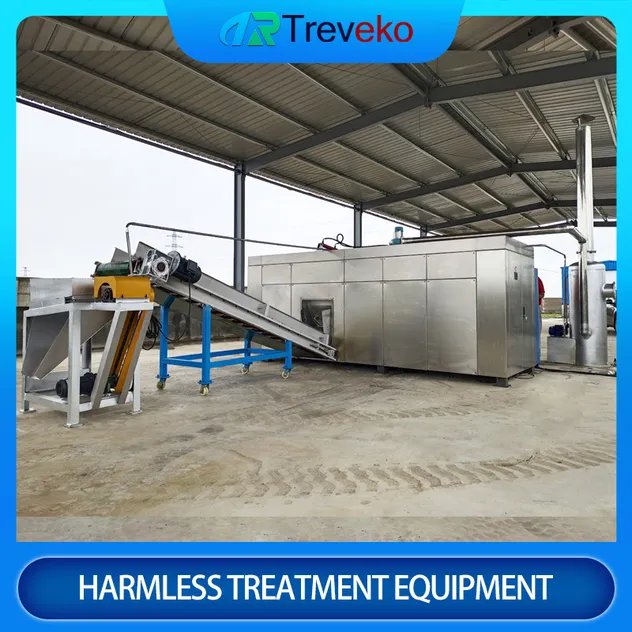

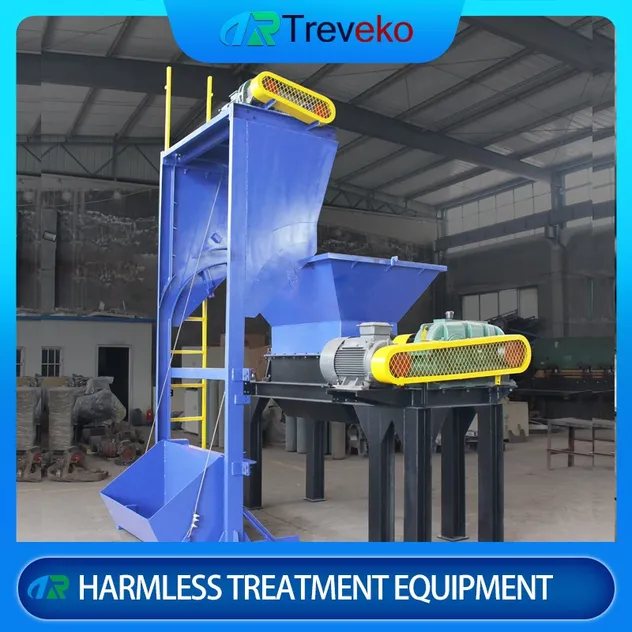

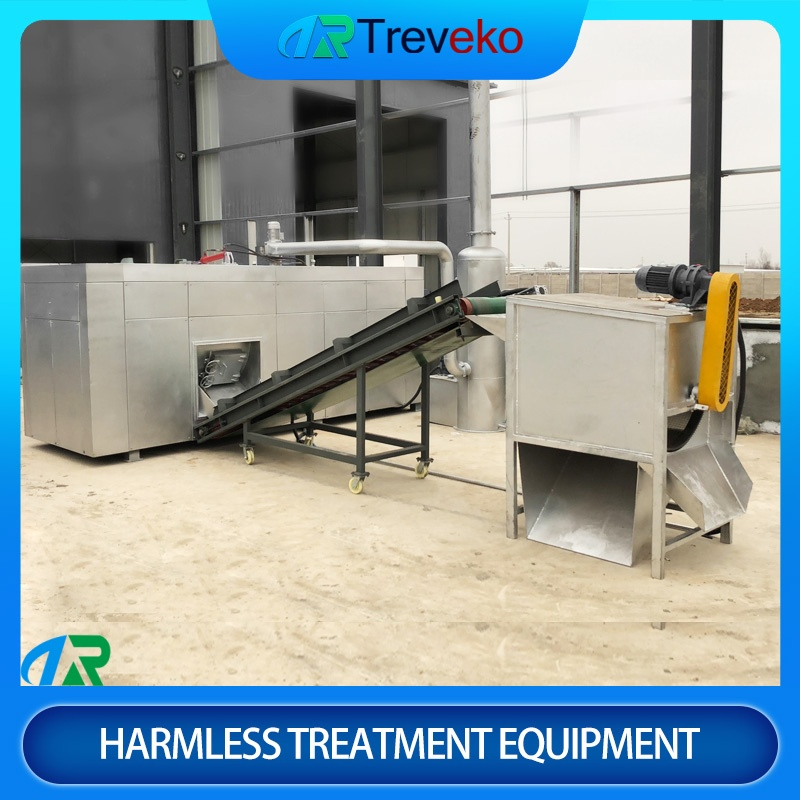

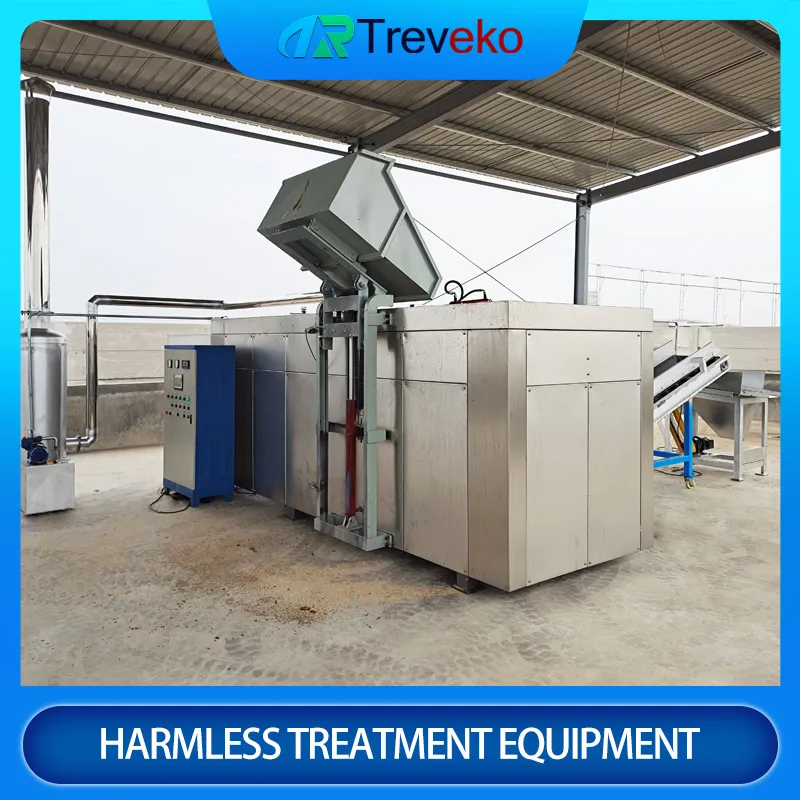

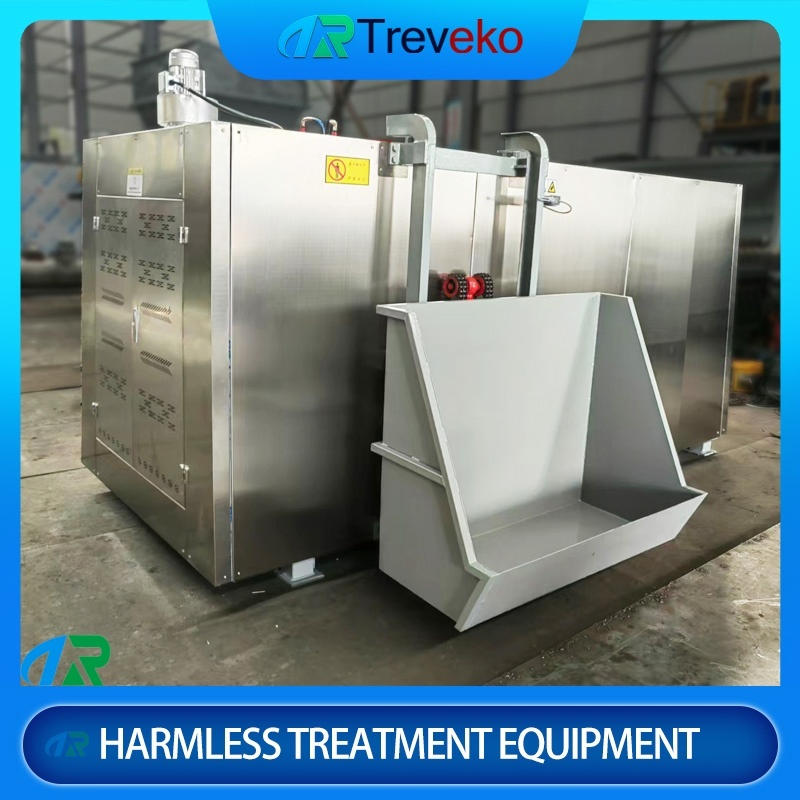

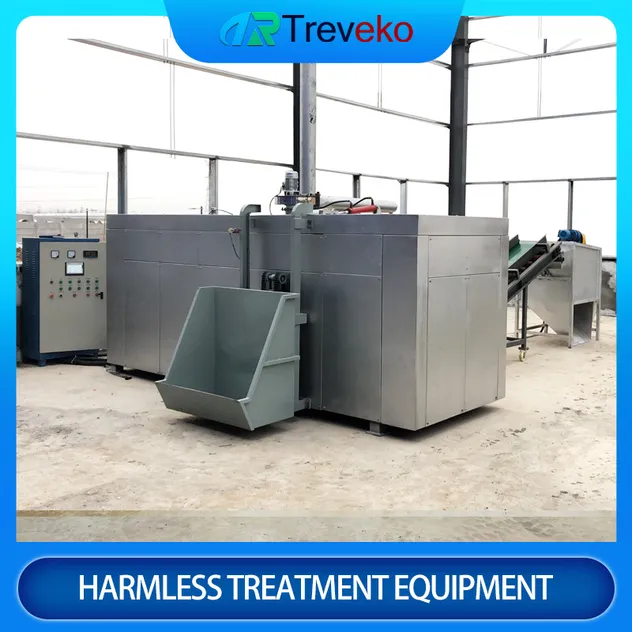

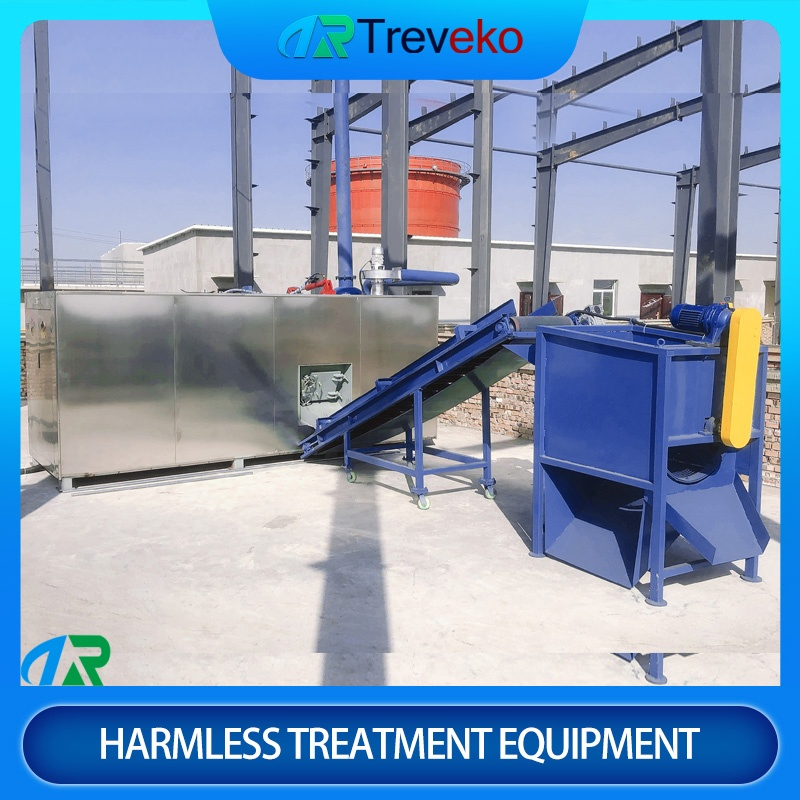

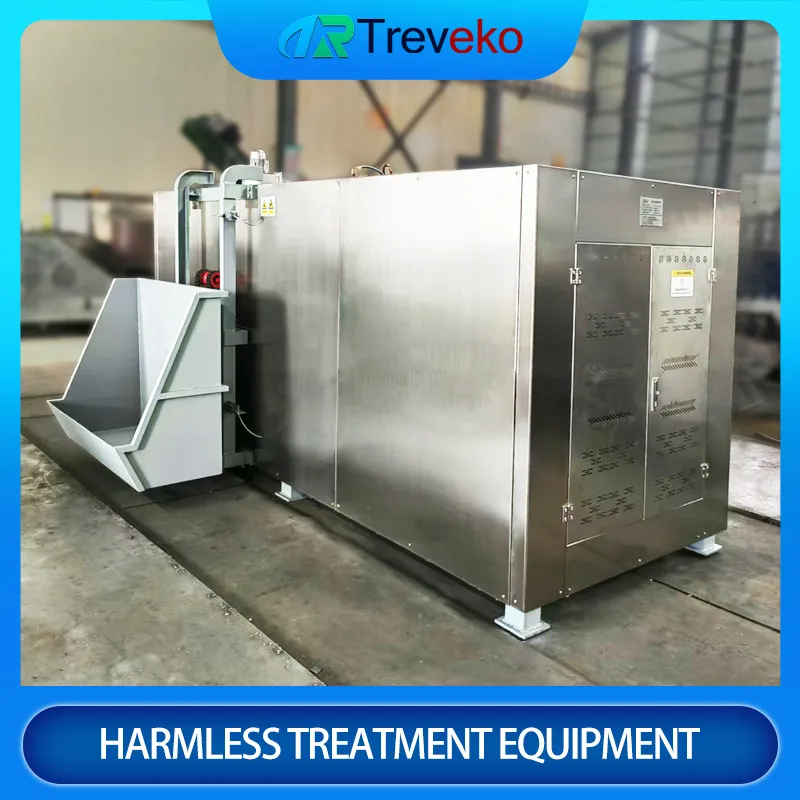

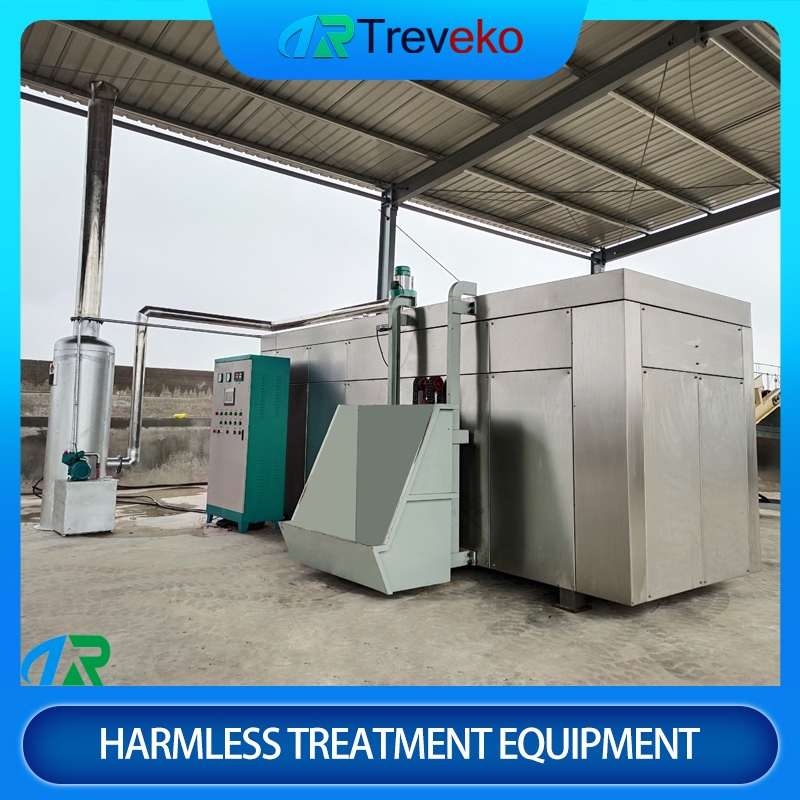

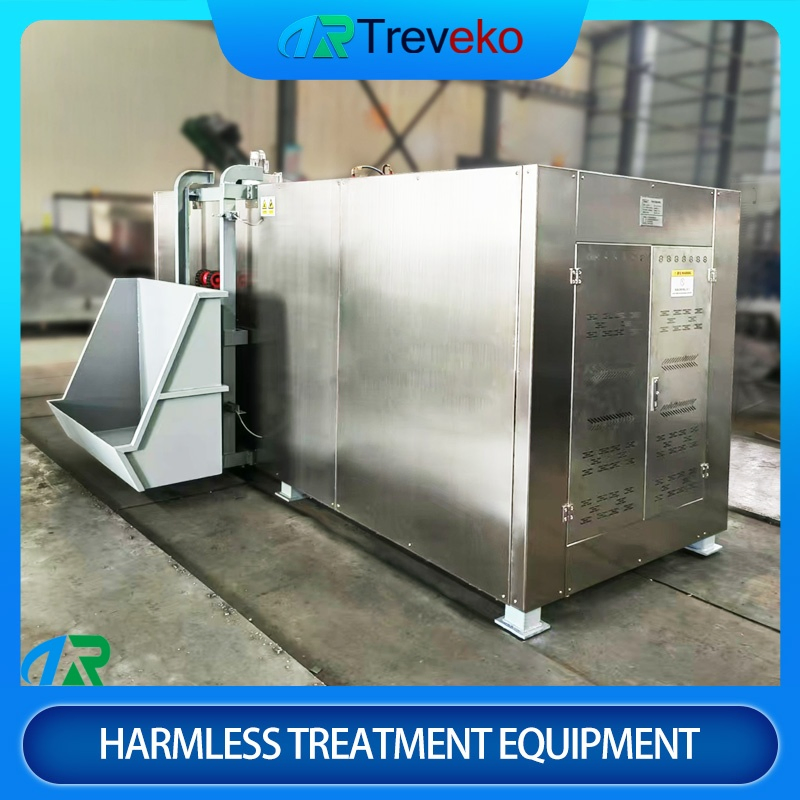

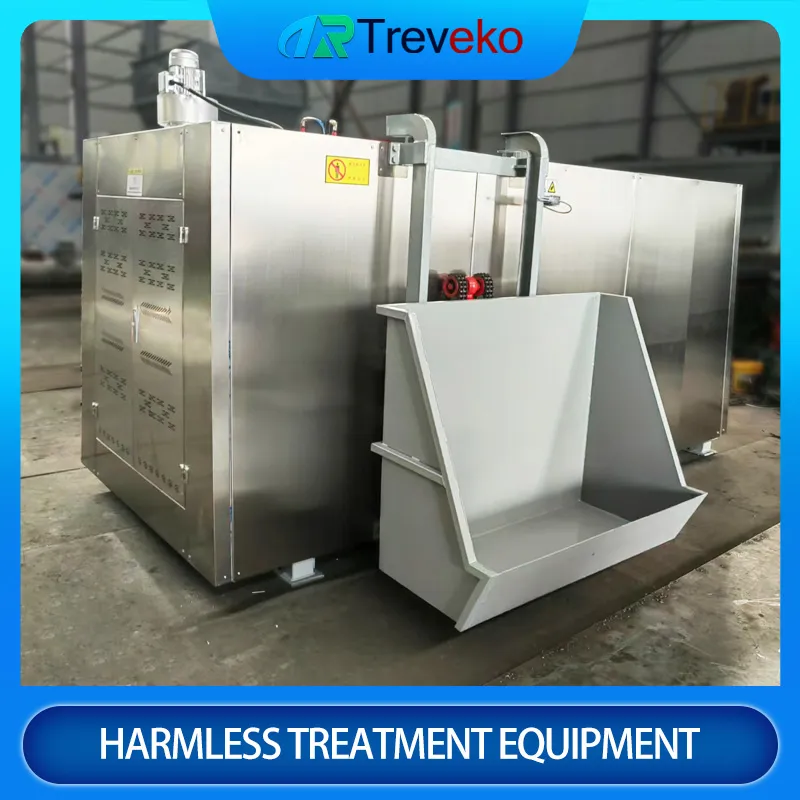

1. High-temperature Biodegradation System: Comprises a material elevator, carcass crusher, screw conveyor, high-temperature aerobic fermentation unit, belt conveyor, drum screen, odor control system, and control panel.
2. Automation Process: Materials are automatically loaded, crushed, and transported. After aerobic fermentation sterilization, the output is processed into high-efficiency organic fertilizer. Odors are treated through a dedicated spray deodorization tower.
| Model | Chamber Dimensions (mm) | Volume | Capacity / Batch | Power | Spindle Speed | Overall Size |
|---|---|---|---|---|---|---|
| TR-FJJ/ST-700 | U1000x2000 | 2.0m³ | 700KG | 4kw | 2R/min | 4280x1460x1900 |
| TR-FJJ/ST-1000 | U1100x2400 | 2.8m³ | 1000KG | 4kw | 2R/min | 4680x1540x2000 |
| TR-FJJ/ST-1500 | U1200x2700 | 3.9m³ | 1500KG | 5.5kw | 2R/min | 5240x1600x2100 |
| TR-FJJ/ST-2000 | U1300x3200 | 4.5m³ | 2000KG | 7.5kw | 2R/min | 5700x1700x2230 |
High Efficiency: Available in multiple capacities to meet various farm sizes. The system separates crushing from fermentation, reducing time and energy consumption.
Durable Design: Main frame is high-quality carbon structural steel; crushing blades are special alloy steel. Features 50mm rock wool insulation.
High Automation: Integrated PLC control with one-touch start and touch-sensitive display for real-time monitoring.
