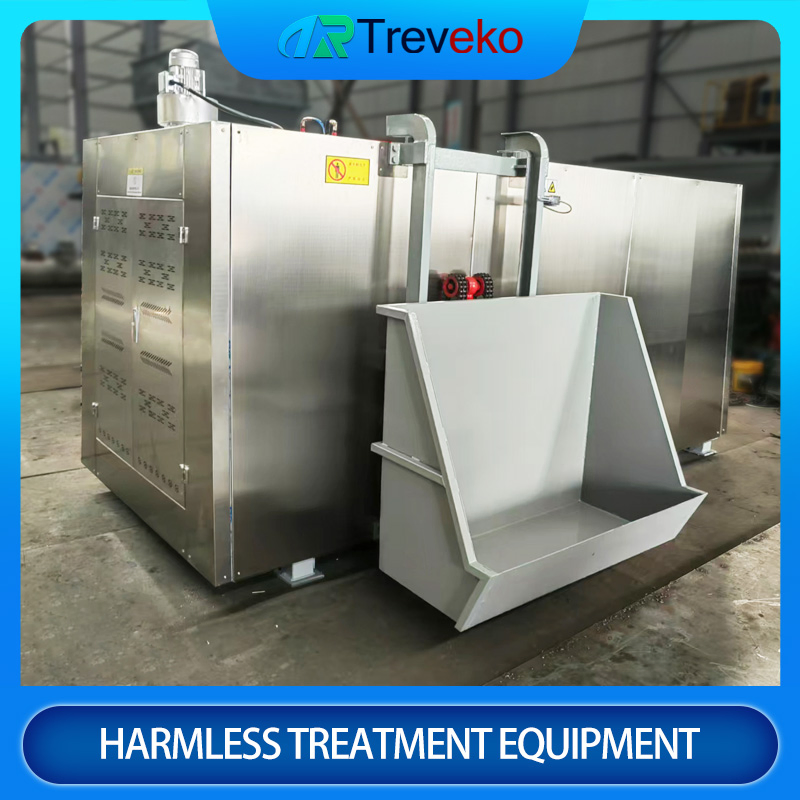

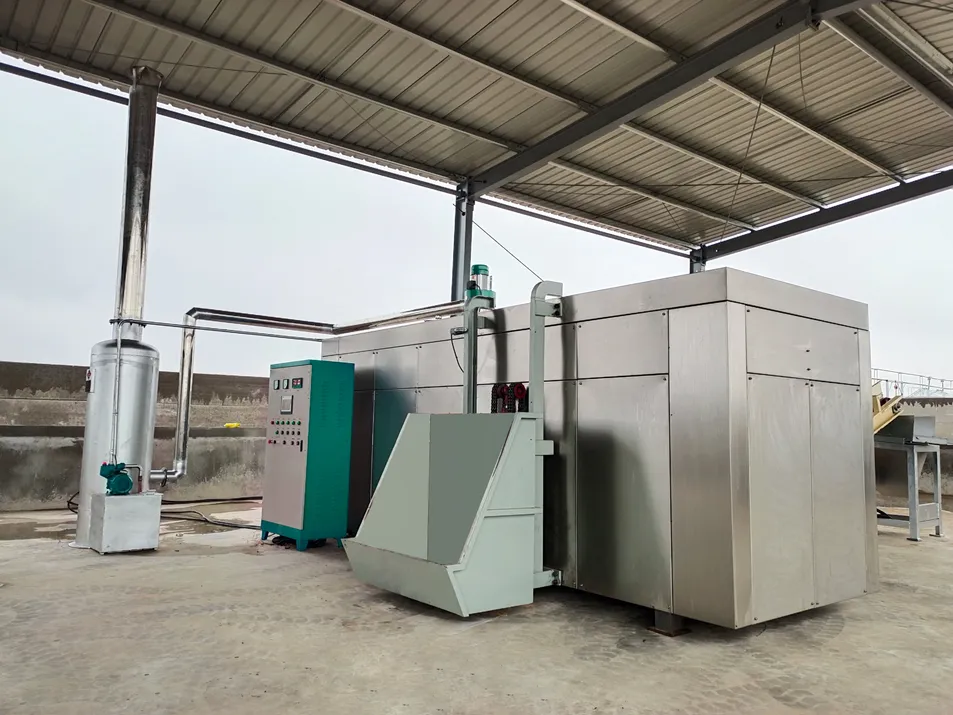

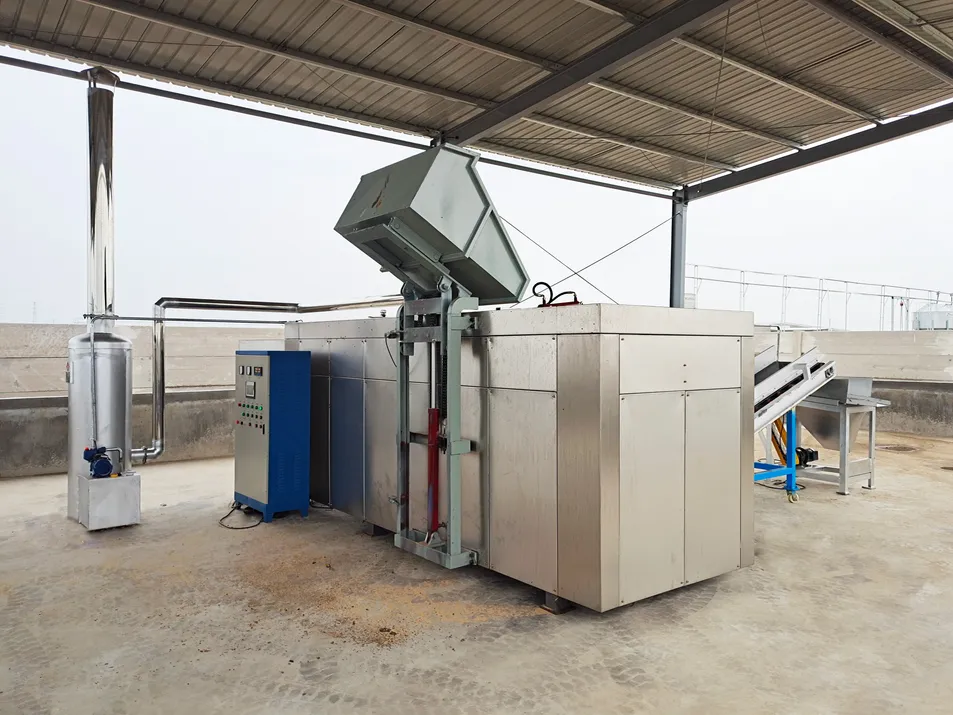

Energy-Saving Fermentation Equipment for Farm Carcass Harmless Disposal

1 / 5

Energy-Saving Fermentation Equipment for Farm Carcass Harmless Disposal

Send Inquiry

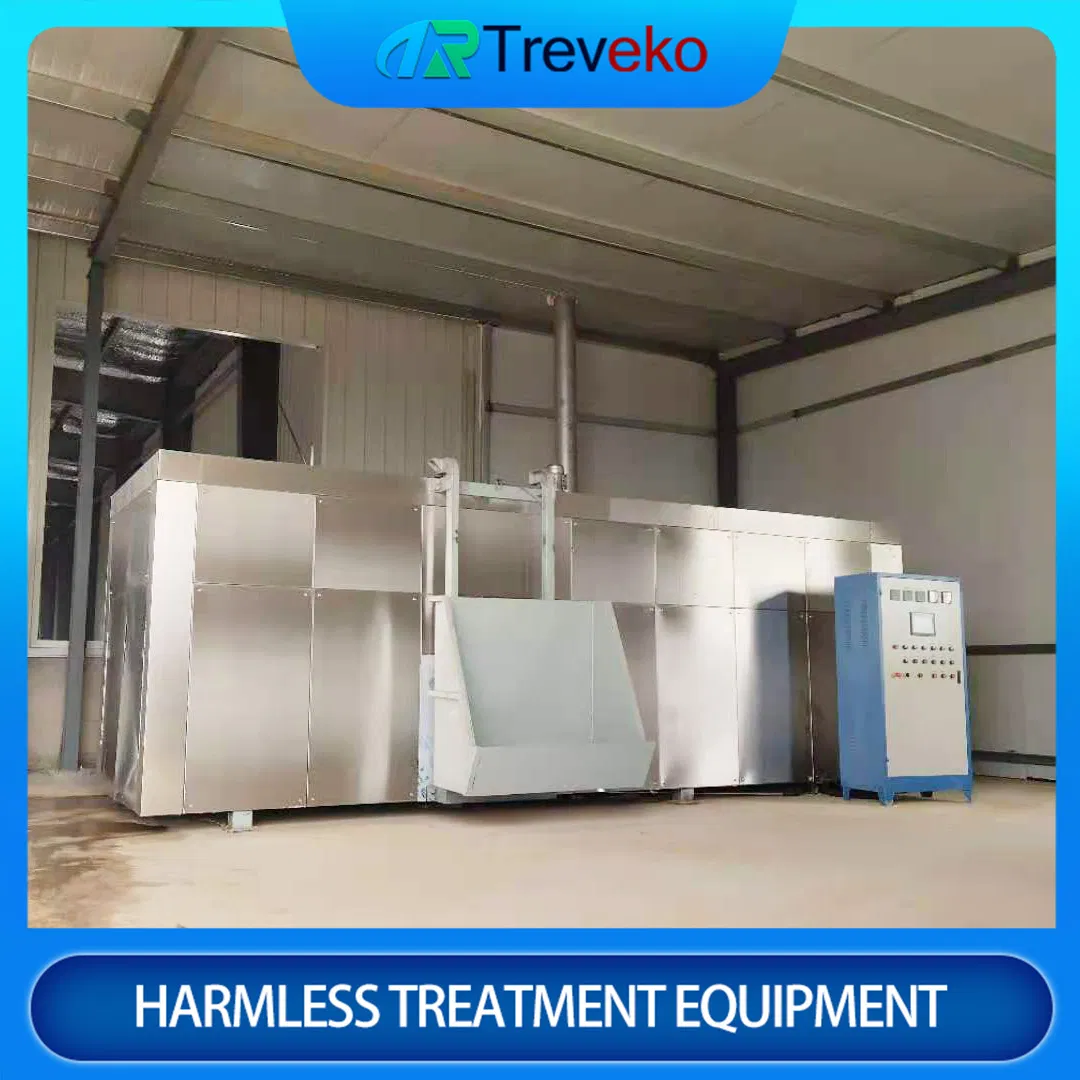

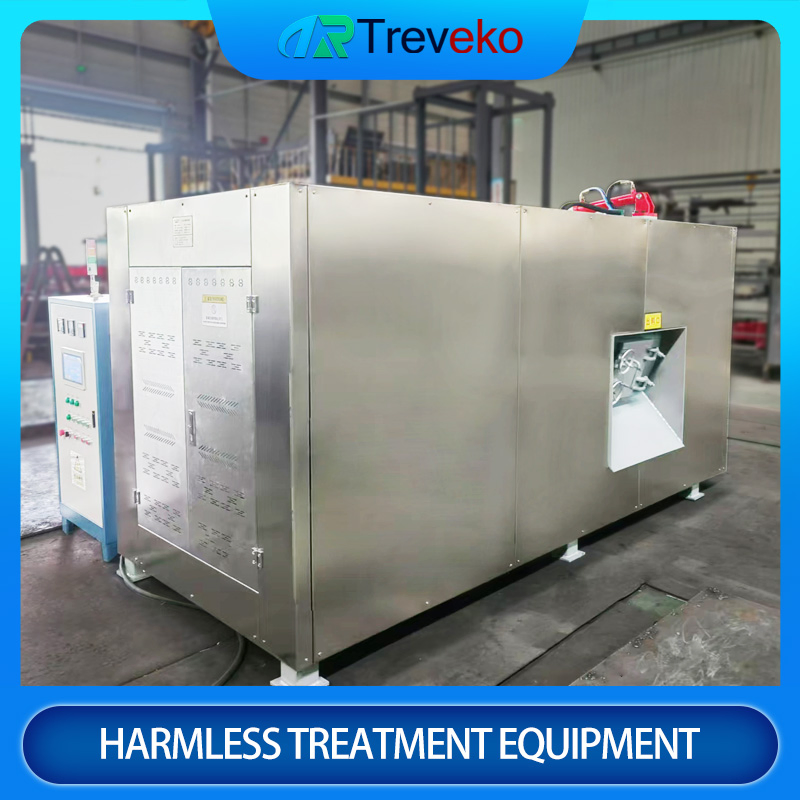

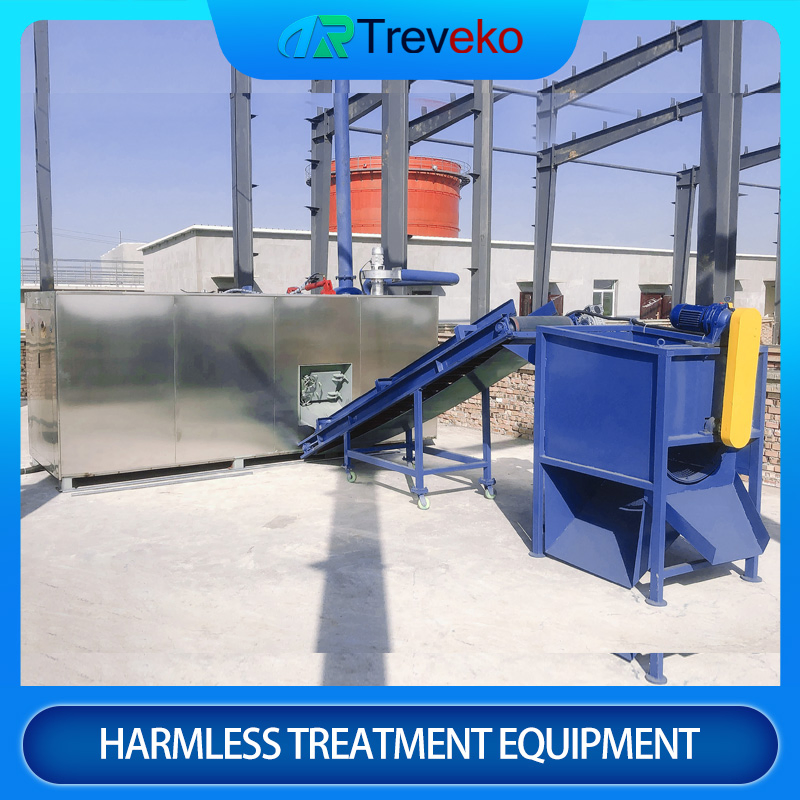

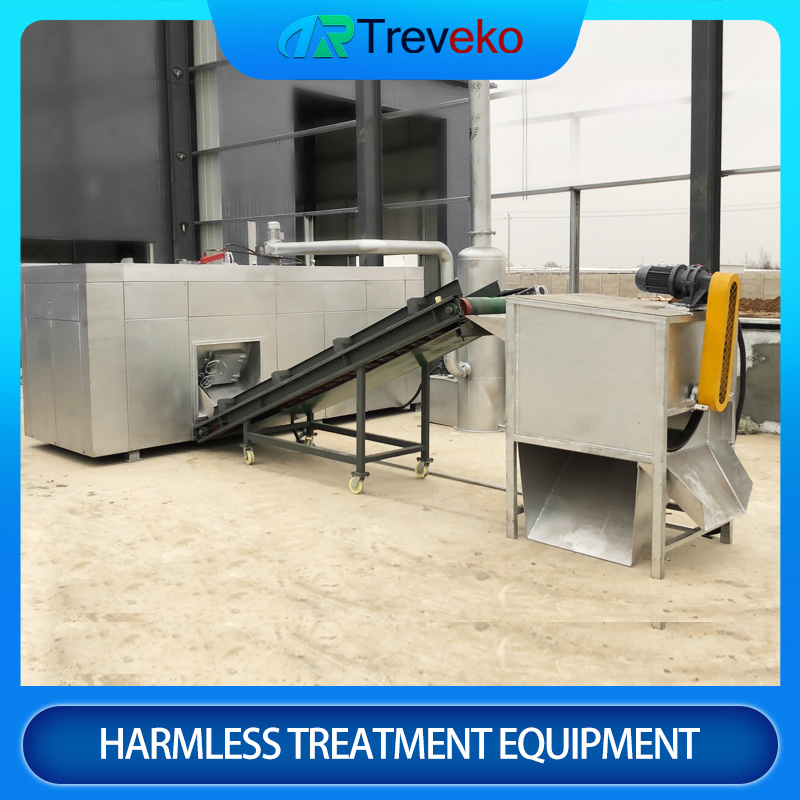

Product Description

A fermentation machine is a specialized piece of equipment that utilizes microbial biochemical processes to efficiently, stably, and harmlessly degrade and transform organic materials under controlled environmental conditions (temperature, humidity, oxygen supply, and pH). Its core function is to accelerate the maturation, stabilization, or resource utilization of organic materials by optimizing fermentation conditions. It is widely used in organic waste treatment, biofertilizer production, feed fermentation, and biomass energy production.

Specifications

Model	Fermentation Chamber Dimensions (mm)	Storage Volume	Processing Volume	Main Unit Power	Spindle Speed	External Dimensions (mm)
TR - FJJ/ST - 700	U1000x2000	2.0m³	700KG/batch	4kw	2R/min	4280x1460x1900
TR - FJJ/ST - 1000	U1100x2400	2.8m³	1000KG/batch	4kw	2R/min	4680x1540x2000
TR - FJJ/ST - 1500	U1200x2700	3.9m³	1500KG/batch	5.5kw	2R/min	5240x1600x2100
TR - FJJ/ST - 2000	U1300x3200	4.5m³	2000KG/batch	7.5kw	2R/min	5700x1700x2230

Equipment Characteristics

1. Intelligent Environmental Control System

Temperature Control Module: Adopts PID intelligent constant temperature technology, working range 20-75℃, accuracy ±1.5℃.

Humidity Regulation: Automatic spraying/ventilation system to maintain material moisture content in the optimal range of 50-65%.

Oxygen Supply Design: Variable frequency aeration or mechanical turning to ensure dissolved oxygen concentration ≥5mg/L, preventing anaerobic decomposition.

2. High-Efficiency Mixing and Mass Transfer

Double Helix Mixing Shaft: Low-speed, high-torque design for three-dimensional uniform material turning.

Permeable Bed Plate: Multi-layer design improves air permeability uniformity and shortens the fermentation cycle by 30-50%.

Anti-adhesion Lining: Food-grade or stainless steel mirror panel for easy cleaning and maintenance.

3. Modular and Automated Design

PLC Control: Preset multiple modes such as "fast fermentation," "deep composting," and "low-temperature drying".

IoT Option: Supports remote monitoring, data export, and fault warning.

Expandability: Standard capacity 1-20m³, expandable through parallel connection.

Related Equipment

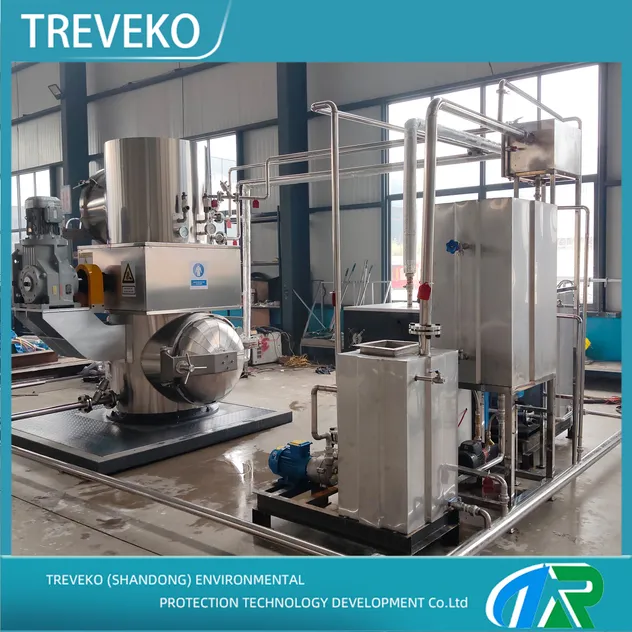

Vertical high-temperature steam sterilizer

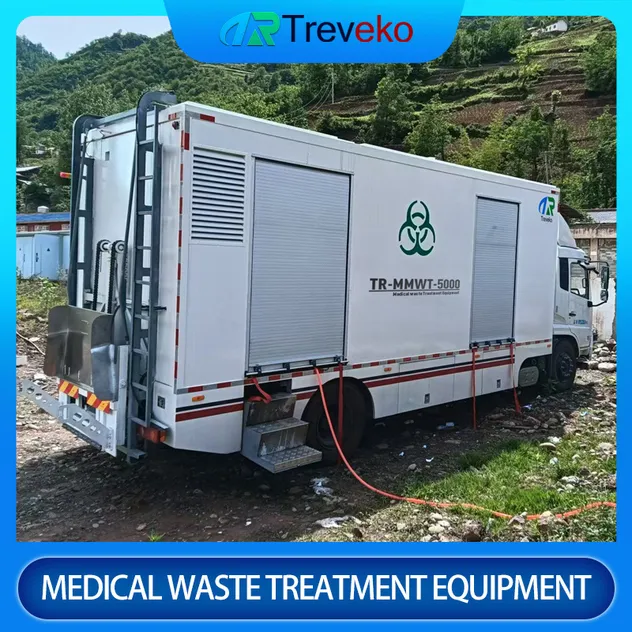

Vehicle-mounted microwave disinfection equipment

Fixed-type microwave sterilization equipment

Small microwave disinfection equipment

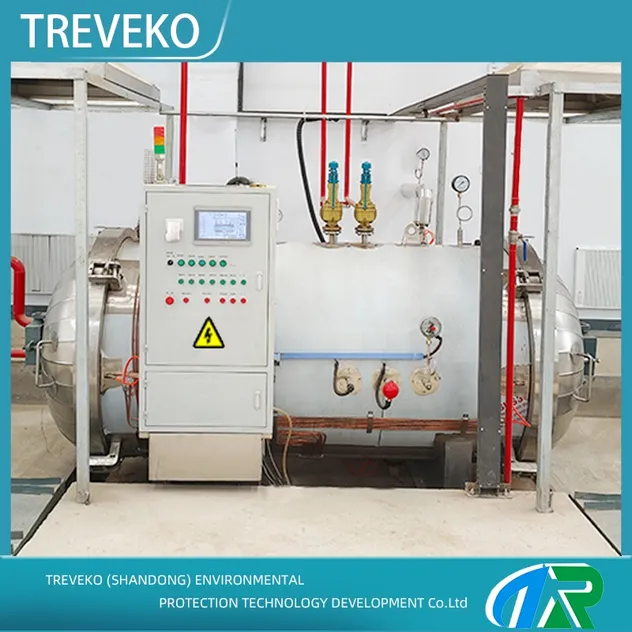

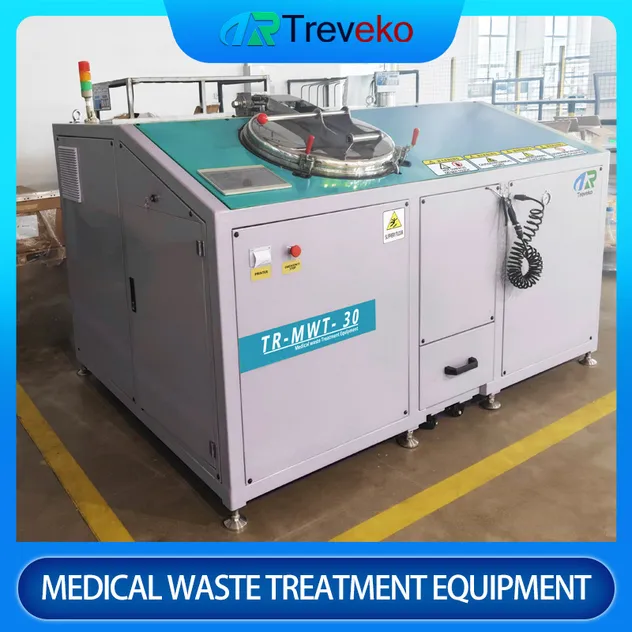

Medical waste sterilization autoclave

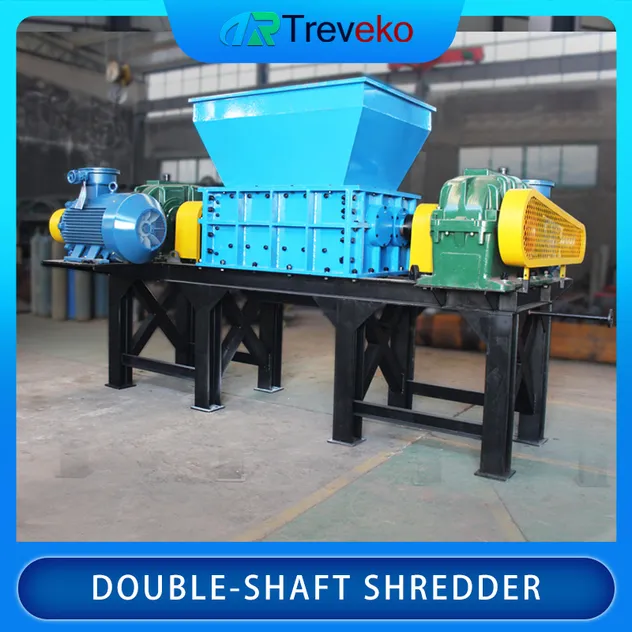

Double-shaft shredder

Customer Visits & Cooperation

Frequently Asked Questions

Is this equipment produced in your own factory?

Yes, we have our own manufacturing facility where all equipment is produced to high-quality standards.

Can the fermentation equipment be customized?

Yes. We support customization of core parameters such as processing capacity, overall dimensions, and control system integration to meet your specific site requirements.

What is the typical delivery timeframe?

Delivery schedules are negotiated based on the customer's actual needs, order volume, and specific customization requirements.

What is the warranty period for this machine?

We provide a 1-year warranty. During this period, we offer free repairs if any quality-related problems emerge.

What is the operating temperature range for the fermentation?

The equipment features an intelligent constant temperature technology with a working range of 20-75℃ and an accuracy of ±1.5℃.

How does the system ensure efficient oxygen supply?

The system utilizes variable frequency aeration or mechanical turning to ensure a dissolved oxygen concentration of ≥5mg/L, effectively preventing anaerobic decomposition.
