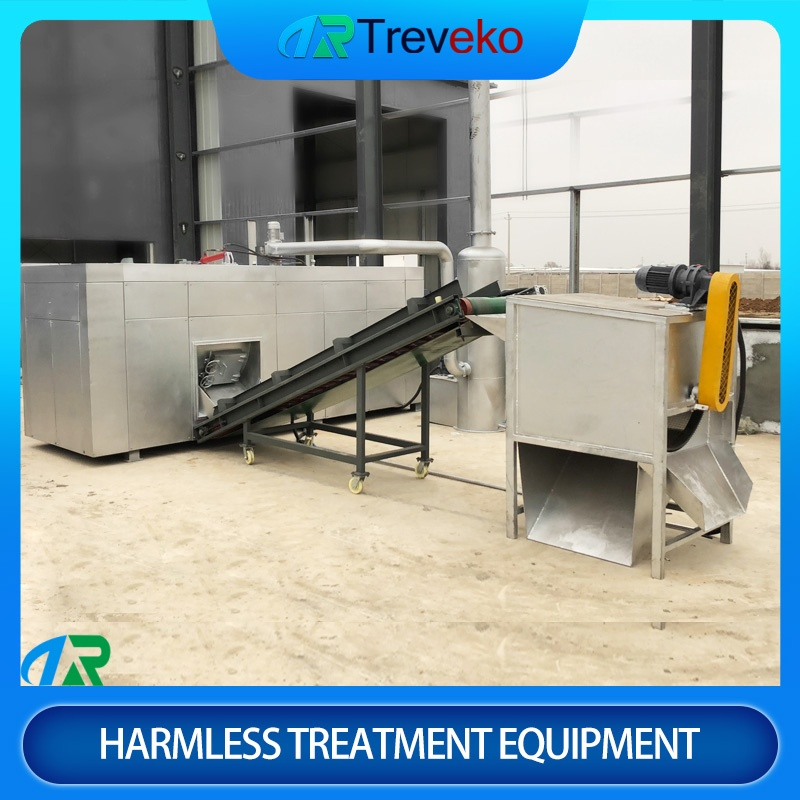

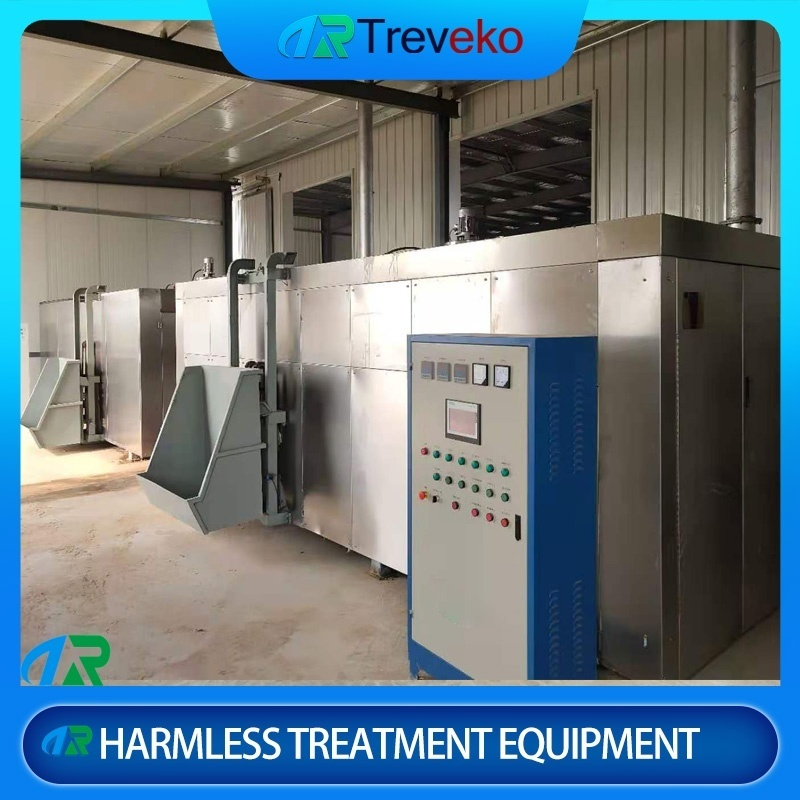

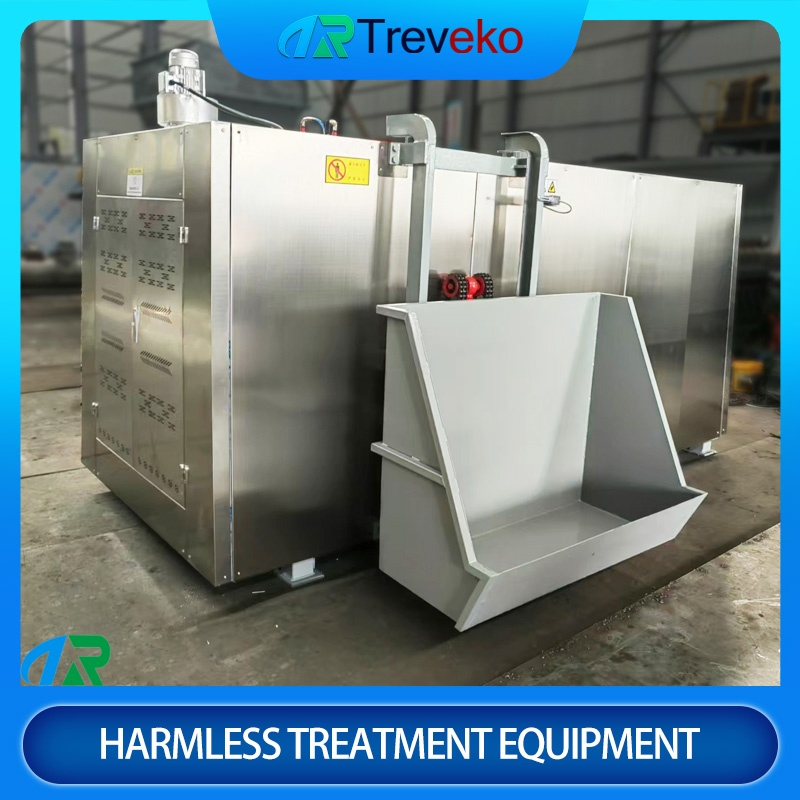

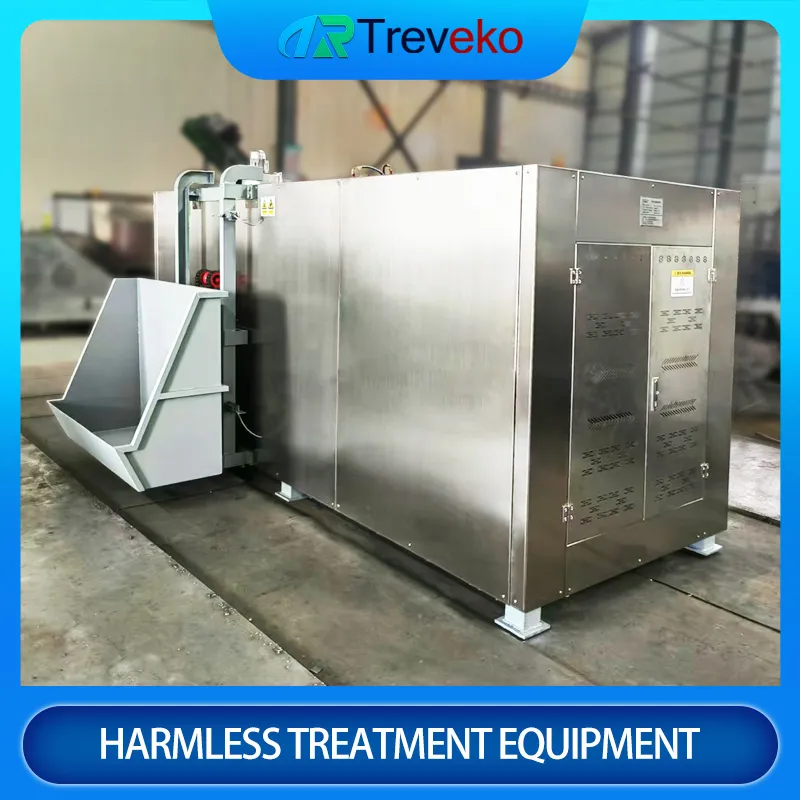

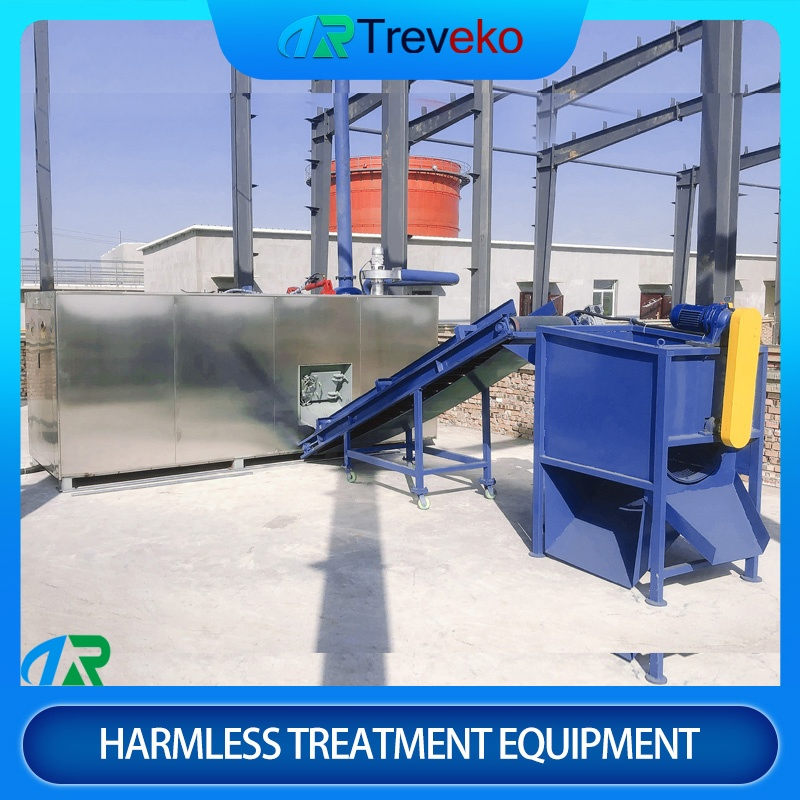

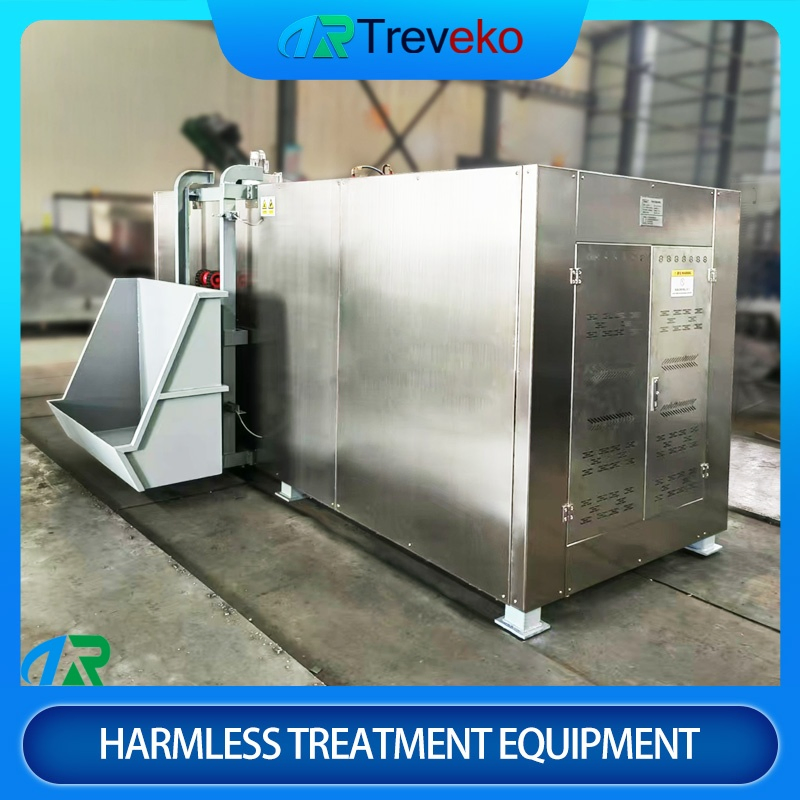

Dual-Function Biodegradation Equipment for Sterilization and Fertilizer Conversion

Product Description

1

Product Overview

Dual-Function Biodegradation Equipment

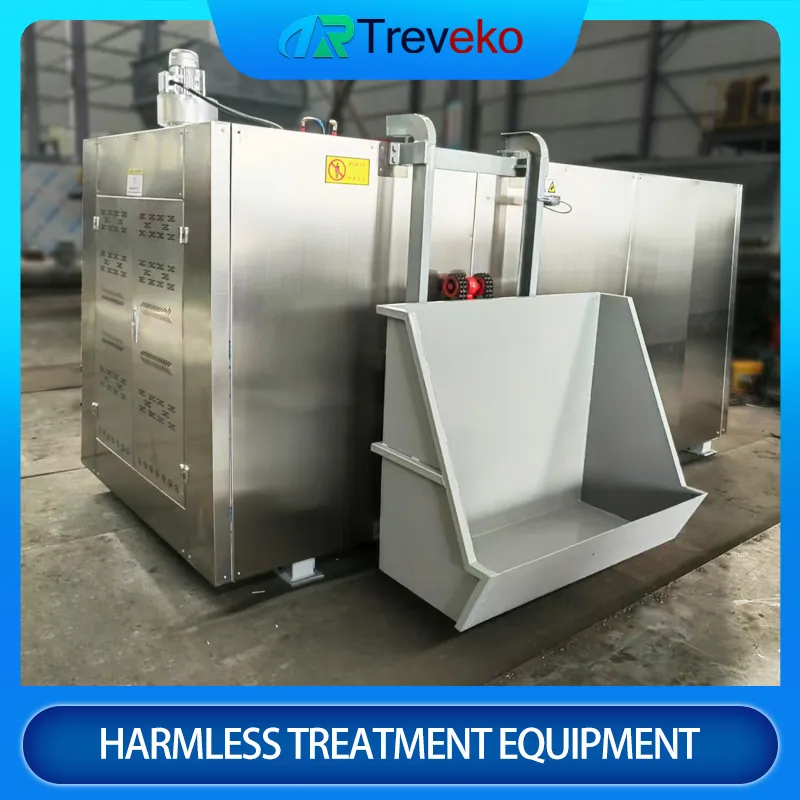

Sterilization and Fertilizer Conversion Equipment

Our company, as an innovative technology enterprise radiating globally, is committed to becoming an industry pioneer in the integration of environmental protection technology and high-end intelligent manufacturing. We focus deeply on the core areas of ecological environment governance and sustainable development. With disruptive technological innovations and systematic solutions, we drive the comprehensive upgrading of the environmental protection industry towards intelligence, refinement, and resource utilization.

We have established a comprehensive industrial ecosystem spanning the entire value chain, from cutting-edge R&D and intelligent manufacturing of core equipment to integrated solution delivery and digital operations services. By strictly adhering to world-class quality standards, we ensure exceptional quality at every stage—from technical concepts to industrial implementation.

2

Main Components of the Equipment

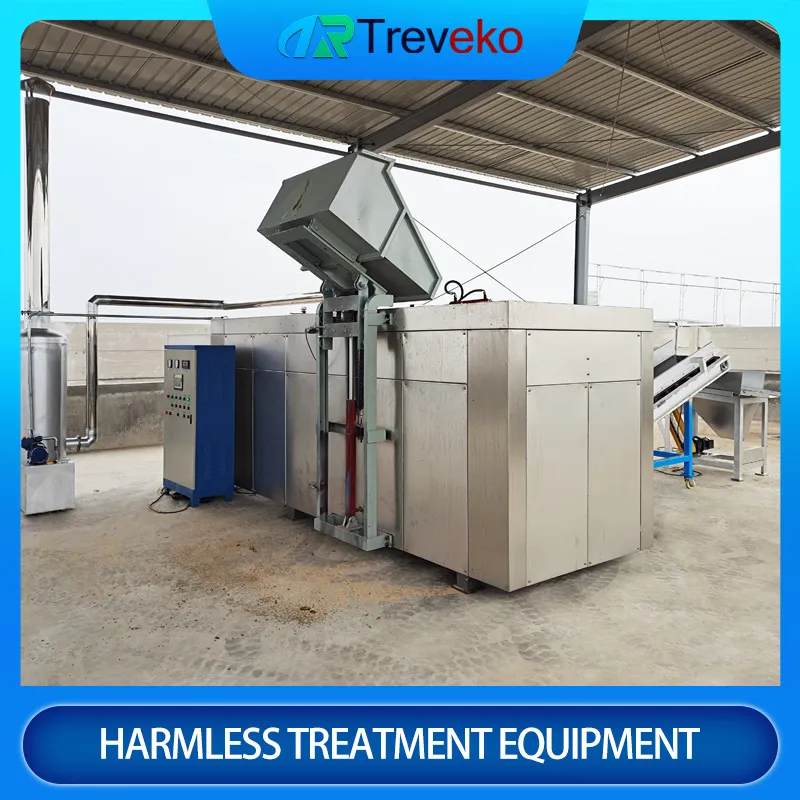

Equipment Components

1. The high-temperature biodegradation system comprises: a material elevator, a carcass crusher, a screw conveyor, a high-temperature aerobic fermentation unit, a belt conveyor, a drum screen, an odor control system, and a control panel. Dead animals are loaded into the elevator's hopper and automatically discharged into the crusher. The crushed carcasses are then transported by the screw conveyor to the fermentation unit.

2. After aerobic fermentation sterilization, the material is automatically discharged onto the belt conveyor and fed into a small drum screen. This process separates animal hair, large bone fragments, and other debris, with the remainder processed into high-efficiency organic fertilizer. Odors are treated through a dedicated exhaust duct and a spray deodorization tower. This equipment is primarily used in the treatment of dead animals in large-scale farms.

3

Product Parameters

Model Chamber Dimensions (mm) Cage Volume Handling Capacity Power Spindle Speed Overall Size (mm)
TR-FJJ/ST-700 U1000x2000 2.0m³ 700KG per batch 4kw 2R/min 4280x1460x1900
TR-FJJ/ST-1000 U1100x2400 2.8m³ 1000KG per batch 4kw 2R/min 4680x1540x2000
TR-FJJ/ST-1500 U1200x2700 3.9m³ 1500KG per batch 5.5kw 2R/min 5240x1600x2100
TR-FJJ/ST-2000 U1300x3200 4.5m³ 2000KG per batch 7.5kw 2R/min 5700x1700x2230
4

Equipment Characteristics

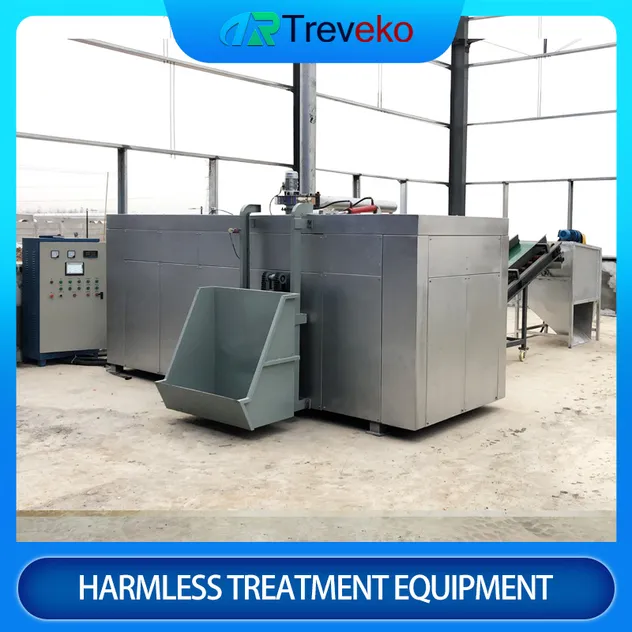

Feature 1
Feature 2

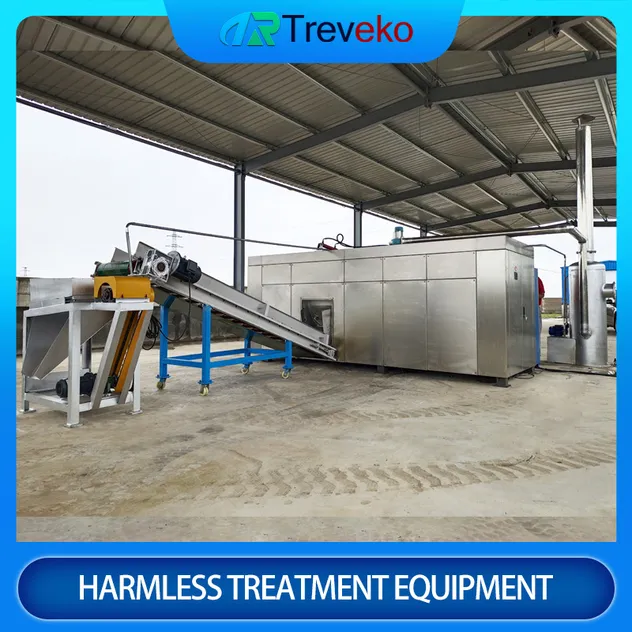

Feature 3
High Efficiency: Available in multiple capacities to meet needs of various farm sizes. Integrated crushing and sterilization increases contact area and ensures uniform fermentation.
Exceptional Durability: Constructed with carbon structural steel and Q235B plates with anti-corrosion treatment. Features alloy steel blades and stainless steel drum screening.
Smart Automation: One-touch start with PLC programming. Touch-sensitive display allows for real-time monitoring of operational parameters.
5

Our Advantages

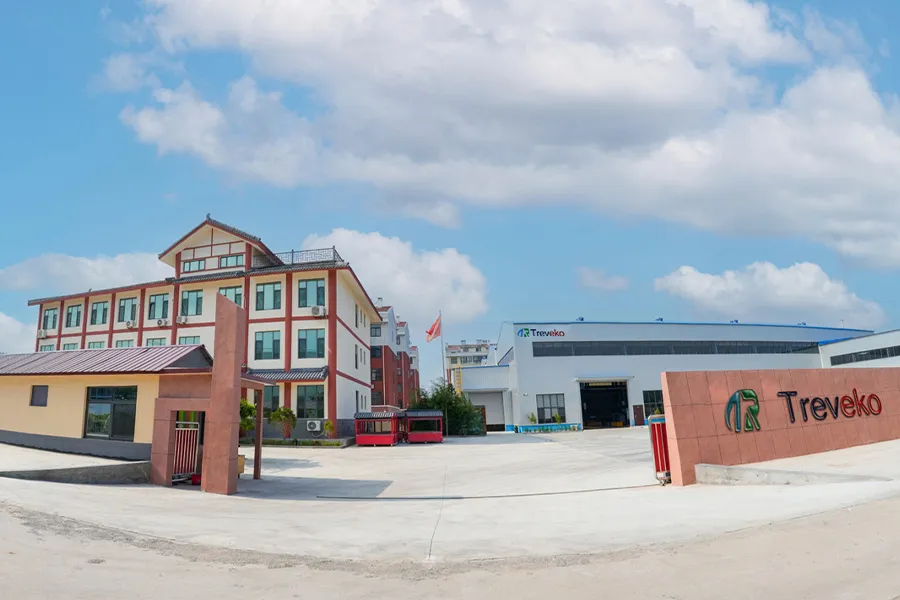

Manufacturing base

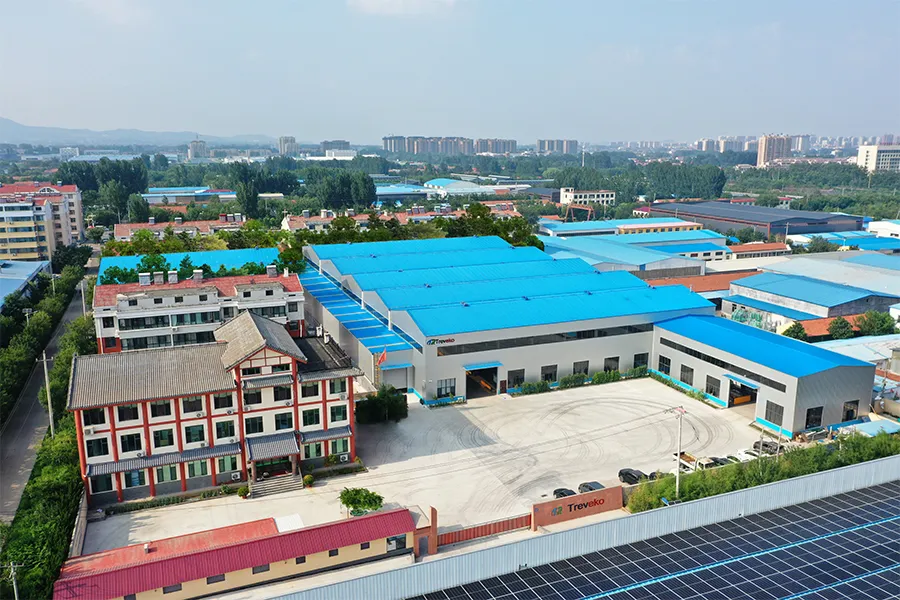

R&D Center

Cutting-edge R&D Platform: We specialize in core technology breakthroughs across waste treatment, solid waste resource utilization, and pollution control, providing end-to-end innovative services.

High-end Manufacturing Base: Focused on intelligent mechatronic systems and customized production lines, we deliver smart, efficient, and low-carbon solutions.

6

Other Equipment Gallery

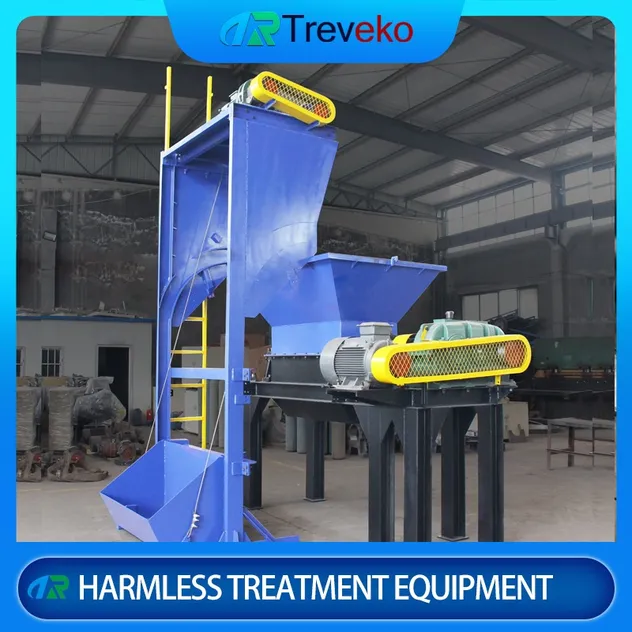

Equipment Display 1

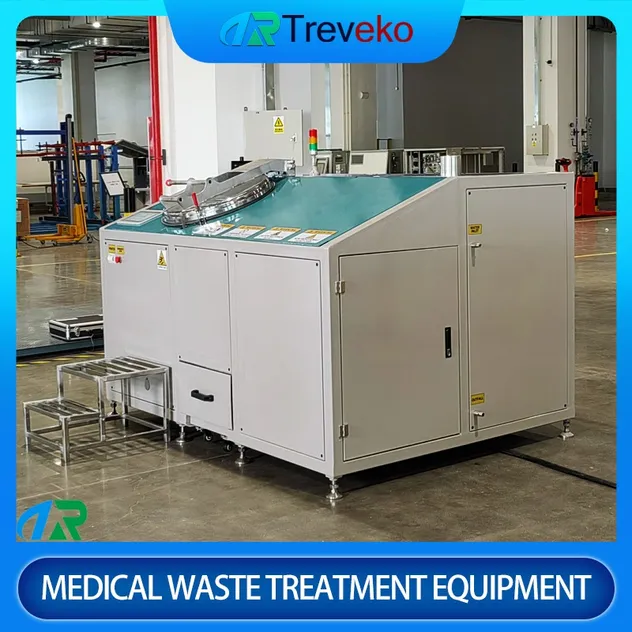

Equipment Display 2

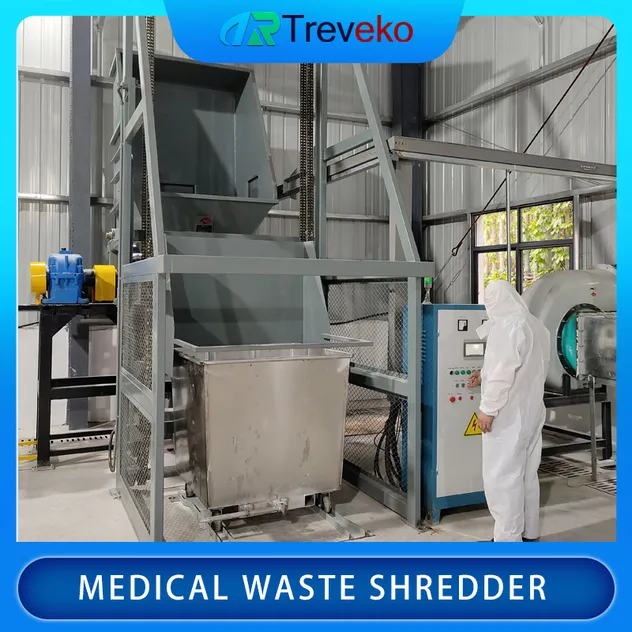

Equipment Display 3

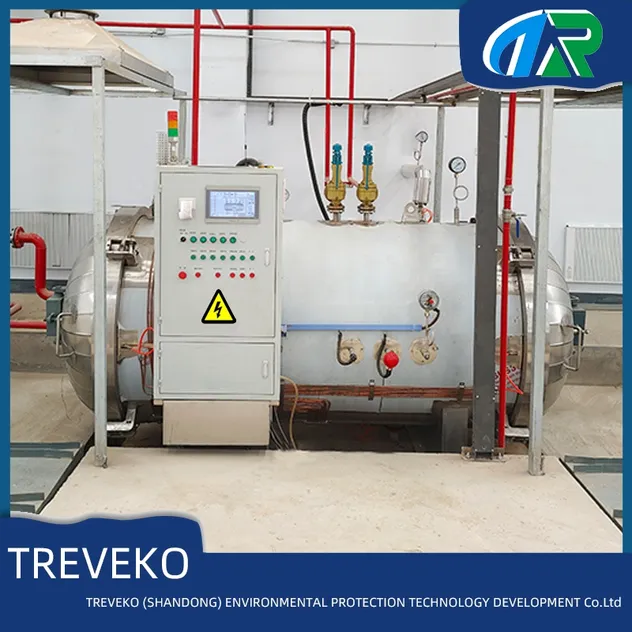

Equipment Display 4

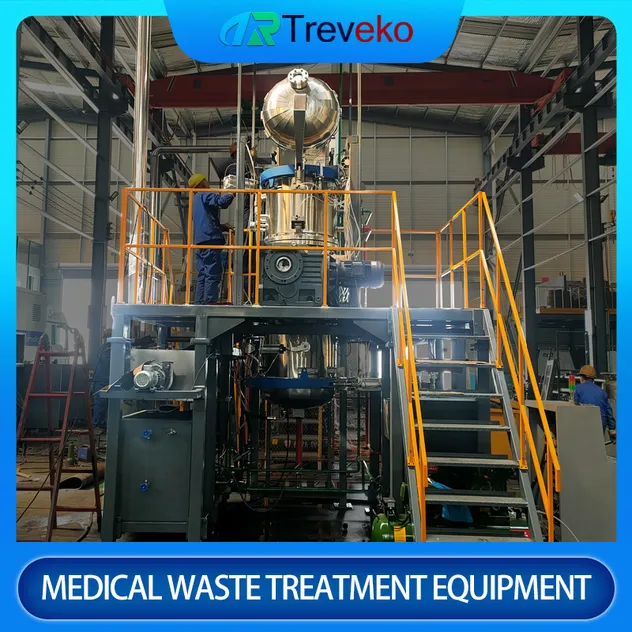

Equipment Display 5

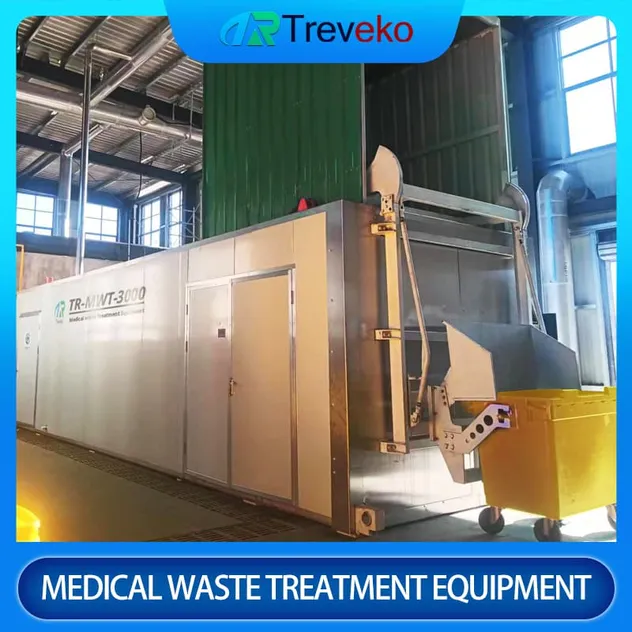

Equipment Display 6
?

Frequently Asked Questions

Is the equipment safe during operation?
Yes, the equipment is equipped with multiple safety protection and anti-pollution designs, making the entire process safe and controllable.
What scenarios is this sterilization equipment suitable for?
It is suitable for community hospitals, clinics, first aid stations, and large-scale farms. It is ideal for on-site emergency disposal to achieve nearby collection and sterilization.
What is the warranty period?
We provide a 1-year warranty and free repair services if quality problems emerge within the warranty period.
How do you ensure the equipment quality?
You can send sample materials for free testing. We will provide a test video, or you are welcome to visit our factory for on-site testing.
How does the system handle odors?
Odors are drawn into a dedicated exhaust duct by a fan and are ultimately neutralized through a specialized spray deodorization tower.
Is the operation fully automated?
Yes, the system features an integrated control system with PLC programming and a one-touch start button for high automation.
