| Model NO. | TR-FJJ/ST-1000 |
|---|---|
| Condition | New |
| Certification | CE |
| Automation | Automatic |
| Screw | Twin-Screw |
| Fermentation Tank Dimensions | U1000X2000 mm |
| Storage Capacity | 2.0m³ |
| Processing Capacity | 700 Kg/Batch |
| Control System | PLC |
| Heating Method | Heat Transfer Oil |
As an innovative technology enterprise, we are committed to becoming an industry pioneer in the integration of environmental protection technology and high-end intelligent manufacturing. Deeply focused on ecological environment governance and sustainable development, we provide disruptive technological innovations and systematic solutions to drive the environmental protection industry towards intelligence, refinement, and resource utilization.
We have established a comprehensive industrial ecosystem spanning the entire value chain, from cutting-edge R&D and intelligent manufacturing of core equipment to digital operations services. By strictly adhering to world-class quality standards, we ensure exceptional quality at every stage.

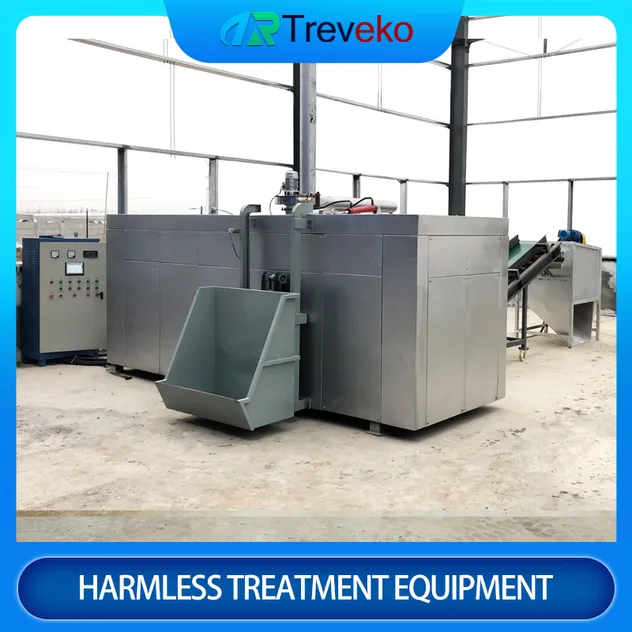

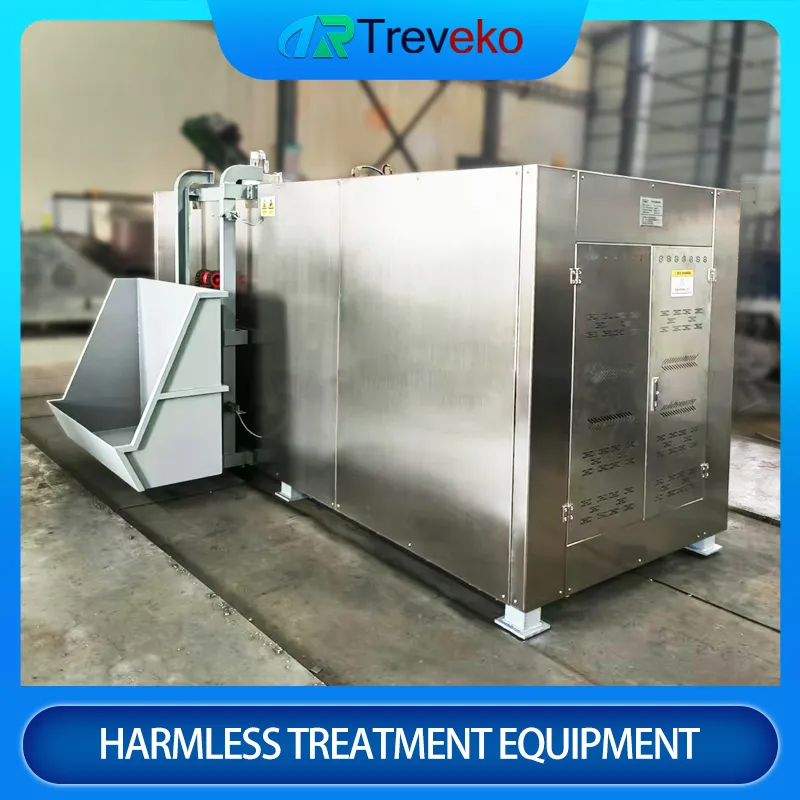

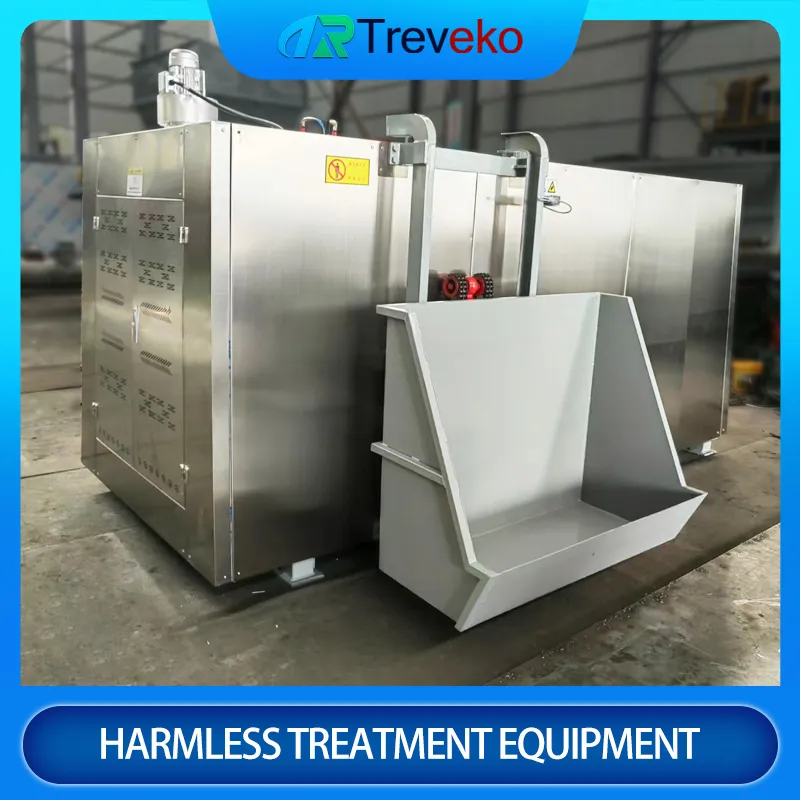

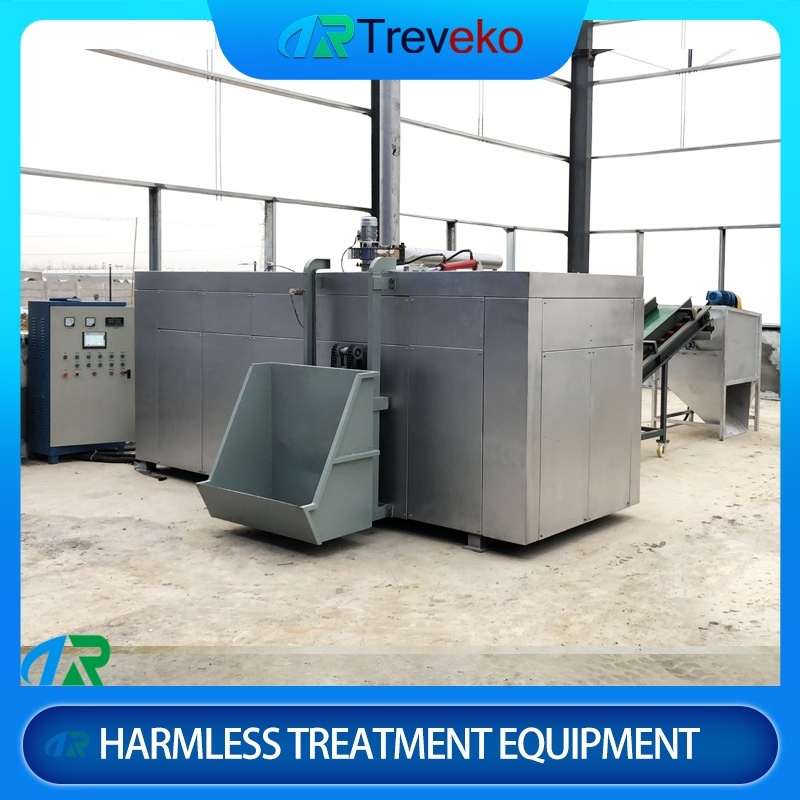

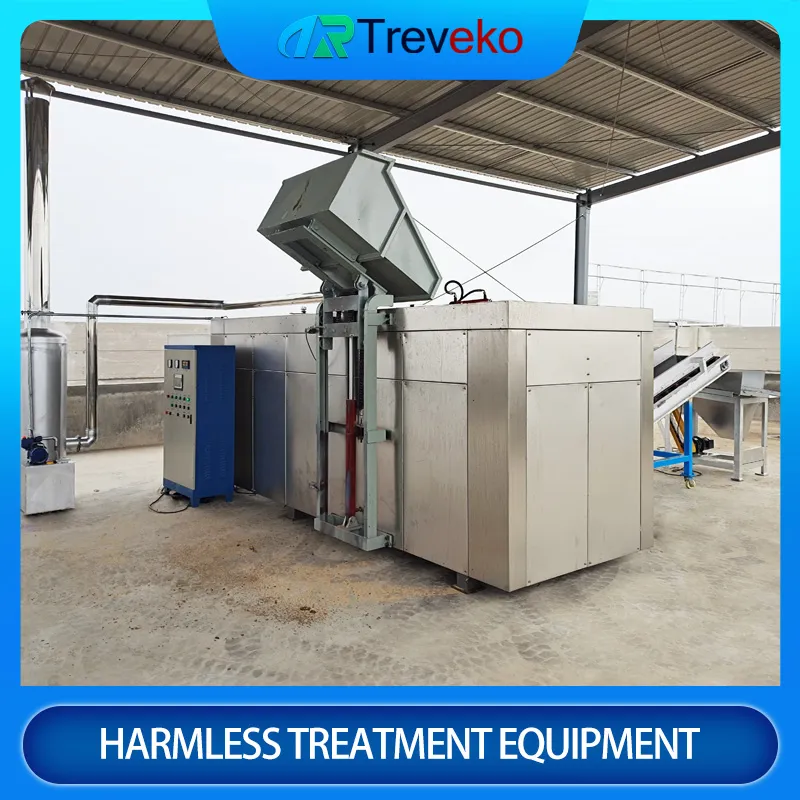

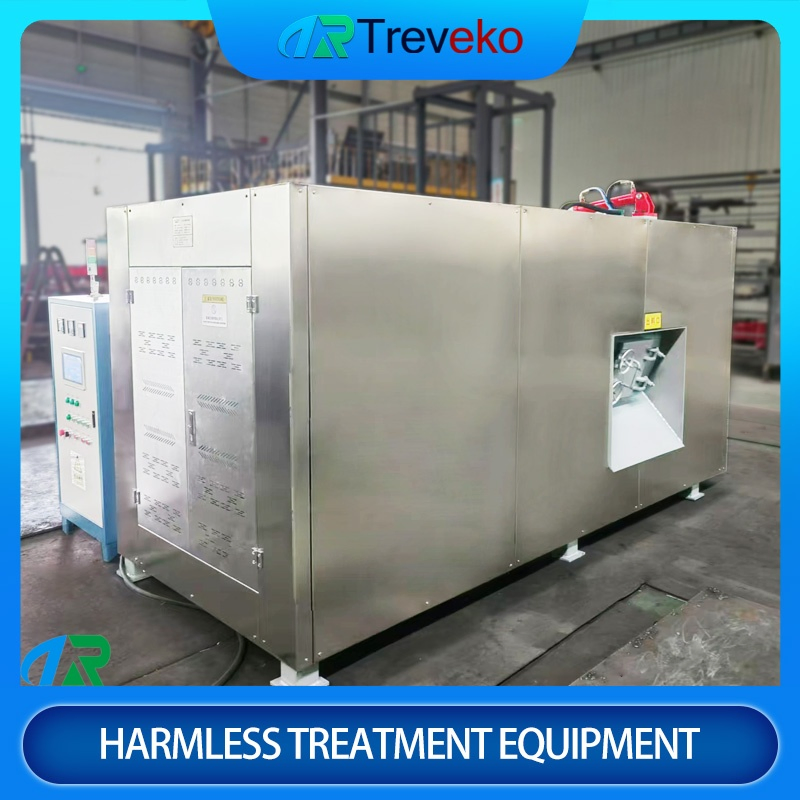

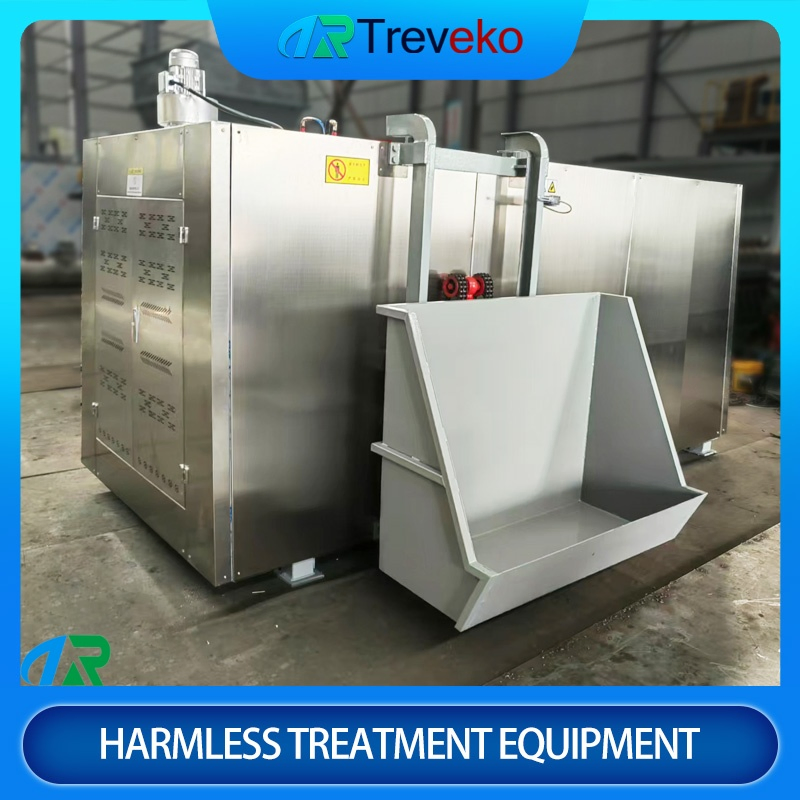

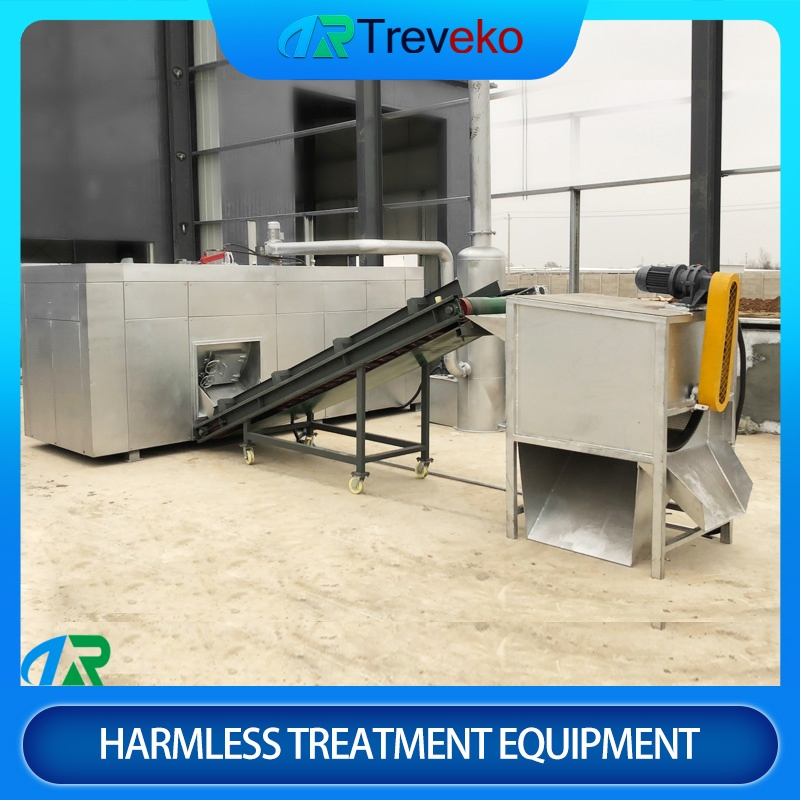

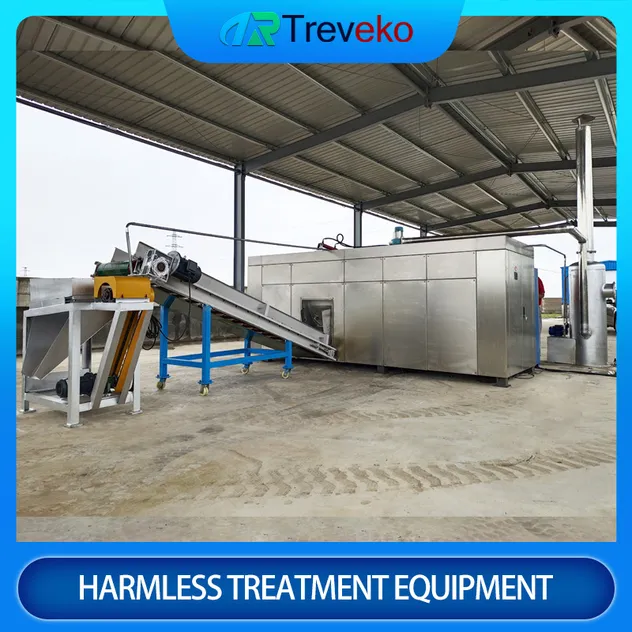

High-Temperature Biodegradation System: Includes a material elevator, carcass crusher, screw conveyor, high-temperature aerobic fermentation unit, belt conveyor, drum screen, odor control system, and a control panel.

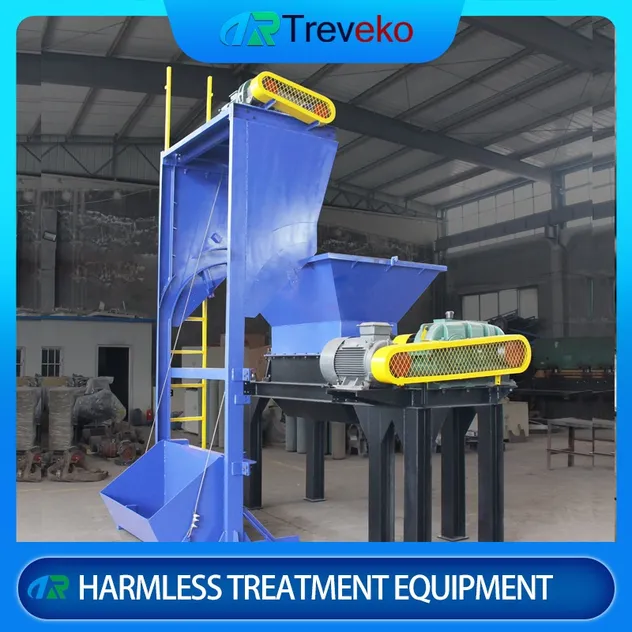

Automated Process: Dead animals are loaded into the elevator's hopper, automatically discharged into the crusher, and transported by the screw conveyor to the fermentation unit.
Resource Utilization: After aerobic fermentation sterilization, the material is processed into high-efficiency organic fertilizer, effectively separating debris like animal hair and large bone fragments.
| Model | Fermentation Chamber (mm) | Cage Volume | Handling Capacity | Power | Spindle Speed | Size (mm) |
|---|---|---|---|---|---|---|
| TR-FJJ/ST-700 | U1000x2000 | 2.0m³ | 700KG/Batch | 4kw | 2R/min | 4280x1460x1900 |
| TR-FJJ/ST-1000 | U1100x2400 | 2.8m³ | 1000KG/Batch | 4kw | 2R/min | 4680x1540x2000 |
| TR-FJJ/ST-1500 | U1200x2700 | 3.9m³ | 1500KG/Batch | 5.5kw | 2R/min | 5240x1600x2100 |
| TR-FJJ/ST-2000 | U1300x3200 | 4.5m³ | 2000KG/Batch | 7.5kw | 2R/min | 5700x1700x2230 |
High Processing Efficiency
Capacities range from 700kg to 3000kg, meeting various farm scales. The system separates crushing from fermentation, reducing processing time and conserving energy.
Exceptional Durability
Constructed with high-quality carbon structural steel and special alloy blades. Thermal oil heating with 50mm rock wool insulation ensures stable operations.
High Automation
Integrated PLC control with a one-touch start button and touch-sensitive display for real-time monitoring of all operational parameters.
